DNS

1 Introduction

Domain name system (DNS) servers match domain names like Kemptechnologies.com to their associated IP addresses, for example, 107.22.236.183. When you type kemptechnologies.com into your web browser's address bar, your computer contacts your current DNS server and asks what IP address is associated with kemptechnologies.com.

The Kemp LoadMaster is used to load balance the DNS workload. The LoadMaster offers advanced Layer 4 and Layer 7 server load balancing, SSL Acceleration and a multitude of other advanced Application Delivery Controller (ADC) features. The LoadMaster intelligently and efficiently distributes user traffic among the application servers so that users get the best experience possible.

1.1 Document Purpose

This document provides the recommended LoadMaster settings used when load balancing the DNS workload. The Kemp Support Team is available to provide solutions for scenarios not explicitly defined. The Kemp support site can be found at: https://support.kemptechnologies.com

1.2 Intended Audience

This document is intended to be read by anyone who is interested in configuring the LoadMaster to optimize the DNS server.

1.3 Template

Kemp has developed a template containing our recommended settings for this workload. You can install this template to help create Virtual Services (VSs) because it automatically populates the settings. You can use the template to easily create the required VSs with the recommended settings. For some workloads, additional manual steps may be required such as assigning a certificate or applying port following. These steps are covered in the document, if needed.

You can remove templates after use and this will not affect deployed services. If needed, you can make changes to any of the VS settings after using the template.

Download released templates from the following page: LoadMaster Templates.

For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description on the Kemp Documentation page.

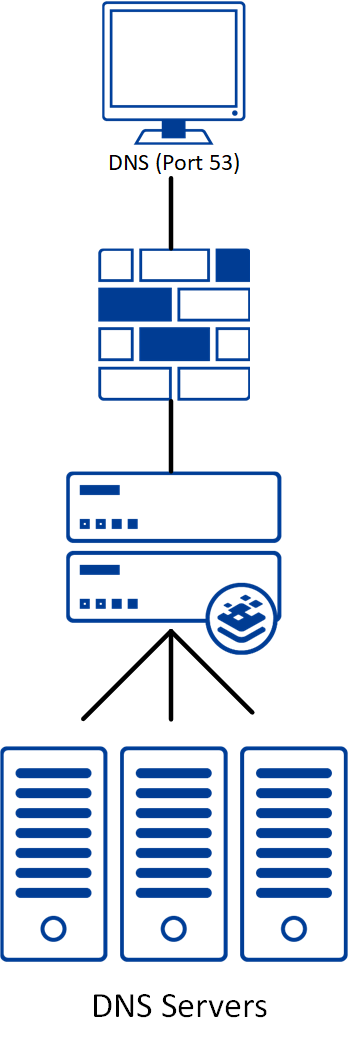

2 Architecture


3 Configure the LoadMaster

The deployed DNS environment determines which of the following setups is used.

3.1 Enable Subnet Originating Requests Globally

It is best practice to enable the Subnet Originating Requests option globally.

In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.

In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.

Enable Subnet Originating Requests Globally v.2.png

When Subnet Originating Requests is enabled, the Real Server sees traffic originating from 10.20.20.21 (LoadMaster eth1 address) and responds correctly in most scenarios.

With Subnet Originating Requests disabled, the Real Server sees traffic originating from 10.0.0.15 (LoadMaster Virtual Service address on eth0) and responds to eth0 which could cause asymmetric routing.

When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to enable Subnet Originating Requests on a per-Virtual Service basis.

To enable Subnet Originating Requests globally, follow the steps below:

1. In the main menu of the LoadMaster User Interface (UI), go to System Configuration > Miscellaneous Options > Network Options.

2. Select the Subnet Originating Requests check box.

3.2 Enable Check Persist Globally

It is recommended that you change the Always Check Persist option to Yes – Accept Changes. Use the following steps:

1. Go to System Configuration > Miscellaneous Options > L7 Configuration.

2. Click the Always Check Persist drop-down arrow and select Yes – Accept Changes.

3.3 Create the DNS Virtual Services

The following sections describe the recommended settings for the DNS Virtual Services.

3.3.1 Create the DNS Virtual Services Using the Template

The following are the steps involved and the recommended settings to configure the DNS Virtual Service:

1. In the main menu of the LoadMaster Web User Interface (WUI), go to Virtual Services > Add New.


2. Type a valid Virtual Address.

3. Select the DNS template from the Use Template drop-down list.

4. Click Add this Virtual Service.

If adding a DNS Virtual Service on a network not associated with the interface containing the LoadMaster's global default gateway, a Virtual Service Default Gateway is required. It is not possible to set a default gateway on a UDP Virtual Service. To set the default gateway for a UDP Virtual Service, use this workaround:

1. Create a TCP Virtual Service with the same IP address (the port is irrelevant). Do not add any Real Servers.

2. Set the Default Gateway for that Virtual Service. It will also affect the UDP Virtual Service (that is, the required one).

Default gateways only work on IP addresses, so having two Virtual Services with the same IP address and different default gateways does not work.

3.3.2 Configure the DNS TCP Virtual Service

The following are the steps involved and recommended settings to configure the DNS TCP Virtual Service:

1. Select View/Modify Services under Virtual Services in the main menu on the left.


2. Click Modify on the DNS TCP Virtual Service.

3. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Enter the address of the relevant Real Server.

d) Confirm that port 53 is entered.

e) Click Add this Real Server, then click OK to the pop-up message.

f) Repeat the steps above to add more Real Servers as needed, based on your environment.

3.3.2.1 DNS TCP Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.

API Parameters

API Value

port

53

prot

tcp

VStype

gen

SubnetOriginating 1
Idletimeout 180
Schedule lc
CheckType tcp

3.3.3 Configure the DNS UDP Virtual Service

The following are the steps involved and the recommended settings to configure the DNS UDP Virtual Service:

1. Select View/Modify Services under Virtual Services in the main menu on the left.


2. Click Modify on the DNS UDP Virtual Service.

3. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Enter the address of the relevant Real Server.

d) Confirm that port 53 is entered.

e) Click Add this Real Server, then click OK to the pop-up message.

f) Confirm that port 53 is entered.

g) Click Add this Real Server, then click OK to the pop-up message.

h) Repeat the steps above to add more Real Servers as needed, based on your environment.

3.3.3.1 DNS UDP Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.

API Parameters

API Value

port

53

prot

udp

VStype

gen

SubnetOriginating 1
Idletimeout 3
Schedule lc
CheckType dns

References

Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.

Virtual Services and Templates, Feature Description

Last Updated Date

This document was last updated on 19 September 2022.
