MS Exchange 2019
Contents
1 Introduction
The Kemp LoadMaster combines versatility with ease-of-use to speed deployment of the complete portfolio of advanced messaging applications and protocols used by Microsoft Exchange 2019 (Exchange 2019), including Outlook on the Web, MAPI/HTTP, Outlook Anywhere (OA), Exchange ActiveSync (EAS), Simple Mail Transfer Protocol (SMTP), Post Office Protocol version 3 (POP3), Internet Message Access Protocol version 4 (IMAP4) and Office Online Server (OOS). With built-in SSL acceleration and/or overlay, the LoadMaster offloads a key source of CPU drain to improve the capacity of the Exchange 2019 infrastructure. Layer 7 health checking at the LoadMaster ensures that if one of the client access components becomes inaccessible, the load balancer will take that component offline for that server, while automatically re-routing and reconnecting users to other functioning servers.
The entire Kemp LoadMaster product family, including the Virtual LoadMaster (VLM) supports Exchange 2019, and includes a comprehensive first year warranty and technical support agreement.
1.1 About This Manual
This manual addresses how to deploy and configure a LoadMaster appliance with Exchange 2019 using Kemp application templates.
Kemp’s LoadMaster family of products is available in various models to support networks of different throughput requirements. Information in this manual applies to all LoadMaster models.
1.2 Prerequisites
This guide assumes the reader is a network administrator or familiar with networking and general computer terminology. It is further assumed that the Exchange 2019 environment is set up and the Kemp LoadMaster is installed.
LoadMaster documentation is available at https://www.kemptechnologies.com/documentation.
At a minimum, you should have:
- Installed the Microsoft Servers, Active Directories, and followed other Microsoft requirements.
- Installed the LoadMaster on the same network as the servers.
- Established access to the LoadMaster Web User Interface (WUI).
2 Exchange 2019 Overview
Microsoft Exchange Server is a mail server, calendaring software, and contact manager. It runs on Windows Server and is part of the Microsoft Servers line of products. The improvements made in Exchange 2019 have made it easier to load balance Exchange-related traffic.
Exchange 2019 includes the following solutions for switchover and failover redundancy:
- High availability: Exchange 2019 uses Database Availability Groups (DAGs) to keep multiple copies of your mailboxes on different servers synchronized. That way, if a mailbox database fails on one server, users can connect to a synchronized copy of the database on another server.
- Site resilience: You can deploy two active directory sites in separate geographic locations, keep the mailbox data synchronized between the two, and have one of the sites take on the entire load if the other fails.
- Online mailbox moves: During an online mailbox move, email accounts are still accessible. Users are only locked out for a brief period of time at the end of the process when the final synchronization occurs. Online mailbox moves can be performed across forests or in the same forest.
- Shadow redundancy: Shadow redundancy protects the availability and recoverability of messages while they are in transit. With shadow redundancy, the deletion of a message from the transport databases is delayed until the transport server verifies that all the next hops for that message are completed. If any of the next hops fail before reporting successful delivery, the message is resubmitted for delivery to the hop that did not complete.
2.1 Understanding Server Load Balancing
Server load balancing is a way to manage which servers receive traffic. Server load balancing provides failover redundancy to ensure users continue to receive service in case of failure. It also enables your deployment to handle more traffic than one server can process while offering a single host name for clients.
Server load balancing serves two primary purposes. It reduces the impact of server failures within an exchange organization. In addition, server load balancing ensures that the load on the CAS and transport services are optimally distributed.
As OWA is rendered on the same server that is hosting the user’s mailbox database; if a client hits a different CAS, there is no performance degradation because the session rendering for that user is already up and running.
Forms-based authentication is improved. The authentication cookie is provided to the user after logon and it is encrypted using the CAS’s SSL certificate. This allows a logged in user to resume their session on a different CAS without having to re-authenticate (if servers share the same SSL certificate).
2.2 Enable Subnet Originating Requests Globally
It is best practice to enable the Subnet Originating Requests option globally.
In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.
In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.
When Subnet Originating Requests is enabled, the Real Server sees traffic originating from 10.20.20.21 (LoadMaster eth1 address) and responds correctly in most scenarios.
With Subnet Originating Requests disabled, the Real Server sees traffic originating from 10.0.0.15 (LoadMaster Virtual Service address on eth0) and responds to eth0 which could cause asymmetric routing.
When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to enable Subnet Originating Requests on a per-Virtual Service basis.
To enable Subnet Originating Requests globally, follow the steps below:
1. In the main menu of the LoadMaster User Interface (UI), go to System Configuration > Miscellaneous Options > Network Options.
2. Select the Subnet Originating Requests check box.
2.3 100-Continue Handling
To avoid issues with Exchange Web Services, especially in hybrid configuration, configure 100-continue handling to comply with RFC-7231 instead of the standard setting of RFC-2616.
To resolve this issue, apply the following setting on the Kemp LoadMaster.
100-Continue handling = RFC-7231 Complaint
1. To select RFC-7231 Compliant globally, follow the steps below:
a) In the main menu of the LoadMaster WUI, go to System Configuration > Miscellaneous Options > L7 Configuration.
b) Select RFC-7231 Complaint under 100-Continue Handling.
2.4 Additional L7 Header
When using the built-in Mail client on Mac, you may experience connectivity issues. This happens due to how the Mail client on Mac handles Persistent-Auth headers from the Exchange server. This behavior is not present on Outlook for Mac clients or any Windows Office clients.
To resolve this issue, apply the following settings on the Kemp LoadMaster.
Additional L7 Header = None
To select None for Additional L7 Header globally, follow the steps below:
1. In the main menu of the LoadMaster WUI, go to System Configuration > Miscellaneous Options > L7 Configuration.
2. Select None under Additional L7 Header.
3 Virtual Service Templates
Kemp have developed templates containing our recommended settings for Exchange 2019. These templates can be installed on the LoadMaster and can be used when creating each of the Virtual Services. Using a template automatically populates the settings in the Virtual Services. This is quicker and easier than manually configuring each Virtual Service. If needed, you can make changes to any of the Virtual Service settings after using the templates.
Released templates can be downloaded from the Kemp documentation page: http://www.Kemptechnologies.com/documentation/.
For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description.
This guide outlines the steps for setting up Virtual Services using Kemp Application Templates. The Exchange 2019 templates currently available are grouped in three downloadable files as follows:
- Exchange2019Core
- This file contains templates for non-SSL offloaded HTTPS, SSL offloaded HTTPS, and SMTP Virtual Services.
- This is the primary set of services required to balance Exchange 2019.
- Exchange2019ESP
- This set contains individual templates for a HTTPS service with SSL offloading and an SMTP service, both with ESP enabled.
- These services are only necessary if you want to use ESP functionality.
- Exchange2019Additional
- This set contains templates for IMAP, POP, and SMTP services, including variants for STARTTLS and SSL secured services.
4 Configuring Virtual Services for Exchange 2019
Follow the instructions below to set up an Exchange Virtual Services using application templates. To configure the Virtual Services using the Application Programming Interface (API), refer to the RESTful API on the Kemp documentation page.
The Exchange 2019 Virtual Service Recommended API Settings (Optional) section outlines the API settings and values. You can use this information when using the Kemp LoadMaster API and automation tools.
4.1 HTTPS Offloaded and Reencrypt without ESP
The steps are the same when using Exchange HTTPS Offload and Exchange HTTPS Reencrypt with ESP application templates. To add the Virtual Services for Exchange HTTPS Offload or Exchange HTTPS Reencrypt, using the template, follow the steps below:
1. Click Virtual Services.
2. Click Add New.
3. Enter a Virtual Address.
4. Select the Exchange 2019 HTTPS Offloaded or the Exchange 2019 HTTPS ReEncrypted template from the Use Template drop-down list depending on your preference.
5. Click Add This Virtual Service.
4.1.1 Add SSL/TLS Certificate
This guide assumes an SSL/TLS certificate is imported into the LoadMaster. For more information and steps for SSL/TLS configuration, refer to the SSL Accelerated Services Feature Description on the Kemp documentation page.
1. Click View/Modify Services in the left-hand navigation.
2. Click Modify for the Exchange 2019 HTTPS Offloaded Virtual Service on port 443 (or Exchange 2019 HTTPS Reencrypted if that was selected during the creation)
3. Expand SSL Properties (Acceleration Enabled).
4. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.
5. Click Set Certificate.
The Reencrypt check box is selected when using the Exchange 2019 HTTPS Reencrypted with ESP template.
Add the Real Servers
a) Click View/Modify Services in the left-hand navigation.
b) Click Modify for the Exchange 2019 HTTPS Offloaded Virtual Service on port 443 (or the Exchange 2019 HTTPS Reencrypted if that was selected during the creation).
c) Expand the SubVSs section.
d) Click Modify for Exchange 2019 HTTPS Offloaded - ActiveSync (or the Exchange 2019 HTTPS Reencrypted - ActiveSync if that was selected during the creation).
e) Expand the Real Servers section.
f) Click Add New.
g) For the Real Server Address, enter the IP Address for one of the Exchange Servers.
h) Select the Add to all SubVSs check box.
i) Click Add This Real Server.
j) Add additional Real Servers using the Add to all SubVSs check box.

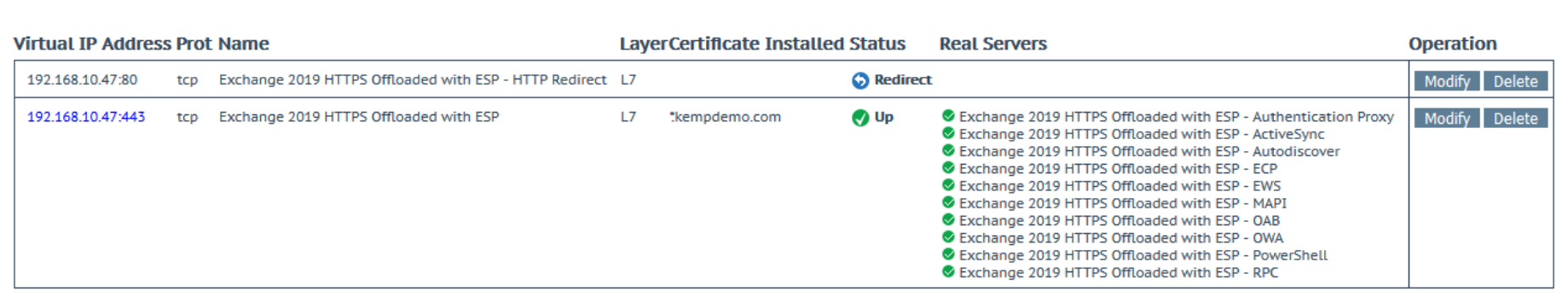

4.2 HTTPS Offloaded and Reencrypt with ESP
The steps are the same when using Exchange HTTPS Offload and Exchange HTTPS Reencrypt with ESP application template. To add the Virtual Services for Exchange HTTPS Offload or Exchange HTTPS Reencrypt with ESP using the template, follow the steps below:
1. Click Virtual Services.
2. Click Add New.
3. Enter a Virtual Address.
4. Select the Exchange 2019 HTTPS Offloaded with ESP or the Exchange 2019 HTTPS ReEncrypted with ESP template from the Use Template drop-down list depending on your preference.
5. Click Add This Virtual Service.
4.2.1 Add SSL/TLS Certificate
This guide assumes an SSL/TLS certificate is imported into the LoadMaster. For more information and steps for SSL/TLS configuration, reference the SSL Accelerated Services Feature Guide on the Kemp documentation page.
1. Click the View/Modify Services in the left-hand navigation.
2. Click Modify for the Exchange 2019 HTTPS Offloaded with ESP Virtual Service on port 443 (or Exchange 2019 HTTPS Reencrypted with ESP if that was selected during the creation)
3. Expand SSL Properties (Acceleration Enabled).
4. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.
5. Click Set Certificate.
The Reencrypt check box is selected when using the Exchange 2019 HTTPS Reencrypted with ESP template.
Add the Real Servers
a) Click View/Modify Services in the left-hand navigation.
b) Click Modify for the Exchange 2019 HTTPS Offloaded with ESP Virtual Service on port 443 (or the Exchange 2019 HTTPS Reencrypted with ESP if that was selected during the creation).
c) Expand the SubVSs section.
d) Click Modify for Exchange 2019 HTTPS Offloaded with ESP - Authentication Proxy (or the Exchange 2019 HTTPS Reencrypted with ESP - Authentication Proxy if that was selected during the creation).
e) Expand the Real Servers section.
f) Click Add New.
g) For the Real Server Address, enter the IP Address for one of the Exchange Servers.
h) Select the Add to all SubVSs check box.
i) Click Add This Real Server.
j) Add additional Real Servers using the Add to all SubVSs check box.
4.2.2 Configure ESP
This guide assumes an SSO Domain is configured on the LoadMaster. For more information and steps for setting up an SSO Domain, refer to the Edge Security Pack (ESP) Feature Guide on the Kemp documentation page.
1. Click View/Modify Services in the left-hand navigation.
2. Click Modify for the Exchange 2019 HTTPS Offloaded with ESP Virtual Service on port 443 (or the Exchange 2019 HTTPS Reencrypted with ESP if that was selected during the creation).
3. Expand the SubVSs section.
4. For each SubVS the following fields must be configured. Click the set button next to each field entered.
| SubVS Name | Pre-Authorization Excluded Directories | Allowed Virtual Hosts | Logoff String | User Password Form |
| Authentication Proxy | n/a | Required | n/a | n/a |
| ActiveSync | n/a | Required | n/a | n/a |
| API | n/a | n/a | n/a | n/a |
| Autodiscover | n/a | Required | n/a | n/a |
| ECP | n/a | Required | n/a | n/a |
| EWS | n/a | Required | n/a | n/a |
| MAPI | n/a | Required | n/a | n/a |
| OAB | n/a | Required | n/a | n/a |
| OWA | /owa/<guid@smtpdomain>*1 | Required | /owa/logoff.owa | https://<Exchange URL> /owa/auth/expiredpassword.aspx?url=/owa/auth.owa |
| PowerShell | n/a | Required | n/a | n/a |
| RPC | n/a | Required | n/a | n/a |
1GUID is unique to each Exchange deployment. To find the correct GUID, run the following command on the Exchange Server:
Get-Mailbox -Arbitration | where {$_.PersistedCapabilities -like “OrganizationCapabilityClientExtensions”} | fl exchangeGUID, primarysmtpaddress
The Logoff String must be set to /owa/logoff.owa in the OWA SubVS. In a customized environment, if the OWA logoff string has been changed, the modified logoff string must be entered in the Logoff String text box.
The SSO Greeting Message field accepts HTML code, so the users can insert their own image if desired. The grave accent character ( ` ) is not supported. If this character is entered in the SSO Greeting Message, the character will not display in the output, for example, a`b`c becomes abc.
4.3 IMAP and IMAPS Virtual Service
The steps are the same when using Exchange IMAP and Exchange IMAPS application templates. To add the Virtual Services for Exchange IMAP and Exchange IMAPS using the template, follow the steps below:
1. Click Virtual Services.
2. Click Add New.
3. Enter a Virtual Address.
4. Select the Exchange 2019 IMAP or the Exchange 2019 IMAPS template from the Use Template drop-down list depending on your preference.
5. Click Add This Virtual Service.
6. Expand the Real Servers section.
7. Click Add New.
8. For Real Server Address, enter the IP Address for one of the Exchange Servers.
9. Click Add this Real Server.
10. Add any additional Real Servers as required.
4.4 IMAPS Offloaded and IMAP with STARTTLS Virtual Service
The steps are the same when using Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS application templates. To add the Virtual Services for Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS using the template, follow the steps below:
1. Click Virtual Services.
2. Click Add New.
3. Enter a Virtual Address.
4. Select the Exchange 2019 IMAP or the Exchange 2019 IMAPS template from the Use Template drop-down list depending on your preference.
5. Click Add This Virtual Service.
6. Expand SSL Properties (Acceleration Enabled).
7. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.
8. Click Set Certificate.
9. Expand the Real Servers section.
10. Click Add New.
11. For Real Server Address, enter the IP Address for one of the Exchange Servers.
Ensure port 143 is entered in the Port field.
12. Click Add this Real Server.
13. Add any additional Real Servers as required.
4.5 POP and POPS Virtual Service
The steps are the same when using Exchange POP and Exchange POPS application templates. To add the Virtual Services for Exchange POP and Exchange POPS using the template, follow the steps below:
1. Click Virtual Services.
2. Click Add New.
3. Enter a Virtual Address.
4. Select the Exchange 2019 POP or the Exchange 2019 POPS template from the Use Template drop-down list depending on your preference.
5. Click Add This Virtual Service.
6. Expand the Real Servers section.
7. Click Add New.
8. For the Real Server Address, enter the IP Address for one of the Exchange Servers.
9. Click Add this Real Server.
10. Add any additional Real Servers as required.
4.6 POPS Offloaded and POP with STARTTLS Virtual Service
The steps are the same when using Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS application templates. To add the Virtual Services for Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS using the template, follow the steps below:
1. Click Virtual Services.
2. Click Add New.
3. Enter a Virtual Address.
4. Select the Exchange 2019 IMAP or the Exchange 2019 IMAPS template from the Use Template drop-down list depending on your preference.
5. Click Add This Virtual Service.
6. Expand SSL Properties (Acceleration Enabled).
7. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.
8. Click Set Certificate.
9. Expand the Real Servers section.
10. Click Add New.
11. For the Real Server Address, enter the IP Address for one of the Exchange Servers.
Ensure port 110 is entered in the Port field.
12. Click Add this Real Server.
13. Add any additional Real Servers as required.
4.7 SMTP and SMTPS Virtual Service
The steps are the same when using Exchange SMTP and Exchange SMTPS application templates. To add the Virtual Services for Exchange SMTP and Exchange SMTPS using the template, follow the steps below:
1. Click Virtual Services.
2. Click Add New.
3. Enter a Virtual Address.
4. Select the Exchange 2019 SMTP or the Exchange 2019 SMTPS template from the Use Template drop-down list depending on your preference.
5. Click Add This Virtual Service.
6. Expand the Real Servers section.
7. Click Add New.
8. For the Real Server Address, enter the IP Address for one of the Exchange Servers.
9. Click Add this Real Server.
10. Add any additional Real Servers as required.
4.8 SMTPS Offloaded and SMTP with STARTTLS Virtual Service
The steps are the same when using Exchange SMTPS Offloaded and Exchange SMTP with STARTTLS application templates. To add the Virtual Services for Exchange SMTPS Offloaded and Exchange SMTP with STARTTLS using the template, follow the steps below:
1. Click the Add New button.
2. Enter a Virtual Address.
3. Select the Exchange 2019 SMTP or the Exchange 2019 SMTPS template from the Use Template drop-down list depending on your preference.
4. Click Add This Virtual Service.
5. Expand SSL Properties (Acceleration Enabled).
6. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.
7. Click Set Certificate.
8. Expand the Real Servers section.
9. Click Add New.
10. For the Real Server Address, enter the IP Address for one of the Exchange Servers.
Ensure port 25 is entered in the Port field.
11. Click Add this Real Server.
12. Add any additional Real Servers as required.
SMTPS can be configured as offloaded as outlined above but cannot be set to Reencrypt.
4.9 SMTP with ESP Virtual Service
To add the Virtual Services for Exchange 2019 SMTP with ESP using the template, follow the steps below:
1. Click the Add New button.
2. Enter a Virtual Address.
3. Select the Exchange 2019 SMTP with ESP template from the Use Template drop-down list depending on your preference.
4. Click Add This Virtual Service.
5. Expand ESP Options.
6. Enter the Permitted SMTP Domain for the Organization and click Set Permitted Domains.
7. Expand the Real Servers section.
8. Click Add New.
9. For the Real Server Address, enter the IP Address for one of the Office Online Servers.
10. Click Add this Real Server.
11. Add any additional Real Servers as necessary.
4.10 Office Online Server Virtual Service
To add the Virtual Services for Office Online Server using the template, follow the steps below:
1. Click the Add New button.
2. Enter a Virtual Address.
3. Select the Exchange 2019 Office Online Server template from the Use Template drop-down list depending on your preference.
4. Click Add This Virtual Service.
5. Expand SSL Properties (Acceleration Enabled).
6. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.
7. Click Set Certificate.
8. Expand the Real Servers section.
9. Click Add New.
10. For the Real Server Address, enter the IP Address for one of the Office Online Servers.
11. Click Add this Real Server.
12. Add any additional Real Servers as required.
5 Exchange 2019 Virtual Service Recommended API Settings (Optional)
This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.
5.1 Exchange 2019 HTTP Virtual Service Recommended API Settings (Optional)
|
API Parameter |
API Value |
Use with Template |
|---|---|---|
|
HTTP Redirect |
||
|
port |
80 |
All |
|
prot |
tcp |
All |
|
nickname |
Exchange%20Redirect |
All |
|
ForceL7 |
1 |
All |
|
Errorcode |
302 |
All |
|
ErrorUrl |
https:%5C%2F%5C%2F%25h%25s |
All |
|
CheckType |
none |
|
|
Content Rules |
||
|
Authentication Proxy |
||
|
name |
Authentication_Proxy |
ESP Enabled |
|
matchtype |
Regex |
ESP Enabled |
|
pattern |
%2F%5E%5C%2Flm_auth_proxy%2A%24%2F |
ESP Enabled |
|
Nocase |
1 |
ESP Enabled |
|
ActiveSync |
||
|
Name |
ActiveSync |
All |
|
matchtype |
Regex |
All |
|
pattern |
%2F%5E%5C%2Fmicrosoft-server-activesync.%2A%2F |
All |
|
Nocase |
1 |
All |
|
Autodiscover |
||
|
name |
Autodiscover |
All |
|
matchtype |
Regex |
All |
|
pattern |
%2F%5E%5C%2Fautodiscover.%2A%2F |
All |
|
Nocase |
1 |
All |
| API | ||
| name | api | All |
| matchtype | Regex | All |
| pattern | %2F%5E%5C%2Fapi.%2A%2F | All |
| Nocase | 1 | All |
|
ECP |
||
|
name |
ECP |
All |
|
matchtype |
Regex |
All |
|
Pattern |
%2F%5E%5C%2Fecp.%2A%2F |
All |
|
Nocase |
1 |
All |
|
EWS |
||
|
name |
EWS |
All |
|
matchtype |
Regex |
All |
|
Pattern |
%2F%5E%5C%2Fews.%2A%2F |
All |
|
Nocase |
1 |
All |
|
MAPI |
||
|
name |
MAPI |
All |
|
matchtype |
Regex |
All |
|
Pattern |
%2F%5E%5C%2Fmapi.%2A%2F |
All |
|
Nocase |
1 |
All |
|
OAB |
||
|
name |
OAB |
All |
|
matchtype |
Regex |
All |
|
Pattern |
%2F%5E%5C%2Foab.%2A%2F |
All |
|
Nocase |
1 |
All |
|
OWA |
||
|
name |
OWA |
All |
|
matchtype |
Regex |
All |
|
Patterns |
%2F%5E%5C%2Fowa.%2A%2F |
All |
|
Nocase |
1 |
All |
|
PowerShell |
||
|
name |
powershell |
All |
|
matchtype |
Regex |
All |
|
Pattern |
%2F%5E%5C%2Fpowershell.%2A%2F |
All |
|
Nocase |
1 |
All |
|
RPC |
||
|
name |
RPC |
All |
|
matchtype |
Regex |
All |
|
Pattern |
%2F%5E%5C%2Frpc.%2A%2F |
All |
|
Nocase |
1 |
All |
|
Main Virtual Service |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
VStype |
http |
All |
|
nickname |
Exchange%20HTTPS%20 Offloaded |
Create Unique Name |
|
ForceL7 |
1 |
All |
|
Transparent |
0 |
All |
|
SubnetOriginating |
1 |
All |
|
SSLAcceleration |
1 |
All |
|
SSLReencrypt |
0 or 1 |
0 for Offload 1 for Reencrypt |
|
TLSType |
1 |
All |
|
CipherSet |
BestPractices |
All |
| Tls13CipherSet | BestPractices | All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
Sub Virtual Service |
||
|
Authentication Proxy |
||
|
port |
443 |
ESP Enabled |
|
prot |
tcp |
ESP Enabled |
|
Nickname |
Authentication%20Proxy |
ESP Enabled |
|
Errorcode |
503 |
ESP Enabled |
|
ErrorUrl |
Endpoint%20not%20available |
ESP Enabled |
|
CheckType |
None |
ESP Enabled |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
2 |
ESP Enabled |
|
OutputAuthMode |
2 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
Allowed Directories |
%0A%2F%2A |
ESP Enabled |
|
SingleSignOnMessage |
Please%20enter%20your%20Exchange%20credentials |
ESP Enabled |
|
ActiveSync |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
ActiveSync |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Fmicrosoft-server-activesync%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
1 |
ESP Enabled |
|
OutputAuthMode |
1 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Fmicrosoft-server-activesync%2A |
ESP Enabled |
| API | ||
| Port | 443 | All |
| prot | tcp | All |
| Nickname | API | All |
| SubnetOriginating | 1 | All |
| Persist | None | All |
| Schedule | lc | All |
| Idletime | 1800 | All |
| CheckPort | 443 | All |
| CheckType | https | All |
| CheckUrl | %2Fapi%2Fhealthcheck.htm | All |
| Checkversion | 0 | All |
| CheckUseGet | 1 | All |
| EspEnabled | 0 | All |
|
Autodiscover |
||
|
Port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
Autodiscover |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Fautodiscover%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
0 |
ESP Enabled |
|
OutputAuthMode |
0 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Fautodiscover%2A%0A |
ESP Enabled |
|
ECP |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
ECP |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Fecp%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
2 |
ESP Enabled |
|
OutputAuthMode |
2 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Fecp%2A%0A |
ESP Enabled |
|
SingleSignOnMessage |
Please%20enter%20your%20Exchange%20credentials |
ESP Enabled |
|
EWS |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
EWS |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Fews%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
0 |
ESP Enabled |
|
OutputAuthMode |
0 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Fews%2A%0A |
ESP Enabled |
|
MAPI |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
MAPI |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Fmapi%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
0 |
ESP Enabled |
|
OutputAuthMode |
0 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Fmapi%2A%0A |
ESP Enabled |
|
OAB |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
OAB |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Foab%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
0 |
ESP Enabled |
|
OutputAuthMode |
0 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Foab%2A%0A |
ESP Enabled |
|
OWA |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
OWA |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Fowa%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
2 |
ESP Enabled |
|
OutputAuthMode |
2 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Fowa%2A%0A |
ESP Enabled |
|
ExcludedDirectories |
%2Fowa%2Fguid%40smtpdomain%2A |
ESP Enabled |
|
SingleSignOnMessage |
Please%20enter%20your%20Exchange%20credentials |
ESP Enabled |
|
Logoff |
%2Fowa%2Flogoff.owa |
ESP Enabled |
|
PowerShell |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
PowerShell |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Fpowershell%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
0 |
ESP Enabled |
|
OutputAuthMode |
0 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Fpowershell%2A%0A |
ESP Enabled |
|
RPC |
||
|
port |
443 |
All |
|
prot |
tcp |
All |
|
Nickname |
RPC |
All |
|
SubnetOriginating |
1 |
All |
|
Persist |
None |
All |
|
Schedule |
lc |
All |
|
Idletime |
1800 |
All |
|
CheckPort |
443 |
All |
|
CheckType |
https |
All |
|
CheckUrl |
%2Frpc%2Fhealthcheck.htm |
All |
|
Checkversion |
0 |
All |
|
CheckUseGet |
1 |
All |
|
EspEnabled |
1 |
ESP Enabled |
|
ESPLogs |
7 |
ESP Enabled |
|
InputAuthMode |
0 |
ESP Enabled |
|
OutputAuthMode |
0 |
ESP Enabled |
|
AllowedHosts |
Mail.example.com%20autodiscover.example.com |
ESP Enabled |
|
AllowedDirectories |
%2Frpc%2A%0A |
ESP Enabled |
5.2 Exchange 2019 IMAP Virtual Service Recommended API Settings (Optional)
|
API Parameter |
API Value |
|---|---|
|
IMAP |
|
|
port |
143 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20IMAP |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
Imap4 |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
CheckType |
Imap4 |
|
CheckPort |
110 |
|
IMAPS |
|
|
port |
993 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20IMAPS |
|
forceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
Imap4 |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
CheckType |
tcp |
|
CheckPort |
993 |
|
IMAPS Offloaded |
|
|
port |
993 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20IMAPS%20Offload |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
Imap4 |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
SSLAcceleration |
1 |
|
SSLReencrypt |
0 |
|
TLSType |
1 |
|
CipherSet |
BestPractices |
|
CheckType |
Imap4 |
|
CheckPort |
143 |
|
IMAP with STARTTLS |
|
|
port |
143 |
|
prot |
tcp |
|
VStype |
StartTLS |
|
nickname |
Exchange%20IMAP%20STARTTLS |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
StartTLSMode |
Imap |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
SSLAcceleration |
1 |
|
TLSType |
1 |
|
CipherSet |
BestPractices |
|
CheckType |
Imap |
|
CheckPort |
143 |
5.3 Exchange 2019 POP Virtual Service Recommended API Settings (Optional)
|
API Parameter |
API Value |
|---|---|
|
POP |
|
|
port |
110 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20POP |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
Pop3 |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
CheckType |
Pop3 |
|
CheckPort |
110 |
|
POPS |
|
|
port |
995 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20POPS |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
Pop3 |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
CheckType |
tcp |
|
CheckPort |
993 |
|
POPS Offloaded |
|
|
port |
995 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20POPS%20Offload |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
Pop3 |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
SSLAcceleration |
1 |
|
SSLReencrypt |
0 |
|
TLSType |
1 |
|
CipherSet |
BestPractice |
|
CheckType |
Pop3 |
|
CheckPort |
110 |
|
POP with STARTTLS |
|
|
port |
110 |
|
prot |
tcp |
|
VStype |
StartTLS |
|
nickname |
Exchange%20IMAP%20STARTTLS |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
StartTLSMode |
Pop3 |
|
SubnetOriginating |
1 |
|
Persist |
None |
|
Schedule |
rr |
|
Idletime |
3600 |
|
SSLAcceleration |
1 |
|
TLSType |
1 |
|
CipherSet |
BestPractices |
|
CheckType |
pop |
|
CheckPort |
110 |
5.4 Exchange 2019 SMTP Virtual Service Recommended API Settings (Optional)
|
API Parameter |
API Value |
|---|---|
|
SMTP |
|
|
port |
25 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20STMP |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
smtp |
|
SubnetOriginating |
1 |
|
Persist |
src |
|
PersistTimeout |
3600 |
|
Schedule |
rr |
|
Idletime |
120 |
|
CheckType |
smtp |
|
CheckPort |
25 |
|
SMTPS |
|
|
port |
587 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20SMTPS |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
smtp |
|
SubnetOriginating |
1 |
|
Persist |
src |
|
PersistTimeout |
3600 |
|
Schedule |
rr |
|
Idletime |
120 |
|
CheckType |
tcp |
|
CheckPort |
587 |
|
SMTPS Offloaded |
|
|
port |
587 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20SMTPS%20Offload |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
smtp |
|
SubnetOriginating |
1 |
|
Persist |
src |
|
PersistTimeout |
3600 |
|
Schedule |
rr |
|
Idletime |
120 |
|
SSLAcceleration |
1 |
|
SSLReencrypt |
0 |
|
TLSType |
1 |
|
CipherSet |
BestPractices |
|
CheckType |
smtp |
|
CheckPort |
25 |
|
SMTP with STARTTLS |
|
|
port |
25 |
|
prot |
tcp |
|
VStype |
StartTLS |
|
nickname |
Exchange%20SMTP%20STARTTLS |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
StartTLSMode |
smtp |
|
SubnetOriginating |
1 |
|
Persist |
src |
|
PersistTimeout |
3600 |
|
Schedule |
rr |
|
Idletime |
120 |
|
SSLAcceleration |
1 |
|
TLSType |
1 |
|
CipherSet |
BestPractices |
|
CheckType |
smtp |
|
CheckPort |
25 |
|
SMTP with ESP |
|
|
port |
25 |
|
prot |
tcp |
|
VStype |
gen |
|
nickname |
Exchange%20STMP%20ESP |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
ServerInit |
smtp |
|
SubnetOriginating |
1 |
|
Persist |
src |
|
PersistTimeout |
3600 |
|
Schedule |
rr |
|
IdleTime |
120 |
|
EnableESP |
1 |
|
ESPLog |
4 |
|
Smtpallow |
“Example.com” |
|
CheckType |
smtp |
|
CheckPort |
25 |
5.5 Exchange 2019 Office Online Server Virtual Service Recommended API Settings (Optional)
|
API Parameter |
API Value |
|---|---|
|
Office Online Server |
|
|
port |
443 |
|
prot |
tcp |
|
VStype |
http |
|
nickname |
Exchange%20Office%20Online |
|
ForceL7 |
1 |
|
Transparent |
0 |
|
SubnetOriginating |
1 |
|
Persist |
Super-src |
|
PersistTimeout |
1800 |
|
Schedule |
lc |
|
Idletime |
1800 |
|
SSLAcceleration |
1 |
|
SSLReencrypt |
1 |
|
TLSType |
1 |
|
CipherSet |
BestPractices |
|
CheckType |
https |
|
CheckPort |
443 |
|
CheckUrl |
/hosting/discovery |
|
CheckVersion |
1 |
|
CheckUseGet |
1 |
6 References
Unless otherwise specified, the documents below can be found at http://www.kemptechnologies.com/documentation
Web User Interface (WUI), Configuration Guide
Virtual Services and Templates, Feature Description
Microsoft Exchange 2010, Deployment Guide
Microsoft Exchange 2013, Deployment Guide
Exchange Team Blog post on Load Balancing in Exchange 2016
http://blogs.technet.com/b/exchange/archive/2015/10/08/load-balancing-in-exchange-2016.aspx
Last Updated Date
This document was last updated on 19 September 2022.
