Transparency

1 Introduction

To place a load balancer in a network effectively and utilize Layer 7 functionality, two things need to happen:

Traffic needs to flow through the load balancer on the way in

Return/response traffic needs to flow through the load balancer on the way out

To meet the requirements above there are two options; Layer 7 (L7) Transparency or L7 Non-Transparency. When a packet arrives at the LoadMaster, the source IP address of the packet is that of the client and the destination IP address is that of the Virtual Service. When L7 Transparency is enabled the packet is passed to the Real Server with the same source IP address of the packet but with the destination IP address changed to be the that of the Real Server.

With L7 Non-Transparency when the packet is being sent to the Real Server the LoadMaster will change the destination IP address of the packet to be the Real Server (as it does in L7 Transparent Mode) but it will also change the source IP address from the original client IP address to the IP address of the Virtual Service.

1.1 Document Purpose

This document serves as an explanation of network transparency, its implications and other related concepts.

1.2 Intended Audience

This document is intended to be used by anyone who is interested in learning more about transparency and the Kemp LoadMaster.

2 Transparency

2.1 Implications of Network Transparency

To decide whether or not network transparency is needed, ask this question: does the IP address of the client requests need to appear in the logs?

If the answer is yes, then network transparency is required. That means the LoadMaster will need to be configured and the network will need to be designed in a certain way, which this document will describe.

If the answer is no, then there is a little more flexibility in how the network can be configured.

The table below shows a matrix of the advantages and disadvantages of transparency.

Pro/Con

Transparent

Non-Transparent

Pro

Preserves the source IP address

Can browse from the same subnet as the Real Server

Pro

Works with Layer 4 (L4) and L7

No need to change the default gateway

Con

Cannot browse from the same subnet as the Real Servers

The source IP address is not preserved (but X-Forwarded-For header can be used)

Con

The default gateway must be the LoadMaster

Only available for L7

Con

Cannot have non-local Real Servers



Con

Cannot use with SSL re-encryption



The transparency settings are based on making sure that traffic moves from the Real Server back to the client through the LoadMaster. This type of symmetric routing, that is, going in and out of the LoadMaster, is an inherent requirement of all load balancers (with the exception of employing direct server return, a feature which the LoadMaster supports, which has its own set of limitations).

2.2 Layer 4 and Layer 7

The LoadMaster makes a differentiation between L4 and L7 handling. This refers to Layer 4 and Layer 7 of the OSI model. Layer 4 involves TCP/UDP ports, and Layer 7 refers to the higher-level awareness of the LoadMaster, such as with HTTP cookies, SSL acceleration, and content switching. For all Layer 4 Virtual Services, the only behaviour available is transparent networking.

Layer 4 is any load balanced traffic that does not involve cookie persistence, SSL acceleration, content switching or content switching rules. Layer 4 does include SRC (source IP) address persistence.

Layer 4 and Layer 7.png

It is possible to tell if a Virtual Service is using L4 or L7 handling by looking at the Virtual Service in Virtual Services and View/Modify Services in the main menu of the LoadMaster Web User Interface (WUI). It will indicate what layer it is operating on in the Layer column.

Any time any cookie persistence, SSL acceleration, or content switching options are used, the traffic automatically becomes L7.

2.3 Direct Server Return

Direct Server Return (DSR) is a method whereby the LoadMaster only handles the inbound traffic flow. The servers respond directly to the clients, bypassing the LoadMaster on the way out.

For further information on Direct Server Return, refer to the Configuring DSR, Technical Note on the Kemp Documentation Page.

2.4 Transparency Requirements

When using Transparency, there are two requirements that must be met:

The Real Server needs to have the LoadMaster as the default gateway

The clients cannot be on the same subnet as the Real Server

The diagrams and text below explain why these requirements must be met.


In the diagram above, neither of the flows have the LoadMaster as the default gateway. In order to be transparent, the default gateway of the Real Servers must be the LoadMaster. This is true whether the network configuration is one-armed or two-armed. If the LoadMaster is not the default gateway, there is no way to ensure that traffic passes through the LoadMaster on the way from the server to the client, and the LoadMaster cannot do its job.

Here is the flow of traffic if transparency is enabled and the LoadMaster is not the default gateway:

1. Client to Virtual Service

2. Virtual Service to Real Server

3. Real Server to network default gateway

4. Network default gateway to client

The connection will fail between the Real Server and network default gateway.


Another requirement of transparency is that you must be browsing from a subnet other than that of the Real Servers. Again, it is to ensure that traffic passes in and out of the LoadMaster. If you are on the same subnet as the Real Server, the return traffic will simply go directly to the client, instead of through the LoadMaster. As a result, the client is expecting to see traffic come from the IP address of the Virtual Service, but instead will see traffic coming from the IP address of the Real Server. When that happens, the client system ignores the traffic. For a more detailed explanation, refer to the Transparency vs. Non-Transparency Browsing section.

Here is the flow of traffic if transparency is enabled and the clients are in the same subnet as the Real Server:

1. Client to Virtual Service

2. Virtual Service to Real Server

3. Return traffic from Real Server direct to client

The connection will fail between the Real Server and the client due to the fact that the clients are in the same subnet as the Real Server.

2.5 Enable Layer 7 Transparency

Each L7 Virtual Service has the capability of being transparent or non-transparent. If the service is an L7 service, whether it is using some of the L7 handling features, or if it is forced, the following check box will appear in the Standard Options section of the Virtual Service modify screen.

Enable Layer 7 Transparency.png

This check box governs the transparency setting for the specific Virtual Service. When it is ticked, transparency is enabled.

2.6 Layer 7 Issues

When load balancing without any Layer 7 functionality, for example when there is no cookie persistence and no SSL acceleration, then the only option is for transparency to be enabled.

Even if transparency is disabled in the LoadMaster configuration, Layer 4 traffic is always transparent.

2.7 Transparency, SNAT, and Single-Arm Networks

If using a single-armed configuration (that is when the Virtual Services and the Real Servers are on the same subnet) and employing transparency, SNAT (Source NAT) should be disabled. SNAT is the mechanism that allows servers behind the LoadMaster to make outbound connections in a two-armed configuration. It acts much like an office firewall, by “masquerading” the outbound connections as coming from a public IP address. In a single-armed configuration, SNAT is not necessary, although it normally does not interfere with regular operations.

There is an exception - when using transparency, the LoadMaster is the default gateway for the Real Servers, and you want to access the Real Servers directly. SNAT will “break” connections directly to the servers by attempting to masquerade those connections, so SNAT should be disabled.

Network Options_1.png

To disable SNAT, go to System Configuration > Miscellaneous Options > Network Options in the WUI. Simply uncheck the Enable Server NAT box, and SNAT is disabled. Servers will now be directly accessible.

2.8 Cloud Transparency

If you can set the Real Server to route return traffic to the LoadMaster interface, transparency can be set for the Virtual Service. Using routing tables may be required to prevent asymmetric routing.

Transparency currently cannot be used in conjunction with cloud High Availability (HA) because there is no shared IP address.

If you are seeing the following scenario:

  • With transparency disabled, the LoadMaster sends traffic to a healthy Real Server as normal and the Real Server responds.
  • With transparency enabled, the LoadMaster sends traffic to a healthy Real Server as normal. However, no traffic is seen on the Real Server.

This is due to IP forwarding in Azure or source/destination checks in Amazon Web Services (AWS).

For further information on IP forwarding in Azure, refer to the following Microsoft content: Enable or disable IP forwarding.

You can find this in the Azure portal by going to: Home > <Virtual LoadMaster (VLM)> > Networking > <VLM NIC/Interface> > IP configurations.


Set IP forwarding to Enabled.

For further information on Source/Destination Checks in AWS, refer to the following AWS content: Disabling Source/Destination Checks.


You can find this in the AWS portal by selecting the EC2 instance (the LoadMaster) and going to: Actions > Networking > Change Source/Dest. Check. This must be disabled.

3 Non-Transparency

There are two main benefits to using non-transparency. The first benefit is that it allows you to browse your Virtual Service when the client is on the same subnet. The other advantage is that the LoadMaster does not need to be the default route in a one-armed configuration. Traffic is forced through the LoadMaster on the way out by making the request appear as if it came from the LoadMaster itself (which is why the IP address is hidden).


Transparency is disabled by default in the LoadMaster.

If cookie persistence, content switching or SSL acceleration is employed for a given Virtual Service, the Force L4 option disappears. As mentioned previously, the chief disadvantage is that the source IP address of the client is hidden, although it is forwarded in a separate HTTP header.

If the client is local to the Virtual Service, transparency is automatically disabled. If using two VLANs and the netmasks of the two VLANs do not differentiate between them, the LoadMaster decides the client is local and disables transparency. This is not only the case with VLANs - it can also happen when using the same networks on multiple interfaces.

3.1 Subnet Originating Requests

There is a check box called Subnet Originating Requests in System Configuration > Miscellaneous Options > Network Options. When transparency is turned off for a Virtual Service, the source IP address of the connections to the Real Servers is the Virtual Service. When the Subnet Originating Requests check box is selected, the source IP address will look like the local interface address on the Real Server’s subnet.

Depending on transparency and SOR, the Real Server may see traffic originating from a different IP address.

Transparency

Subnet Originating Requests

Real Server sees

Disabled

Disabled

VS address

Disabled

Enabled

LoadMaster Real Server-side interface address

Enabled

Disabled

Client IP address

Enabled

Enabled

Client IP address

If transparency is enabled, SOR does not have any effect on the routing of traffic.

4 Additional L7 HTTP Header

This section only applies to Virtual Services with the HTTP/HTTPS Service Type.

While the source IP address is not preserved in the regular sense with non-transparency, the LoadMaster does provide a method to retrieve the actual source IP address through an HTTP header.


For HTTP GET requests the LoadMaster inserts an additional HTTP header, called X-Forwarded-For, when L7 is used with non-transparency.

In order for these headers to be sent by the LoadMaster, the following conditions must be met:

The Virtual Service must be operating L7 and be non-transparent

The Add HTTP Headers drop-down in the Advanced Properties section must be set to something other than Legacy Operation(X-Forwarded-For)

What this means is that the Virtual Service must be operating at L7 because it is using either some L7 persistence mode (that is, not Source IP Address), content switching or SSL acceleration for it to send these headers.

4.1 Configure the Log Files to Record X-Forwarded-For

Depending on the web server or application infrastructure the X-Forwarded-For value can be configured to be logged. Refer to the relevant section below to find out how to do this.

These steps were correct at time of writing. Please refer to the relevant vendor documentation for up-to-date steps.

4.1.1 Record the X-Forwarded-For Header in IIS 7

To record the X-Forwarded-For header in IIS 7, follow the steps below:

1. First, IIS Advanced Logging will need to be installed. This can be downloaded from the Microsoft website: IIS Advanced Logging. After this has been installed, an extra option called Advanced Logging will appear for the sites in IIS.

2. Open the IIS Manager.

Record the X Forwarded For.png

3. In the Connections section on the left, select the relevant directory, server or website to configure the Advanced Logging on.

Record the X Forwarded For_1.png

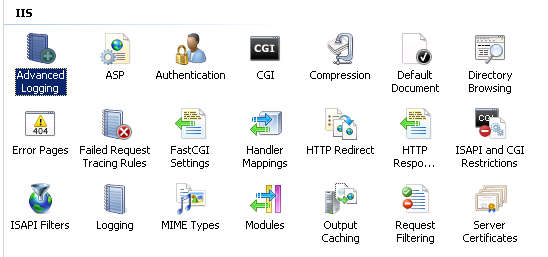

4. In the Home section, under IIS, double-click Advanced Logging.

Record the X Forwarded For_2.png

5. On the right, click Edit Logging Fields.

Record the X Forwarded For_3.png

6. Click Add Field.

Record the X Forwarded For_4.png

7. Enter X-Forwarded-For in the Field ID text box.

8. Select Default as the Category.

9. Select Request Header as the Source Type.

10. Enter X-Forwarded-For in the Source Name text box.

11. Click OK.

12. Click OK again.

Record the X Forwarded For_5.png

13. Select a log definition. By default, there is only one: %COMPUTERNAME%-Server. The log definition selected must be Enabled.

14. Click Edit Log Definition.

Record the X Forwarded For_6.png

15. Scroll down and click Select Fields.

16. Select the X-Forwarded-For logging check box.

17. Click OK.

18. Click Apply.

Record the X Forwarded For_7.png

19. Click Return to Advanced Logging.

Record the X Forwarded For_8.png

20. Click Enable Advanced Logging.

After completing these steps, the client IP address is included in the logs.

4.1.2 Record the X-Forwarded-For Header in Apache

For Apache, the combined format in the HTTPD configuration file is as follows:

LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"\"%{forensic-id}n\"" combined

Add the client side field by adding %{X-Forwarded-For}.

LogFormat "%{X-Forwarded-For}i %l %u %t "%r" %>s %b "%{Referer}i""%{User-Agent}i"" combined

Another available option in the Add HTTP Headers drop-down list is X-Client-Side header. This is just an alternative to the X-Forwaded-For header.

To log these in Apache, use the following code:

LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"\"%{forensic-id}n\" \”%{X-ClientSide}" combined-ClientSide

5 Alternate Source Addresses

If required, alternate source addresses can be specified per Virtual Service.

Alternate Source Addresses.png

This field is available in the Advanced Properties section of the Virtual Service modify screen.

This option is only available if the Allow connection scaling over 64K Connections option is enabled in the System Configuration > Miscellaneous Options > L7 Configuration screen.

If no list is specified, the LoadMaster will use the IP address of the Virtual Service as its local address. Specifying a list of Alternate Source Addresses ensures that the LoadMaster will use these addresses instead.

Using an Alternate Source Address will allow more source ports to be used. With one IP address we are limited to 64,000. In order to use more, at least two additional IP addresses must be added in this field. One of the IP addresses can be the Virtual Service address.

Another benefit to using an Alternate Source Address is to change the source address that the Real Server is going to see. This is helpful in the case where the Real Server and the Virtual Service are on separate subnets and the Real Server does not have a route back. Adding an alternate source IP address on the Real Server subnet will allow symmetrical routing without having to add static routes on the Real Server.

6 Transparency vs. Non-Transparency Browsing


6.1 Why is it not possible to browse from the same subnet with transparency?

In a network configuration with transparency enabled, the reason why you cannot browse from the local network is because of the path that the traffic flows. As stated, in order for a load balancer to do its job, the load balancer must be in the path of both inbound and outbound traffic. Load balancing typically happens in four steps. Traffic flows from the:

1. Client to the Virtual Service on the LoadMaster

2. LoadMaster to the Real Server

3. Real Server to the LoadMaster

4. LoadMaster to the client

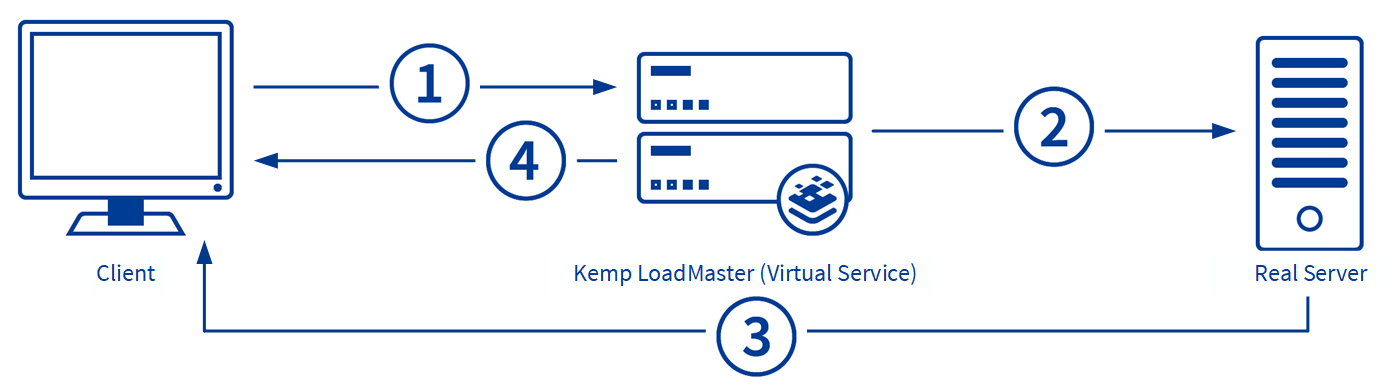

Take the example of a simple one-armed configuration, where the client IP address is 64.254.1.12, the Virtual Service address is 192.168.1.200, and the Real Server is 192.168.1.100. The diagram and table below shows what happens in a regular connection:

Why is it not possible to (first).png



Step

Path

Source IP

Destination IP

1

Client to Virtual Service

64.254.1.12

192.168.1.200

2

Virtual Service to Real Server

64.254.1.12

192.168.1.100

3

Real Server to Client (before LoadMaster)

192.168.1.100

64.254.1.12

4

Virtual Service to Client (after LoadMaster)

192.168.1.200

64.254.1.12

Now, take the same example except this time the client will have the IP address of 192.168.0.10, which is on the same subnet as the Real Server.

Why is it not possible to (second).png



Step

Path

Source IP

Destination IP

1

Client to Virtual Service

192.168.0.10

192.168.1.200

2

Virtual Service to Real Server

192.168.0.10

192.168.1.100

3

Real Server to Client (before LoadMaster)

192.168.1.100

192.168.0.10

The response comes back from a different IP address than the client was expecting, so the client drops the traffic entirely and the page never loads.

6.2 Why is it possible to browse from the same subnet with non-transparency?

Non-transparency replaces the IP address of the client with the IP address of the LoadMaster itself, thereby forcing traffic back through the LoadMaster on the way out. When the Real Server responds to the request, it responds to the LoadMaster. The LoadMaster then forwards the traffic along to the client.

Why is it possible to browse.png



Step

Path

Source IP

Destination IP

1

Client to Virtual Service

192.168.0.10

192.168.1.200

2

Virtual Service to Real Server

192.168.1.200

192.168.1.100

3

Real Server to Virtual Service (before LoadMaster)

192.168.1.100

192.168.1.200

4

Virtual Service to Client (after LoadMaster)

192.168.1.200

192.168.0.10

Notice that in the first transparency table (in the Why is it not possible to browse from the same subnet with transparency? section) either the source IP or the destination IP was rewritten, but not both. In the non-transparency table above (in the Why is it possible to browse from the same subnet with non-transparency? section) both the source IP and destination IP were re-written. This is why the logs of the web server will only see the IP address of the LoadMaster for all incoming connections when transparency is disabled (as it is by default).

7 Troubleshooting

7.1 Unable to Connect to Real Servers using Remote Desktop Protocol (RDP)

After enabling transparency, RDP connections may not work. To resolve this problem, refer to the relevant section below depending on your setup.

7.1.1 One-Arm Setup

If you have a one-arm setup – disable Server Network Address Translation (SNAT). This will allow access to Real Servers using RDP. To do this, follow the steps below in the LoadMaster:

1. In the main menu of the LoadMaster WUI, select System Configuration > Miscellaneous Options > Network Options.

Network Options_1.png

2. Remove the tick from the Enable Server NAT check box.

7.1.2 Two-Arm Setup

If you have a two-arm setup – create an RDP Virtual Service by following the steps below in the LoadMaster WUI:

1. In the main menu, select Virtual Services > Add New.

Two Arm Setup.png

2. Create a Virtual Service on port 3389.

Two Arm Setup_1.png

3. Expand the Real Servers section and add the Real Server to be accessed.

After this Virtual Service has been created, the Real Server is accessible using RDP.

References

Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.

Web User Interface (WUI), Configuration Guide

Configuring DSR, Technical Note

Last Updated Date

This document was last updated on 20 September 2022.
