Aequitas

1 Introduction

Aequitas Solutions, Inc. is a leader in innovative K-12 Student Information Systems (SIS). One of their products is Q, which is a next generation Enterprise Student Management Solution. It uses state of the art technology to deliver a fast, interactive and intuitive fully web-based application experience to end-users. Q includes modules on basic administration, scheduling, attendance, and grade reporting.

The LoadMaster offers advanced Layer 4 and Layer 7 server load balancing, SSL Acceleration and a multitude of other advanced Application Delivery and Optimization (ADC) features. The KEMP LoadMaster can load balance the Aequitas workload. The LoadMaster intelligently and efficiently distributes user traffic among the application servers so that users get the best experience possible.

This document provides guidance and recommended settings on how to load balance Aequitas with a KEMP LoadMaster. The KEMP Support Team is available to provide solutions for scenarios not explicitly defined.

The KEMP support site can be found at: https://support.kemptechnologies.com.



1.1 Document Purpose

This documentation is intended to provide guidance on how to configure KEMP LoadMaster products to provide high availability for an Aequitas environment. As this documentation is not intended to cover every possible deployment scenario, it may not address your unique setup or requirements. The KEMP Support Team is always available to provide solutions for scenarios not explicitly defined.

1.2 Intended Audience

This document is for anyone deploying Aequitas with a KEMP LoadMaster.

2 Architecture

Use the following set up to load balance your environment.


3 Aequitas Template

KEMP has developed a template containing our recommended settings for Aequitas. You can install this template to help when creating Virtual Services, as it automatically populates the settings. This is quicker and easier than manually configuring each Virtual Service. If needed, changes can be made to any of the Virtual Service settings after using the template.

Download released templates from the Templates section on the KEMP documentation page: http://kemptechnologies.com/documentation.

For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description on the KEMP Documentation Page.

For steps on how to manually add and configure each of the Virtual Services using the recommended settings, refer to the steps in this document.

4 Configure the LoadMaster

The deployed Aequitas environment determines which of the following setups is used.

4.1 Configure the Global Settings

The sections below provide instructions on configuring some recommended global settings.

4.1.1 Enable Subnet Originating Requests Globally

It is best practice to enable the Subnet Originating Requests option globally.

In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.

In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B - Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.

When Subnet Originating Requests is enabled, the LoadMaster will route traffic so that the Real Server will see traffic arriving from the LoadMaster interface that is in that network/subnet not the Virtual Service address.

When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether or not to enable Subnet Originating Requests on a per-Virtual Service basis.

To enable Subnet Originating Requests globally, follow the steps below:

1. In the main menu of the LoadMaster Web User Interface (WUI), go to System Configuration > Miscellaneous Options > Network Options.


2. Tick the Subnet Originating Requests check box.

4.1.2 Enable Check Persist Globally

It is recommended that you change the Always Check Persist option to Yes – Accept Changes. Use the following steps:

1. Go to System Configuration > Miscellaneous Options > L7 Configuration.


2. Click the Always Check Persist dropdown arrow and select Yes – Accept Changes.

5 Create the Aequitas HTTPS Offloaded Virtual Service

Follow the steps below to create and configure the recommended settings for the Aequitas Virtual Service:

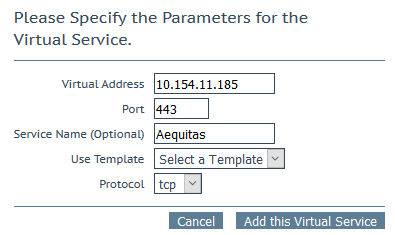

1. In the main menu of the LoadMaster Web User Interface (WUI), go to Virtual Services > Add New.


2. Type a valid IP address in the Virtual Address text box.

3. Type 443 in the Port text box.

4. Enter a recognizable Service Name such as Aequitas.

5. Ensure tcp is selected as the Protocol.

6. Click Add this Virtual Service.

7. Configure the settings as shown in the following table:

Section

Option

Value

Comment

SSL Properties

SSl Acceleration Enabled
  Reencrypt Disabled
  Supported Protocols TLS1.0; TLS1.1; TLS1.2
  Cipher Set BestPractices
Standard Options Persistence Mode Active Cookie



Timeout 1 Hour



Cookie name LM_Aequitas
  Scheduling Method least connection
Advanced Properties Add a Port 80 Redirector VS https://%h%s Click Add HTTP Redirector. This automatically creates a redirect on port 80.

8. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Type the address of the Real Server.

d) Type 80443 as the Port.

e) Click Add This Real Server.

f) Repeat the steps above to add more Real Servers as needed, based on the environment.

Create an Aequitas HTTPS Offloaded Redirect Virtual Service

Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. KEMP also recommends changing the Persistence Mode and the Real Server Check Method to None.

6 Create the Aequitas HTTPS Re-Encrypt Virtual Service

Follow the steps below to create and configure the recommended settings for the Aequitas HTTPS Re-Encrypt Virtual Service:

In the main menu of the LoadMaster Web User Interface (WUI), go to Virtual Services > Add New.image2.png

1. Type a valid IP address in the Virtual Address text box.

2. Type 443 in the Port text box.

3. Enter a recognizable Service Name such as Aequitas Re-Encrypt Virtual Service.

4. Ensure tcp is selected as the Protocol.

5. Click Add this Virtual Service.

6. Configure the settings as shown in the following table:

Section

Option

Value

Comment

SSL Properties

SSl Acceleration Enabled
  Reencrypt Enabled
  Supported Protocols TLS1.0; TLS1.1; TLS1.2
  Cipher Set BestPractices
Standard Options Persistence Mode Active Cookie



Timeout 1 Hour



Cookie name LM_Aequitas
  Scheduling Method least connection
Advanced Properties Add a Port 80 Redirector VS https://%h%s Click Add HTTP Redirector. This automatically creates a redirect on port 80.

7. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Type the address of the Real Server.

d) Type 443 as the Port.

e) Click Add This Real Server.

f) Repeat the steps above to add more Real Servers as needed, based on the environment.

Create an Aequitas HTTPS Offloaded Redirect Virtual Service

Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. KEMP also recommends changing the Persistence Mode and the Real Server Check Method to None.

Last Updated Date

This document was last updated on 18 September 2017.
