1 Introduction
Active Directory Federation Services (AD FS) is a Microsoft identity access solution. It was an optional component of Microsoft Windows Server® 2003 R2. It is now built into Windows Server® 2008 and Windows Server® 2012. AD FS helps to establish trust relationships and reduces the need for provisioning and managing user accounts. Its implementation provides clients (internal or external to the trusted internal LAN) with simplified access to systems and applications relying on claims-based authorization. AD FS also supports web Single-Sign-On (SSO) technologies to improve UX across multiple protected applications.
Trust relationships are used to project a user’s digital identity and access rights to trusted partners and can be deployed in multiple organisations to facilitate business-to-business (B2B) transactions between trusted partner organisations.
1.1 Document Purpose
This documentation is intended to provide guidance on how to configure LoadMaster products to provide high availability for an AD FS 2.0 environment. This documentation is created using a representative sample environment described later in the document. As this documentation is not intended to cover every possible deployment scenario it may not address unique setup or requirements. The Progress Kemp Support Team is always available to provide solutions for scenarios not explicitly defined.
1.2 Intended Audience
It is assumed that the reader is a server/network administrator or a person otherwise familiar with networking and general computer terminology and is familiar with AD FS technology.
2 Load Balancing AD FS
The core components of AD FS are as follows:
An AD FS server which is responsible for issuance of claims and user authentication. This server must be able to connect to a Domain Controller. It authenticates users from multiple domains by using Windows Trust. The AD FS server can be set up in a cluster to ensure high availability.
An AD FS proxy server which protects the AD FS server from internet-based threats. The AD FS proxy server also authenticates users from the internet. Again, the AD FS proxy server can be set up in a cluster to ensure high availability.
An AD FS configuration database which can be stored in an SQL database or Windows Internal Database (maximum of 5 servers) but not both at the same time. This database stores the following items:
- Relying Party Trust
- Certificates
- Claim Provider Trust
- Claims description
- Service configuration
- Attributes
The diagram below shows a common authentication process flow for applications located in a resource organization and secured with AD FS, of which Office 365 is a popular example. The steps, which correspond to the numbers in the diagram, are outlined as follows.
1. The internal user tries to access the AD FS-enabled resource.
2. The client is redirected to the resource’s Federation Service.
3. If the resource’s federation service is configured as a trusted partner, the client is redirected to the organisation’s internal Federation Service.
4. The AD FS server uses the Active Directory to authenticate the user.
5. The AD FS server sends an authorization cookie to the client. This contains the signed security token and a set of claims for the resource partner.
6. The client connects to the resource partner’s Federation Service where the token and claims are verified. If appropriate, the resource partner may send a new security token.
7. The client presents the new authorisation cookie with the security token to the resource in order to access it.
3 Example Environment Setup
In our example deployment, “Kemp Demo” has deployed AD FS 2.0 in their environment to facilitate claims-based authentication for their Exchange 2010 infrastructure and allow for SSO capabilities across applications. The deployment contains the following:
Two AD FS 2.0 Servers
Two AD FS 2.0 Proxy Servers
Two Exchange 2010 Multi-Role Servers
A LoadMaster High Availability (HA) Cluster
A name space of owaADFS.Kempdemo.com is used for access to the Microsoft Exchange environment. A name space of myADFS.Kempdemo.com is used for access to the AD FS environment. Split DNS is implemented, which allows these name spaces to be used both internally and externally in the environment.
The following scenarios are defined:
Internal access to Outlook Web App (OWA) using the internal AD FS farm, both of which are being load-balanced by the LoadMaster
External access to OWA using the Proxy Farm and Internal Farm all three of which are being load-balanced by the LoadMaster

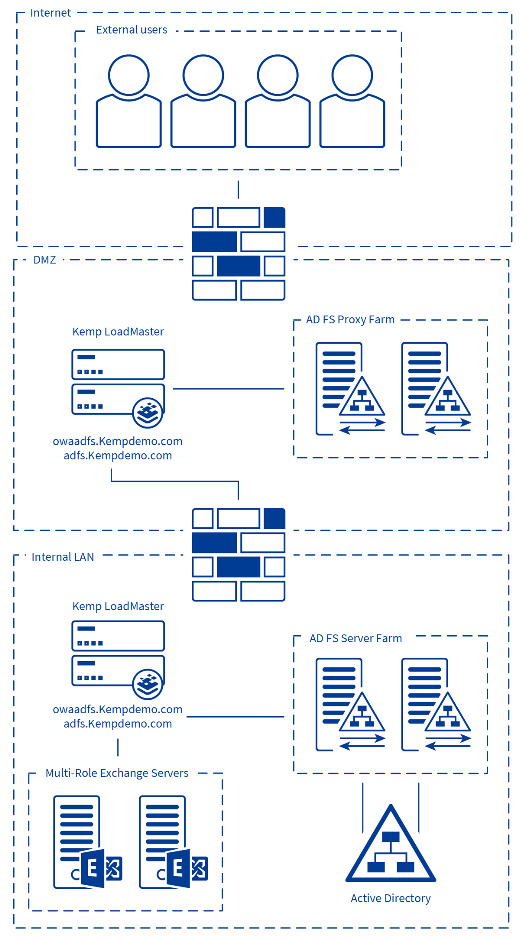

The following diagrams represent the respective environments:
4 Prerequisites
There are some prerequisites to be aware of before deploying the LoadMaster with AD FS.
It is assumed that the AD FS 2.0 environment is already set up and the LoadMaster has been installed. We recommend reviewing the LoadMaster Web User Interface (WUI), Configuration Guide.
At a minimum, the following actions should be completed:
Implemented Active Directory, AD FS, Domain Name System (DNS), Federation Server Proxy (FSP), and other Microsoft requirements
Configured the application servers to support claims-based authentication
Installed the LoadMaster on the same network as the servers
Established access to the LoadMaster WUI
4.1 DNS
Access to the DNS used in the environment must be available. This is needed to set up name resolution of the AD FS services to the virtual service IP addresses that will be configured on the LoadMaster.
4.2 AD FS SSL Certificate Import on LoadMaster
The AD FS SSL certificate has to be imported into the LoadMaster before deployment. To import the certificate, follow the steps below:
1. Log in to the relevant Virtual Load Master (VLM).
2. In the main menu, click Certificates & Security and select SSL Certificates.
3. Click the Import Certificate button.
4. Click Choose File next to the Certificate File field.
5. Browse to and select the certificate file.
6. Click Open.
7. Browse to and select the Key File if needed.
8. Enter the Pass Phrase of the certificate.
9. Enter a name for the certificate in the Certificate Identifier field.
10. Click Save.
11. If it works a success message will be displayed. Click OK.
Despite the fact that clients establish a single Transmission Control Protocol (TCP) connection with the AD FS server to request and receive a security token, certain applications can suffer from multiple login redirections if persistence is not enabled on the load balancer. For this reason, a Layer 7 service is used, along with SSL bridging, to allow for the more intelligent forms of persistence that are not available at Layer 4 or when SSL traffic is not terminated at the LoadMaster.
5 Virtual Service (VS) Configuration
Steps on how to configure the AD FS Virtual Services that can be used are outlined in the sections below.
5.1 Template
Progress Kemp has developed a template containing our recommended settings for this workload. You can install this template to help create Virtual Services (VSs) because it automatically populates the settings. You can use the template to easily create the required VSs with the recommended settings. For some workloads, additional manual steps may be required such as assigning a certificate or applying port following. These steps are covered in the document, if needed.
You can remove templates after use and this will not affect deployed services. If needed, you can make changes to any of the VS settings after using the template.
Download released templates from the following page: LoadMaster Templates.
For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description.
5.2 Configure an AD FS Internal Farm Virtual Service
Follow the steps below to configure a VS:
1. Log in to the relevant VLM.
2. In the main menu, click Virtual Services and select Add New.
3. Enter the Virtual Address.
This is the Virtual IP address used for the service and must be unique and not in use by any other device on the network.
4. Enter 443 in the Port field.
5. Enter a name for the VS in the Service Name (Optional) field.
6. Ensure that tcp is selected as the Protocol.
7. Click Add this Virtual Service.
8. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
Comment |
|---|---|---|---|
|
SSL Properties |
SSL Acceleration |
Enabled |
|
|
|
Cipher Set |
Default |
|
|
|
Reencrypt |
Enabled |
Set the Reencryption SNI Hostname if required. ADFS 3.0 requires the Reencryption SNI Hostname to be set.
|
|
Standard Options |
Persistence Mode |
Super HTTP |
|
|
|
Timeout |
1 Hour |
|
|
|
Scheduling Method |
least connection |
ESP can be enabled if an ESP license is in place. For more information on ESP, refer to the ESP, Feature Description. |
9. Expand the Real Servers section.
10. In the first Real Server Check Parameters field, select HTTPS Protocol.
11. Enter /federationmetadata/2007-06/federationmetadata.xml in the URL text box and click the Set URL button.
12. Select the Use HTTP/1.1 check box.
13. Select GET as the HTTP Method.
14. Click the Add New… button.
15. Enter the IP address of the server to be added to the real server pool. Click Add This Real Server. A success message will be displayed after adding. Click OK. Repeat this for any other real servers that need to be added.
16. In the main menu, click Certificates & Security and select SSL Certificates.
17. Locate the certificate that was added earlier. In the Available VSs field, select the Virtual Service that has just been added and click the right arrow button to assign it.
18. In the main menu, click Virtual Services and select View/Modify Services.
19. Confirm that the service is listed with a Status of Up and that all added member servers are listed in non-bold font.
20. Test access to the AD FS Internal Farm by opening a browser and going to https://<AD FS URL>/ADFS/ls/idpinitiatedsignon.aspx and following the instructions to log in.
21. Once all other Microsoft-defined AD FS prerequisites and application configurations are complete, test access to the application to ensure authentication success. To do this, open a browser and go to https://owAD FS/<AD FS URL>/owa.
A successful login will result in access to the protected application.
Login experience is dependent upon the parameters set in the web.config file located on the AD FS servers.
5.3 Configure an AD FS Proxy Farm Virtual Service
The steps to set up an AD FS Proxy Farm are almost identical to the ones listed above in the Configure an AD FS Internal Farm Virtual Service section. The only difference is, you should give the Virtual Service a different name and follow the steps below:
1. Expand the Advanced Properties section.
2. Select Enable Caching.
3. Select Enable Compression.
The maximum cache usage should be configured dependent upon the number of services on the LoadMaster that are leveraging this feature.
4. Expand the Real Servers section.
5. In the first Real Server Check Parameters drop-down list, select HTTPS Protocol.
6. Enter /adfs/ls/idpInitiatedSignon.aspx in the URL text box and click Set URL.
7. Select GET as the HTTP Method.
8. Continue from the Click the Add New… button. step in the Configure an AD FS Internal Farm Virtual Service section.
References
Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.
ESP, Feature Description
LoadMaster Web User Interface (WUI), Configuration Guide
Last Updated Date
This document was last updated on 27 February 2023.
