LoadMaster Duo Integration Guide
Contents
1 LoadMaster Duo Two Factor Authentication
In this guide we will configure Duo Push along with username and password validation through Active Directory to implement a two factor authentication for our sample application. In this example, the authentication used with the application server is Kerberos Constrained Delegation (KCD).
Once configured the user flow for accessing the application will look like this:
The flow is outlined below:
1. The user provides their username and password.
2. The LoadMaster queries the Duo RADIUS proxy for the user.
3. A connection to Duo Security is established.
4. An authentication request is sent to the user's Duo app.
5. The user validates the request on the app.
6. The LoadMaster performs pre-authentication using the supplied username and password with the Local Domain Controller.
7. Authentication is successful.
8. The resource is accessed through Kerberos Constrained Delegation.
1.1 Add an Application to Duo
First you must log in to the Duo Admin Panel and navigate to Applications > Protect an application. Click Radius. Then, follow the remaining steps in the sub-sections below.
RADIUS is the only required application that should be listed in the Duo Admin Panel.
1.1.1 Install Duo Auth Proxy on Linux
The following Duo guide outlines the steps on installing Duo Authentication Proxy: Authentication Proxy - Reference.
Below is an example configuration using CentOS with Wget installed:
yum install gcc make libffi-devel perl zlib-devel
wget https://dl.duosecurity.com/duoauthproxy-latest-src.tgz
tar xzf duoauthproxy-latest-src.tgz
cd duoauthproxy-5.1.1-7484191-src/
make
cd duoauthproxy-build/
./install
At this point step through the prompts, for example:
In what directory do you wish to install the Duo Authentication Proxy?
[/opt/duoauthproxy]
Enter the name of a user account under which the Authentication Proxy should be run. We recommend a non-privileged and locked down account.
Or you can press <Enter> and our default locked down user will be created for you:
[duo_authproxy_svc]
Enter the name of a group under which the Authentication Proxy logs will be readable. Or press <Enter> and a default group will be created for you:
[duo_authproxy_grp]
1.1.2 Create an Application in Duo
To create an application in Duo, follow these steps:
1. Log in to Duo and go to Dashboard > Applications > Protect an Application and search for radius.
2. Set the app Name and Users that can access the app.
3. Copy the values for:
- Integration key
- Secret key
- API hostname
1.1.3 Configure Duo Auth Proxy and Start
To configure the Duo auth proxy, you must modify the authproxy.cfg file. For example:
vi /opt/duoauthproxy/conf/authproxy.cfg
Below is an example configuration containing the details copied above in addition to the interface address of the LoadMaster which is the RADIUS Client (radius_ip_1) and the RADIUS shared secret to use (radius_secret_1).
The configuration file should contain the following:
[main]
debug=true
test_connectivity_on_startup=true
[duo_only_client]
[radius_server_auto]
ikey=DIS1YSDW3KSFRKLX2W1S
skey=eEqgB1BUP7dfasdasdasdhAPDZOSwLvLp
api_host=api-e0c2593d.duosecurity.com
radius_ip=10.1.151.61
radius_secret_1=Hummingbird
client=duo_only_client
port=1812
In the example above:
-
The radius_ip is the LoadMaster's IP address (or the shared IP address in a High Availability (HA) configuration).
-
The radius_secret_1 is a chosen password. This is required to be configured on the LoadMaster as the RADIUS Shared Secret in the SSO Domain configuration of the domain LDAPDUO which is mentioned below.
1.1.3.1 Add a Firewall Rule to Allow Inbound RADIUS
This may vary across Linux OSS:
firewall-cmd --add-service=radius --permanent
sudo firewall-cmd --reload
1.1.3.2 Start Duo Auth Proxy
Whenever changes are made the configuration you must stop and start the process.
[root@localhost log]# /opt/duoauthproxy/bin/authproxyctl start
Running The Duo Authentication Proxy Connectivity Tool. This may take several minutes...
[info] Testing section 'main' with configuration:
[info] {'debug’: ‘True’, test_connectivity_on_startup': 'true'}
[info] There are no configuration problems
[info] -----------------------------
[info] Testing section 'duo_only_client' with configuration:
[info] {‘debug’: ‘True’}
[info] There are no configuration problems
[info] -----------------------------
[info] Testing section 'radius_server_auto' with configuration:
[info] {'api_host': 'api-e0c2593d.duosecurity.com',
'client': 'duo_only_client',
'ikey': 'DIS1YSDW3KSFRKLX2W1S',
'port': '1812',
'radius_ip_1': '10.1.151.61',
'radius_secret_1': '*****',
'skey': '*****[40]'}
[info] There are no configuration problems
[info] -----------------------------
[info] Testing section 'main' with configuration:
[info] {‘debug’: ‘True’, 'test_connectivity_on_startup': 'true'}
[info] There are no connectivity problems with the section.
[info] -----------------------------
[info] Testing section 'duo_only_client' with configuration:
[info] {‘debug’: ‘True’}
[info] No testing to be done for section.
[info] -----------------------------
[info] Testing section 'radius_server_auto' with configuration:
[info] {'api_host': 'api-e0c2593d.duosecurity.com',
'client': 'duo_only_client',
'ikey': 'DIS1YSDW3KSFRKLX2W1S',
'port': '1812',
'radius_ip_1': '10.1.151.61',
'radius_secret_1': '*****',
'skey': '*****[40]'}
[info] The RADIUS Server has no connectivity problems.
[info] -----------------------------
[info] SUMMARY
[info] No issues detected
The results have also been logged in /opt/duoauthproxy/log/connectivity_tool.log
Checking updates for Duo Authentication Proxy...
[info] No updates detected. Your Duo Authentication Proxy is up to date.
1.1.4 Configure the LoadMaster
Create an SSO domain using LDAP and RADIUS. To do this, follow the steps below:
1. In the LoadMaster User Interface (UI), go to Certificates & Security > LDAP Configuration.
2. Specify the name of the LDAP endpoint configuration and click Add.
3. Configure the settings of the LDAP endpoint as needed.

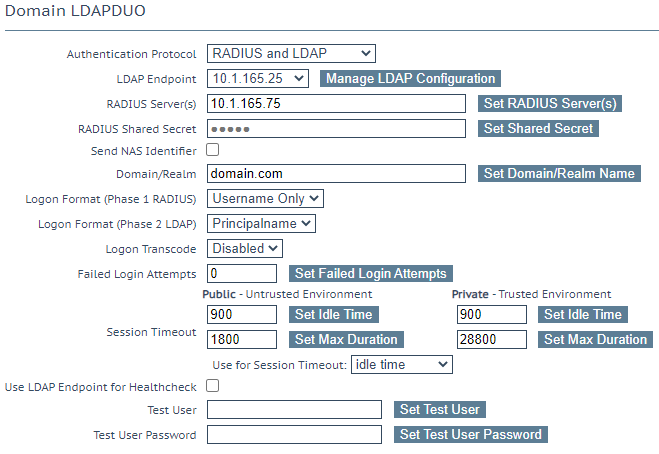

4. In the LoadMaster UI, go to Virtual Services > Manage SSO.
5. Enter the name of the SSO configuration in the text box under Add new Client Side Configuration and click Add.
The LDAP server does not need to be the same as the RADIUS server. For example, it can be an LDAP Windows Server that is already used in the domain.
6. Select RADIUS and LDAP as the Authentication Protocol.
7. Select the relevant LDAP Endpoint.
8. Configure the other settings as needed.
The RADIUS Shared Secret should be the same as the one configured for radius_secret_1 as mentioned in the Configure Duo Auth Proxy and Start section.
9. In the LoadMaster UI, go to Virtual Services > View/Modify Services.
10. Click Modify on the relevant Virtual Service (or add a new one).
11. Expand the ESP Options section.
12. Select the Enable ESP check box.
13. Select the relevant SSO Domain.
14. Configure any other settings as needed.
Any Real Server can be added to this service now. There are no additional configuration or installation requirements needed on the Real Server.
1.2 Create the Duo Image Set
The default Dual Factor Authentication SSO Image Set contains two authentication fields for authentication:
For Duo, this image set should be edited to one field of user/password, because the second authentication is using the Duo RADIUS proxy for the authentication.
The image prompt has no other functionality other than to indicate that connection to Duo has been established successfully. When the DUO image displays after login, a notification on the mobile device should have been received.
In this example, the custom image form is modified to include just one Username and one Password input field and an image is added to indicate to the user that they must approve access (on their mobile device) in response to the initiated Duo push.
The image being displayed in this example is PhoneApprove.png and must be added to the custom image set manifest directory as described in the following section.
For details on how to modify a custom image set, refer to the following document: Custom Authentication Form Technical Note. The edits to the Dual Factor Authentication – Custom files are described in this document.
Two files must be modified: MANIFEST and lm_initial_dfa.html.
1.2.1 Add the Image Name to the Manifest
Add the image used to the manifest and include in the imageset/Duo directory, for example, PhoneApprove.png.
# Default manifest of all files that are part of the logon
# screens.
#ident "$Id: DFA.manifest 16042 2018-02-28 10:16:37Z phil $ "
#
# Format is "filename filetype".
# The first file is the initial login screen
# The second file is the logout screen.
#
lm_initial_dfa.html
lm_logout_dfa.html Text/html
lm_sso.js
favicon.ico
kmgstyle.css
When imagesets are created they exist within an imageset folder. Each specific imageset has its own folder within the imageset folder.
1.2.2 Modify lm_initial_dfa.html
1.2.2.1 Add JavaScript
Within the <head> portion of the page, add the following JavaScript to enable dynamic display of the Duo image and hiding of the button once credentials are entered.
Add:
<script type="text/javascript">
function picture(){
var pic = "/lm_auth_proxy?LMimage=PhoneApprove.png"
document.getElementById('bigpic').src = pic.replace('90x90', '225x225');
document.getElementById('bigpic').style.display='block';
}
</script>
<script>
function hidebutton(button){
button.style.visibility = "hidden";
}
1.2.2.2 Edit Username
Replace:
<form action="/lm_auth_proxy?LMLogon" method="post" id="logonForm" autocomplete="off" onSubmit="return save_usernames_dfa(this.dusername, this.username, this.pubpriv);">
With:
<form action="/lm_auth_proxy?LMLogon" method="post" id="logonForm" autocomplete="off" onSubmit="return save_usernames_dfa(this.dusername, this.dusername, this.pubpriv);">
1.2.2.3 Remove remotecredsid
Remove the following section because there is no need for separate remote credentials:
<tr id="remotecredsid">
<td class="nowrap"><label for="remotecreds"><b>Remote Credentials</b></label></td>
</tr>
1.2.2.4 Replace dpasscodeid
Replace :
<tr id="dpasscodeid">
<td class="nowrap"><label for="dpasscode">Passcode:</label></td>
<td class="txtpad">
<input class="txt" id="dpasscode" type="password" name="dpasscode" autocomplete=off required maxlength=128 />
</td>
</tr>
With :
<tr id="dpasscodeid" style="display:none;">
<td class="txtpad">
<input class="txt" id="dpasscode" value="XXX" type="hidden" name="dpasscode" autocomplete=off required maxlength=128 />
</td>
</tr>
1.2.2.5 Remove interncredsid
Remove the second username field:
<tr id="interncredsid">
<td class="nowrap"><label for="interncreds"><b>Internal Credentials</b></label></td>
</tr>
1.2.2.6 Remove Displaying of the Internal Username
Remove displaying of the internal username because we will reuse a single username.
Replace:
<tr id="userid">
<td class="nowrap"><label for="username">Internal Username:</label></td>
<td class="txtpad">
<input class="txt" id="username" name="username" type="text"/>
</td>
</tr>
With:
<tr id="userid" style="display:none"><td class="nowrap"><label for="username">Ignore Username:</label></td>
<td class="txtpad">
<input class="txt" id="username" name="username" type="text"/>
</td>
</tr>
This field is not being used. The first username is used for both RADIUS and LDAP authentication.
1.2.2.7 Update the Internal Password Field
Update the internal password field to simply call it password.
Replace:
<tr id="passid">
<td class="nowrap"><label for="password">Internal Password:</label></td>
<td class="txtpad">
<input class="txt" id="password" type="password" name="password" autocomplete=off required maxlength=128 />
</td>
</tr>
With:
<tr id="passid">
<td class="nowrap"><label for="password">Password:</label></td>
<td class="txtpad">
<input class="txt" id="password" type="password" name="password" autocomplete=off required maxlength=128 />
</td>
</tr>
1.2.2.8 Replace the Final Row
Replace :
<tr>
<td class="nowrap"> </td>
<td class="txtpad" colspan="2">
<input type="submit" value="Log On" name="submit" />
</td>
</tr>
With :
<tr>
<td class="nowrap"> </td>
<td class="txtpad" colspan="2">
<input type="submit" value="Log On" onclick="hidebutton(this);picture();" name="submit" />
</td>
</tr>
<tr id="interncredsid">
<td class="nowrap" align="center" colspan="2">
<label for="interncreds"><b><img max-width:45px; max-height:45px; id="bigpic" src="bigpic" style="display:none" /></b></label></td>
</tr>
1.2.2.9 Example of the Updated File
A complete example of an updated file is as follows:
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; CHARSET=utf-8">
<title>Kemp Login Screen</title>
<meta content="NOINDEX, NOFOLLOW" name="Robots">
<link rel="shortcut icon" href="/lm_auth_proxy?LMimage=favicon.ico" type="image/x-icon">
<link href="/lm_auth_proxy?LMimage=kmgstyle.css" type="text/css" rel="stylesheet">
<style type="text/css">
body
{
font-family:Tahoma,Arial,Helvetica;
font-size:70%;
}
input, button
{
font-family:Tahoma,Arial,Helvetica;
}
.mid
{
font-size:70%;
}
input, button, label, table
{
font-size:100%;
}
</style>
<script>
var xx_msg10 = "Login Failed - The security service has blocked your request. Please contact your System Administrator.<br><br>";
var xx_msg11 = "Login Failed - Please make sure that both your remote and internal credentials are correct, and then try again.<br><br>";
</script>
<script type="text/javascript" src="/lm_auth_proxy?LMimage=lm_sso.js"></script>
<script type="text/javascript">
function picture(){
var pic = "/lm_auth_proxy?LMimage=PhoneApprove.png"
document.getElementById('bigpic').src = pic.replace('90x90', '225x225');
document.getElementById('bigpic').style.display='block';
}
</script>
<script>
function hidebutton(button){
button.style.visibility = "hidden";
}
</script>
</head>
<body style="font-size:100%" onload='sso_setup("%s", "%s", "%s", %s, %s, %s);'>
<noscript>
<div id="dvErr">
<table cellpadding="0" cellspacing="0">
<tr>
<td><img src="/lm_auth_proxy?LMimage=kmgerror.gif" alt=""></td>
<td style="width:100%">To use LoadMaster ESP Login, javascript must be enabled in your browser.</td>
</tr>
</table>
</div>
</noscript>
<form action="/lm_auth_proxy?LMLogon" method="post" id="logonForm" autocomplete="off" onSubmit="return save_usernames_dfa(this.dusername, this.dusername, this.pubpriv);">
<input type="hidden" id="curl" name="curl" value="">
<input type="hidden" id="curlid" name="curlid" value="">
<input type="hidden" id="curlmode" name="curlmode" value="0">
<table align="center" id="tblMain" cellpadding=0 cellspacing=0>
<tr>
<td colspan=3>
<table cellspacing=0 cellpadding=0 class="tblLgn">
<tr><td><img src="/lm_auth_proxy?LMimage=esptop.gif"></td>
</tr>
</table>
</td>
</tr>
<tr>
<td id="mdLft"> </td>
<td id="mdMid">
<table class="mid">
<tbody>
<tr>
<td class="align">
<table cellpadding="0" cellspacing="0">
<tr><td id="ssomsg"></td></tr>
</table>
</td>
</tr>
<tr id="reset_pass" style="display:none">
<td class="align">
<table cellpadding="0" cellspacing="0">
<tr><td>
<span style="display:none" id="expired_msg">Your password has expired.</span>
<span style="display:none" id="exp_p_msg">Password will expire in </span>
<span style="display:none" id="exp_p_numb"></span>
<span style="display:none" id="exp_p_numb_plur"> days</span>
<span style="display:none" id="exp_p_numb_sing"> day</span>
<span id="reset_msg"> </span>
<a id="reset_link" href="#">Click Here</a>
</td></tr>
</table>
</td>
</tr>
<tr>
<td class="align">
<table cellpadding="0" cellspacing="0">
<tr><td class="wrng" id="badmsg"></td></tr>
</table>
</td>
</tr>
<tr>
<td>
<table cellspacing="0" cellpadding="0">
<colgroup>
<col class="nowrap">
<col class="w100">
<col>
<tbody>
<tr id="nopub"><td class="nowrap">
<input type=radio id=pubr name="pubpriv" value=0 checked="checked">
</td><td class="align"><label for="pubr">This is a public or shared computer</label></td>
</tr>
<tr id="nopub1"><td class="nowrap">
<input type=radio id=pubp name="pubpriv" value=1>
</td><td class="align"><label for="pubp">This is a private computer</label></td>
</tr>
<tr id="duserid">
<td class="nowrap"><label for="dusername">Username:</label></td>
<td class="txtpad">
<input class="txt" id="dusername" name="dusername" type="text"/>
</td>
</tr>
<tr id="dpasscodeid" style="display:none;">
<td class="txtpad">
<input class="txt" id="dpasscode" value="XXX" type="hidden" name="dpasscode" autocomplete=off maxlength=128 />
</td>
</tr>
<tr id="userid" style="display:none">
<td class="nowrap"><label for="username">Ignore Username:</label></td>
<td class="txtpad">
<input class="txt" id="username" name="username" type="text"/>
</td>
</tr>
<tr id="passid">
<td class="nowrap"><label for="password">Password:</label></td>
<td class="txtpad">
<input class="txt" id="password" type="password" name="password" autocomplete=off required maxlength=128 />
</td>
</tr>
<tr>
<td class="nowrap"> </td>
<td class="txtpad" colspan="2">
<input type="submit" value="Log On" onclick="hidebutton(this);picture();" name="submit" />
</td>
</tr>
<tr id="interncredsid">
<td class="nowrap" align="center" colspan="2">
<label for="interncreds"><b>
<img src="/lm_auth_proxy?LMimage=wally.png" id="bigpic" max-width:45px max-height:45px /></b></label></td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
<div class="g-recaptcha" id=captchabox style="display:none" data-sitekey=""></div>
<table class="mid tblConn">
<tr>
<td class="tdConn" style="padding-top:0px;">Secured by LoadMaster</td>
</tr>
<tr>
<td style="font-size:80%;">© 2002-2020 Kemp Technologies Inc. All rights reserved.</td>
</tr>
</table>
</td>
<td id="mdRt"> </td>
</tr>
<tr>
<td colspan=3>
<table cellspacing=0 cellpadding=0 class="tblLgn">
<tr>
<td><img src="/lm_auth_proxy?LMimage=espbottom.gif" alt=""></td>
</tr></table>
</td>
</tr>
</tbody>
</table>
</form>
</body>
</html>
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; CHARSET=utf-8">
<title>Kemp Login Screen</title>
<meta content="NOINDEX, NOFOLLOW" name="Robots">
<link rel="shortcut icon" href="/lm_auth_proxy?LMimage=favicon.ico" type="image/x-icon">
<link href="/lm_auth_proxy?LMimage=kmgstyle.css" type="text/css" rel="stylesheet">
<style type="text/css">
body
{
font-family:Tahoma,Arial,Helvetica;
font-size:70%;
}
input, button
{
font-family:Tahoma,Arial,Helvetica;
}
.mid
{
font-size:70%;
}
input, button, label, table
{
font-size:100%;
}
</style>
<script>
var xx_msg10 = "Login Failed - The security service has blocked your request. Please contact your System Administrator.<br><br>";
var xx_msg11 = "Login Failed - Please make sure that both your remote and internal credentials are correct, and then try again.<br><br>";
</script>
<script type="text/javascript">
function picture(){
var pic = "/lm_auth_proxy?LMimage=PhoneApprove.png"
document.getElementById('bigpic').src = pic.replace('90x90', '225x225');
document.getElementById('bigpic').style.display='block';
}
</script>
<script>
function hidebutton(button){
button.style.visibility = "hidden";
}
</script>
<script type="text/javascript" src="/lm_auth_proxy?LMimage=lm_sso.js"></script>
</head>
<body style="font-size:100%" onload='sso_setup("%s", "%s", "%s", %s, %s, %s);'>
<noscript>
<div id="dvErr">
<table cellpadding="0" cellspacing="0">
<tr>
<td><img src="/lm_auth_proxy?LMimage=kmgerror.gif" alt=""></td>
<td style="width:100%">To use LoadMaster ESP Login, javascript must be enabled in your browser.</td>
</tr>
</table>
</div>
</noscript>
<form action="/lm_auth_proxy?LMLogon" method="post" id="logonForm" autocomplete="off" onSubmit="return save_usernames_dfa(this.dusername, this.dusername, this.pubpriv);">
<input type="hidden" id="curl" name="curl" value="">
<input type="hidden" id="curlid" name="curlid" value="">
<input type="hidden" id="curlmode" name="curlmode" value="0">
<table align="center" id="tblMain" cellpadding=0 cellspacing=0>
<tr>
<td colspan=3>
<table cellspacing=0 cellpadding=0 class="tblLgn">
<tr><td><img src="/lm_auth_proxy?LMimage=esptop.gif"></td>
</tr>
</table>
</td>
</tr>
<tr>
<td id="mdLft"> </td>
<td id="mdMid">
<table class="mid">
<tbody>
<tr>
<td class="align">
<table cellpadding="0" cellspacing="0">
<tr><td id="ssomsg"></td></tr>
</table>
</td>
</tr>
<tr id="reset_pass" style="display:none">
<td class="align">
<table cellpadding="0" cellspacing="0">
<tr><td>
<span style="display:none" id="expired_msg">Your password has expired.</span>
<span style="display:none" id="exp_p_msg">Password will expire in </span>
<span style="display:none" id="exp_p_numb"></span>
<span style="display:none" id="exp_p_numb_plur"> days</span>
<span style="display:none" id="exp_p_numb_sing"> day</span>
<span id="reset_msg"> </span>
<a id="reset_link" href="#">Click Here</a>
</td></tr>
</table>
</td>
</tr>
<tr>
<td class="align">
<table cellpadding="0" cellspacing="0">
<tr><td class="wrng" id="badmsg"></td></tr>
</table>
</td>
</tr>
<tr>
<td>
<table cellspacing="0" cellpadding="0">
<colgroup>
<col class="nowrap">
<col class="w100">
<col>
<tbody>
<tr id="nopub"><td class="nowrap">
<input type=radio id=pubr name="pubpriv" value=0 checked="checked">
</td><td class="align"><label for="pubr">This is a public or shared computer</label></td>
</tr>
<tr id="nopub1"><td class="nowrap">
<input type=radio id=pubp name="pubpriv" value=1>
</td><td class="align"><label for="pubp">This is a private computer</label></td>
</tr>
<tr id="duserid">
<td class="nowrap"><label for="dusername">Username:</label></td>
<td class="txtpad">
<input class="txt" id="dusername" name="dusername" type="text"/>
</td>
</tr>
<tr id="dpasscodeid" style="display:none;">
<td class="txtpad">
<input class="txt" id="dpasscode" value="XXX" type="hidden" name="dpasscode" autocomplete=off required maxlength=128 />
</td>
</tr>
<tr id="userid" style="display:none"><td class="nowrap"><label for="username">Ignore Username:</label></td>
<td class="txtpad">
<input class="txt" id="username" name="username" type="text"/>
</td>
</tr>
<tr id="passid">
<td class="nowrap"><label for="password">Password:</label></td>
<td class="txtpad">
<input class="txt" id="password" type="password" name="password" autocomplete=off required maxlength=128 />
</td>
</tr>
<tr>
<td class="nowrap"> </td>
<td class="txtpad" colspan="2">
<input type="submit" value="Log On" onclick="hidebutton(this);picture();" name="submit" />
</td>
</tr>
<tr id="interncredsid">
<td class="nowrap" align="center" colspan="2"><label for="interncreds"><b><img max-width:45px; max-height:45px; id="bigpic" src="bigpic" style="display:none" /></b></label></td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
<div class="g-recaptcha" id=captchabox style="display:none" data-sitekey=""></div>
<table class="mid tblConn">
<tr>
<td class="tdConn" style="padding-top:0px;">Secured by LoadMaster</td>
</tr>
<tr>
<td style="font-size:80%;">Copyright © 2002-2022 Progress Software Corporation and/or its subsidiaries or affiliates. All Rights Reserved.</td>
</tr>
</table>
</td>
<td id="mdRt"> </td>
</tr>
<tr>
<td colspan=3>
<table cellspacing=0 cellpadding=0 class="tblLgn">
<tr>
<td><img src="/lm_auth_proxy?LMimage=espbottom.gif" alt=""></td>
</tr></table>
</td>
</tr>
</tbody>
</table>
</form>
</body>
</html>
2 References
For further details, refer to the following Duo document: Authentication Proxy - Reference.
Last Updated Date
This document was last updated on 01 March 2023.
