Dell R-Series

1 Introduction

The KEMP LoadMaster is a purpose-built, hardware load balancing and Application Delivery Controller (ADC).

The LoadMaster enables data center clusters which power Internet sites and large intranets to intelligently and efficiently distribute network traffic among web and application servers. A resource optimization layer in front of applications and infrastructure servers gives IT administrators greater control to adapt to network changes and enable the best network and infrastructure performance.

The LoadMaster delivers on these requirements through the inclusion of the latest advancements in Layer 4 and 7 load balancing, content switching, SSL acceleration, Layer 7 content switching, caching, compression, Intrusion Prevention System (IPS), IP and Layer 7 persistence. All KEMP load balancers are optimized for a broad range of IP applications including core Microsoft Enterprise workloads such as Exchange, Lync, SharePoint, RDS and Dynamics.



2 Connect the Dell R-Series

To connect the Dell R-Series, follow the steps below:

1. Install the Dell R-Series into a 19 inch rack or another safe location.

2. Connect Ethernet cables to the ports on the Dell R-Series. Please use the worksheet included in the pack to determine which ports to connect. For single-arm setups, the switch only needs to be connected to port 0 (or eth0).

3. Connect the monitor and keyboard to the Dell R-Series (or just a serial cable).

4. Connect the power cable to the Dell R-Series.

5. Turn on power to the unit.

2.1 Install the LoadMaster

To install the LoadMaster, follow the steps below:

1. Insert the CD into the CD-ROM drive.

2. Boot the server.

Install the LoadMaster.png

3. Once the server boots from the CD, the LoadMaster installation begins automatically with no parameters if no boot parameters are entered.

For further information on the different boot options that are available, refer to the Bare Metal Boot Options, Technical Note.

The serial number should be automatically pulled from the LoadMaster. If it is not, please enter it when prompted.

Install the LoadMaster_1.png

4. Select disk/partition and press OK.

Install the LoadMaster_2.png

5. Select the target disk for installation and press OK.

Install the LoadMaster_3.png

6. Select delete existing partition(s) and press OK.

Install the LoadMaster_4.png

7. Select start installation and press OK.

8. Press OK. The installation should complete successfully.

PXE and USB booting options are also supported by the LoadMaster installation ISO file.

2.2 Boot the Installed LoadMaster

The server is now ready to be rebooted with the LoadMaster software installed on the local disk. Within the console, select the Ctrl-Alt-Del option from the Macros drop-down menu.

The server should now begin to boot from the local disk.

Occasionally, call trace code may appear while the LoadMaster is booting up. This can be ignored.

The LoadMaster should obtain an IP address using DHCP, please note this value.

If the LoadMaster does not obtain an IP address via DHCP then the LoadMaster must be manually configured using the console once the license key has been obtained.

Please refer to the Configuring the LoadMaster via the Console section for further information regarding manually configuring the LoadMaster.

Boot the Installed LoadMaster.png

2.3 License and Configure the LoadMaster

The LoadMaster must now be configured to operate within the network configuration.

1. In an internet browser, enter the IP address that was previously noted.

Ensure to enter https:// before the IP address.

2. A warning may appear regarding website security certificates. Please click the continue/ignore option.

3. The LoadMaster End User License Agreement screen appears.

Please read the license agreement and, if you are willing to accept the conditions therein, click on the Agree button to proceed.

4. A screen will then appear asking if you are OK with the LoadMaster regularly contacting KEMP to check for updates and other information. Click the relevant button to proceed.

Configure the LoadMaster.png

5. If using the Online licensing method, fill out the fields and click License Now.

If you are starting with a trial license, there is no need to enter an Order ID. If you are starting with a permanent license, enter the KEMP Order ID# if this was provided to you.

If using the Offline Licensing method, select Offline Licensing, obtain the license text, paste it into the License field and click Apply License.

For detailed instructions on how to register for a KEMP ID and license the LoadMaster, refer to the Licensing, Feature Description on the KEMP Documentation Page.

Configure the LoadMaster_1.png

6. If you entered an Order ID, a screen appears that provides a list of available licenses for that order ID, in addition to any licenses registered for the KEMP ID based on the LoadMaster platform type. Select the license type you want to apply to this LoadMaster.

If the license type you want is not displayed, please contact your KEMP representative.

7. Click Continue.

8. The login screen appears, enter the bal user name and the password.

9. In the screen informing you that the password has changed, press the Continue button

10. If your machine has shipped with a temporary license you should get a warning informing you that a temporary license has been installed on your machine and for how long the license is valid.


Click OK .

11. You should now connect to the Home screen of the LoadMaster.


12. Go to System Configuration > Network Setup in the main menu.

13. Click the eth0 menu option within the Interfaces section.

Configure the LoadMaster_4.png

14. In the Network Interface 0 screen, enter the IP address of the eth0 interface, the network facing interface of the LoadMaster, in the Interface Address input field.

15. Click the Set Address button

16. Click the eth1 menu option within the Interfaces section

17. In the Network Interface 1 screen, enter the IP address of the eth1 interface, the farm-side interface of the LoadMaster, in the Interface Address input field.

18. Click on the Set Address button

This interface is optional, depending on the network configuration.

19. Click on the Local DNS Configuration > Hostname Configuration menu option.

Configure the LoadMaster_5.png

20. In the Hostname configuration screen, enter the hostname into the Current Hostname input field.

21. Click the Set Hostname button.

22. Click the Local DNS Configuration > DNS Configuration menu option.

Configure the LoadMaster_6.png

23. In the DNS configuration screen, enter the IP address(es) of the DNS Server(s)  which is used to resolve names locally on the LoadMaster into the DNS NameServer input field.

24. Click the Add button.

25. Enter the domain name that is to be prepended to requests to the DNS nameserver into the DNS NameServer input field.

26. Click the Add button.

27. Click the System Configuration > Network Setup > Default Gateway menu option.

Configure the LoadMaster_7.png

28. In the DNS configuration screen, enter the IP address of the default gateway into the IPv4 Default Gateway Address input field.

If you have an IPv6 Default Gateway, please enter the value in the IPv6 Default Gateway Address input field.

29. Click the Set IPv4 Default Gateway button.

The LoadMaster is now fully installed and ready to be used. For further information on how to configure and implement the Virtual LoadMaster, please refer to the LoadMaster documentation which can be downloaded from the http://kemptechnologies.com/documentation page.

2.4 Update from Temporary to Permanent License

Depending on the terms and conditions of purchase, the LoadMaster will be entitled to either a temporary or permanent license. If the LoadMaster has a temporary license, a permanent license will be automatically issued via email upon receipt of payment.

To upgrade the license from temporary to permanent please complete the following steps:

1. Select the System Configuration menu option.

2. Select the System Administration > Update License menu option.

3. The Update License screen appears.

Update from Temporary to Permanent.png

4. If using the Online Licensing method, fill in the fields and click Update License.

5. If using the Offline Licensing method, select Offline Licensing, copy the license text from the email, paste it into the License field and click Update License.

6. The license should now be updated.

The LoadMaster is now fully installed, fully licensed and ready to be used. For further information on how to configure and implement the LoadMaster, please refer to the LoadMaster documentation which can be downloaded from the http://kemptechnologies.com/documentation page.

3 Configuring the LoadMaster via the Console

If the LoadMaster does not automatically obtain an IP address using DHCP, or if the user prefers to configure the LoadMaster via the console, then the following configuration steps must be completed before starting the LoadMaster.

1. Login into the LoadMaster via the console using the settings

- lb100 login: bal

- Password: 1fourall

Configuring the LoadMaster.png

2. Enter the IP address of the eth0 interface, the network facing interface of the LoadMaster, in the input field within the Network Side Interface Address dialog box.

3. Press OK.

Configuring the LoadMaster_1.png

4. Enter the IP address of the default gateway in the input field of the Default Gateway dialog box.

5. Press OK.

6. Once these are set, a prompt will appear asking to connect to the web interface at the newly configured IP address. In an internet browser enter the IP address of the eth0 entered in Step 2.

Ensure to enter https:// before the IP address.

7. A warning may appear regarding website security certificates. Please click the continue/ignore option.

8. The LoadMaster End User License Agreement screen appears.

9. Please read the license agreement and, if willing to accept the conditions therein, click on the Agree button to proceed.

10. If the machine has shipped with a temporary license, a warning will appear informing that a temporary license has been installed on the machine and for how long the license is valid.

11. Click OK.

12. The Appliance Vitals screen of the LoadMaster should appear.

Licensing and Configuration_4.png

The LoadMaster is now fully installed and ready to be used. For further information on how to configure and implement the Virtual LoadMaster, please refer to the LoadMaster documentation which can be found here: https://kemptechnologies.com/documentation.



4 The iDRAC Module

iDRAC Enterprise may not be installed on your Dell Server Platform.  Please confirm with your Dell Support Team.

The iDRAC module gives network administrators a dedicated management channel for device maintenance. The iDRAC functionality can be accessed by using a Command Line Interface (CLI) or a supported web browser. The iDRAC has its own network connection, memory, processor and access to the system bus. Key features of the iDRAC include remote console capabilities, power management and virtual media access.

4.1 Configure the iDRAC Module

To configure the iDRAC module, follow the steps below.

1. Connect and boot the iDRAC.

Configure the iDRAC Module.png

2. At boot prompt, press F10 on the keyboard to enter the Lifecycle controller.

Configure the iDRAC Module_1.png

3. In the main menu, select Home.

4. Click Configure server for remote access (iDRAC).

Configure the iDRAC Module_2.png

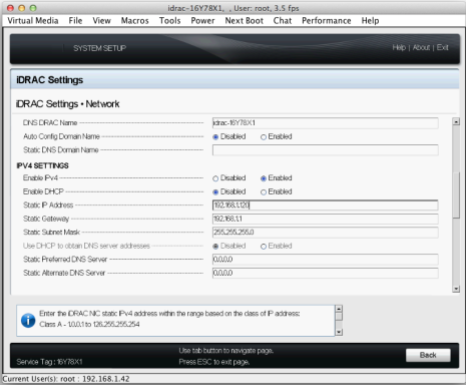

5. Click Network.

Configure the iDRAC Module_3.png

6. Select Enabled for the Enable IPv4 option.

7. Set the Static IP Address.

8. Set the Static Gateway.

9. Set the Static Subnet Mask.

10. Click Back.

Configure the iDRAC Module_4.png

11. Click User Configuration.

Configure the iDRAC Module_5.png

12. Set the values as required.

13. Click the Back button.

14. Click Exit.

15. Now, log in to the iDRAC module from a web browser by entering the IP address previously configured.

Ensure to enter https:// before the IP address.

4.2 Restore Functionality Using the iDRAC Module

The iDRAC module is an effective way of restoring functionality to units when the Solid State Drive (SSD) needs to be replaced. The server is able to boot from an ISO uploaded to the vFlash SD card and reinstall the firmware.

Follow the steps below to restore using the iDRAC:

1. First, create a vFlash image.

2. Then, log in to the iDRAC Web User Interface (WUI) by navigating to the IP address in a web browser.

Ensure to enter https:// before the IP address.

3. Navigate to vFlash and select Create from Image.

Restore Functionality Using.png

4. Select 1 as the Index value.

5. Enter a Label.

6. Select CD as the Emulation Type.

7. Click Choose File and navigate to the relevant .iso file.

64-bit firmware must be used for Dell PERC controllers to be supported. 32-bit firmware gives an error saying the hard drive cannot be found.

8. Wait for the vFlash partition to be created successfully.

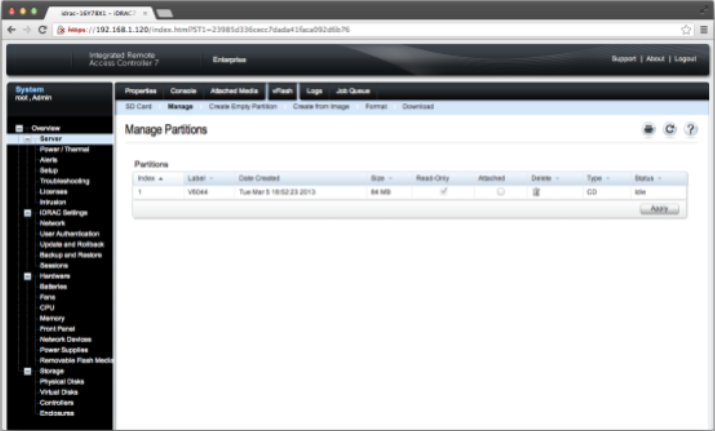

9. Navigate to vFlash > Manage.

Restore Functionality Using_1.png

10. Select the Attached checkbox.

11. Click Apply.

12. Navigate to Overview > Server > Setup.

Restore Functionality Using_2.png

13. Select the relevant First Boot Device.

14. Click Apply.

15. Reboot the LoadMaster and observe the installation.

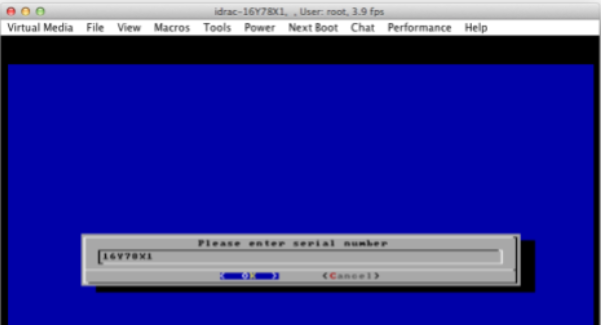

Restore Functionality Using_3.png

16. Enter the service tag as the serial number and press OK.

17. A message will be displayed informing that the installation was successful.

Restore Functionality Using_4.png

18. Enter the license key and press OK.

If you do not have a license key, please contact KEMP.

Restore Functionality Using_5.png

19. Enter the IP address and press OK.

20. When the quick-start setup is finished, the LoadMaster will reboot.

21. Move the network cable to the general NIC (use the left-most interface riser card above the iDRAC.

22. Connect to the LoadMaster WUI by entering the IP address of the LoadMaster in a web browser. Ensure to enter https:// before the IP address.

23. Accept the license agreement.

24. Set the password and log in.


After logging in successfully the LoadMaster Home screen should appear. Verify that the installation has completed successfully.

References

Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.

WUI, Configuration Guide
Licensing, Feature Description
KEMP LoadMaster, Product Overview
Bare Metal Boot Options, Technical Note

Document History



Date

Change

Reason for Change

Version

Resp.

Mar 2015

Minor updates

Enhancement made

1.8

LB

Apr 2015

Release update

Updated for 7.1-26 release

1.9

LB

June 2015

Release update

Updated for 7.1-28 release

1.10

LB

Sep 2015

Screenshot updates

LoadMaster WUI reskin

3.0

KG

Oct 2015

Minor changes

New section added

4.0

LB

Nov 2015

Minor changes

Added more installation steps

5.0

LB

Jan 2016

Release update

Updated for 7.1-32a release

6.0

LB

Mar 2016

Minor changes

Enhancement made

7.0

LB

Oct 2016

Release update

Updated for 7.2.36 release

8.0

LB

Jan 2017 Release update Updated for 7.2.37 release 9.0 LB
