Content Switching - Exchange and Lync

1 Introduction

Sometimes customers face very specific networking requirements or they might be restricted in the amount of available IP addresses that can be allocated to Virtual Services which are used to publish or load balance applications. With the pool of available IPv4 addresses nearly being depleted, the latter scenario is not uncommon. These sort of problems highlight the need for a flexible solution which allows the use of a single IP address for multiple applications while maintaining the full flexibility of load balancing options that you would otherwise also have in a ‘typical’ setup.

Before we move on, it is important to understand how routing/load balancing decisions are being made.


Consider the scenario outlined in the diagram above: a Microsoft Exchange 2013 environment is load balanced on a single virtual IP address: 192.168.10.80.

Whenever traffic hits the virtual IP address – which is configured as a Virtual Service in the LoadMaster – the combination of the IP address and the specific – configured - TCP port will trigger the LoadMaster to use the settings defined in the Virtual Service and forward traffic to the Real Servers that are associated with that Virtual Service.

Without additional configuration, that Virtual Service would operate at Layer 4 and pass along any traffic that comes in through the aforementioned IP address and TCP port combination. The combination of an IP address with a specific TCP port is always unique. As such, once you have configured a Virtual Service, you cannot create another Virtual Service using the same IP address and TCP port.

1.1 Document Purpose

In the scenario above, Exchange is therefore the only application that can use the IP/port combination of 192.168.10.80:443. If you want to have another application use the same IP address and TCP port combination, routing decisions should be made based on the real destination of the traffic. In the world of web-based applications these destinations are typically revealed by Uniform Resource Locators (URLs).

As such, you would be able to use multiple (different) hostnames with a single IP address and TCP port combination and still use different routing/load balancing options for each of them:

Webmail.domain.com192.168.10.80:443
LyncFE.domain.com192.168.10.80:443

The challenge here, however, is to get the LoadMaster to interpret the destination URL and act upon it. This document provides step-by-step instructions on how to achieve this.

1.2 Intended Audience

This document is intended to be read by anyone who is interested in learning about how to use content switching to publish Exchange and Lync-related workloads.

1.3 Author Information

Michael Van Horenbeeck is a Microsoft Certified Solutions Master (MCSM), Exchange Server Most Valuable Professional (MVP) and Microsoft Certified Trainer from Belgium. He has a strong focus on Microsoft Exchange, Office 365, Active Directory, and some Lync. Michael has been active in the industry for about 12 years and developed a love for Exchange back in 2000. He is a frequent blogger and a member of the Belgian Unified Communications User Group: Pro-Exchange - www.pro-exchange.be. Besides writing about technology, Michael is a regular contributor to The UC Architects podcast (www.theucarchitects.com) and speaker at various tech conferences around the world. You can follow Michael on Twitter (@mvanhorenbeeck) or his blog on http://michaelvh.wordpress.com.

2 Content Rules

The KEMP LoadMaster includes a feature called content rules. When content rules are enabled, the LoadMaster will evaluate incoming traffic against a set of rules and makes routing and load balancing decisions based on the results. These rules are typically based on regular expressions and can, for instance, be used to (partially) match the hostname string (URL) of incoming traffic. The result is that, now, that URL can be used to determine where the traffic should be forwarded to.

Let’s clarify this with an example:

Content Rules.png

The above content rule would search the content of an incoming request for a pattern matching the regex expression: /^\/owa.*/.

For more information on content rules in general, and further regex examples, refer to the Content Rules, Feature Description.

Content Rules_1.png

When, for example, the hostname string (URL) matches this expression, the configuration parameters of the Virtual Service (or SubVS) to which the content rule is assigned, will be used for routing and load balancing decisions.

Content Rules_2.png

SubVSs allow the creation of a flexible Virtual Service which leverages the use of multiple content matching rules to mix and match one or more applications.

3 Challenges

In order for the LoadMaster to be able to evaluate incoming traffic, it must be able to read the traffic. For non-encrypted (HTTP) traffic, this would be no problem. However, many services - like Exchange or Lync - use encrypted traffic (HTTPS) by default and therefore the LoadMaster cannot read the incoming traffic without additional configuration. In order to do so, we need to configure the LoadMaster to decrypt SSL traffic first. Inherently, this changes the operating mode from Layer 4 to Layer 7.

While that opens up a wide range of possibilities, it does increase the load on the device and therefore should be taken into account when choosing the right model.

In theory, there is no need to re-encrypt the traffic on its way out, but all examples hence forward will use re-encryption of the SSL traffic as it is being forwarded out of the LoadMaster to the published applications; in this case Exchange or Lync. For more information, including steps on how to configure SSL offloading and re-encryption, refer to the SSL Accelerated Services, Feature Description.

3.1 Health Checking Exchange

A second challenge presents itself relating to the use of health checks. You can only define a single health check per Virtual Service. As a result, if you use a single Virtual Service to publish Exchange, the Virtual Service can only consider a single health parameter to determine whether an underlying Exchange server is healthy or not. Choosing the ‘right’ health check thus becomes very critical. But how does one determine what to health check? Depending on your own environment there might be one workload (for example OWA) which is used primarily and therefore it would make sense to use that specific workload. Unfortunately this does not offer much flexibility.

Luckily, the SubVSs would allow us to create multiple SubVSs (one per workload) and thus configure a health check for each of the workloads like OWA, Outlook Anywhere, Exchange Web Services, and so on.

Health Checking Exchange.png

Exchange 2013 introduced a new feature called Managed Availability which will perform in-box health checks of Exchange and uses that information to determine whether a workload is available for service or not. The result of these health checks are exposed in an HTML file called healthcheck.htm which is available per workload (for example OWA, MAPI/HTTP, Outlook Anywhere).

Using this information dramatically increases the flexibility and maximizes the utilization of an Exchange server by preventing a single workload failure to cause an entire server to be taken out of the pool of available servers.

4 Configuring Content Rules

In the following sections we will walk you through the configuration of a LoadMaster based on two specific scenarios.

4.1 Scenario 1

A customer wants to publish and load balance both Exchange 2013 and Lync 2013. However, they can only spare a single IP address. To keep things simple, the customer does not require multiple health checks for Exchange.


The above image depicts the configuration of Exchange and Lync within the customer’s network.

4.1.1 Step 1: Create the Content Matching Rules

There are two type of content rules: Content Matching Rules and Header Modification Rules. The latter option is used to rewrite URLs ‘on the fly’ and are beyond the scope of this document. For more information on Header Modification Rules, refer to the Content Rules, Feature Description.

Content matching rules will be used to identify what traffic is currently entering the load balancer. Based on the scenario above, there are multiple ways we can approach the problem.

The first approach would be to have all traffic be forwarded to Exchange, unless there is a match for Microsoft Lync traffic. This means that we would only have to create two different content matching rules:

Lyncdiscover.domain.com

LyncExt.domain.com

The second approach would be to create a content matching rule per workload or hostname:

Mail.domain.com

Autodiscover.domain.com

Lyncdiscover.domain.com

LyncExt.domain.com

For this scenario, we will use the latter option.

To create a new content matching rule, follow the steps below in the LoadMaster Web User Interface (WUI):

1. In the main menu, select Rules & Checking.

2. Select Content Rules.

3. Click Create New.

Step 1 Create the Content.png

4. Enter a recognizable Rule Name, for example LyncDiscover.

5. Enter host in the Header Field text box.

6. Enter lyncdiscover.domain.com in the Match String text box.

7. Click Create Rule.

8. Repeat steps 3 to 7 above to add the other rules, but for step 6 - enter the following values in the Match String text box:

mail.domain.com

autodiscover.domain.com

LyncExt.domain.com

After completing these steps, you should have four distinct content rules. One for each of the hostnames we identified earlier.

4.1.2 Step 2: Add the Certificate

Before adding the Virtual Service, we first need to import the certificate to the LoadMaster so that we can use it later to decrypt incoming traffic. Follow the steps below, in the LoadMaster WUI, to import the certificate:

1. In the main menu, go to Certificates & Security.

2. Select SSL Certificates.

3. Click Import Certificate.

Step 2 Add the Certificate.png

4. Click Choose File.

5. Browse to and select the certificate (.pfx file).

6. Enter the Pass Phrase.

7. Enter a name in the Certificate Identifier text box.

8. Click Save.

4.1.3 Step 3: Create and Configure the Virtual Service

The steps below describe how to configure a new Virtual Service which will be used as the parent Virtual Service. Follow these steps in the LoadMaster WUI:

1. In the main menu, select Virtual Services.

2. Select Add New.

Step 3 Create and Configure.png

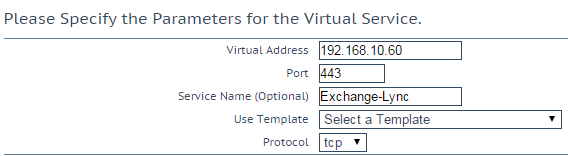

3. Enter a valid IP address in the Virtual Address text box.

4. Enter 443 as the Port.

5. Enter a recognizable Service Name.

6. Click Add this Virtual Service.

Step 3 Create and Configure_1.png

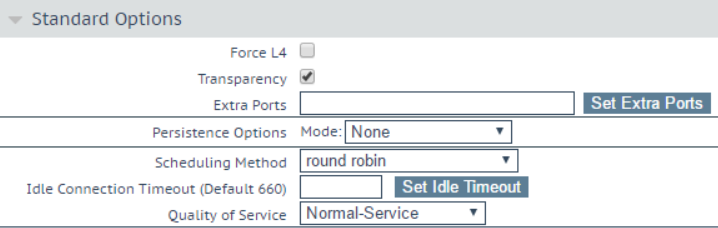

7. In the Standard Options section, ensure that Force L4 is cleared.

Step 3 Create and Configure_2.png

8. Expand the SSL Properties section.

9. Select Enabled.

10. Click OK if a warning appears.

11. Select Reencrypt.

12. Select the relevant certificate in the Available Certificates box.

13. Click the right arrow to move the certificate into the Assigned Certificates box.

14. Click Set Certificates.

4.1.4 Step 4: Adding SubVSs

Now that the Virtual Service is configured, we can start adding SubVSs. A SubVS needs to be added for each of the workloads/applications defined earlier. Follow the steps below, in the LoadMaster WUI, to add these SubVSs:

1. In the modify screen for the Virtual Service, expand the Real Servers section.

Step 4 Adding SubVSs.png

2. Click Add SubVS.

3. Click OK on the confirmation message.

Now that the first SubVS has been added, Content Switching can be enabled.

Step 4 Adding SubVSs_1.png

4. In the SubVSs section, click Modify to configure the SubVS.

Step 4 Adding SubVSs_2.png

5. In the Basic Properties section, enter a recognizable SubVS Name, for example Exchange, and click Set Nickname.

Step 4 Adding SubVSs_3.png

6. In the Standard Options section, configure the required Persistence Options for the relevant application.

There is no persistence required for Exchange 2013.

7. Select the relevant Scheduling Method.

Step 4 Adding SubVSs_4.png

8. In the Real Servers section, configure the Real Server Check Parameters. This will define the health check that will be executed for this Virtual Service. For Exchange, the following options could be entered:

Checked Port: 443

URL: /owa/healthcheck.htm

HTTP Method: GET

9. Click Add New.

Step 4 Adding SubVSs_5.png

10. Enter the Real Server’s address in the Real Server Address text box.

11. Enter the relevant Port.

For Lync, the Port may need to be changed to 4443.

12. Click Add This Real Server.

13. Repeat the steps above for each of the servers that you want to add to this SubVS.

14. When finished adding all of the Real Servers, click Back to return to the SubVS properties screen. Then, click Back to return to the parent Virtual Service properties screen.

15. Expand the Advanced Properties section.

Step 4 Adding SubVSs_6.png

16. Click Enable.

Step 4 Adding SubVSs_7.png

17. In the SubVSs section, click None.

Step 4 Adding SubVSs_8.png

18. Select the relevant rule and click Add.

19. Create a SubVS for Lync by repeating steps above. However, Content Switching has already been enabled for the parent Virtual Service and in the last step, select the content rule which applies to Lync instead of Exchange.

4.2 Scenario 2

The previous scenario might be used if you want to leverage the Managed Availability feature in Exchange 2013 which allows a health check per Exchange workload.

The process for scenario 2 is similar to the one described earlier. Only this time, a content rule will be created for each Exchange workload:

Outlook Web App (OWA)

Exchange Admin Center (EAC/ECP)

Exchange Web Services (EWS)

Outlook Anywhere (OA)

MAPI/HTTP (MAPI)

Offline Address Book (OAB)

Exchange ActiveSync (EAS)

Autodiscover (AutoD)

4.2.1 Step 1: Create the Content Rules

In many cases, all of the above workloads will share a common domain name – except for Autodiscover. Therefore, we need to find another way of determining the difference between each workload. Consider the following:

When a client connects with Outlook, the URL which it will try to connect will look like this:

https://autodiscover.domain.com/mapi/...

Similarly, if an ActiveSync client is trying to connect, it will do so using the following URL:

https://mail.domain.com/Microsoft-Server-ActiveSync/....

Because Exchange uses a different virtual directory for each of the workloads, we can use that to differentiate traffic from one another. The following table summarizes how this can be achieved:

Workload

RegEx

Health check page – Exchange 2013

OWA

/^\/owa.*/

/owa/healthcheck.htm

EAC/ECP

/^\/ecp.*/

/ecp/healthcheck.htm

EWS

/^\/ews.*/

/ews/healthcheck.htm

OA

/^\/rpc.*/

/rpc/healthcheck.htm

MAPI

/^\/mapi.*/

/mapi/healthcheck.htm

OAB

/^\/oab.*/

/oab/healthcheck.htm

EAS

/^\/Microsoft-server-activesync.*/

/Microsoft-server-activesync/healthcheck.htm

AutoD

/^\/autodiscover.*/

/autodiscover/healthcheck.htm

To create these content matching rules, follow the steps below in the LoadMaster WUI:

1. In the main menu, select Rules & Checking.

2. Select Content Rules.

3. Click Create New.

Step 1 Create the Content_1.png

4. Add a recognizable Rule Name, for example ECP.

5. Enter /^\/ecp.*/ in the Match String text box.

6. Select Ignore Case.

7. Click Create Rule.

8. Repeat steps 1 to 7 for each of the rules in the table above. Enter the relevant RegEx in the Match String text box for step 5.

4.2.2 Step 2: Add the Certificate

Before moving on to the configuration of this Virtual Service, we first need to import the certificate to the LoadMaster so that we can use it later to decrypt incoming traffic. To add the certificate, follow the steps below in the LoadMaster WUI:

1. In the main menu, go to Certificates > SSL Certificates.

2. Select SSL Certificates.

3. Click Import Certificate.

4.2.3 Step 3: Create and Configure a Virtual Service

Follow the steps below, in the LoadMaster WUI, to create the parent Virtual Service:

1. In the main menu, select Virtual Services.

2. Select Add New.

Step 3 Create and Configure_1_1.png

3. Enter a valid IP address in the Virtual Address text box.

4. Enter 443 as the Port.

5. Enter a recognizable Service Name, for example Exchange.

6. Click Add this Virtual Service.

7. Expand the Standard Options section.

Step 3 Create and Configure_1.png

8. Ensure Force L4 is cleared.

Step 3 Create and Configure_1_2.png

9. Expand the SSL Properties section.

10. Select Enabled.

11. Click OK.

12. Select Reencrypt.

13. Select the relevant certificate in the Available Certificates box.

14. Click the right arrow to move the certificate into the Assigned Certificates box.

15. Click Set Certificates.

4.2.4 Step 4: Adding SubVSs

Now that the parent Virtual Service is configured, the SubVSs can be added. We will need to add a SubVS for each of the workloads/applications defined earlier. To add the SubVSs, follow the steps below in the LoadMaster WUI.

1. In the Virtual Service modify screen, expand the Real Servers section.

Step 4 Adding SubVSs_1_1.png

2. Click Add SubVS.

3. Click OK.

As the first SubVS has been added, it is now possible to enable Content Switching.

4. In the SubVSs section, click Modify to configure the SubVS.

Step 4 Adding SubVSs_1_2.png

5. In the Basic Properties section, enter a recognizable SubVS Name, for example OWA and click Set Nickname.

Step 4 Adding SubVSs_1_3.png

6. In the Standard Options section, configure the required Persistence Options for the relevant application.

There is no persistence required for Exchange 2013.

7. Select the relevant Scheduling Method.

Step 4 Adding SubVSs_1_4.png

8. In the Real Servers section, configure the Real Server Check Parameters. This defines the health check that is executed for this Virtual Service. For Exchange, the following settings could be entered:

Checked Port: 443

URL: /owa/healthcheck.htm

Use HTTP/1.1: Enabled

HTTP Method: GET

9. Click Add New.

Step 4 Adding SubVSs_1_5.png

10. Enter the Real Server’s address in the Real Server Address text box.

11. Enter the relevant Port.

For Lync, the Port might need to be changed to 4443.

12. Click Add This Real Server.

13. Repeat steps 12 to 14 above for each Real Server that needs to be added to this SubVS.

14. When all of the Real Servers have been added, click Back to return to the SubVS properties screen.

15. Click Back to return to the parent Virtual Service properties screen.

16. Expand the Advanced Properties section.

Step 4 Adding SubVSs_1_6.png

17. Click Enable.

Step 4 Adding SubVSs_1_7.png

18. Click None.

Step 4 Adding SubVSs_1_8.png

19. Select the relevant rule and click Add.

If the SubVS is for Exchange, select the OWA rule.

Step 4 Adding SubVSs_1_9.png

20. Now, create a SubVS for each of the other workloads by repeating steps 1 to 19 above. Steps 4 and 5 are no longer required as Content Switching has already been enabled for the parent Virtual Service.

Step 4 Adding SubVSs_1_10.png

Once everything is set up, the overview of the Virtual Services will show something similar to the screenshot above.

Step 4 Adding SubVSs_1_11.png

When you click the blue IP address, a breakdown of the different SubVSs will be displayed; one for each workload with each having its specific health check.
