1 Introduction

Kemp 360 Central is a centralized management, orchestration, and monitoring application that enables the administration of deployed LoadMaster instances.

Use Kemp 360 Central to perform administrative tasks on each LoadMaster instance. This provides ease of administration because multiple LoadMasters can be administered in one place, rather than accessing each LoadMaster individually.

1.1 Document Purpose

The purpose of this document is to provide step-by-step instructions on deploying Kemp 360 Central with VMware vSphere.

1.2 Intended Audience

This document is intended for anyone who needs more information about deploying Kemp 360 Central with VMware vSphere.

1.3 Check the Virtual Machine Settings

Note that since Version 1.25.2, the default minimum Virtual Machine provisioning requirements for new installs have been updated as follows:

Resource V1.24 and earlier firmware V1.25.2 and later firmware
CPU Two cores Four cores
RAM 4 GB 8 GB
Disk Storage 40 GB 250 GB

Upgrades to Version 1.25.2 and later releases will not update existing Virtual Machine resources. To modify your current Virtual Machine configuration to conform to the above minimum values, contact Kemp Support.

1.4 VMware Tools for Kemp 360 Central

Kemp 360 Central is delivered with VMware Tools version 10.2.5.3619 pre-installed. This is a Kemp-approved software package provided on installation of, or upgrade to, Kemp 360 Central version 2.2 and above. Currently, there is no management interface for the VMware Tools package, which can only be modified by using an updated image of Kemp 360 Central software.

2 Installing Kemp 360 Central using vSphere

The following instructions describe how to install Kemp 360 Central using the VMware vSphere client.

2.1 Download the OVF File

Kemp 360 Central is packaged with an .ovf file for ease of deployment. This file can be freely downloaded from Kemp and by default offers a permanent two device license. To download the OVF file please follow the following instructions:

1. Visit the download page at http://kemptechnologies.com/kemp360-central-download/

2. Select your country from the drop down list.

3. Select VMware as the hypervisor platform.

4. Click Download to start the download.

5. Checksums are provided to allow integrity checking of the download.

6. If necessary, unzip the download to an accessible location.

2.2 Deploy the OVF File

To deploy the Kemp 360 Central instance, initiate a Deploy OVF Template wizard which gathers all the information required to correctly deploy the Kemp 360 Central instance.

  1. Open the VMware vSphere client.
  2. Select the correct Resource Pool within which you wish to install the Kemp 360 Central instance.
  3. Select the File > Deploy OVF Template menu option, this initiates the Deploy OVF Template wizard.

Deploy the OVF File.png

  1. Within the Source screen, click the Browse button and select the downloaded file.
  2. Click the Next button.

Deploy the OVF File_1.png

  1. Within the OVF Template Details screen, ensure that all the details regarding the Kemp 360 Central instance are correct.

The estimated disk usage is approximately 40 GB.

  1. Click the Next button.

Deploy the OVF File_2.png

  1. In the Name and Location screen, enter a name for the Kemp 360 Central instance into the Name field.
    The name can be up to 80 characters long. It should be unique within the virtual machine folder. Names are case sensitive.
  1. If required, select the folder location within the inventory where Kemp 360 Central will reside.
  2. Click the Next button.
  3. Within the Resource Pool screen, select the resource pool where Kemp 360 Central will run.

This page only displays if the cluster contains a resource pool and if you have not selected a resource pool within the inventory tree before initiating the deployment wizard.

  1. Click the Next button.

Deploy the OVF File_3.png

  1. Within the Storage screen, select the datastore in which you wish to store the VLM.

You may only select from preconfigured datastores within this screen.

  1. Click the Next button.

Deploy the OVF File_4.png

  1. Within the Disk Format screen, select whether you wish to use Thick Provision Lazy Zeroed, Thick Provision Eager Zeroed or Thin Provision.

Kemp recommends using the Thin Provision option.

  1. Click the Next button.

Deploy the OVF File_5.png

  1. Within the Network Mapping screen, select which networks in the inventory should be used for Kemp 360 Central.
  2. Select the network mapping for Network and Farm by choosing the relevant preconfigured network from the Destination Network drop-down list.
  3. Click the Next button.

Deploy the OVF File_6.png

  1. Within the Ready to Complete screen, ensure that all the details are correct.
  2. Click the Finish button.

Deploy the OVF File_7.png

Once the Finish button is clicked, the Kemp 360 Central machine is deployed.

2.3 Check the Network Adapter Settings

Before starting Kemp 360 Central first verify the network adapters are configured correctly.

  1. Select the deployed Kemp 360 Central instance within the inventory tree.
  2. Select the Inventory > Virtual Machine > Edit Settings menu option.
  3. Select Network adapter from the Hardware tree.
  4. Ensure the network adapters are configured correctly as follows:
  1. Ensure the Connect at power on checkbox is selected.
  2. Ensure the Adapter Type is correct.

The default, recommended adapter type is E1000.

Kemp also supports the vmxnet3 driver.

Both E1000 and vmxnet3 support Jumbo frames.

  1. Ensure that the Automatic option is selected within the MAC Address section.
  2. Ensure that the correct Network Label is selected.

Check the Network Adapter.png

If the network adapters are not configured correctly or if they have not been set up, you can add a new network adapter by clicking the Add button.

2.4 Power on the Kemp 360 Central Instance

To power on the Kemp 360 Central instance, follow the steps below:

1. In the left panel of the client, select the Kemp 360 Central instance.

Power on the KEMP 360 Central.png

2. Click the Power on the virtual machine link.

3. Select the Console tab and wait for the instance to finish booting.

Power on the KEMP 360 Central_1.png

4. When the Kemp 360 Central instance finishes booting, a screen similar to the one above appears showing the IP address. Take note of this as you will need it to access the Kemp 360 Central User Interface (UI).

5. If Kemp 360 Central does not obtain an IP address, or if the IP address needs to be changed, it can be manually configured in the console by following the steps in the Manually Set the Network Settings section.

Now that the instance is deployed, Kemp 360 Central must be configured. For more information on this, including instructions on how to license Kemp 360 Central, refer to the Kemp 360 Central Feature Description on the Kemp Documentation page.

3 Manually Set the Network Settings

This section shows you how to manually configure the Kemp 360 Central network settings, without using DHCP.

Quick setup automatically begins when you log into Kemp 360 Central for the first time. It can also be started by selecting option one from the main menu.

The default username and password are kemp360 and 1fourall, respectively.

Quick setup allows the network settings for Kemp 360 Central to be quickly configured. Once Kemp 360 Central is configured and running, all other parameters can be changed using the User Interface (UI).

Quick Setup welcomes you with the following message:

Manually Set the Network Settings.png

The Quick Setup procedure allows the configuration of the following parameters:

  1. IP address of Kemp 360 Central
  2. Default Gateway
  3. IP address or addresses of any associated name servers

After these parameters have been set, the configuration should be activated. Kemp 360 Central is then ready for use.

If a parameter has been incorrectly set. Use the Cancel button until the main menu appears. Quick Setup can then be performed again to correct the error.

To quickly set up your Kemp 360 Central, use the following steps:

1. Log in to the console.


2. From the menu which displays, select Quick Setup and then press OK.

3. From the Quick Setup Help dialog box, press OK.

4. On the DHCP dialog box, select No to not use DHCP.

Manually Set the Network Settings_2.png

Enter the IP address and Classless Inter-Domain Routing (CIDR) you wish to assign to Kemp 360 Central and press OK.

Manually Set the Network Settings_3.png

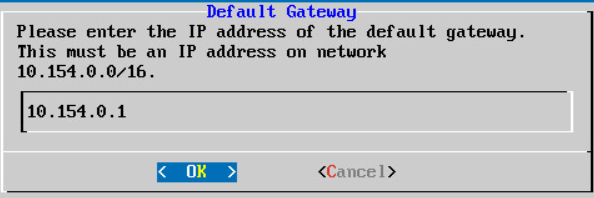

5. Enter the IP address of the default gateway and press OK.

Manually Set the Network Settings_4.png

6. Enter a, space-separated, list of name server IP addresses and press OK.


7. Press Yes on the Reboot screen, to activate the setup.

More information on Console Administration for Kemp 360 Central can be found in the Kemp 360 Central Console Administration, Interface Description.



References

Unless otherwise specified, the below documents can be found at http://kemptechnologies.com/documentation

Kemp 360 Central, Feature Description

Kemp 360 Central Console Administration, Interface Description



Last Updated Date

This document was last updated on 09 May 2019.
