1 Introduction

Kemp products optimize web and application infrastructure as defined by high-availability, high-performance, flexible scalability, security and ease of management. Kemp products maximize the total cost-of-ownership for web infrastructure, while enabling flexible and comprehensive deployment options.

1.1 Document Purpose

This document describes the Web User Interface (WUI) of the Kemp LoadMaster. It describes in detail how to configure the various features of the Kemp LoadMaster using the WUI.

The available menu options in the LoadMaster may vary from the ones described in this document. The features available in a LoadMaster depend on what license is in place. To upgrade a license, please call a Kemp representative.

1.2 Intended Audience

This document is intended to help anyone who wishes to configure the Kemp LoadMaster using the WUI.

1.3 Related Firmware Version

Published with LMOS version 7.2.48.4 LTS. This document has not required substantial changes since 7.2.48.4 LTS. However, the content is in sync with the latest LoadMaster LTS firmware.

2 Home

Clicking the Home menu option displays the home page which presents a list of basic information regarding the LoadMaster.

If any of the panels are not displaying information, try resetting the browser to default settings.

2.1 Login Information

After initially logging in to the LoadMaster, if Session Management is enabled - some login information is displayed:

The last login time and IP address of the current user

The number of successful logins by the current user in the last 30 days

The total number of failed login attempts by any user (including unknown usernames) since the last successful login

For further information on Session Management, refer to the OCSP Configuration Admin WUI Access section.

2.2 General Information

IP address: The IP address of the LoadMaster.

LoadMaster Version: The firmware version of the LoadMaster.

Serial Number: The Serial Number of the LoadMaster.

Boot Time: The time of the last server reboot.

2.3 Virtual Service and Real Server Status

VS Status

This section displays some monitoring information for the Virtual Services, such as the percentage of Virtual Services that are up and the number of disabled Virtual Services. Clicking the Details link will display the View/Modify Services screen.

Syslog messages are generated every hour about the number of Virtual Services, SubVSs and Real Servers that are up/down, and so on. Syslog messages are also generated when a status changes.

RS Status

This section displays some monitoring information for the Real Servers, such as the percentage of Real Servers that are up and the number of disabled Real Servers. Clicking the Details link will display the Real Servers screen.

2.4 WAF Status

The Web Application Firewall (WAF) Status section is displayed if at least one Virtual Service has WAF enabled. The values shown here are as follows:

The total number of requests handled by the WAF (shows all requests, whether they were blocked or not). Two requests are recorded for each connection - one incoming and one outgoing request.

The total number of events handled by the WAF (that is, requests that were blocked)

The number of events that have happened in the current hour (since xx.00.00)

The number of events that have happened since midnight (local time)

The number of times the event counter has gone over the configured warning threshold today. For example, if the threshold is set to 10 and there has been 20 events, this counter is set to 2. The warning threshold is set on a per-Virtual Service basis by filling out the Hourly Alert Notification Threshold field in WAF Options in the Virtual Service modify screen. For further information, refer to the Web Application Firewall (WAF) Options section.

2.5 System Metrics

CPU Load: The percentage of load to the CPU of the LoadMaster appliance.

TPS [conn/s]: The total number of Transactions Per Second and the number of Secure Sockets Layer (SSL) transactions per second.

Net Load:  Network load in megabits per second, shown for each configured interface. The Net Load will only be displayed for interfaces which have been configured.

CPU Temp.: Displays the temperature of the CPU on supported hardware platforms.

The CPU Load and Net Load data is updated every 5 seconds.

These values are only available using SNMP. For further information on SNMP Options, refer to the  SNMP Options section.

2.6 License Information

Click the View License link to display model, subscription expiry, and subscription feature details, such as the activation date and end date of the LoadMaster license.

If the subscription has expired, a message is displayed in the License Information section. To renew a subscription, contact Kemp.

Upgrade: Upgrade the LoadMaster by buying a license from the Kemp purchase portal.

2.7 About LoadMaster

On the About LoadMaster page, you can view licenses for third party software that is used in the LoadMaster.

To view a license, click the View button next to the relevant item.

3  Virtual Services

From this point onwards, the headings in this document generally correspond to the options in the main menu on the left of the LoadMaster WUI.

3.1 Add New

Here the Virtual IP (VIP) address, port, protocol and name are defined. The VIP address, name and port are manually entered into the text boxes and the protocol is selected from the drop-down list.

You cannot use a special character as the first character of the Service Name.

If templates are installed on your machine, a Use Template drop-down list is available whereby you can select a template to configure the Virtual Service parameters such as port and protocol.

For further information regarding templates, please refer to the Virtual Services and Templates Feature Description.

3.2 View/Modify (Existing HTTP Service)

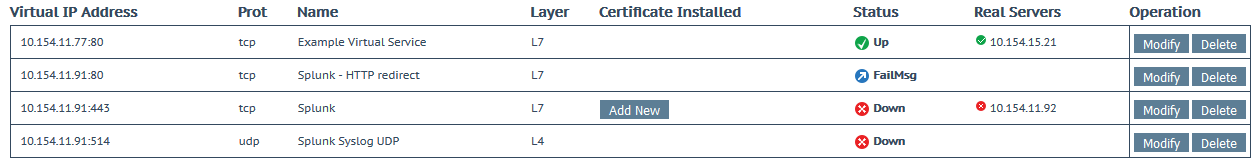

This screen displays a list of Virtual Services on the LoadMaster, summarizing the main properties of each and giving the options to modify or delete services, or create a new service.

Each configured Virtual Service may be changed by clicking the Modify button or deleted by clicking the Delete button.

If you try to delete a Virtual Service containing SubVSs, a confirmation warning appears. Click OK to confirm the deletion.

The status of the Virtual Service is also displayed. Health checking is enabled by default when a Virtual Service is created. For further information on health checking, refer to the  Real Servers section.

The Virtual Service status may be one of the following:

Up - At least one Real Server is available.

Down - No Real Servers are available.

Sorry - All Real Servers are down and traffic is routed to a separately configured Sorry Server that is not part of the Real Server set, with no health checking.

Disabled - The Virtual Service has been administratively disabled by unticking the Activate or Deactivate Service check box in the Basic Properties section of the Virtual Service modify screen.

Redirect - A fixed redirect response has been configured. Redirect Virtual Services can be created by using the Add a Port 80 Redirector VS option in the Advanced Properties section. For more information, refer to the Advanced Properties section.

Fail Message - A fixed error message has been configured. A fixed error message can be specified using the Not Available Redirection Handling options. Refer to the Advanced Properties section for more information.

Unchecked - Health checking of the Real Servers has been disabled. All Real Servers are accessed and presumed UP.

Security Down - The LoadMaster is unable to reach the Authentication Server and will prevent access to any Virtual Service which has Edge Security Pack (ESP).

WAF Misconfigured - If the WAF for a particular Virtual Service is misconfigured, for example if there is an issue with a rule file, the status changes to WAF Misconfigured and turns red. If the Virtual Service is in this state, all traffic is blocked. WAF can be disabled for that Virtual Service to stop the traffic being blocked, if required, while troubleshooting the problem.

The image below shows the Virtual Service properties screen.  It is composed of several component sections:

Basic Properties - where the usual and most common attributes are set

Standard Options - the most widely used features of a Virtual Service

SSL Properties - if SSL acceleration is being used, it will show Acceleration Enabled and this section of the screen is used to configure the SSL functions

Advanced Properties - the additional features for a Virtual Service

WAF Options - where the options relating to the Web Application Firewall (WAF) can be set

ESP Options - where the options relating to ESP are set

Real Servers/SubVSs - where Real Servers/SubVSs are assigned to a Virtual Server

Depending upon the service type, and enabled or disabled features, specific fields and options show in the WUI.  The screenshots in this document may not represent every possible configuration.

3.3 Basic Properties

There are three buttons adjacent to the Basic Properties heading:

Duplicate VIP

This option makes a copy of the Virtual Service, including any related SubVSs. All Virtual Service configuration settings are copied to the duplicate Virtual Service. When this button is clicked, a screen appears where the IP address and port can be specified for the copied Virtual Service.

Change Address

Clicking this button opens a screen where the virtual IP address and port of the Virtual Service can be modified.

Export Template

Export the Virtual Service settings as a template. Templates can be used to create Virtual Services quickly and easily.

When exporting a Virtual Service template in which the Virtual Service uses a custom Cipher Set, the LoadMaster on which the template is imported must include the same custom Cipher Set.

Virtual Services created from a template will have all of the settings preconfigured based on the settings in the template. The settings in the Virtual Service can then be changed, as needed. For more information on templates, refer to the Virtual Services and Templates, Feature Description.

Service Name

This text box allows you to assign a nickname to the Virtual Service being created, or change an existing one.

Alternate Address

This is where, if so desired, you would specify a secondary address in either IPv6 or IPv4 format.

Service Type

Setting the Service Type controls the options displayed for the Virtual Service.  It's important to make sure the Service Type is set according to the type of application that you are load balancing.

Activate or Deactivate Service

This check box gives you the option to activate or deactivate a Virtual Service. The default (active) is selected.

3.4 Standard Options

 Force L4

Select this check box to force the Virtual Service to run at Layer 4 and not at Layer 7. This is only required in some special circumstances. If in doubt, leave this option unchecked.

 L7 Transparency

When using L7, a connection can be transparent. This means the connection arriving at the Real Server appears to come directly from the client. Alternatively, if the connection is not transparent - connections at the Real Server appear to come from the LoadMaster. Kemp recommends keeping transparency disabled in most configurations.

 Enabling transparency makes the Virtual Service transparent (no Network Address Translation (NAT)).  However, if the client resides on the same subnet as the Virtual IP and Real Servers, then the Virtual Services will automatically NAT the source IP (enabling non-transparency).

If the Real Servers are local option is enabled, then the Real Servers are NATed (non-transparent), even if L7 Transparency is enabled. This only happens if the Real Server is the originator of the request to the Virtual Service (and not just answering requests from other clients). For further information on the Real Servers are local option, refer to the L7 Configuration section.

For further information on transparency in general, refer to the Transparency Feature Description.

Subnet Originating Requests

This option is only available if Transparency is disabled.

If Subnet Originating Requests is enabled, the source addresses for connections to the Real Servers is the interface address of the LoadMaster. If this option is disabled, the source address is the Virtual Service IP address. If transparency is enabled, the source address is the IP address of the client and the Subnet Originating Requests option is ignored.

If the Real Server is on a subnet, and the Subnet Originating Requests option is enabled, then the subnet address of the LoadMaster is used as the source IP address.

The Subnet Originating Requests feature was designed for 'local' Real Servers. It works fine for re-encrypt unless the Real Server is non-local and not on the Default Gateway interface. In this case, you can force the local address by setting it in the Alternate Source Addresses field. This works for both normal and re-encrypted Virtual Services.

This switch allows control of subnet originating requests on a per-Virtual Service basis. If the global switch (Subnet Originating Requests in System Configuration > Miscellaneous Options > Network Options in the main menu) is enabled then it is enabled for all Virtual Services.

It is recommended that the Subnet Originating Requests option is enabled on a per-Virtual Service basis.

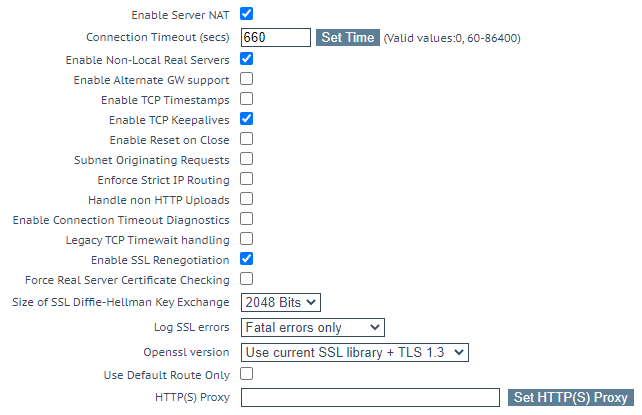

For more information about the global option, refer to the Network Options section.

If the global option is not enabled, it can be controlled on a per-Virtual Service basis.

If this option is switched on for a Virtual Service that has SSL re-encryption enabled, all connections currently using the Virtual Service is terminated.

Extra Ports

You may specify a range of ports, sequential or otherwise, starting with the base port already configured for the Virtual Service.  The port numbers are inputted to the field and separated with a space, and the maximum range is 510 ports.

You can enter the extra ports either as port ranges or single ports separated by spaces or comma in whatever order you wish, for example, entering the list 8000-8080, 9002, 80, 8050, 9000 will add the ports 80, 8000 to 8080, 9000 and 9002.

Extra ports cannot be used with SSL re-encryption.

Server Initiating Protocols

By default, the LoadMaster will not initiate a connection with a Real Server until it has received some data from a client. This prohibits certain protocols from working as they need to communicate with the Real Server before transmitting data.

If the Virtual Service uses one of these protocols then select the protocol from the drop-down list to enable it to work correctly.

The protocols that can be selected are:

• SMTP
• SSH
• IMAP4
• MySQL
• POP3
• Other Server Initiating Protocols

The Server Initiating Protocols option is not visible when the port specified in the Virtual Service is 80, 8080 or 443.

 Persistence Options

 Persistence is setup on a per Virtual Service basis. This section allows you to select whether persistence is enabled for this service, to set the type of persistence and the persistence timeout value.

If persistence is enabled it means that a client connection to a particular Real Server using the LoadMaster is persistent, in other words - the same client will subsequently connect to the same Real Server. The timeout value determines for how long this particular connection is remembered.

The drop-down list gives you the option to select the type of persistence. These are listed and described below.

Source IP Address

The source IP address (of the requesting client) is used as the key for persistency in this case.

Super HTTP

Super HTTP is the recommended method for achieving persistence for HTTP and HTTPS services with the LoadMaster. It creates a unique fingerprint of the client browser and uses that fingerprint to preserve connectivity to the correct Real Server. The fingerprint is based on the values of the User-Agent field, if the User-Agent value does not contain the MSRPC string.

If the User-Agent value contains the MSRPC string, then the value of the Authorization header is used to achieve persistence.

In the case that the Authorization header is not present, and the User Agent value contains the MSRPC string, the persist value will simply be blank with a length of zero.



Server Cookie

The LoadMaster checks the value of a specially set cookie in the HTTP header.  Connections with the same cookie will go to the same Real Server.

Server Cookie or Source IP

 If cookie persistence fails, it reverts to source-based persistence.

Active Cookie

 With Active Cookie persistence, the cookies are generated by the LoadMaster, not the server.  When a connection comes into a LoadMaster Virtual Service configured with Active Cookie, the LoadMaster looks for a specific cookie. If that cookie is not there, the LoadMaster inserts it into the HTTP stream with a Set-Cookie directive. Existing cookies are not affected. As with the Server Cookie persistence method, the value for the LoadMaster-generated cookie is unique to each user, allowing the LoadMaster to differentiate between users. A benefit of this method is that no cookies need to be managed or generated by the servers, relieving the burden of server configuration. To gain better dispersion per client connection you can enable the Add Port to Active Cookie feature in the L7 configuration. For further information on this option, refer to the L7 Configuration section.
With Active Cookie persistence, the cookie is valid for the session or until the persistence time expires. For example, if using Active Cookie persistence with the persistence timeout set to 10 minutes and the client connects at 2pm, then disconnects and reconnects at 2.05pm - this would reset the persistence timeout value. If the client tries to connect to a Virtual Service after the persistence timeout has expired, they would present the old cookie. The LoadMaster will check its persistence table and see that it does not have a valid entry. The LoadMaster would then generate a new cookie for the client and would update its persistence table.

Active Cookie or Source IP

 If active cookie persistence fails, it reverts to source-based persistence.

Hash All Cookies

The Hash All Cookies method creates a hash of the values of all cookies in the HTTP stream. Cookies with the same value are sent to the same server for each request. If the values change, then the connection is treated as a new connection and the client is allocated to a server according to the load balancing algorithm.

Hash All Cookies or Source IP

Hash All Cookies or Source IP is identical to Hash All Cookies, with the additional feature that it will fall back to Source IP persistence in the event no cookies are in the HTTP string.

Super HTTP and Source IP Address

This is the same as super HTTP but it also appends the source IP address to the string, thus improving the distribution of the resulting HASH.

URL Hash

With URL Hash persistence, the LoadMaster will send requests with the same URL to the same server.

HTTP Host Header

With HTTP Host Header persistence, the LoadMaster will send all requests that contain the same value in the HTTP Host: header to the same server.

Hash of HTTP Query Item

This method operates in exactly the same manner as Server Persistence, except that the named item being inspected is a Query Item in the Query String of the URL. All queries with the same Query Item value is sent to the same server.

Selected Header

With Selected Header persistence, the LoadMaster will send all requests that contain the same value in the specified header to the same server.

SSL Session ID

Each session over SSL has its own session ID which can be persisted on.

For this option to appear as a persistence method, the Virtual Service needs to have a Service Type of Generic and SSL acceleration must be disabled.

If a Virtual Service is an SSL service and not offloaded, the LoadMaster cannot meaningfully interact with any of the data in the stream at Layer 7. The reason is, the data is encrypted and the LoadMaster has no way of decrypting it.

If, in the above scenario, a persistence mode that is not based off source IP is required, this is the only other option. When an SSL session is started, it generates a session ID for the connection. This session ID can be used to cause the client to persist to the correct server.

There are some downsides to this however, as most modern browsers regenerate the session ID at very short intervals, basically overwriting it, even if there is a longer interval set on the persist timeout.

UDP Session Initiation Protocol (SIP)

This persistence mode is only available in a UDP Virtual Service when Force L4 is enabled. SIP uses request and response transactions, similar to HTTP. An initial INVITE request is sent, which contains a number of header fields. These header fields can be used for persistence.

Timeout

For each persistence method, there is a configurable timeout value that determines how long the persistence for each user is honored, selectable from one minute to seven days.

In LoadMaster firmware version 7.2.53, the maximum value of the persistence timeout setting has increased from 7 days to 28 days. For further details, refer to the following article: Changes Affecting Long-Lived UDP Connections.

This timeout clock is started when the initial connection is established. The persistence timeout value is updated if the client reconnects within the timeout period. For example, if the persistence timeout is set to 1 hour and the client starts a connection at 2pm, if the client disconnects and then reconnects before 3pm they will still persist to the same Real Server. Also, the persistence record is updated to reflect this and the persistence countdown timer is reset back to 1 hour for this client.

If a client made connections to the Virtual Service repeatedly within the timeout period, the persistence would be honored indefinitely. For instance, given the following scenario:

• Persistence Timeout is set to 10 minutes
• A user makes several requests in the course of 20 minutes, but the time between connections is always less than 1 minute

The request should be sent to the correct Real Server, as long as it is available (that is, passing health checks).

If the active connection goes idle for 20 minutes, then the next connection is counted as a new session, and may be sent to a different server, depending on scheduling. If the connection is opened for more than 10 minutes and the client disconnects and reconnects, the persistence record would have expired, the LoadMaster will create a new persistence entry for that client and possibly send the client to a new Real Server. This is due to the fact that the persistence countdown starts once a connection is established, not at the closing of the connection.

If you are experiencing persistence issues, this may be due to the fact that the persistence timeout is not long enough. If this is not long enough, then the timeout value should be set for a higher amount. In general, matching this value to your server timeout value is recommended.

Header field name

When UDP Session Initiation Protocol is selected as the persistence mode is selected sin the LoadMaster, a text box called Header field name will appear. The header field that is to be used as the basis for the persistence information should be entered here.

Scheduling Methods

This section allows you to select the method by which the LoadMaster will select a Real Server, for this particular service. The scheduling methods are as follows:

• Round Robin:

Round Robin causes the LoadMaster to assign Real Servers to a session in order, for example the first session connects to Real Server 1, the second to Real Server 2 and so on. There is no bias in the way the Real Servers are assigned.

• Weighted Round Robin:

This method uses the weight property of the Real Servers to determine which Real Servers get preference. The higher the weight a Real Server has, the higher the proportion of connections it will receive.

• Least Connection:

With this method, the current Real Server with the fewest open connections is assigned to the session.

• Weighted Least Connection:

As with Least Connection, but with a bias relative to the weight.

• Resource Based (Adaptive):

Adaptive scheduling means that the load on the Real Servers is periodically monitored and that packets are distributed such that load is approximately equal for all machines. More details can be found in the section covering scheduling methods.

• Resource Based (SDN Adaptive):

A Virtual Service which is using an adaptive scheduling method (whether using SDN or not) can be viewed as a control system. The intent is to achieve an evenly distributed load over the Real Servers and the controller calculates an error value from this (that describes the deviation from the desired even distribution). It also calculates a set of control values (Real Server weights) that are fed back into the system in a way to decrease the error value.

• Fixed Weighting:

All traffic goes to highest weight Real Server that is available. Real Servers should be weighted at the time they are create and no two Real Servers should have same weight, otherwise unpredictable results may occur.

When fixed weighting is in use, the Real Server with the higher weight is indicated with a green star icon.

• Weighted Response Time:

Every 15 seconds the LoadMaster measures the time it takes for a response to arrive for a health check probe and uses this time to adjust the weights of the Real Servers accordingly, that is, a faster response time relative to the other Real Servers leads to a higher weight which in turn leads to more traffic sent to that server.

• Source IP Hash:

Instead of using the weights or doing round robin, a hash of the source IP is generated and used to find the correct real server. This means that the real server is always the same from the same host.
You do not need any source IP persistence.

Because this method relies solely on the client (source) IP address and ignores current server load, using this method can lead to a particular Real Server becoming overloaded, or a general traffic imbalance across all Real Servers.

• URL Hash:

The URL Hash method works by creating a hash value based on the object referenced in the client request's URL and the number of Real Servers or SubVSs in the Virtual Service. All requests for a particular URL are sent to the same Real Server/SubVS, unless a Real Server or SubVS is added or removed - in which case all hash values are re-calculated and subsequent traffic is redistributed accordingly. If a request is received for a URL that matches a hash, but the appropriate Real Server or SubVS is unavailable (for example, disabled), then only read requests from the client are permitted.

This scheduling method was developed primarily to support Dell EMC Elastic Cloud Storage (ECS) applications and efficient use of ECS-based resources, but could also be used to support other workloads where storage efficiency is the primary goal. For Dell ECS deployments, the load traffic is distributed across the Virtual Data Centers (VDCs) in the deployment, each of which are represented on LoadMaster as a SubVS. Within each VDC, the traffic is distributed across the Real Servers in the SubVS.

Idle Connection Timeout (Default 660)

The seconds before an idle connection is closed. Setting it to 0 ensures that the default L7 connection timeout is used. You can modify the default Connection Timeout value by going to System Configuration > Miscellaneous Options > Network Options.

Quality of Service

The Quality of Service drop-down sets a Type of Service (ToS) in the IP header of packets that leave the Virtual Service. This means that the next device or service that deals with the packets will know how to treat and prioritise this traffic. Higher priority packets are sent from the LoadMaster before lower priority packets.

The different options are described below:

• Normal-Service: No special priority given to the traffic
• Minimize-Cost: Used when data needs to be transferred over a link that has a lower "cost"
• Maximize-Reliability: Used when data needs to travel to the destination over a reliable link and with little or no retransmission
• Maximize-Throughput: Used when the volume of data transferred during an interval is important, even if the latency over the link is high
• Minimize-Delay: Used when the time required (latency) for the packet to reach the destination must be low. This option has the quickest queue of each of the Quality of Service choices.
• Pass Through: In LoadMaster firmware version 7.2.52, the Pass Through value was introduced. When this is selected, connections that contain the Quality Of Service (QOS) flags are passed through to the Real Server. For further details, refer to the following article: Quality of Service DSCP Pass Through Support.

The ToS values for each option are provided in the following table:

Bits	Decimal	Importance
1000	8th	Minimal delay
0100	4	Maximum throughput
0010	2	Maximum reliability
0001	1	Minimal costs (in the form of money)
0000	0	Normal service

The Quality of Service feature only works with Layer 7 traffic. It does not work with Layer 4 traffic.

Use Address for Server NAT

By default, when the LoadMaster is being used to SNAT Real Servers, the source IP address used on the internet is that of the LoadMaster. The Use Address for Server NAT option allows the Real Servers configured on the Virtual Service to use the Virtual Service as the source IP address instead - if the Real Server makes an outbound request using the same port as the Virtual Service. The LoadMaster does not NAT all outbound ports.

The Use Address for Server NAT option is most useful for services such as SMTP when the LoadMaster is in a public domain and when the service requires a reverse DNS check to see if the source address sent from the LoadMaster is the same as the Mail Exchanger (MX) record of the sender.

If the Real Servers are configured on more than one Virtual Service that has this option set, the LoadMaster examines the destination port of the server's request and then selects the Virtual Service with a matching port. The LoadMaster then uses this Virtual Service as the source IP address. If no match is found for the port being requested, the IP address of the LoadMaster is used as the source IP address.

The Use Address for Server NAT option only works on Virtual Services which are operating on the default gateway. This option is not supported on non-default gateway interfaces.

3.5 SSL Properties

SSL Acceleration

 This check box appears when the criteria for SSL Acceleration have been met. Select this check box to activate SSL Acceleration.

Enabled: If the Enabled check box is selected and there is no certificate for the Virtual Service, you are prompted to install a certificate. You can add a certificate by clicking Manage Certificates and importing or adding a certificate.

Reencrypt: Selecting the Reencrypt check box re-encrypts the SSL data stream before sending it to the Real Server.

You cannot use Extra Ports or Transparency with SSL reencryption.

Reversed: Selecting this check box means that the data from the LoadMaster to the Real Server is re-encrypted. The input stream must not be encrypted, for example, the client sends HTTP port 80 traffic to the LoadMaster and the LoadMaster sends HTTPS port 443 traffic to the Real Server. This is only useful in connection with a separate Virtual Service which decrypts SSL traffic then uses this Virtual Service as a Real Service and loops data back to it. In this way, the client to Real Server data path is always encrypted on the wire.

Supported Protocols

The check boxes in the Supported Protocols section enable you to specify which protocols are supported by the Virtual Service. By default, TLS1.1, TLS1.2, and TLS1.3 are enabled and SSLv3 and TLS1.0 are disabled.

The TLS1.3 check box will not be visible if the OpenSSL Version setting in System Configuration > Miscellaneous Options > Network Options is set to Use older SSL library - no TLS 1.3. For further details, refer to the Network Options section for further details.

Starting with version 7.2.37, when re-encryption is enabled, the TLS version that can be negotiated between the LoadMaster and the Real Servers behind it are no longer constrained by the TLS version settings configured on the client side. All TLS versions and ciphers that are supported on the LoadMaster can be negotiated without restriction by Real Servers. In this way, the LoadMaster can, for example, provide strict security for client-side application access and still support server-side connections to legacy servers that only support specific, less secure, TLS versions, and ciphers. This is illustrated in the example below.

Server connections are only restricted by the configuration of the Real Servers, regardless of the TLS version selected on the client side. Each Real Server can be configured independently of the others. The LoadMaster negotiates connections according to the requirements of each Real Server.

Add Received Cipher Name

In LoadMaster version 7.2.52 and above, when this option is enabled, the LoadMaster adds X-SSL headers containing client SSL information such as TLS version, TLS cipher, client certificate serial number, and SNI host. For further details, refer to the following article: SSL Information in Client Request Headers.

Require SNI hostname

If require Server Name Indication (SNI) is selected, the hostname is always required to be sent in the TLS client hello message.

When Require SNI hostname is disabled, the first certificate is used if a host header match is not found.

When Require SNI hostname is enabled, a certificate with a matching common name must be found, otherwise an SSL error is yielded. Wildcard certificates are also supported with SNI.

Pass through SNI hostname

In LoadMaster firmware version 7.2.52 and above, when this option is enabled and when re-encrypting, the received SNI hostname is passed through as the SNI to be used to connect to the Real Server. For further details, refer to the following article: Ability To Use SNI In SubVS In Addition To SNI Hostname Pass Through.

Certificates

Available certificates are listed in the Available Certificates select list on the left. To assign or unassign a certificate, select it and click the right or left arrow button. Then click Set Certificates. Multiple certificates can be selected by holding Ctrl on your keyboard and clicking each required certificate.

There is a limit of 8171 characters when assigning certificates to a Virtual Service using the WUI.

A Virtual Service can be configured using both RSA and ECC certificates. However, if an RSA and an ECC certificate have the same common name, for example, kemp.com, the first certificate is preferred. If the ECC certificate is first in the list, and a client does not have an ECC cipher, the connection fails. Conversely, if the RSA certificate is first in the list, and a client does not have an RSA cipher, the connection fails.

The total number of certificates that you can add to a Virtual Service is 256, but this number may be further limited by the size of the certificate file names used. In LMOS Version 7.2.47 and later releases, the number of characters in each certificate file name and extension (not counting the period between them), plus all spaces used to separate multiple file names, must add up to 8176 characters or less (in earlier releases, the limitation is 1023 characters.)

Clicking Manage Certificates brings you to the SSL Certificates screen.

If you add a certificate to the LoadMaster in version 7.2.51 or later (or in 7.2.48.3 LTS or a later LTS version) and then downgrade to 7.2.50 or an earlier version (or 7.2.48.2 LTS or an earlier version) - the certificate will not work. To work around this, create a backup of all SSL certificates before downgrading and then restore the certificates after downgrading (Certificates & Security > Backup/Restore Certs). If you forget to take the backup before downgrading: upgrade the firmware again, take the certificate backup, downgrade, and then restore the certificate backup.

Reencryption Client Certificate

With SSL connections, the LoadMaster gets a certificate from the client and also gets a certificate from the server. The LoadMaster transcribes the client certificate in a header and sends the data to the server. The server still expects a certificate. This is why it is preferable to install a pre-authenticated certificate in the LoadMaster.

Reencryption SNI Hostname

Specify the Server Name Indication (SNI) hostname to use when connecting to the Real Servers.

This field is only visible when SSL re-encryption is enabled.

Cipher Set

A cipher is an algorithm for performing encryption or decryption.

Each Virtual Service (which has SSL Acceleration enabled) has a cipher set assigned to it. This can either be one of the system-defined cipher sets or a user-customized cipher set. You can select system-defined cipher sets to quickly and easily select and apply the relevant ciphers. You can create and modify custom cipher sets by clicking Modify Cipher Set.

Ciphers

The Ciphers list is read only and displays a list of the currently assigned ciphers. Clicking Modify Cipher Set brings you to the Cipher Set Management screen. This screen allows you to create new, and modify existing custom cipher sets.

Client Certificates

No Client Certificates required: enables the LoadMaster to accept HTTPS requests from any client. This is the recommended option.

By default the LoadMaster accepts HTTPS requests from any client. Selecting any of the other values below requires all clients to present a valid client certificate. In addition, the LoadMaster also passes information about the certificate to the application.

You should not change this option from the default of No Client Certificates required. Only change from the default option if you are sure that all clients that access this service have valid client certificates.

• Client Certificates required: requires that all clients forwarding a HTTPS request must present a valid client certificate.
• Client Certificates and add Headers: requires that all clients forwarding a HTTPS request must present a valid client certificate. The LoadMaster also passes information about the certificate to the application by adding headers.
• The below options send the certificate in its original raw form. The different options let you specify the format that you want to send the certificate in:
• Client Certificates and pass DER through as SSL-CLIENT-CERT
• Client Certificates and pass DER through as X-CLIENT-CERT
• Client Certificates and pass PEM through as SSL-CLIENT-CERT
• Client Certificates and pass PEM through as X-CLIENT-CERT

Verify Client using OCSP

Verify (using Online Certificate Status Protocol (OCSP)) that the client certificate is valid.

This option is only visible when ESP is enabled.

Strict Transport Security Header

Enable this option to add the Strict-Transport-Security header to all LoadMaster-generated messages (ESP and error messages). The options in this drop-down list are as follows:

Don't add the Strict Transport Security Header

Add the Strict Transport Security Header - no subdomains

Add the Strict Transport Security Header - include subdomains

Intermediate Certificates

Prior to the Intermediate Certificates field being added to the SSL Properties section, there was no ability to assign intermediate or root certificates to a Virtual Service. The Certificate Authority (CA) for client certificates was kept in the global certificate store, so the following could occur:

• Client certificates from two different CAs are installed on the LoadMaster
• Client A presents a certificate issued from CA 1 and as a network administrator, you only want them to be able to access Virtual Service 1.
• Client B presents a certificate issued from CA 2 and as a network administrator, you only want them to be able to access Virtual Service 2.
• Because both client certificates are validated against the global LoadMaster trust store, client A is also allowed access to Virtual Service 2 and client B is also allowed access to Virtual Service 1.

The Intermediate Certificates field allows you to assign intermediate and root certificates to specific Virtual Services. This provides the ability to restrict access. For example, when this is configured correctly for the scenario above - Client A will only have access to Virtual Service 1 and Client B will only have access to Virtual Service 2.

It is not possible to unassign all certificates from the Virtual Service. If you do not want client certificates to be required - select No Client Certificates required in the Client Certificates drop-down list.

3.6 Advanced Properties

 Content Switching

 Clicking the Enable button, enables rule-based Content Switching on this Virtual Service. Once enabled, rules must be assigned to the various Real Servers.  Rules can be attached to Real Server by clicking the None button located next the Real Server. Once rules are attached to a Real Server the None button will display the count of rules attached.

Rules Precedence

 Clicking the Rules Precedence button displays the order in which Content Switching rules are applied. This option only appears when Content Switching and rules are assigned to the Real Server(s).

This screen shows the Content Switching rules that are assigned to the Real Servers of the Virtual Services and the order in which they apply.  A rule may be promoted in the order of precedence by clicking its corresponding Promote button.

In LoadMaster firmware 7.2.52 and above, it is easier to reorder the priority of rules in a Virtual Service - there is a move option that allows you to specify the position to move the rule to. For further details about the improvements made in 7.2.52, refer to the following article: Content Rule Enhancements.

HTTP Selection Rules

Show the selection rules that are associated with the Virtual Service.

HTTP Header Modifications

Clicking Show Header Rules displays the order in which Header Modification rules are implemented. The number of rules (of both request and response type) is displayed on the actual button.

From within the screen you can Add and Delete Header Modification rules. The order in which the rules are applied can be changed by clicking the Promote buttons.

In LoadMaster firmware 7.2.52 and above, it is easier to reorder the priority of rules in a Virtual Service - there is a move option that allows you to specify the position to move the rule to. For further details about the improvements made in 7.2.52, refer to the following article: Content Rule Enhancements.

As of LoadMaster firmware version 7.2.51, it is also possible to assign URL modification rules to a response. For further details, refer to the following article: URL Modification Rules Can Be Assigned to Responses.

Response Body Modification

Clicking the Show Body Modification Rules button displays the response body modification rules assigned to the Virtual Service. The number of assigned rules is displayed in the button label.

From this screen, you can Add and Delete response body modification rules to/from the Virtual Service. You can change the order that the rules are applied in by clicking the Promote button.

In LoadMaster firmware 7.2.52 and above, it is easier to reorder the priority of rules in a Virtual Service - there is a move option that allows you to specify the position to move the rule to. For further details about the improvements made in 7.2.52, refer to the following article: Content Rule Enhancements.

Response body rules are not compatible with Kerberos Constrained Delegation (KCD). If KCD is enabled on a Virtual Service, it is not possible to assign a body rule to it.

Enable HTTP/2 Stack

Enable HTTP/2 client requests to be served by the LoadMaster directly. HTTP/2 requests are made using a secure connection. Please ensure the SSL Properties are configured and the BestPractices Cipher Set is selected if enabling this option. The Enable Caching check box should also be selected to optimize end user experience.

Enable Caching

 This option enables caching of static content. This saves valuable Real Server processing power and bandwidth. Caching can be enabled per HTTP and offloaded HTTPS Virtual Services.

Types of file that can be cached may be defined in AFE configuration under the Systems Configuration > Miscellaneous Options menu.

Maximum Cache Usage

This option limits the size of the cache memory per Virtual Service. For example, two Virtual Services, each running with a limit of 50% will use 100% of the cache store. The default is No Limit. It is recommended to limit the cache size to prevent unequal use of the cache store.   Ensure that the cache maximum usage is adjusted so that each Virtual Service has a percentage of cache to use.  If there is not remaining space to be allocated for a cache enabled Virtual Service, that service will not cache content.

Enable Compression

Files sent from LoadMaster are compressed with Gzip.

If compression is enabled without caching, LoadMaster performance may suffer. When compression and caching are both enabled on a Virtual Service, compression will only be applied to the cached entry (if the entry would be cached). The first request is not compressed; it is used to fill the cache. The system can either fill the cache or compress the request - it cannot do both at the same time.

The types of file that can be compressed may be defined in AFE configuration in the Systems Configuration > Miscellaneous section of the LoadMaster WUI.

Detect Malicious Requests

 The Intrusion Prevention System (IPS) service will provide in-line protection of Real Server(s) by providing real-time mitigation of attacks and isolation of Real Server(s). Intrusion prevention is based on the industry standard SNORT database and provides real-time intrusion alerting.

To get updated or customized rules, please refer to the SNORT website: https://www.snort.org/.

The detection code only handles HTTP-classed rules.

 Selecting the Detect Malicious Requests check box enables the IPS per HTTP and offloaded HTTPS Virtual Services. There are two options for handling of requests that match a SNORT rule. Drop Connection, where a rule match will generate no HTTP response, or Send Reject, where a rule match will generate a response to the client of HTTP 400 "Invalid Request".  Both options prevent the request from reaching the Real Server(s).

Enable Multiple Connect

Enabling this option permits the LoadMaster to manage connection handling between the LoadMaster and the Real Servers. Requests from multiple clients are sent over the same TCP connection.

Multiplexing only works for simple HTTP GET operations. The Enable Multiple Connect check box will not be available in certain situations, for example if WAF, ESP or SSL Acceleration is enabled.

Port Following

 Port following enables a switch from an HTTP connection to an HTTPS (SSL) connection to be persistent on the same Real Server. Port following is possible between UDP and TCP connections.

To switch on port following, the following must be true:

• The Virtual Service where port following is being switched on must be an HTTPS service
• There must be a HTTP service
•  Both of these Virtual Services must the same Layer 7 persistence mode selected, that is, Super HTTP or Source IP Address persistence

Port following is not available on SubVSs.

Prior to LoadMaster firmware version 7.2.51, it was not possible to configure port following for Virtual Services where the Service Type was set to Generic. This is possible in version 7.2.51 and above. For further details, refer to the following article: Port Following with Generic Virtual Services.

For further information, refer to the Port Following, Feature Description on the Kemp Documentation Page.

Add Header to Request

Input the key and the value for the extra header that is to be inserted into every request sent to the Real Servers.

Click the Set Header button to implement the functionality.

Copy Header in Request

This is the name of the source header field to copy into the new header field before the request is sent to the Real Servers. Enter the name of the header field into which the source header is to be copied in the To Header text box.

Add HTTP Headers

This option allows you to select which headers are to be added to the HTTP stream. The options available include:

- Legacy Operation(X-ClientSide)

- None

- X-Forwarded-For (+ Via)

- X-Forwarded-For (No Via)

- X-ClientSide (+ Via)

- X-ClientSide (No Via)

- Via Only

In the Legacy operation, if the system is in HTTP kernel mode, then a header is added. Otherwise nothing is done. For the other operation methods, then the system is forced into HTTP kernel mode and the specified operation is performed.

Sorry Server

Enter the IP Address and Port number in the applicable fields. If no Real Servers are available, the LoadMaster will redirect to a specified location, with no checking. The IP address of a Sorry Server must be on a network or subnet that is defined on the LoadMaster.

Not Available Redirection Handling

When no Real Servers are available to handle the request you can define the error code and URL that the client should receive.

Error Code: If no Real Servers are available, the LoadMaster can terminate the connection with a HTTP error code. Select the appropriate error code.

Redirect URL: When there are no Real Servers available and an error response is to be sent back to the client, a redirect URL can also be specified. If the string entered in this text box does not include http:// or https:// the string is treated as being relative to the current location, so the hostname is added to the string in the redirect. This field also supports the use of wildcards such as %h and %s which represent the requested hostname and Uniform Resource Identifier (URI) respectively.

Error Message: When no Real Servers are available and an error response is to be sent back to the client, the specified error message is added to the response.

For security reasons, the returned HTML page only returns the text Document has moved. No request-supplied information is returned.

Error File: When no Real Servers are available and an error response is to be sent back to the client, the specified file is added to the response. This enables simple error HTML pages to be sent in response to the specified error.

The maximum size of this error page is 16KB.

Not Available Server/Port

In a UDP Virtual Service there is an option to specify a Not Available Server and Port. When there are no Real Servers available to handle the request this option defines the URL that the client will receive.

The value of the Not Available Server can only be changed for UDP if the service is not currently using the Not Available Server.

Add a Port 80 Redirector VS

If no port 80 Virtual Service is configured, one can be created. It will then redirect the client to the URL specified in the Redirection URL: field.

Click the Add HTTP Redirector button to implement the redirector.

When the Add HTTP Redirector button is clicked, a redirect Virtual Service is created and this WUI option disappears from the relevant Virtual Service.

Default Gateway

Specify the Virtual Service-specific gateway to be used to send responses back to the clients. If this is not set, the global default gateway is used.

Click the Set Default Gateway button to implement the default gateway. The Default Gateway for a Virtual Service is only used for that Virtual Service.

If the global Use Default Route Only option is set in System Configuration > Miscellaneous Options > Network Options, traffic from Virtual Services that have the Default Gateway set is only routed to the interface where the Virtual Service's default route is located. This can allow the LoadMaster to be directly connected to client networks without returning traffic directly using the adjacent interface.

Alternate Default Gateway

This field is only visible if an Alternate Address is set for the Virtual Service. You should only use the Alternate Default Gateway field if all of the following conditions are met:

• The Alternate Address has a different address family to the main Virtual Service address, for example, the Virtual Service address is IPv4 and the Alternate Address is IPv6 or the other way around.
• The Virtual Service Default Gateway is set.
• A second Virtual Service Default Gateway is set for the other address family.

Alternate Source Addresses

If no list is specified, the LoadMaster will use the IP address of the Virtual Service as its local address. Specifying a list of addresses ensures the LoadMaster will use these addresses instead.

Click the Set Alternate Source Addresses button to implement the Alternate Source Addresses.

This option is only available if the Allow connection scaling over 64K Connections option is enabled in the L7 Configuration screen.

Service Specific Access Control

Allows you to change the Virtual Service-specific Access Control lists.

If you implement the Access Control Lists option, the Extra Ports option will not work correctly.

When using Access Control Lists on a Virtual Service that has the same IP address as an interface (which Kemp does not recommend) the following ports are never blocked:

• 443 (WUI)
• 22 (SSH)
• 161 (SNMP)
• 53 (DNS)

3.7 Web Application Firewall (WAF) Options

The Web Application Firewall (WAF) feature must be enabled before you can configure these options.

WAF is not available on all Support tiers. Refer to the following page for details on what features are included in the different Support tiers: LoadMaster Support Subscriptions

Default Operation

Select the default operation of the WAF:

Audit Only: This is an audit-only mode - logs are created but requests and responses are not blocked.

Block Mode: Either requests or responses are blocked.

Audit mode

Select what logs to record:

No Audit: No data is logged.

Audit Relevant: Logs data which is of a warning level and higher. This is the default option for this setting.

Audit All: Logs all data through the Virtual Service.

Selecting the Audit All option produces a large amount of log data. Kemp does not recommend selecting the Audit All option for normal operation. However, the Audit All option can be useful when troubleshooting a specific problem.

Inspect HTML POST Request Content

Enable this option to also process the data supplied in POST requests.

Three additional options (Enable JSON Parser, Enable XML Parser, and Enable Other Content Types) only become available if Inspect HTML Post Request Content is enabled.

Enable JSON Parser

Enable verification of JavaScript Object Notation (JSON) POST requests.

Enable XML Parser

Enable verification of XML POST requests.

Enable Other Content Types

Enable verification of POST content types (other than XML/JSON).

Enabling the inspection of any other content types may increase system resource utilization (CPU and memory). A specific list of content types should be considered.

When this option is enabled, a text box is provided to enter a comma-separated list of POST content types allowed for WAF analysis. By default, all types (other than XML/JSON) are enabled.

Process Responses

Enable this option to verify responses sent from the Real Servers.

Hourly Alert Notification Threshold

This is the threshold of incidents per hour before sending an alert. Setting this to 0 disables alerting. This threshold also relates to the Events over Limit Today number which is displayed on the WUI home page. For example, if the threshold is set to 10 and there has been 20 events, the counter is set to 2.

Rules

This is where you can assign/un-assign generic, application-specific, application-generic and custom rules to/from the Virtual Service.

You cannot assign application-specific and application-generic rules to the same Virtual Service.

Individual rules within each ruleset can be enabled/disabled as required. To enable a ruleset, tick the relevant check box. If you have not enabled/disabled rules in that ruleset previously, all rules are enabled by default in the right box. If you have previously enabled/disabled rules in that ruleset, within that Virtual Service - the rules will retain their previous settings.

You can enable/disable individual rules as needed by ticking the relevant ruleset on the left and ticking/unticking the rules on the right.

Some rules or rule sets may have dependencies on other rules. There is no dependency check in the LoadMaster when rules are disabled - before disabling any rule, please be aware of any rule chains or dependencies.

When finished making changes, click the Apply button.

Clicking the Clear All button will disable all rules for the selected ruleset.

Clicking the Set All button will enable all rules for the selected ruleset.

Text can be entered in the Rule Filter text box to filter the rules to only show rules which contain the filter text.

Clicking Reset will disable all rulesets and rules.

3.8 Edge Security Pack (ESP) Options

The ESP feature must be enabled before you can configure these options. To enable the ESP function, please select the Enable ESP check box.

ESP is not available on all Support tiers. Refer to the following page for details on what features are included in the different Support tiers: LoadMaster Support Subscriptions

The full ESP Options screen will appear.

The ESP feature can only be enabled if the Virtual Service is a HTTP, HTTPS, or SMTP Virtual Service.

Enable ESP

Enable or disable the ESP feature set by selecting or removing the checkmark from the Enable ESP checkbox.

ESP Logging

There are three types of logs stored in relation to the ESP feature. Each of these logs can be enabled or disabled by selecting or deselecting the relevant checkbox. The types of log include:

User Access: logs recording all user logins

Security: logs recording all security alerts

Connection: logs recording each connection

Logs are persistent and can be accessed after a reboot of the LoadMaster. For further information on logs please refer to the Extended Log Files section.

Client Authentication Mode

Specifies how clients attempting to connect to the LoadMaster are authenticated. The following types of methods are available:

• Delegate to Server: the authentication is delegated to the server

• Basic Authentication: standard Basic Authentication is used

• Form Based: clients must enter their user details within a form to be authenticated on the LoadMaster

• Client Certificate: clients must present the certificate which is verified against the issuing authority

In LoadMaster firmware version 7.2.53, support was added for Client Certificate client authentication with no server side authentication. For further details, refer to the following article: Support for Certificate Client Side Authentication with No Server Side Authentication.

• NTLM/NTLM-Proxy: NTLM credentials are based on data obtained during the interactive logon process and consist of a domain name and a user name

• SAML: The LoadMaster supports SAML, playing the role of a SAML service provider. The service provider provides secure, gated access to a resource.

• Pass Post: In LoadMaster firmware version 7.2.53, a new mode called Pass Post was introduced. For further details, refer to the following article: Pass Post ESP Client Authentication Mode.

The remaining fields in the ESP Options section will change based on the Client Authentication Mode selected.

SSO Domain

Select the Single Sign-On (SSO) Domain within which the Virtual Service is included.

Please refer to the Manage SSO Domains section for further information on configuring SSO Domains. An SSO Domain must be configured to correctly configure the ESP feature.

Only SSO domains with the Configuration type of Inbound Configuration are shown as options in this SSO Domain field.

Alternative SSO Domains

Many organizations use extranets to share information with customers and partners. It is likely that extranet portals will have users from two or more Active Directory domains. Rather than authenticating users from individual domains one at a time, assigning Alternative SSO Domains gives the ability to simultaneously authenticate users from two or more domains using one Virtual Service.

This option appears only when more than one domain has been configured and when the Authentication Protocol for the SSO domains are set to LDAP.

Please refer to the Manage SSO Domains section for further information on configuring SSO Domains.

Before enabling ESP, ensure that SSL offloading is configured for the HTTPS Virtual Service.

The domain name which appears in the SSO Domain drop-down list is the default domain. This is also the domain which is used if only one is configured.

Previously configured alternative domains appear in the Available Domain(s) list.

To assign alternative SSO Domains:

1. Highlight each of the domains you wish to assign and click the > button.

2. Click the Set Alternative SSO Domains button to confirm the updated list of Assigned Domain(s).

3. Choose Basic Authentication from the Server Authentication Mode drop-down list.

When logging in to a domain using the ESP form, users should enter the name of the SSO Domain if an alternative domain needs to be accessed. If no domain name is entered in the username, users are, by default, logged on the domain entered in the default SSO Domain drop-down list.

To view the status of the Virtual Services, click Virtual Services and View/Modify Services in the main menu.

A list of the Virtual Services displays showing the current status of each service.

If alternative domains are assigned and there is an issue with a particular domain, the affected domain name is indicated in the Status column.

Allowed Virtual Hosts

The Virtual Service will only be allowed access to specified virtual hosts. Any virtual hosts that are not specified are blocked.

Enter the virtual host name(s) in the Allowed Virtual Hosts field and click the Set Allowed Virtual Hosts button to specify the allowed virtual hosts.

Multiple domains may be specified within the field allowing many domains to be associated with the Single Sign On Domain.

The use of regular expressions is allowed within this field.

If this field is left blank, the Virtual Service is blocked.

When using the Permitted Groups field in ESP Options, you need to ensure that the SSO domain set here is the directory for the permitted groups. For example, if the SSO Domain is set to webmail.example and webmail is not the directory for the permitted groups within example.com, it will not work. Instead, the SSO Domain needs to be set to .example.com.

Allowed Virtual Directories

The Virtual Service will only be allowed access to the specified virtual directories, within the allowed virtual hosts. Any virtual directories that are not specified are blocked.

Enter the virtual directory name(s) in the Allowed Virtual Directories field and click the Set Allowed Virtual Directories button to specify the allowed virtual directories.

The use of regular expressions is allowed within this field.

Pre-Authorization Excluded Directories

Any virtual directories specified within this field will not be pre-authorized on this Virtual Service and are passed directly to the relevant Real Servers.

Permitted Groups

Specify the groups that are allowed to access this Virtual Service. When set, if a user logs in to a service published by this Virtual Service, the user must be a member of at least one of the groups specified. Performance may be impacted if a large number of groups are entered. Groups entered in this field are validated using an LDAP query.

Some guidelines about this field are as follows:

• The group(s) specified must be valid groups on the Active Directory in the SSO domain associated with the Virtual Service. The SSO domain in the LoadMaster must be set to the directory for the groups. For example, if the SSO domain in the LoadMaster is set to webmail.example and webmail is not the directory for the groups, it will not work. Instead, the SSO domain may need to be set to .example.com.
• The group(s) listed must be separated by a semi-colon

A space-separated list does not work because most groups contain a space in the name, for example IT Users.

• Do not use the Domain Users group because it is a default primary group for new users.
• The following characters are not allowed in permitted group names:
  / : + *
• The authentication protocol of the SSO domain must be LDAP
• The groups should be specified by name, not by full distinguished name

• Do not enter the same group name in both the Permitted Groups and Steering Groups fields. This causes a conflict. When you specify a steering group, it is assumed to behave like a permitted group, so you do not need to enter the same group in both the Permitted Groups and Steering Groups fields.



Permitted Group SID(s)

This field is the equivalent of the Permitted Groups field. If specifying permitted groups, you can complete either the Permitted Groups field or the Permitted Groups SID(s) field (security identifiers).

In the Permitted Group SID(s) field you can specify the group SIDs that are allowed to access this Virtual Service. After you type the groups, click Set Permitted Group SIDs.

This field allows a list of group SIDs of up to 64 bytes in length (192 characters in the format NN NN NN).

Each group is separated by a semi-colon. Spaces are used to separate bytes in certain group SIDs. Here is an example:

S-1-5-21-3763804817-1170992687-1336323834-1151

SIDs can be found by using the get-adgroup-Identity GroupName command.

Include Nested Groups

This field relates to the Permitted Groups setting. Enable this option to include nested groups in the authentication attempt. If this option is disabled, only users in the top-level group are granted access. If this option is enabled, users in both the top-level and first sub-level group are granted access.

Multi Domain Permitted Groups

In LoadMaster firmware version 7.2.52, a new check box was added to the ESP Options section of the Virtual Service modify screen called Multi Domain Permitted Groups. For further details, refer to the following article: Multi Domain Permitted Groups Option.

Steering Groups

Steering groups can be used to steer client traffic to individual Real Servers in a Virtual Service based on the Active Directory (AD) group membership of users initiating client traffic. An example scenario would be a Virtual Service which has four Real Servers. Two Real Servers could be configured to have a primary association with Active Directory Group 1 and two Real Servers could be configured to have a primary association with AD Group 2. When a user attempts to access the Virtual Service, their group membership will be verified and the information used to steer their request to the appropriate Real Servers. If the Real Servers selected based on group membership are not available, the default behavior is to fall back to the assigned scheduling method for the Virtual Service.

For further information, refer to the ESP Steering Groups Technical Note.

Steering groups are not available if using Basic Authentication or SAML authentication.

Do not enter the same group name in both the Permitted Groups and Steering Groups fields. This causes a conflict. When you specify a steering group, it is assumed to behave like a permitted group, so you do not need to enter the same group in both the Permitted Groups and Steering Groups fields.

SSO Image Set

This option is only available if Form Based is selected as the Client Authentication Mode. You can choose which form to use to gather the Username and Password. There are three form options, Exchange, Blank and Dual Factor Authentication. There are also options to display the form and error messages in other languages.

• Exchange Form

The Exchange Form contains the Kemp Logo

• Blank Form

The Blank Form does not contain the large Kemp logo.

• Dual Factor Authentication

The Dual Factor Authentication form contains four fields - two for the remote credentials and two for the internal credentials.

Remote Credentials are credentials that are used to authenticate against remote authentication servers such as RADIUS, before allowing the user to authenticate against Domain Servers such as Active Directory servers.

Internal Credentials are credentials that are used to authenticate against the internal domain servers such as Active Directory Servers.

If the Authentication Protocol of the relevant SSO Domain is set to RADIUS and LDAP, the SSO Image Set must be set to Dual Factor Authentication.

SSO Greeting Message

This option is only available if Form Based is selected as the Client Authentication Mode. The login forms can be further customized by adding text. Enter the text that you would like to appear on the form within the SSO Greeting Message field and click Set SSO Greeting Message. The message can have up to 255 characters.

The SSO Greeting Message field accepts HTML code, so you can insert an image if required.

There are several characters that are not supported. These are the grave accent character ( ` ) and the single quote ('). If a grave accent character is used in the SSO Greeting Message, the character will not display in the output, for example a`b`c becomes abc. If a single quote is used, users will not be able to log in.

Logoff String

This option is only available if Form Based or SAML is selected as the Client Authentication Mode. Normally this field should be left blank. For OWA Virtual Services, the Logoff String should be set to /owa/logoff.owa or in customized environments, the modified Logoff String needs to be specified in this text box. Multiple logoff strings can be entered by using a space-separated list. You can enter up to 255 characters in this field.

If the URL to be matched contains sub-directories before the specified string, the logoff string will not be matched. Therefore, the LoadMaster will not log the user off.

Additional Authentication Header

This option is only available if SAML is selected as the Client Authentication Mode. Specify the name of the HTTP header. This header is added to the HTTP request from the LoadMaster to the Real Server and its value is set to the user ID for the authenticated session. You can enter up to 255 characters in this field.

Display Public/Private Option

Enabling this check box will display a public/private option on the ESP log in page. Based on the option the user selected on the login form, the Session timeout value is set to the value specified for either public or private in the Manage SSO Domain screen. If the user selects the private option their username is stored for that session. Refer to the Manage SSO Domains section for more information about these fields.

Disable Password Form

Enabling this option removes the password field from the login page. This may be needed when password validation is not required, for example if using RSA SecurID authentication in a singular fashion. By default, this option is disabled.

Use Session or Permanent Cookies

Three options are available to select for this field:

Session Cookies Only: This is the default and most secure option

Permanent Cookies only on Private Computers: Sends permanent cookies only on private computers

Permanent Cookies Always: Sends permanent cookies in all situations

Permanent cookies only work with Internet Explorer (IE) and IE must be set to accept Third Party Cookies and the site must be added to the Trusted Sites.

The expiry time of a permanent cookie can be set by configuring the Session Timeout fields in the modify SSO screen. The maximum value is 7 days (604800 seconds).

Specify if the LoadMaster should send session or permanent cookies to the users' browser when logging in.

Permanent cookies should only be used when using single sign on with services that have sessions spanning multiple applications, such as SharePoint.

User Password Change URL

This is relevant when using client-side forms-based authentication and LDAP. Specify the URL that users can use to change their password, for example https://mail.kempqakcd.net/owa/auth/expiredpassword.aspx?url=/owa/auth.owa

If a user's password has expired, or if they must reset their password, this URL and the User Password Change Dialog Message is displayed on the login form.

This URL must be entered in the ESP Pre-Authorization Excluded Directories field - this is required to bypass pre-authentication.

If using this expired password functionality in an Exchange 2010 environment:

The Pre-Authorization Excluded Directories must be set to /owa/auth.owa /owa/auth* /owa/14.3.123.3**. 14.3.123.3 is the sub-path of the Exchange server that must be added to the excluded directories.

When changing passwords, users cannot use a User Principal Name (UPN) (for example, joebloggs@example.com) in the Domain\user name field in the Change Password window, unless Exchange 2010 SP1 RU3 or later is deployed on the Client Access servers.

For further information, refer to the following Microsoft TechNet article: https://technet.microsoft.com/en-us/library/bb684904(v=exchg.141).aspx

User Password Change Dialog Message

This text box is only visible if something is set for the User Password Change URL text box. Specify the text to be displayed on the login form when the user must reset their password. Special characters are not permitted in this field.

User Password Expiry Warning

By default, SSO users are notified about the number of days before they must change their password. If you disable this option, the password expiry notification will not appear on the login forms.

You can specify the number of days to show the warning before the password is expired. The default value for this field is 15 days. This field is only visible if the Client Authentication Mode is set to Form Based and the User Password Change URL is set.

The language of the warning text is based on the SSO Image Set that is selected (English, French, or Portuguese).

Server Authentication Mode

Specifies how the LoadMaster is authenticated by the Real Servers. The following types of methods are available:

None: no client authentication is required

Basic Authentication: standard Basic Authentication is used

KCD: KCD authentication is used

Server Token: On reception and verification of the SAML response, the LoadMaster requests a long-lived token. The LoadMaster then builds a redirection URL with the token specified.

You can only select Server Token as the Server Authentication Mode if SAML is selected as the Client Authentication Mode.

Form Based: can only be selected if the Client Authentication Mode is set to Form Based.

• When Form Based authentication is selected, the Form Authentication Path field appears.
• When the Form Authentication Path field is populated, the Form POST Format field appears. The username and password from the client-side, form-based authentication is injected into the form POST format to build the POST body.

This feature is predominantly used in Microsoft Exchange deployments and has only been tested with Exchange 2013 and 2016. Therefore, the following strings do not need to be explicitly configured for Exchange 2013/2016. They are used by default in the implementation:

- Form Authentication Path: /owa/auth.owa

- Form POST Format: destination=%s#authRedirect=true&flags=4&forcedownlevel=0&username=%s&password=%s&passwordText=&isUtf8=1

The Form POST Format field only becomes visible when the Form Authentication Path is set.

If the deployment is not Exchange, Kemp recommends that the settings are evaluated based on the required interaction with the Real Server and subsequently set appropriately.

If Delegate to Server is selected as the Client Authentication Mode, then None is automatically selected as the Server Authentication mode. Similarly, if Basic Authentication is selected as the Client Authentication Mode, then Basic Authentication is automatically selected as the Server Authentication mode.

When choosing a specific Client Authentication Mode protocol, it is important to understand what Server Authentication Mode protocols are compatible:

Client Authentication Mode	Default Compatible Server Authentication Mode
Delegate to Server	None
Basic Authentication	Basic Authentication
Form Based	Basic Authentication
	KCD
	Form Based
	None
NTLM	KCD
	None
Client Certificate	KCD
SAML	KCD
SAML	None
SAML	Server Token

Server Side configuration

This option is only visible when the Server Authentication mode value is set to KCD.

Select the SSO domain for the server side configuration. Only SSO domains which have the Configuration type set to Outbound Configuration are shown here.

Token Server FQDN

This option is only visible when the Server Authentication mode value is set to Server Token.

Set the FQDN for the token server. When set, LoadMaster contacts the token server at the given FQDN during sign-on and obtains a permanent access token from that token server. If this parameter is unset, then LoadMaster obtains the token from the Real Server (as in previous releases).

3.8.1 SMTP Virtual Services and ESP

If you create an SMTP Virtual Service (with 25 as the port), the ESP feature is available when you select the Enable ESP checkbox but with a reduced set of options.

Enable ESP

Enable or disable the ESP feature set by selecting or deselecting the Enable ESP checkbox.

Connection Logging

Logging of connections can be enabled or disabled by selecting or deselecting the Connection Logging checkbox.

Permitted Domains

All the permitted domains that are allowed to be received by this Virtual Service must be specified here. For example, if you wish the Virtual Service to receive SMTP traffic from john@kemp.com, then the kemp.com domain must be specified in this field.

3.9 Sub Virtual Services

From within a Virtual Service you can create one or more 'Sub Virtual Services' (SubVS). A SubVS is linked to, and uses the IP address of, the 'parent' Virtual Service. The SubVSs may have different settings (such as health check methods and content rules) to the parent Virtual Service and to each other. This allows the grouping of related Virtual Services, all using the same IP address. This could be useful for certain configurations such as Exchange or Lync which typically are comprised of a number of Virtual Services.

To create a SubVS, within a Virtual Service configuration screen, expand the Real Servers section and click the Add SubVS button.

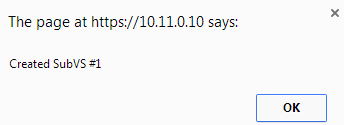

A message appears stating that the SubVS has been created.

You cannot have Real Servers and SubVSs associated with the same Virtual Service. You can however, associate a Real Server with a SubVS.

When the SubVS is created, the Real Servers section of the Virtual Services configuration screen is replaced with a SubVSs section.

All the SubVSs for the Virtual Service are listed here. The Critical check box can be enabled to indicate that the SubVS is required for the Virtual Service to be considered available. If a non-critical SubVS is down, the Virtual Service is reported as up and a warning is logged. If a critical SubVS is down, a critical log is generated and the Virtual Service is marked as down. If the email options are configured, an email is sent to the relevant recipients. For further information on the email options, refer to the Email Options section. In all cases, if the Virtual Service is considered to be down and the Virtual Service has a sorry server or an error message configured, these are used.

To modify the SubVS, click the relevant Modify button. A configuration screen for the SubVS appears. This contains a subset of the configuration options available for a normal Virtual Service.

In LoadMaster firmware version 7.2.52 and above, it is possible to set a Reencryption SNI Hostname at the SubVS level. If this is set in a SubVS, this overrides the parent Virtual Service value and/or the received SNI value. For further details, refer to the following article: Ability To Use SNI In SubVS In Addition To SNI Hostname Pass Through.

The SubVSs can also be modified by clicking the relevant Modify button from within the main Virtual Services view. A Virtual Service with SubVSs is colored differently within the Virtual IP address section and the SubVSs are listed in the Real Server section. The SubVS details can be viewed by clicking the 'parent' Virtual Service to expand the view to include the SubVSs.

3.10 View/Modify (Remote Terminal Service)

Properties of the Virtual Service include the Generic Type and also provide Remote Terminal specific options.

 Persistence

If the terminal servers support a Session Directory, the LoadMaster will use the "routing " supplied by the Session Directory to determine the correct host to connect to. The LoadMaster persistency timeout value is irrelevant here - it is a feature of the Session Directory.

The switch "IP address redirection" in the Session Directory configuration must not be selected for this to work.

Using Session Directory with LoadMaster is optional, in terms of persistence. If the client pre-populates the username and password fields in the initial request, then this value is stored on the LoadMaster. As long as these fields are still populated upon reconnect, the LoadMaster will look up the name and reconnect to the same server as the original connection. The persistence timeout is used to limit the time the information is kept on the LoadMaster.

If using Terminal-Service or Source IP mode, then if neither of these two modes succeeds, then the source IP address is used for persistency.

Service Check for the Virtual Service

 Only three options are available; ICMP, TCP and RDP. Remote Terminal Protocol (RDP) opens a TCP connection to the Real Server on the Service port (port 3389). The LoadMaster sends an a1110 Code (Connection Request) to the server.  If the server sends an a1101 Code (Connection Confirm) then LoadMaster closes the connection and marks the server as active.  If the server fails to respond within the configured response time for the configured number of times, or if it responds with a different status code, it is assumed dead.

3.11  Real Servers

 This section allows you to create a Real Server and lists the Real Servers that are assigned to the Virtual Service. The properties of the Real Servers are summarized and there is also the opportunity to add or delete a Real Server, or modify the properties of a Real Server. When Content Switching is enabled, there is also the opportunity to add rules to, or remove rules from, the Real Server (see Add Rule).

Real Server Check Method

 This provides a list of health checks for well-known services, as well as lower level checks for TCP/UDP or ICMP. With the service health checks, the Real Servers are checked for the availability of the selected service. With TCP/UDP the check is simply a connect attempt.

The tables below describe the options that may be used to verify Real Server health. You may also specify a health check port on the Real Server. If none are specified here, it will default to the Real Server port.

When the HTTP/HTTPS, Generic and STARTTLS protocols Service Types are selected, the following health check options are available.

Method	Action
ICMP Ping	An ICMP ping is sent to the Real Server
HTTP	HTTP checking is enabled
HTTPS	HTTPS (SSL) checking is enabled
TCP	A basic TCP connection is checked
Mail	The SMTP (Simple Mail Transfer Protocol) is used
NNTP	The NNTP (Network News Transfer Protocol) is used
FTP	The FTP (File Transfer Protocol) is used
Telnet	The Telnet protocol is used
POP3	The POP3 (Post Office Protocol - mail client protocol) is used
IMAP	The IMAP (Internet Message Access Protocol - mail client protocol) is used
Name Service (DNS) Protocol	The Name Server (DNS) Protocol value is only available in the Real Server Check Method drop-down list when the Virtual Service Protocol is set to udp. The LoadMaster performs nslookups against an A record on the server over UDP port 53. If the server successfully responds to the DNS query, the LoadMaster marks it as active. If the server fails to respond within the configured response time for the configured number of times or if it responds unsuccessfully to the A record request, it is assumed down.
Binary Data	Specify a hexadecimal string to send and specify a hexadecimal string to check for in the response
LDAP	Select an LDAP endpoint to use for the health check. The LDAP health check uses the LDAP credentials and protocol specified in the LDAP endpoint. The health check is run against the Real Server IP address and port. The LDAP health check comprises of a LoadMaster connecting to a Real Server and validating the specified user credentials. The health check is performed in two steps: Step 1: Check if the Real Server specified port is up and available. Step 2: Attempt to log in to the Real Server using the LDAP specified credentials. If step 1 and step 2 are true, the health check passes. If step 1 or step 2 fails, the health check fails. For further information on LDAP endpoints, refer to the LDAP Configuration section.
None	No checking performed

When the Remote Terminal Service Type is selected the following health check options are available.

Method	Action
ICMP Ping	An ICMP ping is sent to the Real Server
TCP	A basic TCP connection is checked
Remote Terminal Protocol	An RDP Routing Token is passed to the Real Server. This health check supports Network-Level Authentication.
None	No checking performed

For a UDP virtual service, only the ICMP Ping and Name Service (DNS) Protocol options are available for use.

Check Parameters

In LoadMaster firmware version 7.2.52, the check Interval, Timeout, and Retry Count settings can be configured on each Virtual Service or SubVS. Previously, these were just global settings. For further details, refer to the following article: Per-Virtual Service Custom Health Check Settings.

Enhanced Options

Enabling the Enhanced Options check box provides an additional health check option - Minimum number of RS required for VS to be considered up. If the Enhanced Options check box is disabled (the default), the Virtual Service is considered available if at least one Real Server is available. If the Enhanced Options check box is enabled, you can specify the minimum number of Real Servers that must be available to consider the Virtual Service to be available.

Minimum number of RS required for VS to be considered up

This option will only appear if the Enhanced Options check box is enabled and if there is more than one Real Server.

Select the minimum number of Real Servers required to be available for the Virtual Service to be considered up.

If less than the minimum number of Real Servers is available, a critical log is generated. If some Real Servers are down but it has not reached the minimum amount specified, a warning is logged. If the email options are configured, an email is sent to the relevant recipients. For further information on the email options, refer to the Email Options section.

Note that the system marks a Virtual Service as down whenever a Real Server that is marked as Critical becomes unavailable - even if Enhanced Options are enabled and there are more than the specified minimum number of Real Servers still available.

In all cases, if the Virtual Service is considered to be down and the Virtual Service has a sorry server or an error message configured, these are used.

If the minimum number is set to the total number of Real Servers and one of the Real Servers is deleted, the minimum will automatically reduce by one.

When using content rules in a SubVS, the minimum number of Real Servers required has a slightly different meaning. A rule is said to be available and can be matched if and only if the number of available Real Servers with that rule assigned to them is greater than the limit. If the number of available Real Servers is below this limit, the rule can never be matched - the SubVS is marked as down and this is logged appropriately.

If a Real Server on a SubVS is marked as critical - the SubVS is marked as down if that Real Server is down. However, the parent Virtual Service will not be marked down unless that SubVS is marked as critical.

3.11.1 HTTP or HTTPS Protocol Health Checking

When either the HTTP Protocol or HTTPS Protocol options are selected a number of extra options are available as described below.

URL

By default, the health checker tries to access the URL to determine if the machine is available. A different URL can be specified here.

Status Codes

Health check status codes can be set to override default functionality. Without any Status Codes set, the following HTTP status codes are considered to be Up:

• 200-299
• 301
• 302
• 401

Additionally, 2xx status codes are subject to pattern matching the response data, if this is configured. Other codes are considered up without pattern matching, even if it is set.

If custom health check codes are set:

• Check codes may be set to a list of numbers, each from 300-599
• Check codes may be up to 127 characters long, which means 32 valid codes
• Any code in the list is considered to have a health check status of Up
• Configured codes override the default set
• 2xx codes are always considered up in all cases and are subject to pattern matching, if configured
• Check codes may be official HTTP status codes, unofficial codes or custom-defined user codes - as long as they fall in the range of 300-599
• For a list of official HTTP status codes, refer to: https://en.wikipedia.org/wiki/List_of_HTTP_status_codes
• For a list of unofficial codes, refer to: https://en.wikipedia.org/wiki/List_of_HTTP_status_codes#Unofficial_codes
• Microsoft sub-codes using decimals can be supported, but only by the top-level status code
• For a list of Microsoft sub-codes using decimals, refer to: https://support.microsoft.com/en-us/kb/943891
• Sub-codes may not be configured in the Status Codes field - please use the three digit code
• Sub-codes are grouped by the top-level code

Use HTTP/1.1

By default, the LoadMaster uses HTTP/1.0. However you may opt to use HTTP/1.1 which will operate more efficiently. When using HTTP/1.1, the health checks are multiplexed to a single connection. This means that more health checks are sent to the server in a single connection which is more efficient from a connection point of view, that is, there is only one connection rather than multiple connections.

Optimization only works on HTTP (not HTTPS) connections.

HTTP/1.1 Host

This field will only be visible if 'Use HTTP/1.1' is selected.

When using HTTP/1.1 checking, the Real Servers require a hostname to be supplied in each request. If no value is set, then this value is the IP address of the Virtual Service.

To send SNI host information in HTTPS health checks, please enable Use HTTP/1.1 in the Real Servers section of the relevant Virtual Service(s) and specify a host header. If this is not set, the IP address of the Real Server is used.

HTTP Method

When accessing the health check URL, the system can use either the HEAD, GET or POST method.

In LoadMaster firmware version 7.2.52, support was added for the OPTIONS method for HTTP and HTTPS health check types. For further information, refer to the following article: OPTIONS Health Check Method.

Post Data

This field will only be available if the HTTP Method is set to POST. When using the POST method, up to 2047 characters of POST data can be passed to the server.

Reply 200 Pattern

When using the GET or the POST method, the contents of the returned response message can be checked. If the response contains the string specified by this Regular Expression, then the machine is determined to be up. The response will have all HTML formatting information removed before the match is performed.  Only the first 4K of response data can be matched.

The LoadMaster will only check for this phrase if the reply from the server is a 200 code. If the reply is something else, the page is marked as down without checking for the phrase. However, if the reply is a redirect (code 302), the page is not marked as down. This is because the LoadMaster assumes that the phrase will not be present and also it cannot take the service down, as the redirect would then become useless.

An exclamation mark (!) at the start of a search pattern negates the outcome of the search. For example, a pattern of 'fail' returns true if the string 'fail' appears in the response; while a pattern of '!fail' returns false if 'fail' appears in the response.

Both Regular Expressions and Perl Compatible Regular Expressions (PCRE) can be used to specify strings. For further information on Regular Expressions and PCRE, please refer to the Content Rules Feature Description.

Custom Headers

Here you can specify up to 4 additional headers/fields which are sent with each health check request.  Clicking the Show Headers button will show the entry fields. The first field is where you define the key for the custom header that is to be part of the health check request. The second field is the value of the custom header that is to be sent as part of the health check request. Once the information is input, click the Set Header button. Each of the headers can be up to a maximum of 20 characters long and the fields can be up to a maximum of 100 characters long. However, the maximum allowed number of characters in total for the 4 header/fields is 256.

The following special characters are allowed in the Custom Headers fields:

; . ( ) / + = - _

If a user has specified HTTP/1.1, the Host field is sent as before to the Real Server. This can be overridden by specifying a Host entry in the additional headers section.  The User-Agent can also be overridden in the same manner.  If a Real Server is using adaptive scheduling, the additional headers which are specified in the health check are also sent when getting the adaptive information.

It is possible to perform a health check using an authenticated user: enable Use HTTP/1.1, select HEAD as the HTTP Method and enter the Authorization header with the correctly constructed value. The Authorization field is constructed as follows:

1. The username and password are combined into a string "username:password".

2. The resulting string is then encoded using the RFC2045-MIME variant of Base64, except not limited to 76 char/line.

3. The authorization method and a space, for example, "Basic " is then put before the encoded string.

For example, if the user agent uses 'Aladdin' as the username and 'open sesame' as the password then the field is formed as follows:

Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==

To send SNI host information in HTTPS health checks, please enable Use HTTP/1.1 in the Real Servers section of the relevant Virtual Service(s) and specify a host header. If this is not set, the IP address of the Real Server is used.

Rules

If any of the Real Servers have Content Switching rules assigned to them the Rules column appears in the Real Servers section. A button with the number of rules assigned to each of the Real Server (or with None if there are no rules assigned) is displayed in the Rules column.

Clicking the button within the Rules column opens the Rules Management screen.

From within this screen you can Add or Delete the rules assigned to a Real Server.

3.11.2 Binary Data Health Checking

When Binary Data is selected as the health check method, some other fields are available, as described below.

Data to Send

Specify a hexadecimal string to send to the Real Server.

This hexadecimal string must contain an even number of characters.

Reply Pattern

Specify the hexadecimal string which is searched for in the response sent back from the Real Server. If the LoadMaster finds this pattern in the response, the Real Server is considered up. If the string is not found, the Real Server is marked as down.

This hexadecimal string must contain an even number of characters.

Find Match Within

When a response is returned, the LoadMaster will search for the Reply Pattern in the response. The LoadMaster will search up to the number of bytes specified in this field for a match.

Setting this to 0 means that the search is not limited. Data is read from the Real Server until a match is found. A maximum of 8 KB is read from the Real Server.

Setting the value to less than the length of the reply string means that the check will act as if the value has been set to 0, that is, all packets (up to 8 KB) are searched.

3.11.3 Name Server (DNS) Protocol Health Checking

Name Server (DNS) Protocol health checking is only available when using a UDP Virtual Service.

Checked Port

The port to be checked. If there is no port specified, the Real Server port is used.

DNS query

Specify the query string to be requested from the name server. This field has a maximum length of 126 characters.

3.11.4 Add a Real Server

Clicking the Add New button brings you to the following screen where the properties of the Real Server are set.

Allow Remote Addresses: By default only Real Servers on local networks can be assigned to a Virtual Service. Enabling this option will allow a non-local Real Server to be assigned to the Virtual Service. This option is enabled by default.



Real Server Address: The Real Server address. This can either be an IP address or a Fully Qualified Domain Name (FQDN). This is not editable when modifying a Real Server. An FQDN can only be used if a Nameserver is configured. The resolved name is listed next to the IP address in parenthesis. For further information, refer to the Host & DNS Configuration section. If an FQDN is used when adding a Real Server - the name is resolved at the time of adding. If it fails to resolve, the Real Server is not created and an error is generated.

You can either type the address of a new Real Server, or select an existing Real Server from the drop-down list provided. The entries before the line in the drop-down list are existing Real Servers. The entries below the line are auto-complete form options. Real Servers already added to this SubVS are not listed in the drop-down list.

This drop-down list does not appear on Safari browsers due to a browser limitation.

Add to all SubVSs

When adding a Real Server to a SubVS, a check box is available that, when selected, adds the Real Server to all SubVSs in that Virtual Service.

Port:  The forwarding port of the Real Server. This field is editable, so the port may be altered later if required.

 Forwarding Method: Either NAT (Network Address Translation) or Route (Direct) forwarding. The available options are dependent on the other modes selected for the service.

Weight:  The Real Server's weight. This is weight of the Real Server, as used by the Weighted Round Robin, Weighted Least Connection and Adaptive scheduling methods. The default initial value for the weight is 1000, the maximum is 65535, and the minimum is 1. It is a good benchmark to give a Real Server a weight relative to its processor speed, for example, if server1 seems to bring four times the power of server2, assign a weight of 4000 to server1 and weight of 1000 to server2.

Connection Limit: The maximum number of open connections that a Real Server will accept before it is taken out of the rotation. This is only available for Layer 7 traffic. The limit stops new connections from being created, but it will allow requests that already have persistent connections to the server. Persistent connections include connections to a Virtual Service using Session Broker Persistence which include a Session Broker cookie as set by the Connection Broker.

A maximum number of 1024 Real Servers is allowed. This is the global limit and is divided among the existing Virtual Services. For example, if one Virtual Service had 1000 Real Servers, then the remaining Virtual Services can only have 24 further Real Servers in total.

For the LoadMaster Exchange, there is a limit of six Real Servers that may be configured.

Click the Add This Real Server button and it gets added to the pool.

Connection Rate Limit

As of LoadMaster firmware version 7.2.51, there is a Connection Rate Limit field when configuring a Real Server. For further details, refer to the following article: Real Server Rate Limit.

Critical

This option will only appear if the Enhanced Options check box is enabled. For further information on the Enhanced Options check box, refer to the  Real Servers section.

In the Real Servers section of the Virtual Service modify screen, there is a Critical check box for each of the Real Servers. Enabling this option indicates that the Real Server is required for the Virtual Service to be considered available. The Virtual Service is marked as down if the Real Server has failed or is disabled.

If a Real Server on a SubVS is marked as critical - the SubVS is marked as down if that Real Server is down. However, the parent Virtual Service will not be marked down unless that SubVS is marked as critical.

This option overrides the Minimum number of RS required for VS to be considered up field. For example, if the minimum is set to two and only one Real Server is down but that Real Server is set to critical - the Virtual Service is marked as down.

In all cases, if the Virtual Service is considered to be down and the Virtual Service has a sorry server or an error message configured, these are used.

Healthcheck On

This option will only appear if the Enhanced Options check box is enabled. For further information on the Enhanced Options check box, refer to the  Real Servers section.

In the Real Servers section of the Virtual Service modify screen, there is a Healthcheck On drop-down list for each of the Real Servers. This allows you to specify what Real Server the health check is based on. This can either be set to Self to perform the health check based on that particular Real Server status, or another Real Server can be selected. For example - if Real Server 1 is down, any Real Servers which have their health check based on Real Server 1 will also be marked as down, regardless of their actual Real Server status.

Some points to be aware of are listed below:

A Real Server can only follow a Real Server and not a SubVS.

A Real Server can follow a Real Server that is also following a third Real Server. The status of the first two Real Servers will reflect the status of the third Real Server.

Chains of Real Servers are allowed - but loops are not allowed and cannot be created.

If a Real Server is deleted (either singly or as part of a Virtual Service), all Real Servers that are following the Real Server are reset to normal behaviour (that is, they will start using the Virtual Service health check options).

If all Real Servers in a Virtual Service are following Real Servers on a different Virtual Service, the health check parameters for the Virtual Service are not shown on the WUI (because the settings do not affect any Real Servers).

Disabling the Enhanced Options check box will disable all Real Server health check following for that Virtual Service.

3.11.5 Modify a Real Server

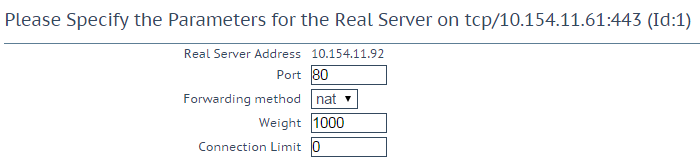

When you click the Modify button of a Real Server, the following options are available:

Real Server Address

This field shows the address of the Real Server. This is not an editable field.

Port

This is a field detailing the port on the Real Server that is to be used.

Forwarding Method

This is a field detailing the type of forwarding method to be used. The default is NAT; Direct Server Return can only be used with L4 services.

Weight

When using Weighted Round Robin Scheduling, the weight of a Real Server is used to indicate what relative proportion of traffic should be sent to the server. Servers with higher values will receive more traffic.

Connection Limit

This is the maximum amount of open connections that can be sent to the real server before it is taken out of rotation. The maximum limit is 100,000.

3.12 Manage Templates

Templates make the setting up of Virtual Services easier by automatically creating and configuring the parameters for a Virtual Service. Before a template can be used to configure a Virtual Service, it must be imported and installed on the LoadMaster.

Click the Choose File button, select the template you wish to install and click the Add New Template button to install the selected template. This template is now available for use when you are adding a new Virtual Service.

Click Delete to remove the template.

The Kemp Certified column will indicate whether the template was supplied by Kemp or not. If a template is certified, it has been provided by Kemp. If a template is not certified, it might be a template created by you (by exporting a Virtual Service).

For further details on templates, such as how to use a template to create and configure a new Virtual Service and where to obtain Kemp templates, please refer to the Virtual Services and Templates Feature Description.

3.13 Manage SSO Domains

Before using the Edge Security Pack (ESP) the user must first set up a Single Sign-On (SSO) Domain on the LoadMaster. The SSO Domain is a logical grouping of Virtual Services which are authenticated by an LDAP server.

The maximum number of SSO domains that are allowed is 128.

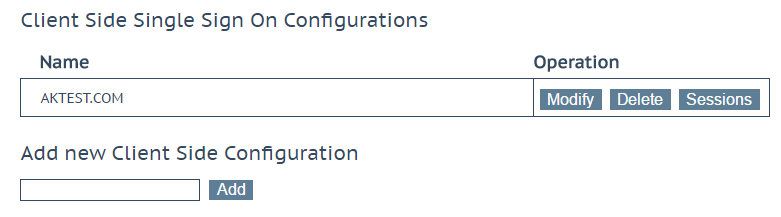

Click the Manage SSO Domains menu option to open the Manage Single Sign On Options screen.

3.13.1 Single Sign On Domains

Two types of SSO domains can be created - client side and server side.

Client Side configurations allow you to set the Authentication Protocol to LDAP, RADIUS, RSA-SecurID, Certificates, RADIUS and LDAP or RSA-SecurID and LDAP.

As of LoadMaster firmware version 7.2.52, RADIUS two-factor and LDAP authentication is supported. For further details, refer to the following article: RADIUS Two-Factor and LDAP Authentication.

Server Side configurations allow you to set the Authentication Protocol to Kerberos Constrained Delegation (KCD).

To add a new SSO Domain enter the name of the domain in the Name field and click Add. You can enter up to 64 characters in this field. The name entered here does not need to relate to the allowed hosts within the Single Sign On Domain.

3.13.1.1 Client Side (Inbound) SSO Domains

Authentication Protocol

This dropdown allows you to select the transport protocol used to communicate with the authentication server. The options are:

• LDAP
• RADIUS
• RSA-SecurID
• Certificates

If you create an SSO domain with the Authentication Protocol set to Certificates, ensure to set the LDAP Protocol to LDAPS in the LDAP endpoint.

• RADIUS and LDAP
• RSA-SecurID and LDAP
• SAML

The fields displayed on this screen will change depending on the Authentication protocol selected.

LDAP Endpoint

Select the LDAP endpoint to use. Click the Manage LDAP Configuration button to go to the LDAP Configuration screen. For further information on LDAP endpoints, refer to the LDAP Configuration section.

This option is only available if the Authentication Protocol is set to LDAP, RADIUS and LDAP or RSA-SecurID and LDAP.

RSA-SecurID Server(s)RADIUS/

Type the IP addresses of the server or servers which are used to authenticate the domain into the server(s) field and click the set server(s) button.

Multiple server addresses can be entered within this text box. Each entry must be separated by a space.

IPv6 is not supported for RADIUS authentication.

RADIUS Shared Secret

The shared secret to be used between the RADIUS server and the LoadMaster (48 character limit).

This field is only available if the Authentication Protocol is set to RADIUS or RADIUS and LDAP.

Send NAS Identifier

If this check box is disabled (default), a Network Access Server (NAS) identifier is not sent to the RADIUS server. If it is enabled, a NAS identifier string is sent to the RADIUS server. By default, this is the hostname. Alternatively, if a value is specified in the RADIUS NAS Identifier text box, this value is used as the NAS identifier. If the NAS identifier cannot be added, the RADIUS access request is still processed.

This field is only available if the Authentication Protocol is set to RADIUS or RADIUS and LDAP.

Sending the NAS identifier serves two purposes:

• It helps to classify the device type that is sending the request as opposed to simply sending the host IP address, which makes troubleshooting and consuming logs easier.
• It enables customized authentication responses to be sent back from the server based on the identifier.

RADIUS NAS Identifier

If the Send NAS Identifier check box is selected, the RADIUS NAS Identifier field is shown. When specified, this value is used as the NAS identifier. Otherwise, the hostname is used as the NAS identifier. If the NAS identifier cannot be added, the RADIUS access request is still processed.

This field is only available if the Authentication Protocol is set to RADIUS or RADIUS and LDAP and the Send NAS Identifier check box is enabled.

Check Certificate to User Mapping

This option is only available when the Authentication Protocol is set to Certificates. When this option is enabled - in addition to checking the validity of the client certificate, the client certificate will also be checked against the altSecurityIdentities (ASI) attribute of the user on the Active Directory.

In LoadMaster firmware version 7.2.53, support for Personal Identity Verification (PIV) smart card authentication was added. As a result, the Check Certificate to User Mapping check box changed to a drop-down list called Select Certificate to User Mapping with a number of options. For further details, refer to the following article: PIV Smart Card Support.

If this option is enabled and the check fails, the login attempt will fail. If this option is not enabled, only a valid client certificate (with the username in the SubjectAltName (SAN)) is required to log in, even if the altSecurityIdentities attribute for the user is not present or not matching.

For more information, refer to the Kerberos Constrained Delegation Feature Description.

Allow fallback to check Common Name

Enabling this option allows a fallback to check the Common Name (CN) in the certificate when the SAN is not available.

This field only appears when the Authentication Protocol is set to Certificates.

Domain/Realm

The login domain to be used. This is also used with the logon format to construct the normalized username, for example;

Principalname: <username>@<domain>

Username: <domain>\<username>

If the Domain/Realm field is not set, the Domain name set when initially adding an SSO domain is used as the Domain/Realm name.

RSA Authentication Manager Config File

This option is only available when the Authentication Protocol is set to RSA-SecurID.

This file needs to be exported from the RSA Authentication Manager.

For more information on the RSA authentication method, including how to configure it, refer to the RSA Two Factor Authentication Feature Description.

RSA Node Secret File

This option is only available when the Authentication Protocol is set to RSA-SecurID.

A node secret must be generated and exported in the RSA Authentication Manager.

It is not possible to upload the RSA node secret file until the RSA Authentication Manager configuration file is uploaded. The node secret file is dependent on the configuration file.

Logon Format

This drop-down list allows you to specify the format of the login information that the client has to enter.

The options available vary depending upon which Authentication Protocol is selected.

Not Specified: The username will have no normalization applied to it - it is taken as it is typed.

Principalname: Selecting this as the Logon format means that the client does not need to enter the domain when logging in, for example username@domain. The SSO domain added in the corresponding text box is used as the domain in this case.

When using RADIUS as the Authentication protocol the value in this SSO domain field must exactly match for the login to work. It is case sensitive.

Username: Selecting this as the Logon format means that the client needs to enter the domain and username, for example domain\username.

Username Only: Selecting this as the Logon Format means that the text entered is normalized to the username only (the domain is removed).

The Username Only option is only available for the RADIUS and RSA-SecurID protocols.

Logon Format (Phase 2 Real Server)

Specify the logon string format used to authenticate to the Real Server.

The Logon Format (Phase 2 Real Server) field only appears if the Authentication Protocol is set to one of the following options:

RADIUS

RSA-SecurID

Logon Format (Phase 2 LDAP)

Specify the logon string format used to authenticate to LDAP.

The Logon Format (Phase 2 LDAP) field only appears if the Authentication Protocol is set to one of the following options:

RADIUS and LDAP

Logon Transcode

Enable or disable the transcode of logon credentials, from ISO-8859-1 to UTF-8, when required.

If this option is disabled, log in using the format that the client dictates. If this option is enabled, check if the client uses UTF-8. If the client does not use UTF-8, use ISO-8859-1.

Failed Login Attempts

The maximum number of consecutive failed login attempts before the user is locked out. Valid values range from 0 to 99. Setting this to 0 means that users will never be locked out.

When a user is locked out, all existing logins for that user are terminated, along with future logins.

Reset Failed Login Attempt Counter after

When this time (in seconds) has elapsed after a failed authentication attempt (without any new attempts) the failed login attempts counter is reset to 0. Valid values for this text box range from 60 to 86400. This value must be less than the Unblock timeout value.

Unblock timeout

The time (in seconds) before a blocked account is automatically unblocked, that is, unblocked without administrator intervention. Valid values for this text box range from 60 to 86400. This value must be greater than the Reset Failed Login Attempt Counter after value.

Session timeout

The idle time and max duration values can be set here for trusted (private) and untrusted (public) environments. The value that is used is dependent on whether the user selects public or private on their login form. Also, either max duration or idle time can be specified as the value to use.

Idle time: The maximum idle time of the session in seconds, that is, idle timeout.

Max duration: The max duration of the session in seconds, that is, session timeout.

Valid values for these fields range from 60 to 604800 (seconds).

Use for Session Timeout: A switch to select the session timeout behaviour (max duration or idle time).

The underlying network traffic may keep the session active, even if there is no obvious user interaction.

Use LDAP Endpoint for Healthcheck

Select this check box to use the LDAP endpoint administrator username and password for health checking. If this is enabled, the Test User and Test User Password textboxes will not be available.

For more information on LDAP endpoints, refer to the LDAP Configuration section.

This option is only available for the following protocols; LDAP, Certificates, RADIUS and LDAP and RSA-SecurID and LDAP.

Test User and Test User Password

In these two fields, enter credentials of a user account for your SSO Domain. The LoadMaster will use this information in a health check of the Authentication Server. This health check is performed every 20 seconds.

3.13.1.1.1 Client Side (Inbound) SAML SSO Domains

The fields vary when the Authentication Protocol is set to SAML. The SAML-specific fields are described below.

IdP Provisioning

The Manual option enables you to manually input details into the IdP fields.

The MetaData File option allows you to upload an IdP MetaData File. This simplifies the configuration of the IdP attributes, including the IdP Entity ID, IdP SSO URL and IdP Logoff URL. The metadata file can be downloaded from the IdP.

IdP Metadata File

This field is only visible if the IdP Provisioning field is set to MetaData File. To upload the file - click Browse, navigate to and select the relevant file and click Import IdP MetaData File.

IdP Entity ID

Specify the IdP entity identifier.

IdP SSO URL

Specify the IdP SSO URL.

IdP Logoff URL

Specify the IdP logoff URL.

IdP Certificate

The IdP Certificate is very important in terms of verification of the assertions that must be contained in the SAML response that is received from the IdP. Without the certificate, verification cannot proceed.

IdP Certificate Match

If this option is enabled, the IdP certificate assigned must match the certificate in the IdP SAML response.

SP Entity ID

This is an identifier that is shared to enable the IdP to understand, accept and have knowledge of the entity when request messages are sent from the LoadMaster. This must correlate to the identifier of the relying party on the AD FS server.

SP Signing Certificate

It is optional to sign requests that are sent in the context of logon. Currently, the LoadMaster does not sign those requests.

In the context of log off requests - it is mandatory and these requests must be signed. This is to avoid any spoofing and to provide extra security in relation to log off functionality. This ensures that users are not being hacked and not being logged off unnecessarily.

In the SP Signing Certificate drop-down list, you can choose to use a self-signed certificate or third party certificate to perform the signing.

Download SP Signing Certificate

If using a self-signed certificate, click Download to download the certificate. This certificate must be installed on the IdP server (for example AD FS) to be added to the relying party signature.

The AD FS server requires this certificate for use of the public key to verify the signatures that the LoadMaster generates.

Session Control

Select the relevant session control option. The available options are:

• SP Session Idle Duration
• SP Session Max Duration
• IdP Session Max Duration

The IdP maximum duration value cannot be set in the LoadMaster. The value is taken from the IdP protocol. If the value is not already set in the IdP authentication response, the default value of 30 minutes is assigned as the IdP maximum duration.

SP Session Idle Duration

Specify the session idle duration (in seconds). This field is only visible if SP Session Idle Duration is set as the Session Control option.

SP Session Max Duration

Specify the maximum duration of the session (in seconds). This field is only visible if SP Session Max Duration is set as the Session Control option.

3.13.1.1.2 Sessions

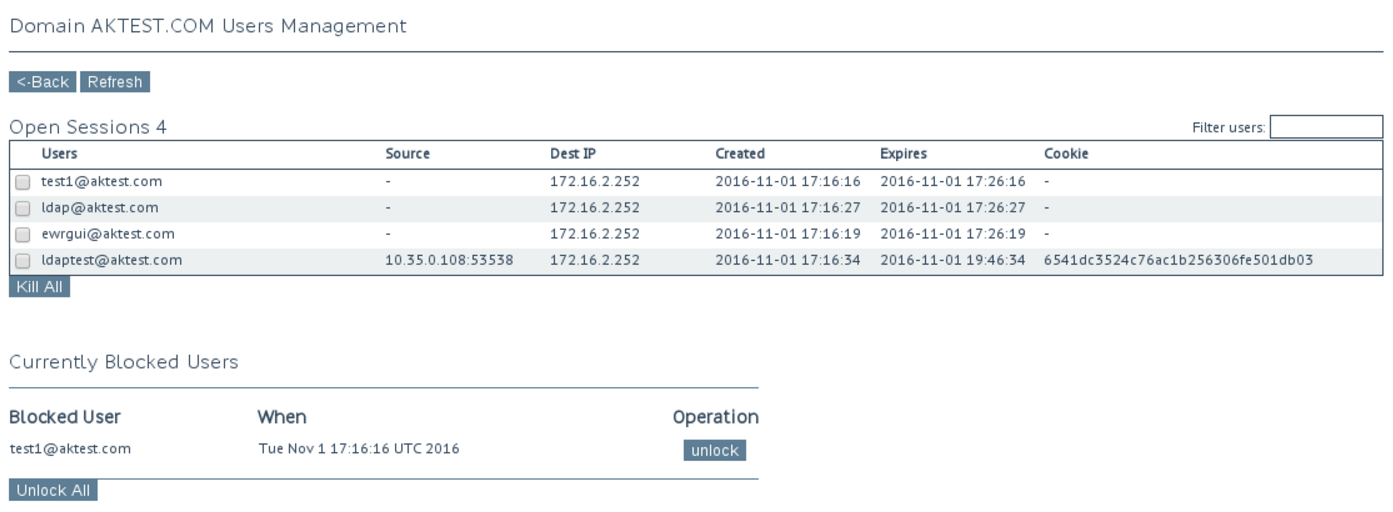

Clicking the Sessions button, for a client-side SSO domain, opens a screen listing the current open sessions on that domain.

You can filter the list by entering a search term in the Filter users text box.

The following information is provided about each session:

• Users: The username/domain of the client.
• Source: The client (host) IP address and source port.
• Dest IP: The destination IP address of the connection.
• Created: The date and time the connection was created.
• Expires: The date and time that the connection expires.
• Cookie: The cookie used in the connection.

Clicking the Kill All button kills all open sessions (flushes the SSO cache).

Selecting one or more sessions provides some further options:

• Kill Selected
• Block Selected
• Show All

Logs are added to the audit log for every kill session operation. For example:

• Kill 'non-cookie' session log:
  Nov 9 16:47:31 LM ssomgr: Deleted a session tester@aktest.com:- for domain AKTEST.COM
• Kill 'cookie' session log:
  Nov 9 16:47:31 LM ssomgr: Deleted a session ldaptest@aktest.com:420cf78373643b3c0171d95c757e7bf3 for domain AKTEST.COM
• Kill all domain sessions log:
  Nov 9 16:48:46 LM ssomgr: Deleted all domain AKTEST.COM user sessions

Currently Blocked Users

This section displays a list of users who are currently blocked and it also shows the date and time that the block occurred. It is possible to remove the block by clicking the unlock button in the Operation drop-down list.

Different formats of the same username are treated as the same username, for example, administrator@kemptech.net, kemptech\administrator and kemptech.net\administrator are all treated as one username.

3.13.1.2 Server Side (Outbound) SSO Domains

In the Server Side Single Sign On Configurations section of the Manage SSO screen, there is a check box called Use AES256 SHA1 KCD cipher. When this check box is selected, the AES256 SHA1 KCD cipher is used (by default the RC4 cipher is used).

To add a new server-side SSO, enter the name of the SSO configuration and click Add.

Authentication Protocol

This dropdown allows you to select the transport protocol used to communicate with the authentication server. The only option available for outbound (server side) configurations is Kerberos Constrained Delegation (KCD).

For further information on KCD, please refer to the KCD Feature Description.

Kerberos Realm

The address of the Kerberos Realm.

Kerberos Key Distribution Center (KDC)

The host name or IP address of the Kerberos Key Distribution Center. The KDC is a network service that supplies session tickets and temporary session keys to users and computers within an Active Directory domain.

In the LoadMaster LTS version, this field only accepts one host name or IP address. In LoadMaster firmware version 7.2.51, it is possible to set two KDCs. For further details, refer to the following article: Two Kerberos Key Distribution Centers Can Be Set Per Domain.

Double and single quotes are not allowed in this field.

Kerberos Trusted User Name

Before configuring the LoadMaster, a user must be created and trusted in the Windows domain (Active Directory). This user should also be set to use delegation. This trusted administrator user account is used to get tickets on behalf of users and services when a password is not provided. The user name of this trusted user should be entered in this text box.

Double and single quotes are not allowed in this field.

Kerberos Trusted User Password

The password of the Kerberos trusted user.

3.13.2 Single Sign On Image Sets

To upload a new image set, click Choose File, browse to and select the file and click Add Custom Image Set. After adding the file, the supplied image set(s) are listed on this page. It will also be available to select in the SSO Image Set drop-down list in the ESP Options section of the Virtual Service modify screen.

For more information on SSO image sets, including information on how the .tar file should be structured, refer to the Custom Authentication Form Technical Note.

3.14 WAF Settings

You can get to this screen by selecting Virtual Services > WAF Settings in the main menu of the LoadMaster WUI.

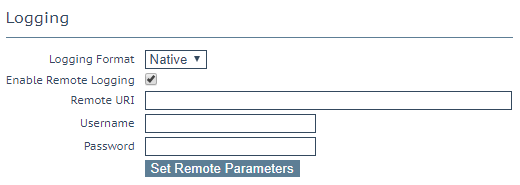

Logging Format

Select either Native or JSON depending on what format you want the audit logs to appear in.

Enable Remote Logging

This check box enables you to enable or disable remote logging for WAF.

Remote URI

Specify the Uniform Resource Identifier (URI) for the remote logging server.

Username

Specify the username for the remote logging server.

Password

Specify the password for the remote logging server.

The automatic and manual download options are greyed out if the WAF subscription has expired.

Enable Automated Rule Updates

Select this check box to enable the automatic download of the latest WAF rule files. This is done on a daily basis, if enabled.

Last Updated

This section displays the date when the last rules were downloaded. It gives you the option to attempt to download the rules now. It will also display a warning if rules have not been downloaded in the last 7 days. The Show Changes button is displayed if the rules have been downloaded. This button can be clicked to retrieve a log of changes which have been made to the Kemp WAF rule set.

Enable Automated Installs

Select this check box to enable the automatic daily install of updated rules at the specified time.

When to Install

Select the hour at which to install the updates every day.

Manually Install rules

This button allows you to manually install rule updates, rather than automatically installing them. This section also displays when the rules were last installed.

Custom Rules

This section allows you to upload custom rules and associated data files. Individual rules can be loaded as files with a .conf extension, or you can load a package of rules in a Tarball (.tar.gz) file. A Tarball of rule files usually includes a number of individual .conf and .data files.

The .conf files should be in standard ModSecurity rule file format.

Custom Rule Data

This section allows you to upload data files which are associated to the custom rules.

4 Global Balancing

This menu option may not be available in your configuration. These features are part of the GSLB Feature Pack and are enabled based on the license that has been applied to the LoadMaster. If you would like to have these options available, contact Kemp to upgrade your license.

4.1 Enable/Disable GSLB

Click this menu option to either enable or disable GEO features. When GEO is enabled, the Packet Routing Filter is enabled by default and cannot be changed. When GEO is disabled, it is possible to either enable or disable the Packet Routing Filter in System Configuration > Access Control > Packet Filter.

4.2 Manage FQDNs

A Fully Qualified Domain Name (FQDN), sometimes also referred to as an absolute domain name, is a domain name that specifies its exact location in the tree hierarchy of the Domain Name System (DNS). It specifies all domain levels, including the top-level domain and the root zone. A fully qualified domain name is distinguished by its lack of ambiguity: it can only be interpreted in one way. The DNS root domain is unnamed, which is expressed by the empty label, resulting in an FQDN ending with the dot character.

From this screen, you can Add or Modify an FQDN.

4.2.1 Add an FQDN

New Fully Qualified Domain Name

The FQDN name, for example www.example.com. Wildcards are supported, for example *.example1.com matches anything that ends in .example1.com.

4.2.2 Add/Modify an FQDN

Selection Criteria

The selection criterion used to distribute the resolution requests can be selected from this drop-down list. The Selection Criteria available are:

• Round Robin - traffic distributed sequentially across the server farm (cluster), that is, the available servers.
• Weighted Round Robin - Incoming requests are distributed across the cluster in a sequential manner, while taking account of a static "weighting" that can be pre-assigned per server.
• Fixed Weighting - the highest weight Real Server is used only when other Real Server(s) are given lower weight values.
• Real Server Load - LoadMaster contains logic which checks the state of the servers at regular intervals and independently of the configured weighting.
• Proximity - traffic is distributed to the closest site to the client. When using Proximity scheduling, new public sites are automatically mapped to geographic coordinates based on the GEO database. New private sites are mapped to 0o0'0" and function as expected. This coordinate should be overridden with accurate values to ensure correct balancing. The position of the client is determined by their IP address.

In LoadMaster firmware version 7.2.52, a bug was fixed which had previously caused GEO location coordinates to be changed after creating or modifying an FQDN when using Proximity as the Selection Criteria. This issue no longer occurs in versions 7.2.52 and above. However, if this issue occurred on a version previous to 7.2.52 and you upgrade to 7.2.52 or above, the coordinates do not get automatically fixed. Therefore, if the incorrect coordinates are already in the LoadMaster, you must manually correct them.

• Location Based - traffic is distributed to the closest site to the client. The positioning of the sites is set by inputting the location of the site (country or continent) during setup. The position of the client is determined by their IP address. If there is more than one site with the same country code, requests are distributed in a round robin fashion to each of the sites.
• All Available - returns all possible healthy targets for an A, AAAA or ANY query request. The contents of the returned list is also controlled by the Public Requests and Private Requests settings:

- For Public Sites Only the list can only contain public addresses. Likewise, for Private Sites Only the list can only contain private addresses.

- For Prefer Public the list only contains public addresses, unless no public addresses are available - in which case the list contains private addresses (if any are available). Likewise, for Prefer Private the list only contains private addresses, unless no private addresses are available - in which case the list contains public addresses (if any are available).

- For All Sites the list contains all available addresses

The purpose of this is to provide a list of preferred addresses, if they are available. Otherwise, provide a list of non-preferred addresses as a failback measure for improved availability.

Fail Over

The Fail Over option is only available when the Selection Criteria is set to Location Based. When the Fail Over option is enabled, if a request comes from a specific region and the target is down, the connection will fail over and be answered with the next level in the hierarchy. If this is not available, the connection is answered by the nearest (by proximity) target. If this is not possible, the target with the lowest requests are picked. For example, if a request from Ireland is received, but the site assigned to Ireland is unavailable, a site assigned to Europe is selected. If the site assigned to Europe is also unavailable, a site assigned to Everywhere is selected. If this too is unavailable, the site with the lowest requests of the available sites in the same continent is selected using the round robin method. The Fail Over setting affects all targets.

Public Requests & Private Requests

The Isolate Public/Private Sites setting has been enhanced in version 7.1-30. The checkbox has been migrated to two separate dropdown menus to allow more granular control of DNS responses. Existing behavior has been preserved and is migrated from your current setting, ensuring that no change in DNS responses is experienced.

These new settings allow administrators finer control of DNS responses to configured FQDNs. Administrators may selectively respond with public or private sites based on whether the client is from a public or private IP. For example, administrators may wish to allow only private clients to be sent to private sites.

The following table outlines settings and their configurable values:

Setting	Value	Client Type	Site Types Allowed
Public Requests	Public Only Prefer Public Prefer Private All Sites	Public Public Public Public	Public Public, Private if no public Private, Public if no private Private and Public
Private Requests	Private Only Prefer Private Prefer Public All Sites	Private Private Private Private	Private Private, Public if no private Public, Private if no public Private and Public

Note that exposing private IP address information to public queries in this way may result in exposed network details. Select this setting at your own risk.

Site Failure Handling

The default is for failover to occur automatically. However, in certain circumstances, for example in a multi-site Exchange 2010 configuration, this may not be optimal and different behaviour may be required. Failure Delay is set in minutes. If a Failure Delay is set, a new option called Site Recovery Mode becomes available.

Site Recovery Mode

This option is only available if a Failure Delay has been set. There are two options:

Automatic: The site is brought back into operation immediately upon site recovery

Manual: Once the site has failed, disable the site. Manual intervention is required to restore normal operation.

Enable Local Settings

Selecting this option will display two additional fields - TTL and Stickiness. These can be set on a per-FQDN basis or globally. To set them for an FQDN - enable local settings and configure them as needed. The per-FQDN settings will default to the value of the global settings when the FQDN is created.

TTL

The Time To Live (TTL) value dictates how long the reply from the GEO LoadMaster can be cached by other DNS servers or client devices. The time interval is defined in seconds. This value should be as practically low as possible. The default value for this field is 10. Valid values range from 1 to 86400.

Stickiness

'Stickiness', also known as persistence, is the property that enables all name resolution requests from an individual client to be sent to the same resources until a specified period of time has elapsed. For further information on Stickiness, refer to the GEO Sticky DNS Feature Description.

Unanimous Cluster Health Checks

If this option is enabled, if any IP addresses fail health checking - other FQDN IP addresses which belong to the same cluster are marked as down. When Unanimous Cluster Health Checks is enabled, the IP addresses which belong to the same cluster within a specific FQDN are either all up or all down. For example, example.com has addresses 172.21.58.101, 172.21.58.102 and 172.21.58.103 which all belong to cluster cl58:

If 172.21.58.101 fails, the unanimous policy forces 172.21.58.102 and 172.21.58.103 down as well.

When 172.21.58.101 comes back, the unanimous policy brings back 172.21.58.102 and 172.21.58.103 along with it.

So, at any given time - either all three addresses are available or all three addresses are down.

The same approach applies for site failure mode with manual recovery. Manual recovery causes a failed address to be disabled, so the administrator can re-enable it after fixing the problem. When Unanimous Cluster Health Checks is enabled, all three addresses are disabled.

The unanimous policy ignores disabled addresses. So, if you know that an address is down, and for whatever reason you want to continue using the other addresses that belong to the same cluster, you can disable the failed address and the unanimous policy will not force down the other addresses with it.

When Unanimous Cluster Health Checks are enabled, some configuration changes may cause FQDN addresses to be forced down or brought back up. For example, if an address is forced down and you remove it from the cluster while the unanimous policy is in effect, the address should come back up. Similarly, if you add an address to a cluster where the unanimous policy is in effect and one of the addresses is down, the new address should be forced down. This change may not occur immediately, but it should happen the next time health checking occurs.

If there are addresses with the Checker set to None combined with addresses that have health checking configured - addresses with no health checking will not be forced down, but they can be forcibly disabled if the Site Recovery Mode is set to Manual. For example, say there are three addresses:

172.21.58.101 with a Checker of Cluster Checks

172.21.58.102 with a Checker of Cluster Checks

172.21.58.103 with a Checker of None

If site failure handling is off or automatic, the failure of 172.21.58.101 causes 172.21.58.102 to be forced down, but 172.21.58.103 remains up. The rationale is that if you do not want health checking on 172.21.58.103 then it should remain up.

However, if the Site Recovery Mode is set to Manual, failure of 172.21.58.101 causes both 172.21.58.102 and 172.21.58.103 to be disabled, along with 172.21.58.101. For site recovery - all addresses are disabled, even the ones with no health checking configured. This is to keep traffic away from the problem data center until the system administrators fix it. This does not conflict with having addresses with no health checking because you can have an address that is up but disabled.

Cluster

If needed, the cluster containing the IP address can be selected.

Checker

This defines the type of health checking that is performed. The options include:

• None: This implies that no health check is performed to check the health status of the machine (IP address) associated to the current FQDN.

• ICMP Ping: This tests the health status by pinging the IP address.

• TCP Connect: This will test the health by trying to connect to the IP address on a specified port.

• Cluster Checks: When this is selected, the health status check is performed using the method associated with the selected cluster.

• HTTP: In LoadMaster firmware version 7.2.53, support was added to perform Layer7 (L7) HTTP health checks on back-end servers within GEO "sites" that are not handled from the LoadMaster for application delivery. For further details, refer to the following article: GEO Layer7 HTTP Health Checks.

For further information regarding health checks, refer to the GEO Feature Description.

Parameters

The parameters for the Selection Criteria are described and can be changed within this section. The parameters differ depending on the Selection Criteria in use, as described below:

Round Robin - no parameters available

Weighted Round Robin - the weight of the IP address can be set by changing the value in the Weight text box and clicking the Set Weight button

Fixed Weighting - the weight of the IP address can be set in the Weight text box

Real Server Load - the weight of the IP address can be set in the Weight text box and the Virtual Service which is measured can be chosen from the Mapping field

Proximity - the physical location of the IP address can be set by clicking the Show Coordinates button

Location Based - the locations associated with the IP address can be set by clicking the Show Locations button

Delete IP address

An IP address can be deleted by clicking the Delete button in the Operation column of the relevant IP address.

Additional Records

As of LoadMaster firmware version 7.2.53, you can add additional TXT, CNAME, and MX records to an FQDN. For further details, refer to the following article: GEO - Additional Record Types Supported.

Delete FQDN

An FQDN can be deleted by clicking the Delete button at the bottom of the Modify (Configure) FQDN screen.

4.3 Manage Clusters

GEO clusters is a feature mainly used inside data centers. Health checks are performed on a machine (IP address) associated to a specific FQDN, using the containing cluster server, rather than the machine itself.

In the Manage Clusters screen there are options to Add, Modify and Delete clusters.

4.3.1 Add a Cluster

When adding a cluster, there are 2 text boxes to fill out:

IP address - the IP address of the cluster

Name - the name of the cluster. This name can be used to identify the cluster while in other screens.

4.3.2 Modify a Cluster

Name

The name of the cluster.

Location

If needed, the Show Locations button can be clicked to enter the latitude and longitude of the location of the IP address.

Type

The cluster type can be Default, Remote LM or Local LM:

• Default: When the type of cluster is set to Default, the check is performed against the cluster using one of the following three available health checks:

- None: No health check is performed. Therefore, the machine always appears to be up.

- ICMP Ping: The health check is performed by pinging against the cluster IP address.

- TCP Connect: The health check is performed by connecting to the cluster IP address on the port specified.

• Local LM: When Local LM is selected as the Type, the Checkers field is automatically set to Not Needed. This is because the health check is not necessary because the cluster is the local machine.

• Remote LM: The health check for this type of cluster is Implicit (it is performed using SSH).

When using Real Server Load as the Selection Criteria, and the cluster Type is set to Local LM or Remote LM, a drop-down list appears called Mapping Menu. The Mapping Menu drop-down list displays a list of Virtual Service names (where available) and Virtual Service IP addresses from that LoadMaster. It lists each Virtual Service IP address with no port, as well as all of the Virtual IP address and port combinations. Select the Virtual IP address that is associated with this mapping.
If a Virtual Service with no port is selected, the health check checks all Virtual Services with the same IP address as the one selected. If one of them is in an "Up" status, the FQDN shows as "Up". The port does not come into consideration.
If a Virtual Service with a port is selected, the health check only checks against the health of that Virtual Service when updating the health of the FQDN.

The only difference between Remote LM and Local LM is that it saves a TCP connection because it gets the information locally and not over TCP. Otherwise, the functionality is the same.

Checkers

The health check method used to check the status of the cluster.

If the Type is set to Default the health check methods available are ICMP Ping and TCP Connect.

If Remote LM or Local LM is selected as the Type, the Checkers dropdown list is unavailable.

Disable

If needed, a cluster can be disabled by clicking the Disable button in the Operation column.

4.3.3 Delete a Cluster

To delete a cluster, click the Delete button in the Operation column of the relevant cluster.

Use the Delete function with caution. There is no way to undo this deletion.

4.3.4 Upgrading GEO Partners

When upgrading GEO partners, it is strongly recommended that all nodes are upgraded at the same time. Since GEO partners operate in active-active mode, upgrading at the same time ensures that consistent behavior is experienced across all nodes.

If you must operate a GEO partner with mixed versions, be sure to make all changes from the most recent version. This prevents configuration loss due to incompatible configurations. Additionally, changing configuration options not present in older versions will result in disparate behavior.

4.4 Miscellaneous Params

A description of the sections and fields in the Miscellaneous Params menu option are below.

Zone Name

Enter the zone name to use. A zone name is necessary for DNSSEC configurations. All FQDNs within the zone are signed using the provided key. All FQDNs outside the zone continue to work but the responses are unsigned.

In LoadMaster firmware version 7.2.52, the Zone Name field moved to the new Zone section and a new Apply to Zone Only check box was added to the Source of Authority section. For further details, refer to the following article: Apply to Zone Only SOA GEO Option.

Source of Authority

Name Server

The Name Server is defined as the forward DNS entry configured in the Top Level DNS, written as a Fully-Qualified Domain Name (FQDN and ends with a dot), for example lm1.example.com.

If there is more than one Name Server, for example in a HA configuration, then you would add the second Name Server in the field also, separated by a blank space, for example lm1.example.com lm2.example.com.

SOA Email

This textbox is used to publish a mail address of a person or role account dealing with this zone with the "@" converted to a ".". The best practice is to define (and maintain) a dedicated mail alias, for example "hostmaster" [RFC 2142] for DNS operations, for example hostmaster@example.com.

Disabled clusters are unavailable

As of LoadMaster firmware version 7.2.53, a new check box named Disabled clusters are unavailable has been introduced. This option is disabled by default. When it is enabled, requests to the cluster are dropped if a GEO cluster is disabled. For further details, refer to the following article: GEO Option to Prevent a Disabled GEO Cluster from Responding.

Glue Record IP

In LoadMaster firmware version 7.2.52, a new text box was introduced called Glue Record IP which allows you to set the IP address of the name server to return in additional records in a DNS response. For further details, refer to the following article: Configure The IP Address To Return In A DNS Response.

TTL

The Time To Live (TTL) value dictates how long the reply from the GEO LoadMaster can be cached by other DNS servers or client devices. This value should be as practically low as possible. The default value for this field is 10. The time interval is defined in seconds.

TXT Record

In LoadMaster firmware version 7.2.52, support for the TXT (Text) record type was added to the GEO functionality. For further details, refer to the following article: GEO TXT Record Support.

4.4.1 Resource Check Parameters

Check Interval

Defined in seconds, this is the delay between health checks. This includes clusters and FQDNs. The valid range for this field is between 9 and 3600. The default value is 120.

Connection Timeout

Defined in seconds, this is the allowed maximum wait time for a reply to a health check. The valid range for this field is between 4 and 60. The default value is 20.

Retry Attempts

This is the consecutive number of times in which a health check must fail before it is marked down and removed from the list of healthy Real Servers. The default retry attempts is 2.

The maximum detection window for failed clusters of FQDNs is the Check Interval + (Connection Timeout * (Retry attempts + 1)). On average, the maximum time is half that.

The timeline diagram below illustrates what happens from the time a resource IP is added or enabled, to when it goes down and then comes back up again:

1. When a resource IP is enabled/created, an ICMP request is sent by the LoadMaster to the resource IP. Assuming it responds, the resource is marked UP.

2. After 120 seconds has elapsed (the default Check Interval), an ICMP request is sent to the resource IP. If 20 seconds (the default Connection Timeout) elapses and the IP fails to respond, the LoadMaster will send up to two additional requests (the default Retry Attempts) and wait for 20 seconds between each. If all three of these requests receive no response, then the resource is marked down, and the Check Interval timer is reset.

3. After 120 seconds elapses, the LoadMaster attempts to send an ICMP request to the resource IP. If the resource has now come back up and responds before the Connection Timeout elapses, the LoadMaster marks it UP and resets the Check Interval timer.

4.4.2 Stickiness

'Stickiness', also known as Global Persistence, is the property that enables all name resolution requests from an individual client to be sent to the same resources until a specified period of time has elapsed. For further information on Stickiness, refer to the GEO Sticky DNS Feature Description.

4.4.3 Location Data Update

The location patch contains the geographically-encoded IP to location data. Data files can be obtained directly from Kemp using normal support channels. These files are a repackaged distribution of MaxMind; the GeoIP database.

The legacy MaxMind GeoLite database is only supported on LoadMaster version 7.2.44 and below. The new MaxMind GeoLite2 database is only supported on LoadMaster version 7.2.45 and above.

To obtain the latest release, contact support: https://kemptechnologies.com/support.

4.5 IP Range Selection Criteria

This section allows a new IP address range to be defined.

After adding an address, clicking Modify will open the modify settings screen. It is also possible to delete a range after it has been added.

This section allows the definition of up to 64 IP ranges per data center.



IP Address

Specify an IP address or network. Valid entries here are either a single IP, for example 192.168.0.1, or a network in Classless Inter-Domain Routing (CIDR) format, for example 192.168.0.0/24.

Coordinates

Specify the latitude and longitude of the location.

Location

Specify the location to be assigned to the address.

Add Custom Location

This section allows you to add a custom location.

Existing custom locations can also be modified and deleted in this section.

4.6 IP Blacklist Settings

It is possible to download blacklist rules from Kemp to block access from IP addresses that are on the blacklist. A whitelist can be manually specified that will override the blacklist.

This is a licensable feature. If you cannot see these options, or if any fields are grayed out, please contact Kemp to upgrade your license.

Enable Automated GEO IP Blacklist data Updates

If this option is enabled, updates to the GEO IP blacklist are downloaded daily. By default, this option is disabled.

Last Updated

The date when the last updates were downloaded is displayed. If the GEO blacklist data is more than 7 days old, a message appears to inform you.

Download Now

Click this button to download the updates now.

Enable Automated Installs

Select this check box to enable the automatic daily install of updated rules at the specified time.

When to Install

Select the hour at which to install the updates every day.

Manually Install GEO IP Blacklist data

This button enables you to manually install the updates. This section also displays when the updates were last installed. If the GEO blacklist data is not updated for more than 7 days, a message appears to inform you.

View GEO IP Blacklist data file

Clicking the View button displays the current GEO IP Blacklist data file.

IP Whitelist Data Settings

This section displays the IP addresses that are currently on the whitelist.

Add New Address/Network

In this section, new addresses and networks can be added to the whitelist. The whitelist overrides the blacklist.

4.7 Configure DNSSEC

Before you can configure DNSSEC, a zone must be defined. To define a zone, go to Global Balancing > Miscellaneous Params and specify a Zone Name.

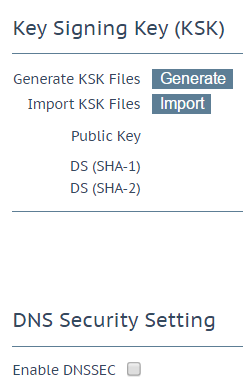

After the zone name is defined, the Key Signing Keys (KSKs) must be configured. You have two choices - you can either:

Import the KSK files by clicking Import and browsing to the file locations.

Generate the KSK files by clicking Generate

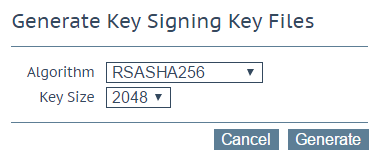

On the generate screen, select the cryptographic Algorithm and Key Size.

The following algorithms are supported:

NSEC3RSASHA1

RSASHA256

RSASHA512

The default is RSASHA256.

The supported key sizes are 1024, 2048 and 4096 bits. The default is 2048.

After the KSK files have been generated/imported, the DNSSEC screen shows the KSK details and gives you an option to delete the KSK files.

The final step is to enable DNSSEC by selecting the check box.

4.8 GSLB Statistics

The GSLB Statistics screen (accessible from under the Global Balancing section in the main menu) is a centralized snapshot of the GSLB components that enable site resiliency and hybrid traffic distribution.

The following sections display on the GSLB Statistics screen:

• GSLB Service Status: Displays the Boot time (the start time of the bind device) and the Last configuration (the date and time when the configuration was last modified).
• FQDN statistics: Displays the FQDN configuration with IP address information.
• Queries: Displays the different DNS query types received.
• DNS Request Information: Displays the type of DNS requests with a description and request count.

If you disable and re-enable GSLB, the GSLB statistics reset to zero.

5 Statistics

5.1 Real Time Statistics

Shows the activity for the LoadMasters within the system (Global), the Real Servers, the Virtual Services and the WAF.

5.1.1 Global

Total CPU Activity

This table displays the following CPU utilization information for a given LoadMaster:

Statistic	Description
User	The percentage of the CPU spent processing in user mode
System	The percentage of the CPU spent processing in system mode
Idle	The percentage of CPU which is idle
I/O Waiting	The percentage of the CPU spent waiting for I/O to complete

The sum of these four percentages equals 100%.

Core Temperatures: The temperature for each CPU core is displayed for LoadMaster hardware appliances. Temperature will not show on a Virtual LoadMaster statistics screen.

These values are only available using SNMP. For further information on SNMP Options, refer to the  SNMP Options section.

CPU Details: To get statistics for an individual CPU, click the relevant number button in CPU Details.

The CPU details screen has two additional statistics displayed - HW Interrupts and SW Interrupts.

Memory usage

This bar graph shows the percentage (MB) amount of memory in use and the amount of memory free.

Network activity

These bar graphs show the current network throughput on each interface.

Disk Usage

This section provides an indication of the percentage (GB) used/free of the log partitions. Color-coding is used to highlight different usage levels:

• 0% to 50%: green
• 50% to 90%: orange
• 90% to 100%: red

5.1.2  Real Servers

These graphs display the connections, bytes, bits or packets, depending on choice. The buttons in the top right of the page toggle which values are displayed. The values displayed for the Real Server comprise of the values for all the Virtual Services accessing the Real Server.

If the Real Server has been assigned to more than one Virtual Service, you can view the statistics for each Real Server by Virtual Service by clicking the arrow ( ) to the right of the number in the first column. This expands the view to show the statistics for each Virtual Service on the Real Server.

Because of the way that encrypted services are implemented, it is not possible to view the packet statistics on an encrypted Virtual Service.

Name: The Name column is automatically populated based on a DNS lookup.

IP Address: This column displays the IP address of the Real Servers, and the Virtual Service (if expanded).

Clicking the links in the IP Address column will display another screen containing a number of statistics specific to that Real Server.

Round trip times between the LoadMaster and Real Server are displayed. The performance of the Real Servers is monitored with the following two measurements:

• How long the Real Server takes to respond to the request (first byte).
• How long the Real Server takes to send all the data (last byte) - response time.

In the above graphic the Request/Response Current Max figures are 2 / 3329. This means that it took the Real Server a maximum of 2ms to respond to the request (first byte) and a max of 3329ms to send all the data and this is the measurement of the response time.

Round Trip Time (RTT) to the server cannot be measured if using re-encrypt.

Request/Response times are not applicable if the service being used is a HTTP-like service.

Clicking Reset Statistics in the Debug Options screen (System Configuration > System Administration > System Log Files > Debug Options) clears all the values.

For each RTT or request/response time, the following values are measured:

• Current Average: The average time (in milliseconds (ms)) over the last 5 seconds (or since the last statistics reset).
• Current Max: The current maximum time (in ms) - in the last 5 seconds (or since the last statistics reset).
• Current Min: The current minimum time (in ms) - in the last 5 seconds (or since the last statistics reset).
• Long Term Avg: The average time over the whole period since the Virtual Service started handling traffic (or since the last statistics reset).
• Long Term Max: The all-time maximum value (in ms) since the Virtual Service started handling traffic (or since the last statistics reset).
• Long Term Min: The all-time minimum value (in ms) (or since the last statistics reset).

Values are only present if values have been recorded. For example, no Current Max displays if no traffic has passed through the Virtual Service in the last five seconds or if the Virtual Service cannot monitor the specific values.

Status: This shows the status of the Real Server.

Adaptive: This will only be displayed if an adaptive scheduling method has been selected for a Virtual Service. This column will display the adaptive value.

Weight: This will only be displayed if the scheduling method is set to resource based (SDN adaptive) in a Virtual Service. The information which is gathered from the controller determines what the Adaptive value is set to. As the adaptive value goes up, the weight of the Real Server goes down. If all adaptive values are the same, all weights are the same. When the adaptive values are different the weights will change. The weight of the Real Servers determines where traffic is sent. If a Real Server is configured in multiple Virtual Services, two numbers are displayed for the weight - the first shows the average of the current weights over all Virtual Services that the Real Server is configured in. The second shows the number of Virtual Services that the Real Server is configured in. For example, a Weight of 972/2 means that the average weight of a Real Server which is configured in two Virtual Services is 972.

Total Conns: The total number of connections made.

For Layer 4 UDP connections - the connection count always shows as 0.

Last 60 Sec: The total number of connections in the last 60 seconds.

5 Mins: The total number of connections in the last 5 minutes.

30 Mins: The total number of connections in the last 30 minutes.

1 Hour: The total number of connections in the last hour.

Active Conns: The total number of connections that are currently active.

When using ESP, all connections going through the login process are counted as active connections for the Virtual Service. They are not counted as active connections for the Real Server because they are not actual connections to the Real Server. The WUI page displays the number of active connections associated with the Real Servers, while SNMP displays the number of active connections for the Virtual Service. The API returns the same value as displayed in the WUI. Without ESP, these values are identical. When using ESP, the Virtual Service counts can be much higher than the final counts going to the Real Servers, due to the above reason.

Current Rate Conns/sec: The current rate of connections per second.

[%]: The percentage of connections per second.

Conns/sec: A graphical representations of the connections per second.

System Total Conns: This row displays totals for each of the columns.

5.1.3 Virtual Services

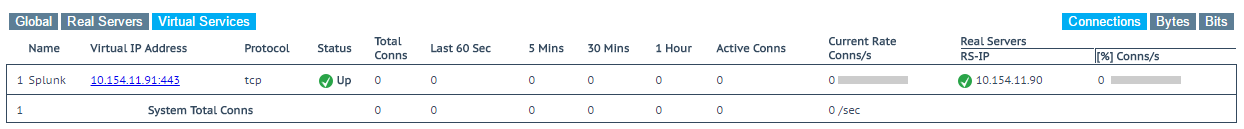

These graphs display the connections, bytes, bits or packets, depending on choice. The buttons in the top right of the page toggle which values are displayed. The percentage of distribution across the Virtual Service's Real Servers are displayed.

Name: The name of the Virtual Service.

Virtual IP Address: The IP address and port of the Virtual Service.

Clicking the links in the Virtual IP Address column will display another screen containing a number of statistics specific to that Virtual Service.

Round trip times between the client and LoadMaster are displayed. The performance of the Virtual Service is monitiored with the following two measurements:

• How long the Virtual Service takes to respond to the request (first byte).
• How long the Virtual Service takes to send all the data (last byte) - response time.

In the above graphic the Request/Response Current Max figures are 1026 / 5484. This means that it took the Real Server a maximum of 1026ms to respond to the request (first byte) and a max of 5484ms to send all the data and this is the measurement of the response time.

Clicking Reset Statistics in the Debug Options screen (System Configuration > System Administration > System Log Files > Debug Options) clears all the values.

For each RTT or request/response time, the following values are measured:

• Current Average: The average time (in milliseconds (ms)) over the last 5 seconds (or since the last statistics reset).
• Current Max: The current maximum time (in ms) - in the last 5 seconds (or since the last statistics reset).
• Current Min: The current minimum time (in ms) - in the last 5 seconds (or since the last statistics reset).
• Long Term Avg: The average time over the whole period since the Virtual Service started handling traffic (or since the last statistics reset).
• Long Term Max: The all-time maximum value (in ms) since the Virtual Service started handling traffic (or since the last statistics reset).
• Long Term Min: The all-time minimum value (in ms) (or since the last statistics reset).

Values are only present if values have been recorded. For example, no Current Max displays if no traffic has passed through the Virtual Service in the last five seconds or if the Virtual Service cannot monitor the specific values.

Address: The IP address of the Virtual Service.

Protocol: The protocol of the Virtual Service. This will either be tcp or udp.

Active Conns: The total number of connections that are currently active.

When using ESP, all connections going through the login process are counted as active connections for the Virtual Service. They are not counted as active connections for the Real Server because they are not actual connections to the Real Server. The WUI page displays the number of active connections associated with the Real Servers, while SNMP displays the number of active connections for the Virtual Service. The API returns the same value as displayed in the WUI. Without ESP, these values are identical. When using ESP, the Virtual Service counts can be much higher than the final counts going to the Real Servers, due to the above reason.

Total Conns: The total number of connections made.

Total Bytes: The total number of bytes transmitted.

Real Servers: The total number of Real Servers in this Virtual Service.

Persist Entries: The total number of persistence entries made.

WAF: The status, along with the other WAF statistics below, are displayed if WAF is enabled on the Virtual Service.

Requests: The total number of requests handled by the WAF (shows all requests, whether they were blocked or not). Two requests are recorded for each connection - one incoming and one outgoing request.

Incidents: The total number of events handled by the WAF (that is, requests that were blocked).

Incidents/Hour: The number of events that have happened in the current hour (since xx.00.00).

Incidents/Day: The number of events that have happened since midnight (local time).

Incidents/Dayover: The number of times the event counter has gone over the configured warning threshold today. For example, if the threshold is set to 10 and there has been 20 events, this counter is set to 2. The warning threshold is set on a per-Virtual Service basis by filling out the Hourly Alert Notification Threshold field in WAF Options in the Virtual Service modify screen. For further information, refer to the Web Application Firewall (WAF) Options section.

System Total Conns: This row displays totals for each of the columns.

5.1.4 WAF

These statistics refresh every 5 to 6 seconds. The following items are displayed on this screen:

Count: The left-most column displays the total number of WAF-enabled Virtual Services.

Name: The name of the WAF-enabled Virtual Service.

Virtual IP Address: The IP address and port of the Virtual Service.

Protocol: The protocol of the Virtual Service (tcp or udp).

Status: The status of the Virtual Service. For information on each of the possible statuses, refer to the View/Modify (Existing HTTP Service) section.

Total Requests: The total number of requests handled by the WAF (shows all requests, whether they were blocked or not). Two requests are recorded for each connection - one incoming and one outgoing request.

Total Events: The total number of events handled by the WAF (requests that were blocked).

Events this hour: The number of events that have happened in the current hour (since xx.00.00).

Events Today: The number of events that have happened since midnight (local time).

Events over Limit Today: The number of times the event counter has gone over the configured warning threshold today. For example, if the threshold is set to 10 and there has been 20 events, this counter is set to 2. The warning threshold is set on a per-Virtual Service basis by filling out the Hourly Alert Notification Threshold field in WAF Options in the Virtual Service modify screen. For further information, refer to the Web Application Firewall (WAF) Options section.

5.2 Historical Graphs

The Historical Graphs screen provides a graphical representation of the LoadMaster statistics. These configurable graphs provide a visual indication of the traffic that is being processed by the LoadMaster.

In some cases, after upgrading the LoadMaster firmware from version 7.1.35 to a newer firmware version, historical graphs may not display. To fix this, reset the statistic counters (System Configuration > Extended Log Files > System Log Files > Debug Options > Reset Statistics).

There are graphs for the network activity on each interface. There is also an option to view graphs for the overall and individual Virtual Services and the overall and individual Real Servers.

The time granularity can be specified by selecting one of the hour, day, month, quarter or year options.

In the case of the network activity on the interface graphs, you can choose which type of measurement unit you wish to use by selecting one of the Packet, Bits or Bytes options.

For the Virtual Services and Real Servers graphs you can choose which type of measurement unit you wish to use by selecting one of the Connections, Bits or Bytes options.

You can configure which Virtual Service statistics are being displayed by clicking the configuration icon: in the Virtual Services panel. This opens the Virtual Services configuration  window.

From here, Virtual Services can be added or removed from the statistics display.

You can disable these graphs by disabling the Enable Historical Graphs check box in the WUI Settings screen.

A maximum of five Virtual Services can be displayed at the same time.

To close the dialog and apply any changes, please ensure to click the button within the window itself.

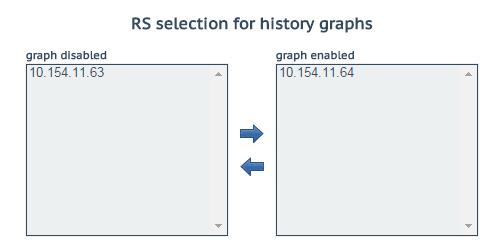

You can configure which Real Server statistics are being displayed by clicking the configuration icon, in the Real Servers panel. This opens the Real Servers configuration dialog in a separate window.

From here, Real Servers can be added or removed from the statistics display.

A maximum of five Real Servers can be displayed at the same time.

To close the dialog and apply any changes, please ensure you click the button within the window itself.

By default, only the statistics for the Virtual Services and Real Servers displayed on the Statistics page are gathered and stored. To view statistics for all Virtual Services and Real Servers, enable the Collect All Statistics option in System Configuration > Miscellaneous Options > WUI Settings.

This option is disabled by default because collecting statistics for a large number of Virtual Services and Real Servers can cause CPU utilization to become very high.

The graphs in the LoadMaster WUI are auto-scaling and are shown using SI magnitude units. The graph will show the prefix of the scaling factor used so the absolute value can be calculated if needed.

The possible scaling factors and their prefixes are listed in the table below.

Symbol	Prefix	Factor
P	peta	10^15
T	tera	10^12
G	giga	10^9
M	mega	10^6
k	kilo	10^3
m	milli	10^(-3)
u	micro	10^(-6)

To calculate the absolute "real" value, take the value shown in the graph and multiply it by the scaling value.

Example

A value of 200 is shown in the connections per second graph with a scaling factor of "m". As listed in the table above, "m" stands for "milli". Therefore, to find the absolute value of connections per second for that time - the value of 200 needs to be multiplied by a factor of 10^(-3):

10^(-3) = 0.001

200 x 0.001 = 0.2 connections per second

This calculation shows that there is less than one connection per second and, due to the fact that the connection rate is so low, if the graph shows the absolute number of connections it will just be a straight line at zero and offers no useful information.

6 SDN Statistics

To view the SDN statistics, go to Statistics > SDN Statistics in the main menu of the LoadMaster WUI.

The Name, Version and Credentials are displayed if the LoadMaster has successfully connected to the SDN Controller.

Statistics section

Statistics will not be displayed unless the SDN Controller has been added and is communicating with the LoadMaster. If the Name, Version and Credentials are not displaying it means that the LoadMaster is not connected to the SDN Controller. This could mean that the configuration is not correct, or the SDN Controller is down.

Two types of statistics are displayed on this screen - network traffic and adaptive parameters:

Network traffic - this can display the number of bits and bytes transferred per second for each of the Real Servers. The maximum, average and minimum number of bits/bytes per second are shown.

Adaptive parameters - this displays the adaptive value (ctrl) and the weight. As the adaptive value goes up, the weight of the Real Server goes down.

6.1 Device Information

Information about switches on a controller which has OpenFlow enabled can be viewed by clicking the device info button.

Further information can be seen by clicking the plus (+) button to expand each of the devices.

6.1.1 Path Information

Path information can be viewed by clicking the path info button.

The LoadMaster and the SDN controller need to be directly connected for the path information to be displayed.

To view a graphical representation of the path, click the => or <= icon in the Dir column for the relevant path.

This screen will display the LoadMaster, Real Server and any switches in between. The LoadMaster and Real Server are represented in brown. The LoadMaster is at the top and the Real Server is at the bottom.

The switches are represented in blue. The switch name will appear in the blue boxes if the SDN Controller picks it up.

The Data Path Identifier (DPID) of each switch on the network is displayed on the right of the switches. The DPID is how the controller identifies the different switches.

The Media Access Control (MAC) address of the LoadMaster and Real Server are displayed to the right of those devices. The IP address of the LoadMaster and Real Server will also be displayed on the left.

The colour of the paths are explained below:

Light green: Traffic is idle and the link is healthy.

Red: The path is congested with traffic.

Grey: The path between the LoadMaster and initial switch is shown as grey.

So, in the example screenshot above - the path between the Path2 and Switch2 switches is healthy but the paths between Switch2 and Switch1 and the Real Server are congested.

The colour of the path may change as the path gets more or less congested. There is an array of red colours that can be displayed - the darker the red colour is, the more congestion is on the path.

7 Real Servers

This screen shows the current status of the Real Servers and gives the option to Disable or Enable each Real Server. Each Real Server has corresponding buttons to disable (take an online server offline) and enable the Real Server. You can also enable or disable multiple Real Servers at the same time by selecting the relevant Real Servers, and clicking the relevant button at the bottom. The status can be Enabled (Green), Disabled (Red) or Partial (Yellow) - meaning the Real Server is enabled in one Virtual Service.

8 Rules & Checking

8.1  Content Rules

8.1.1 Content Matching Rules

This screen shows rules that have been configured and gives the option to Modify or Delete.

In LoadMaster firmware 7.2.52 and above, it is possible to Duplicate content rules. There is also an In Use column that indicates if a content rule is assigned to any Virtual Services (and how many it is assigned to). For further details about the improvements made in 7.2.52, refer to the following article: Content Rule Enhancements.

To define a new rule, click the Create New button. You must give the rule a name.

The Rule Name must be alphanumeric, unique, and cannot contain spaces. Rules are case sensitive, thus two different rules can exist in the form of Rule1 and rule1. It is not possible to name a content rule default.

The options that are available depend on the Rule Type that you select. The available rules are as follows:

Rule Types:

Content Matching: matches the content of the header or body

Add Header: adds a header according to the rule

Delete Header: deletes the header according to the rule

Replace Header: replaces the header according to the rule

Modify URL: changes the URL according to the rule

Replace String in Response Body: replaces text in the body according to the rule

For further information on configuring rules, please refer to the document.

8.1.2 Content Matching

When the Rule Type selected is Content Matching the following describes the options available.

Rule Name

The name of the rule.

Match Type:

Regular Expression: compares the header to the rule

Prefix: compares the prefix of the header according to the rule

Postfix: compares the postfix of the header according to the rule

Header Field

The header field name must be matched. If no header field name is set, the default is to match the string within the URL.

Rules can be matched based on the Source IP of the client by entering src-ip within the Header Field text box. The header field is populated by the source IP of the client.

Similarly, rules can also be matched based on the HTTP Method used, for example GET, POST or HEAD. The methods that are to be matched should be written in uppercase.

The body of a request can also be matched by typing body in the Header Field text box.

Match String

Input the pattern that is to be matched. Both Regular Expressions and PCRE are supported. The maximum number of characters allowed is 250.

For further information on Regular Expressions and PCRE, please refer to the Content Rules Feature Description.

Negation

Invert the sense of the match.

Ignore Case

Ignore case when comparing strings.

Include Host in URL

Prepend the hostname to request URL before performing the match.

Include Query in URL

Append the query string to the URL before performing a match.

Fail On Match

If this rule is matched, then always fail to connect.

Perform If Flag Set

Only try to execute this rule if the specified flag is set.

Perform If Flag is NOT Set

Only try to execute this rule if the specified flag is not set.

Set Flag If Matched

If the rule is successfully matched, set the specified flag.

Using the Perform If Flag Set and Set Flag If Matched options, it is possible to make rules dependent on each other, that is, only execute a particular rule if another rule has been successfully matched. For more detailed instructions on 'chaining' rules, please refer to the Content Rules Feature Description.

8.1.3 Add Header

When the Rule Type selected is Add Header the following describes the options available.

Rule Name

This is a text box to enter the name of the rule.

Header Field to be Added

This is a text box to enter the name of the header field to be added.

Value of Header Field to be Added

Enter the value of the header field to be added. You can enter a maximum of 255 characters in this field.

Perform If Flag Set

Only execute this rule if the specified flag is set.

The flag is set by a different rule. For further information on flags please refer to the Content Matching section.

Perform If Flag is NOT Set

Only try to execute this rule if the specified flag is not set.

8.1.4 Delete Header

When the Rule Type selected is Delete Header the following describes the options available.

Rule Name

This is a textbox to enter the name of the rule.

Header Field to be Deleted

This is for a text box to enter the name of the header field to be deleted.

Perform If Flag Set

Only execute this rule if the specified flag is set.

The flag will have been set by a different rule. For a more detailed explanation of flags please refer to the Content Matching section.

Perform If Flag is NOT Set

Only try to execute this rule if the specified flag is not set.

8.1.5 Replace Header

When the Rule Type selected is Replace Header the following describes the options available.

Rule Name

This is for a textbox to enter the name of the rule.

Header Field

This is for a textbox to enter the header name field where the substitution should take place.

Match String

The pattern that is to be matched.

Value of Header Field to be replaced

This is for a textbox to enter the value of the header field to be replaced.

Perform If Flag Set

Only execute this rule if the specified flag is set.

The flag is set by a different rule. For a more detailed explanation of flags please refer to the Content Matching section.

Perform If Flag is NOT Set

Only try to execute this rule if the specified flag is not set.

8.1.6 Modify URL

When the Rule Type selected is Modify URL the following describes the options available.

Rule Name

This is for a textbox to enter the name of the rule.

Match String

This is a textbox to enter the pattern that is to be matched.

Modified URL

This is a textbox to enter the URL that is to be modified.

Perform If Flag Set

Only execute this rule if the specified flag is set.

The flag is set by a different rule. For a more detailed explanation of flags please refer to the Content Matching section.

Perform If Flag is NOT Set

Only try to execute this rule if the specified flag is not set.

8.1.7 Replace String in Response Body

When the Rule Type selected is Replace String in Response Body, the following options are available.

Rule Name

The name of the rule. The rule name must be unique.

Match String

The string to match.

Replacement text

The replacement string.

Ignore Case

Enable this check box to ignore the case of the strings when comparing.

Perform If Flag Set

Only execute this rule if the specified flag is set.

The flag will have been set by a different rule.

Perform If Flag is NOT Set

Only try to execute this rule if the specified flag is not set.

8.2 Check Parameters

To access the Check Parameters screen, go to Rules & Checking > Check Parameters in the main menu of the LoadMaster WUI. The Check Parameters screen has two sections - Service Check Parameters and either Adaptive Parameters or SDN Adaptive Parameters, depending on the Scheduling Method selected in the Virtual Services. If the Scheduling Method is set to resource based (adaptive), the Adaptive Parameters section is displayed. If the Scheduling Method is set to resource based (SDN adaptive), the SDN Adaptive Parameters section is displayed.

Refer to the relevant section below to find out more information.

8.2.1 Service (Health) Check Parameters

 The LoadMaster utilizes Layer 3, Layer 4 and Layer 7 health checks to monitor the availability of the Real Servers and the Virtual Services.

Check Interval(sec)

With this field you can specify the number of seconds that will pass between consecutive checks.

Recommended and default value: 9 seconds

Valid values range from the <mininterval> (9) to the <maxinterval> (901).

The <mininterval> is Retry Count * Connect Timeout (sec) + 1, that is, a maximum value of 9 by default.

The <maxinterval> is 901 [because that is what 60 (maximum Connect Timeout (sec)) * 15 (maximum Retry Count) + 1 is].

In the WUI, if the value of Check Interval is over 120 (because it is forced to this value by setting the Connect Timeout (sec) and Retry Count), it cannot be changed by modifying the Check Interval(sec) drop-down list. To change it, configure the other two options. Otherwise, the maximum value that the interval can be set to is 120.

Connect Timeout (sec)

The HTTP request has two steps: contact the server, and then retrieve the file. A timeout can be specified for each step; how long to wait for a connection, how long to wait for a response.

Default value:4 seconds

Valid values range from 4 to 60.

Retry Count

This specifies the number of retry attempts the check will make before it determines that the server is not functioning.

Default value: 2

Valid values range from 2 to 15.

In LoadMaster firmware version 7.2.52, the check Interval, Timeout, and Retry Count settings can be configured on each Virtual Service or SubVS. Previously, these were just global settings. For further details, refer to the following article: Per-Virtual Service Custom Health Check Settings.

8.2.2 Adaptive Parameters

Adaptive Interval (sec)

This is the interval, in seconds, at which the LoadMaster checks the load on the servers. A low value means the LoadMaster is very sensitive to load, but this comes at a cost of extra load on the LoadMaster itself. 7 seconds is a good starting value. This value must not be less than the HTTP checking interval.

Adaptive URL

The Adaptive method retrieves load information from the servers using HTTP inquiry. This URL specifies the resource where the load information of the servers is stored. This resource can be either a file or program (for example Adaptive Agent) that delivers this information. The standard location is /load. It is the servers' job to provide the current load data in this file in ASCII format. In doing so, the following must be considered:

An ASCII file containing a value in the range of 0 to 100 in the first line where: 0=idle and 100=overloaded. As the number increases, that is, the server becomes more heavily loaded, the LoadMaster will pass less traffic to that server.  Hence, it 'adapts' to the server loading.

If the server becomes 101% or 102% loaded, a message is added to the logs.

The file is set to "/load" by default.

The file must be accessible using HTTP.

The URL must be the same for all servers that are to be supported by the adaptive method.

 This feature is not only of interest for HTTP-based Virtual Services, but for all Services. HTTP is merely used as the transport method for extracting the application-specific load information from the Real Server.

Port

This value specifies the port number of the HTTP daemon on the servers. The default value is 80.

Min. Control Variable Value (%)

This value specifies a threshold below which the balancer will switch to static weight-based scheduling, that is, normal Weighted Round Robin. The value is a percentage of the maximum load (0-50). The default is 5.

8.2.3 SDN Adaptive Parameters

Adaptive Interval (sec)

When using SDN-adaptive scheduling, the SDN controller is polled to retrieve the loading values for the Real Server. This field value specifies how often this occurs.

Average over <N-Avg> Load values

Use this value to dampen fluctuations in the system.

UseMin. Control Variable Value (%)

Anything below the value set here is considered idle traffic and it does not affect the adaptive value (which is displayed on the Real Servers Statistics screen), for example - in the screenshot above anything below 5% is considered idle.

Use relative Bandwidth

Use the maximum load observed on the link as link bandwidth. Kemp recommends enabling this option.

Current max. Bandwidth values

This section displays the current received and transmitted maximum bandwidth values.

Reset values

This checkbox can be used to reset the current max. bandwidth values.

9 Certificates & Security

The sections below describe the various screens in the Certificates & Security section of the LoadMaster WUI.

9.1 SSL Certificates

Shown above is the Manage Certificates screen. Details about the various options on this screen are below:

Import Certificate - to import the certificate with a chosen filename.

Add Intermediate - refer to the Intermediate Certificates section for further information.

Identifier - is the name given to the certificate at the time it was created.

Common Name(s) - is the FQDN (Fully Qualified Domain Name) for the site.

Virtual Services - the Virtual Service with which the certificate is associated.

Assignment - lists of available and assigned Virtual Services

Operations -

New CSR - generates a new Certificate Signing Request (CSR) based on the current certificate.

If the certificate has Subject Alternative Names (SANs), generating a CSR in this way will not add the SANs. Instead, generate the CSR manually. For further information on this, refer to the Generate CSR (Certificate Signing Request) section.

Replace Certificate - updates or replaces the certificate stored in this file.

Delete Certificate - deletes the relevant certificate.

Reencryption Usage - display the Virtual Services that are using this certificate as a client certificate when re-encrypting.

Administrative Certificates - the certificate you want to use, if any, for the administrative interface.

TPS Performance will vary based on key length.  Larger keys reduce performance.

9.2 Intermediate Certificates

This screen shows a list of the installed intermediate certificates and the name assigned to them.

If you already have a certificate, or you have received one from a CSR, you can install the certificate by clicking the Choose File button. Navigate to and select the certificate and then enter the desired Certificate Name. The name can only contain alpha characters with a maximum of 32 characters.

Uploading several consecutive intermediate certificates within a single piece of text, as practiced by some certificate vendors such as GoDaddy, is allowed. The uploaded file is split into the individual certificates.

9.3 Generate CSR (Certificate Signing Request)

If you do not have a certificate, you may complete the Certificate Signing Request (CSR) form and click the Create CSR button. CSRs generated by the LoadMaster use SHA256.

If Self-Signed Certificate Handling is set to EC certs with an EC signature (in Certificates & Security > Remote Access), CSR generation is restricted to the administrative (bal) user only. If Self-Signed Certificate Handling is set to a different value, all users (regardless of their permissions) can generate CSRs.

2 Letter Country Code (ex. US)

The 2 letter country code that should be included in the certificate, for example US should be entered for the United States.

State/Province (Entire Name - New York, not NY)

The state which should be included in the certificate. Enter the full name here, for example New York, not NY.

City

The name of the city that should be included in the certificate.

Company

The name of the company which should be included in the certificate.

Organization (e.g., Marketing,Finance,Sales)

The department or organizational unit that should be included in the certificate.

Common Name

The Fully Qualified Domain Name (FQDN) for your web server.

Email Address

The email address of the responsible person or organization that should be contacted regarding this certificate.

SAN/UCC Names

A space-separated list of alternate names.

Generate Elliptical Curve Request

Select this check box to generate an Elliptical Curve (EC) request instead of an RSA request.

Display Private Key

This new option (introduced in LoadMaster firmware version 7.2.52 and LTS version 7.2.48.3) appears only when the Certificates & Security > Remote Access > Self-Signed Certificate Handling option is set to EC certs with an EC signature which means that an elliptical curve cipher is used for both the certificate and the digital signature.

Once the above option is selected, a Display Private Key check box appears on the Certificates & Security > Generate CSR WUI page.

• When Display Private Key is disabled (the default), the private key is not displayed in the WUI after the CSR is created. The unsigned CSR is downloaded by the user as in previous releases. Once it is signed by a Certificate Authority, the user uploads the signed certificate to the LoadMaster - the difference from previous releases being that the user does not have to also upload the private key, since LoadMaster maintains it internally when Display Private Key is disabled. If the saved private key matches the new certificate, the certificate gets imported and the saved private key is deleted. The stored private key is not encrypted but there is no access to it from the outside and it cannot be seen or displayed.
• When Display Private Key is enabled, the LoadMaster behaves as in previous releases: the private key is displayed to the user and must be uploaded to LoadMaster along with the private key.

There is only one private key per machine and it is not shared between High Availability (HA) pairs. This means the newly-generated certificate must be installed on the machine that the CSR was generated on.

Alter clicking the Create CSR button, the following screen appears:

The top part of the screen should be copied and pasted into a plain text file and sent to the Certificate Authority of your choice. They will validate the information and return a validated certificate.

The lower part of the screen is your private key and should be kept in a safe place. This key should not be disseminated as you will need it to use the certificate.  Copy and paste the private key into a plain text file (do not use an application such as Microsoft Word) and keep the file safe.

9.4 Backup/Restore Certs

Backup all VIP and Intermediate Certificates: When backing up certificates, you are prompted to enter a mandatory passphrase (password) twice. The parameters of the passphrase are that it must be alpha-numeric and it is case sensitive with a maximum of 64 characters.

Caution: This passphrase is a mandatory requirement to restore a certificate. You cannot restore a certificate without the passphrase. If you forget it, there is no way to restore the certificate.

Backup File: select the certificate backup file

Which Certificates: select which certificates you wish to restore

Passphrase: enter the passphrase associated with the certificate backup file

9.5 Cipher Sets

Cipher Set

Select the cipher set to view/modify.

The system-defined cipher sets are as follows:

• Default: The current default set of ciphers in the LoadMaster.
• Default_NoRc4: The Default_NoRc4 cipher set contains the same ciphers as the default cipher set, except without the RC4 ciphers (which are considered to be insecure).
• BestPractices: This is the recommended cipher set to use. This cipher set is for services that do not need backward compatibility - the ciphers provide a higher level of security. The configuration is compatible with Firefox 27, Chrome 22, IE 11, Opera 14 and Safari 7.

The ciphers in the Best Practices cipher set were updated in LoadMaster firmware version 7.2.52. For further details, including a list of the ciphers, refer to the following article: Best Practices Cipher Set Updated.

• Intermediate_compatibility: For services that do not need compatibility with legacy clients (mostly Windows XP), but still need to support a wide range of clients, this configuration is recommended. It is compatible with Firefox 1, Chrome 1, IE 7, Opera 5 and Safari 1.
• Backward_compatibility: This is the old cipher suite that works with clients back to Windows XP/IE6. This should be used as a last resort only.
• WUI: This is the cipher set recommended to be used as the WUI cipher set. The WUI cipher set can be selected in the Admin WUI Access screen. For further information, refer to the Admin WUI Access section.
• FIPS: Ciphers which conform to FIPS (Federal Information Processing Standards).
• Legacy: This is the set of ciphers that were available on the old LoadMaster firmware (v7.0-10) before OpenSSL was updated.
• Null_Ciphers: Direct Access uses IP-HTTPS which applies its own layer of encryption.

• ECDSA_Default: This is a non-RSA version of the default cipher set.

• ECSDA_BestPractices: This is a non-RSA version of the best practices cipher set.

Refer to Appendix A of the SSL Accelerated Services Feature Description for a full list of the ciphers supported by the LoadMaster, and a breakdown of what ciphers are in each of the system-defined cipher sets.

Kemp can change the contents of these cipher sets as required based on the best available information.

Two lists are displayed - Available Ciphers and Assigned Ciphers. These lists can be filtered by typing some text into the Filter text boxes provided. iThe Filter text boxes will only allow you to enter valid text which is contained in the cipher names, for example ECDHE. If invalid text is entered, the text box will turn red and the invalid text is deleted.

Ciphers can be dragged and dropped to/from the Available and Assigned lists as needed. Ciphers which are already assigned will appear greyed out in the Available Ciphers list.

Changes cannot be made to a preconfigured cipher set. However, you can start with a preconfigured cipher set - make any changes as needed and then save the cipher set with a new custom name. Enter the new name in the Save as text box and click the Save button. Custom cipher sets can be used across different Virtual Services and can be assigned as the WUI cipher set.

It is not possible to delete preconfigured cipher sets. However, custom cipher sets can be deleted by selecting the relevant custom cipher set and clicking the Delete Cipher set button.

9.6 Remote Access

The sections below describe the different areas within the Remote Access screen in the LoadMaster WUI.

9.6.1 Administrator Access

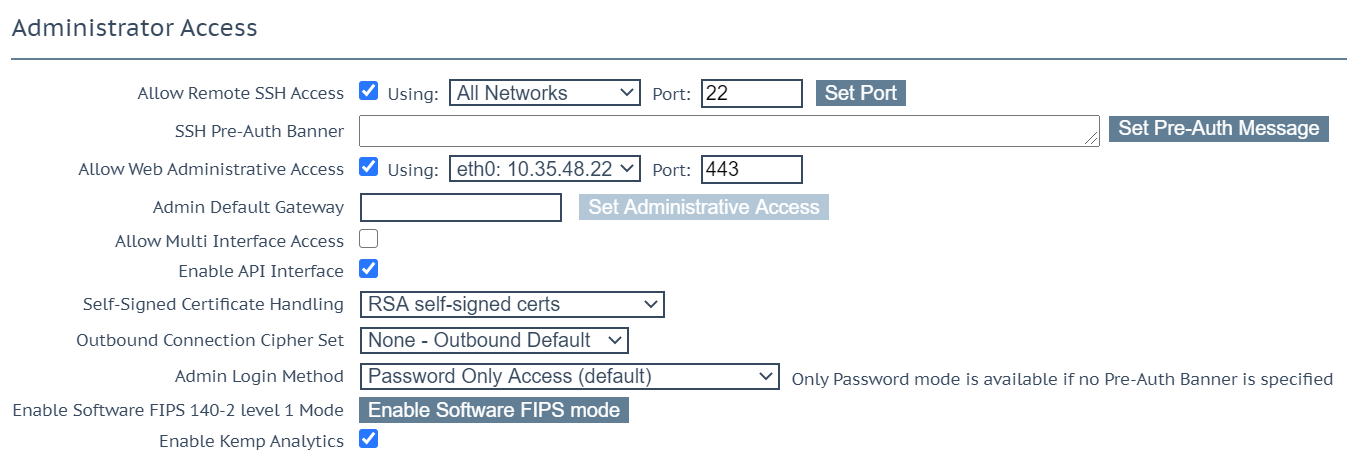

Allow Remote SSH Access

You can limit the network from which clients can connect to the SSH administrative interface on LoadMaster.

Using

Specify which addresses that remote administrative SSH access to the LoadMaster is allowed.

Only the 'bal' user has rights to access the LoadMaster using SSH.

As of LoadMaster firmware version 7.2.48.4 Long Term Support (LTS) and 7.2.53, RSA keys are no longer supported for SSH access to the LoadMaster. If you are using RSA keys for SSH access and you are upgrading to one of these versions (or above) you must move to another key type.

Port

Specify the port used to access the LoadMaster using the SSH protocol.

SSH Pre-Auth Banner

Set the SSH pre-authentication banner, which is displayed before the login prompt when logging in using SSH. This field accepts up to 5,000 characters.

Allow Web Administrative Access

Selecting this check box allows administrative web access to the LoadMaster. Disabling this option will stop access upon the next reboot. Click Set Administrative Access to apply any changes to this field.

Disabling web access is not recommended.

Using

Specify the addresses that administrative web access is to be permitted. Click Set Administrative Access to apply any changes to this field. You need to reconnect to the WUI using the new address after the change is applied.

Port

Specify the port used to access the administrative web interface. Click Set Administrative Access to apply any changes to this field. You need to reconnect to the WUI using the new port after the change is applied.

Admin Default Gateway

When administering the LoadMaster from a non-default interface, this option allows the User to specify a different default gateway for administrative traffic only. Click Set Administrative Access to apply any changes to this field.

Allow Multi Interface Access

Enabling this option allows the WUI to be accessed from multiple interfaces. When this option is enabled, a new option appears in each of the interface screens (System Configuration > eth<n>) called Allow Administrative WUI Access. When both of these options are enabled, the WUI can be accessed from the IP address of the relevant interface(s) and any Additional addresses configured for that interface. Click Set Administrative Access to apply any changes to this field.

RADIUS Server

Here you can enter the address of the RADIUS server that is to be used to validate user access to the LoadMaster. To use a RADIUS server, you have to specify the Shared Secret.

A Shared Secret is a text string that serves as a password between the LoadMaster and the RADIUS server.

The Revalidation Interval specifies how often a user should be revalidated by the RADIUS server.

RADIUS Server Configuration

To configure RADIUS to work correctly with the LoadMaster, authentication must be configured on the RADIUS server and the RADIUS Reply-Message must be mapped to LoadMaster permissions.

The Reply-Message values correspond to LoadMaster permissions as shown in the table below.

Reply-Message	LoadMaster Permission
real	Real Servers
vs	Virtual Services
rules	Rules
backup	System Backup
certs	Certificate Creation
cert3	Intermediate Certificates
certbackup	Certificate Backup
users	User Administration
geo	GEO Configuration

The values in the Reply-Message should map to the user permissions page in the WUI as per Figure 119, with the exception of "All Permissions":

To configure the Linux FreeRADIUS server, please insert the text below into the /etc/freeradius/users file in the sections indicated within the file. The example below is to configure permissions for the user 'LMUSER'.

LMUSER Cleartext-Password := "1fourall"Reply-Message = "real,vs,rules,backup,certs,cert3,certbackup,users"

The /etc/freeradius/clients.conf file must also be configured to include the LoadMaster IP address. This file lists the IP addresses that are allowed to contact RADIUS.

When Session Management is enabled, the RADIUS Server options are not available within this screen. Please refer to the WUI Authentication and Authorization section for further information on how to configure RADIUS Server when Session Management is enabled.

Enable API Interface

Enables/disables the RESTful Application Program Interface (API).

Self-Signed Certificate Handling

Select the type of self-signed certificates that the system will use. The options are described below:

• RSA self-signed certs: By default, these are RSA certificates that are signed with the Kemp RSA root certificate.
• EC certs with a RSA signature: The LoadMaster can generate an EC certificate also signed by the original RSA Kemp root certificate.
• EC certs with an EC signature: The LoadMaster can generate an EC certificate signed by the Kemp EC root certificate. In this mode, any CSRs generated will also be EC.

If Self-Signed Certificate Handling is set to EC certs with an EC signature, CSR generation is restricted to the administrative (bal) user only. If Self-Signed Certificate Handling is set to a different value, all users (regardless of their permissions) can generate CSRs.

If Self-Signed Certificate Handling is set to an EC mode and Random Number Generation (RNG) fails (for example, if the hardware does not support it like on legacy systems) a message will display on the home screen saying Could not start CC mode - system disabled and the WUI is unusable. This also generates a critical log message saying Cannot initialize RNG, CC mode disabled and an authlog saying Failed to start RNG, CC mode not started.
To get out of this mode, you must use the isetup menu (either using the console or SSH). Navigate to Local Admin > Web Address > Confirm switch out of CC mode. This option is only shown when the LoadMaster is in this state. This allows the system to work as usual (but not in Common Criteria (CC) mode).

You should not switch from RSA self-signed certs to EC certs with an EC signature directly. If you do this, connections will fail because there is no EC Kemp Certificate Authority (CA) certificate. To work around this, you must first switch from RSA self-signed certs to EC certs with a RSA signature.

Then, download the new EC Kemp CA certificate by clicking Download ECC Root Cert in the bottom-right of the WUI under the main menu after refreshing the page. After you have downloaded the certificate, you can switch to EC certs with an EC signature with no loss of connection.

Outbound Connection Cipher Set

Select the cipher set to use on outbound connections (OCSP, email, LDAP, and so on). This is global for all outbound connections. For information on each of the cipher sets available, refer to the Cipher Sets section.

Re-encrypt connections are not affected by the outbound cipher set.

Admin Login Method

This option will only appear if Session Management is enabled. For further information on Session Management, refer to the Admin WUI Access section or the User Management Feature Description.

Specify the login option for access to the LoadMaster WUI. The following options are available:

The Pre-Auth Click Through Banner in the Admin WUI Access screen must be set for all Admin Login Method options to be made available.

• Password Only Access (default): This option provides access using the username and password only - there is no access using client certificates.

• Password or Client certificate: The user can log in using either the username/password or using a valid client certificate. If a valid client certificate is in place, the username and password is not required.
  The client will be asked for a certificate. If a client certificate is supplied, the LoadMaster will check for a match. The LoadMaster checks if the certificate is a match with one of the local certificates, or checks if the Subject Alternative Name (SAN) or Common Name (CN) of the certificate is a match. The SAN is used in preference to the CN when performing a match. If there is a match, the user is allowed access to the LoadMaster. This works both using the API and user interface.
  An invalid certificate will not allow access.
  If no client certificate is supplied, the LoadMaster will expect that a username and password is supplied (for the API) or will ask the user to enter a password using the standard WUI login page.

• Client certificate required: Access is only allowed with the use of a client certificate. It is not possible to log in using the username and password. SSH access is not affected by this (only the bal user can log in using SSH).

• Client certificate required (Verify via OCSP): This is the same as the Client certificate required option, but the client certificate is verified using an OCSP service. The OCSP Server Settings must be configured for this to work. For further information on the OCSP Server Settings, refer to the Cipher Sets section.

In LoadMaster firmware version 7.2.53 and above, the OCSP server settings do not need to be configured in the LoadMaster if the certificate has an Authority Information Access (AIA) extension. For further details on the functionality introduced in 7.2.53, refer to the following article: PIV Smart Card Support.

Some points to note regarding the client certificate methods are below:

The bal user does not have a client certificate. Therefore, it is not possible to log into the LoadMaster as bal using the Client certificate required methods. However, a non-bal user can be created and granted All Permissions. This will allow the same functionality as the bal user.

There is no log out option for users that are logged in to the WUI using client certificates, as it is not possible to log out (if the user did log out the next access would automatically log them back in again). The session is terminated when the page is closed, or when the browser is restarted.

For further information on client certificate WUI authentication, including step-by-step instructions on how to configure it, please refer to the User Management, Feature Description on the Kemp Documentation Page.

Enable Software FIPS 140-2 level 1 Mode

FIPS mode cannot be enabled if Session Management is disabled. For further information on Session Management, refer to the Admin WUI Access section.

Switch to FIPS 140-2 level 1 certified mode for this LoadMaster. The LoadMaster must be rebooted to activate.

A number of warnings will appear before enabling FIPS. If FIPS is enabled on a LoadMaster, it cannot easily be disabled. If FIPS has been enabled and you want to disable it, please contact Kemp Support.

When a LoadMaster is in FIPS level 1 mode - FIPS-1 will appear in the top-right of the LoadMaster WUI.

FIPS level 1 has a different set of ciphers to a non-FIPS LoadMaster. There is a Default cipher set and there are no other system-defined cipher sets to choose from.

If FIPS is enabled, you cannot use RADIUS authentication.

Enable Kemp Analytics

Enables statistical and usage data to be sent to Kemp for analysis. This data is strictly about product usage, enabled capabilities, and statistics. No sensitive user data, or traffic of any kind is either collected or communicated. For more information, visit https://kemp.ax/KempAnalytics.

9.6.2 GEO Settings

Remote GEO LoadMaster Access

Set the addresses of the GEO LoadMasters that can retrieve service status information from this LoadMaster. The addresses are space separated. When in HA mode, only the shared address needs to be entered.

GEO LoadMaster Partners

GEO functionality comes as part of the GSLB Feature Pack and is enabled based on the license that has been applied to the LoadMaster. If you would like to get the GSLB Feature pack, contact Kemp to upgrade your license.

Set the addresses of the partner GEO LoadMasters. The addresses are space separated. These GEO LoadMasters will keep their DNS configurations in sync.

GEO LoadMaster Port

The port over which GEO LoadMasters will use to communicate with this LoadMaster unit.

GEO update interface

Specify the GEO interface in which the SSH partner tunnel is created. This is the interface that the GEO partners will communicate through.

9.6.3 GEO Partners Status

This section is only visible when GEO partners have been set.

A GEO partner status of Green indicates the two partners can see each other.

A GEO partner status of Red indicates the LoadMasters cannot communicate. The reasons for this include (among other possibilities); one of the partners is powered down, there may be a power outage or a cable may be disconnected.

If there is a failure to update the GEO partner, the logs display an error message saying the GEO update to the partner failed. The message displays the IP address of the partner.

9.6.4 WUI Authentication and Authorization

WUI Authorization Options

Click the WUI Authorization Options button on the Remote Access screen to display the WUI Authentication and Authorization screen. This option is only available when Session Management is enabled.

The WUI Authentication and Authorization screen enables the administration of the available authentication (login) and authorization (allowed permissions) options.

Authentication

Users must be authenticated before logging on to the LoadMaster. The LoadMaster allows authentication of users to be performed using the RADIUS and LDAP authentication methods as well as Local User authentication.

When all authentication methods are selected, the LoadMaster attempts to authenticate users using the authentication methods in the following order:

1. RADIUS

2. LDAP

3. Local Users

For example, if the RADIUS server is not available then the LDAP server is used. If the LDAP server is also not available, then Local User authentication methods are used.

If neither RADIUS nor LDAP authentication methods are selected, then the Local User authentication method is selected by default.

Authorization

LoadMaster allows the users to be authorized by either RADIUS or using Local User authorization. The user's authorization decides what level of permissions the user has and what functions on the LoadMaster they are allowed to perform.

The RADIUS Authentication check box must be enabled to use the RADIUS Authorization method. Authentication is for access (to ensure the user has a valid username and password) and authorization is used for permissions.

When both authorization methods are selected, the LoadMaster initially attempts to authorize the user using RADIUS. If this authorization method is not available, the LoadMaster attempts to authorize the user using the Local User authorization. Authorization using LDAP is not supported.

If neither RADIUS nor LDAP authentication methods are selected, then the Local User authentication method is selected by default.

You must configure the RADIUS server that you are using to authorize the same user permissions that appear on the WUI's user permissions page (with the exception of 'All Permissions'). The Reply-Message returned by the RADIUS server indicates the permissions it is allowing. On a Linux system, the message looks similar to the following:

LMUSER Cleartext-Password := "1fourall"Reply-Message = "real,vs,rules,backup,certs,cert3,certbackup,users"

The preceding example is of a RADIUS user configuration on a RADIUS server deployed on a Linux system. The LoadMaster determines the user's permissions from the "Reply-Message" (the permissions are similar to the ones for a local WUI user on the LoadMaster).

The bal user is always authenticated and authorized using the Local User authentication and authorization methods. Disabling Local User authentication does not lock out the bal user. Bal is an admin/super user and is allowed to log in to the LoadMaster WUI even if Local User Authentication is disabled on the LoadMaster.

RADIUS Server Configuration

RADIUS Server

The IP address and Port of the RADIUS Server that is to be used to authenticate user WUI access to the LoadMaster.

Shared Secret

This input field is for the Shared Secret of the RADIUS Server.

A Shared Secret is a text string that serves as a password between the LoadMaster and the RADIUS server.

Backup RADIUS Server

The IP address and Port of the backup RADIUS Server that is to be used to authenticate user WUI access to the LoadMaster. This server will be used in case of failure of the main RADIUS Server.

Backup Shared Secret

This text box is to enter the Shared Secret of the backup RADUS Server.

Revalidation Interval

Specifies how often a user should be revalidated by the RADIUS server.

Send NAS Identifier

If this check box is disabled (default), a NAS identifier is not sent to the RADIUS server. If it is enabled, a Network Access Server (NAS) identifier string is sent to the RADIUS server. By default, this is the hostname. Alternatively, if a value is specified in the RADIUS NAS Identifier text box, this value is used as the NAS identifier. If the NAS identifier cannot be added, the RADIUS access request is still processed.

Sending the NAS identifier serves two purposes:

• It helps to classify the device type that is sending the request as opposed to simply sending the host IP address which makes troubleshooting and consuming logs easier.
• It enables customized authentication responses to be sent back from the server based on the identifier.

Send Vendor Specific

In LoadMaster firmware version 7.2.51 and above, there is an option to include the Kemp vendor specific attribute in the RADIUS request sent to the server doing the authentication against the user trying to log in to the LoadMaster WUI. For further details, refer to the following article: Send Kemp Vendor Specific Attribute In RADIUS Requests.

RADIUS NAS Identifier

If the Send NAS Identifier check box is selected, the RADIUS NAS Identifier field is shown. When specified, this value is used as the NAS identifier. Otherwise, the hostname is used as the NAS identifier. If the NAS identifier cannot be added, the RADIUS access request is still processed.

LDAP Endpoint

Select the relevant LDAP Endpoint to use. Click the Manage LDAP Configuration button to go to the LDAP Configuration screen. For further information on LDAP endpoints, refer to the LDAP Configuration section.

In LoadMaster firmware version 7.2.53, support for PIV smart card authentication was added. As a result, a new Select Certificate to User Mapping drop-down list was added to the Certificates & Security > Remote Access > WUI Authorization Options screen. For further details, refer to the following article: PIV Smart Card Support.

If client users are being authenticated with client certificates, the Common Name (CN) is normalized to lowercase. Therefore, the associated local user entries (with no password), which may be required for permissions, should be in lowercase also.

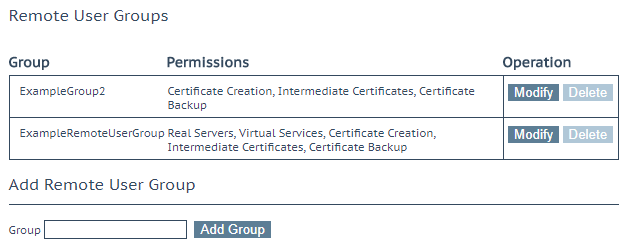

Remote User Groups

Any remote user groups that are selected are displayed here. To select, clear, or order the groups, click Select groups.

It is important to select and apply the group, or groups. If there are no groups selected, no group checking is performed and remote users can log in without a group check.

The groups displayed on this screen are taken from the remote user groups set up in System Configuration > System Administration > User Management. For more information, refer to the User Management section.

When a user logs in, a check of the user groups on the Active Directory is performed if all the following conditions are met:

• If LDAP WUI Authentication is enabled
• A list of groups is defined
• The user logging in is not locally defined or the Local Users option is disabled

You can change the order of the groups on this screen. The first group is checked first. On the first group match, access is enabled and no further groups are checked. If no groups are matched, user access fails and an appropriate log is reported in the syslog. If the user logs in using the group check, the matched group permissions are granted.

Nested Groups

You can enable or disable user nested groups on the WUI Authentication and Authorization screen by using the Nested groups check box.

Domain

Specify the domain to use if no domain is provided in the username when group WUI authentication is in use. It is always used as the domain for group search if the Windows logon is used in the format prefix\username.

The Domain field only appears if a group, or groups, are assigned.

Server Certificate Validation

This check box only appears if StartTLS or LDAPS is the the LDAP Protocol for the selected LDAP Endpoint.

There is a known issue that Server Certificate Validation does not work with StartTLS.

When Server Certificate Validation is enabled, it ensures that the host name or IP address that was used to initiate the secure connection resides in the Certificate Subject or Subject Alternative Names (SAN) of the certificate.

Server Certificate Validation is disabled by default.

Local Users Configuration

Use ONLY if other AAA services fail

When selected, the Local Users authentication and authorization methods are used only if the RADIUS and/or LDAP authentication and authorization services fail to respond/time out.

Test AAA for User

To test a user's credentials, enter their username and password in the Username and Password fields and click the Test User button.

A message appears to inform you whether the user is validated or not. This is a useful utility to check a user's credentials without having to log in or out.

9.7 Admin WUI Access

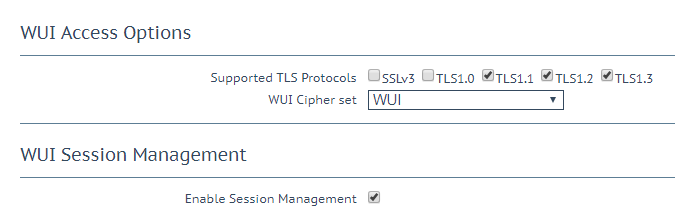

Supported TLS Protocols

Check boxes are provided here which can be used to specify whether or not it is possible to connect to the LoadMaster WUI using the following protocols; SSLv3, TLS1.0, TLS1.1, TLS1.2, or TLS1.3. TLS1.1, TLS1.2, and TLS1.3 are enabled by default. It is not recommended to only have SSLv3 selected because SSLv3 is only supported by some old browsers. When connecting to the WUI using a web browser, the highest security protocol which is mutually supported by both the browser and the WUI will be used.

If FIPS mode is enabled, the only available options are TLS1.1 and TLS1.2.

WUI Cipher set

Select the relevant cipher set to use for WUI access. For information on each of the cipher sets available, refer to the Cipher Sets section.

WUI Session Management

Session management is enabled by default on all LoadMasters initially deployed with LTS firmware versions or above.

The level of user permissions determine what WUI Session Management fields can be seen and modified. Refer to the table below for a breakdown of permissions.

Control	Bal user	User with 'All Permissions'	User with 'User Administration' permissions	All other users
Session Management	Modify	View	View	None
Require Basic Authentication	Modify	View	View	None
Basic Authentication Password	Modify	View	View	None
Failed Login Attempts	Modify	Modify	View	None
Idle Session Timeout	Modify	Modify	View	None
Limit Concurrent Logins	Modify	Modify	View
Pre-Auth Click Through Banner	Modify	Modify	View	None
Currently Active Users	Modify	Modify	View	None
Currently Blocked Users	Modify	Modify	View	None

When using WUI Session Management, it is possible to use one or two steps of authentication.

If Enable Session Management check box is ticked and Require Basic Authentication is disabled, the user only needs to log in using their local username and password. Users are not prompted to log in using the bal or user logins.

If the Enable Session Management and Require Basic Authentication check boxes are both selected, there are two levels of authentication enforced to access the LoadMaster WUI. The initial level is Basic Authentication where users log in using the bal or user logins, which are default usernames defined by the system.

The purpose of the user user is so that administrators can provide credentials of the user user to people, instead of providing the bal credentials. The password for the user user, can be set by configuring the Basic Authentication Password text box. Only the bal user is permitted to set the Basic Authentication Password.

Once logged in using Basic Authentication, the user then must log in using their local username and password to begin the session.

Enable Session Management

Selecting the Enable Session Management check box enables the WUI Session Management functionality. This will force all users to log in to the session using their normal credentials.

When this check box is checked, the user is required to login to continue to use the LoadMaster.

LDAP users need to login using the full domain name. For example; an LDAP username should be test@kemp.com and not just test.

After a user has logged in, they may log out by clicking the Logout button, , in the top right-hand corner of the screen.

Once the WUI Session Management functionality is enabled, all the WUI Session Management options appear.

Require Basic Authentication

If WUI Session Management and Basic Authentication are both enabled, there are two levels of authentication enforced to access the LoadMaster WUI. The initial level is Basic Authentication where users log in using the bal or user logins, which are default usernames defined by the system.

Once logged in with Basic Authentication, the user then must log in using their local username and password to begin the session.

Basic Authentication Password

The Basic Authentication password for the user login can be set by typing the password into the Basic Authentication Password text box and clicking the Set Basic Password button.

The password needs to be at least 8 characters long and should be a mix of alpha and numeric characters. If the password is considered to be too weak, a message appears asking you to enter a new password.

Only the bal user is permitted to set the Basic Authentication password.

Failed Login Attempts

The number of times that a user can fail to login correctly before they are blocked can be specified within this text box. The valid values that may be entered are numbers between 1 and 999.

If a user is blocked, only the bal user or other users with All Permissions set can unblock a blocked user.

If the bal user is blocked, there is a 'cool-down' period of 10 minutes before the bal user can login again.

Idle Session Timeout

The length of time (in seconds) a user can be idle (no activity recorded) before they are logged out of the session. The valid values that may be entered are numbers between 60 and 86400 (between one minute and 24 hours).

Limit Concurrent Logins

This option enables LoadMaster administrators to limit the maximum number of concurrent login sessions logins a single user can have to the LoadMaster WUI at any one time.

The values that can be selected range from 0 to 9.

A value of 0 allows an unlimited number of logins.

The value entered represents the total number and is inclusive of any bal user logins.

Pre-Auth Click Through Banner

Set the pre-authentication click through banner that is displayed before the LoadMaster WUI login page. This field can contain plain text or HTML code but not JavaScript. For security purposes, you cannot use the ' (single quote) and " (double-quote) characters. This field accepts up to 5,000 characters.

Active and Blocked Users

Only the bal user or users with 'All Permissions' set can use this functionality. Users with 'User Administration' permissions set can view the screen but all buttons and input fields are greyed out. All other users cannot view this portion of the screen.

Currently Active Users

The user name and login time of all users logged into the LoadMaster are listed within this section.

To immediately log out a user and force them to log back into the system, click the Force logout button.

To block a user from being able to log in to the system, click the Block user button. The user will not be able to log back in to the system until they are unblocked or until the LoadMaster reboots. Clicking the Block user button does not force the user to log off, to do this, click the Force logout button.

If a user exits the browser without logging off, that session will remain open in the currently active users list until the timeout has reached. If the same user logs in again, before the timeout is reached, it would be within a separate session.

Currently Blocked Users

The user name and login time of when the user was blocked are listed within this section.

To unblock a user to allow them to login to the system, click the Unblock button.

9.8 OCSP Configuration

OCSP Server

The address of the OCSP server. This can either be in IP address or Fully Qualified Domain Name (FQDN) format.

OCSP Server Port

The port of the OCSP server.

OCSP URL

The URL to access on the OCSP server.

Use SSL

Select this to use SSL to connect to the OCSP server.

Allow Access on Server Failure

Treat an OCSP server connection failure or timeout as if the OCSP server had returned a valid response, that is, treat the client certificate as valid.

OCSP Checking

Select the Enable OCSP Checking check box to enable the LoadMaster to perform OCSP checks on certain outbound connections. This is disabled by default.

Enable OCSP Stapling

Select this check box to enable the LoadMaster to respond to OCSP stapling requests. If a client connects using SSL and asks for an OCSP response, this is returned. Only Virtual Service certificates are validated. The system holds a cache of OCSP responses that are sent back to the client. This cache is maintained by the OCSP daemon. When the OCSP daemon sends a request to the server, it uses the name specified in the certificate (in the Authority Information Access field). If it cannot resolve this name, then it uses the default OCSP server specified in the OCSP Server text box.

OCSP Refresh Interval

Specify how often the LoadMaster should refresh the OCSP stapling information. The OCSP daemon caches the entry for up to the amount of time specified here, after which it is refreshed. Valid values range from 1 hour (default) to 24 hours.

9.9 LDAP Configuration

To get to the LDAP Configuration screen, expand Certificates & Security and click LDAP Configuration. This screen provides a management interface for LDAP endpoints. These LDAP endpoints may be used in three different areas:

• Health checks
• SSO domains
• WUI authentication

Any existing LDAP Endpoints are listed here, with an option to Modify and Delete. If an LDAP endpoint is in use, it cannot be deleted.

There is also an option to add a new LDAP endpoint. Type a name for the endpoint and click Add. Spaces and special characters are not permitted in the LDAP endpoint name.

LDAP Server(s)

Specify a space-separated list of LDAP servers to be used. Port numbers can also be specified if required. If you have multiple domains and are using Permitted Groups, sometimes it is necessary to include the Global Catalog port number, otherwise the Permitted Groups will fail. The default port is 3628. For example, 10.110.20.23:3268.

The LoadMaster uses OCSP to check the validity of the server certificates supplied by configured LDAPS servers. If these checks fail, connections to the server are not permitted.

LDAP Protocol

Select the transport protocol to use when communicating with the LDAP server.

If you create an SSO domain with the Authentication Protocol set to Certificates, ensure to set the LDAP Protocol to LDAPS in the LDAP endpoint.

Validation Interval

Specify how often you should revalidate the user with the LDAP server.

Referral Count

The LoadMaster offers beta functionality to support LDAP referral replies from Active Directory Domain Controllers. If this is set to 0, referral support is not enabled. Set this field to a value between 1 and 10 to enable referral chasing. The number specified will limit the number of hops (referrals chased).

Multiple hops may increase authentication latency. There is a performance impact that depends on the number and depth of referrals required in your configuration.

You must have intimate knowledge of your Active Directory structure to set the referral limit appropriately. The same credentials are used for all lookups, and so on.

The use of Active Directory Global Catalog (GC) is the preferred configuration as the primary means of resolution instead of enabling LDAP referral chasing. A GC query can be used to query the GC cache instead of relying on LDAP and the referral process. Using Active Directory GC has little or no performance drag on the LoadMaster. For steps on how to add/remove the GC, refer to the following TechNet article: https://technet.microsoft.com/en-us/library/cc755257(v=ws.11).aspx

Server Timeout

Specify the LDAP server timeout in seconds. The default value is 5. Valid values range from 5 to 60.

Admin User

Type the username of an administrator user.

Admin User Password

Type the password for the specified administrator user.



10 System Configuration

10.1 Network Setup

10.1.1 Interfaces

Describes the external network and internal network interfaces. The screen has the same information for the eth0 and eth1 Ethernet ports. The example below is for eth0 on a non-HA (High Availability) unit.

Interface Address

Within the Interface Address (address[/prefix]) text box you can specify the Internet address of this interface. When Allow Multi Interface Access is enabled in Certificates & Security > Remote Access, and you set an IP address on another interface (other than eth0), a pop-up appears asking "Would you like to enable admin WUI access for this interface?". Click OK to enable the Allow Administrative WUI Access check box. If you click Cancel, the Allow Administrative WUI Access check box remains disabled and WUI access is not granted on that interface until that option gets enabled.

Cluster Shared IP address

Specify the shared IP address which can be used to access the cluster. This is also used as the default source address when using Server NAT.

The clustering options are only available on LoadMasters which have a clustering license and where clustering has been configured. To add the clustering feature to your license, please contact a Kemp representative. For further information on clustering, refer to the LoadMaster Clustering, Feature Description.

Use for Cluster checks

Use this option to enable cluster health checking between the nodes. At least one interface must be enabled.

Use for Cluster Updates

Select this option to use this interface to synchronize the configuration with all of the other nodes in the cluster.

Speed

By default, the Speed of the link is automatically detected. In certain configurations, this speed is incorrect and must be forced to a specific value.

Use for Default Gateway

The Use for Default Gateway check box is only available if the Enable Alternate GW support is selected in the Network Options screen. If the settings being viewed are for the default interface this option is grayed out and selected. To enable this option on another interface, go to the other interface by clicking it in the main menu on the left. Then this option is available to select. Once you select this option, the Default Gateway screen appears. Set the new default gateway. A notification displays to inform you that the default gateway has changed.

If you reboot before setting the new default gateway, the gateway is removed from the configuration.

Allow Administrative WUI Access

This option is only available when the Allow Multi Interface Access check box is enabled in Certificates & Security > Remote Access.

When both of these options are enabled, the WUI can be accessed from the IP address of the relevant interface, and any Additional addresses set up for that interface.

Use for GEO Responses and Requests

By default, only the default gateway interface is used to listen for and respond to DNS requests. This field gives you the option to listen on additional interfaces.

This option cannot be disabled on the interface containing the default gateway. By default, this is eth0.

When this option is enabled, GEO also listens on any Additional addresses that are configured for the interface.

Export of Network Telemetry

This indicates if network telemetry monitoring is enabled or disabled for this interface (depending on what interfaces are selected on the Network Telemetry screen). For further details, refer to the Network Telemetry section.

MTU

Within the MTU field you can specify the maximum size of Ethernet frames that will be sent from this interface. The valid range is 512 - 9216.

The valid range of 512 - 9216 may not apply to VLMs as the range will be dependent on the hardware the VLM is running on. It is advised to check your hardware restrictions.

Additional addresses

Using the Additional addresses field allows the LoadMaster to give multiple addresses to each interface, as aliases. This is sometimes referred to as a "router on a stick". It allows both IPv4 and IPv6 addresses in standard IP+CIDR format, so this can also be used to do a mixed mode of IPv4 and IPv6 addresses on the same interface. Any of the subnets that are added here will be available for both virtual IPs and real server IPs.

HA

If the unit is part of a HA configuration, the following screen will be displayed when one of the interfaces is clicked.

This screen tells the user:

This is the Master machine of the pair (top-rightof the screen)

This LoadMaster is up and the paired machine is down (green and red icons)

The IP address of this LoadMaster

The HA Shared IP address. This is the IP address used to configure the pair.

The IP address of the paired machine

This interface is enabled for HA health checking

This interface is used as the Default Gateway

The speed of the link is automatically detected

Any alternate addresses on this interface

Creating a Bond/Team

Before creating a bonded interface please note the following:

You can only bond interfaces higher than the parent, so if you choose to start with eth1, you can then bond eth2, eth3 and above, but you cannot bond eth0 (unless you start with eth0)

 Bond links first if you need VLAN tagging then add VLANs after the bond has been configured

To add a link to a bonded interface, any IP addressing must first be removed from the link to be added

 Enabling the Active-Backup mode generally does not require switch intervention

Bonding eth0 with eth1 can lead to serious issues and is not allowed to occur

Click Interface Bonding to request the bond.

Confirm the bond creation by clicking Create a bonded interface.

Acknowledge the warning dialogs.

Using the Web User Interface (WUI) select the System Configuration > Interfaces > bndx menu option.

If you do not see the bndX interface, refresh your browser, then select the bonded interface and click the Bonded Devices button.

Select the desired bonding mode.

Add the additional interfaces to this bond.

Configure the IP and Subnet Mask on the bonded interface.

Removing a Bond/Team

Remove all VLANs on the bonded interface first; if you do not remove them they will automatically be assigned to the physical port at which the bond started.

Select the System Configuration > Interfaces > bndx menu option. If you do not see the bndX interface refresh your browser, then select the bonded interface, then click the Bonded Devices button.

Unbind each port by clicking Unbind Port, repeat until all ports have been removed from bond.

Once all child ports have been unbounded, you can unbond the parent port by clicking Unbond this interface button.

 Adding a VLAN

Select the interface and then select the VLAN Configuration button.

 Add the VLAN Id value and select the Add New VLAN menu option.

Repeat as needed. To view the VLANs, select the System Configuration > Network Setup menu option and expand the drop-down list.



 Removing a VLAN

Before removing a VLAN, please ensure that the interface is not being used for other purposes, for example as a multicast interface, WUI interface, SSH interface or a GEO interface.

 To remove a VLAN select the System Configuration > Network Setup menu option and select the appropriate VLAN ID from the drop-down list.

 Once selected, delete the IP and then click Set Address. Once the IP has been removed you will have the option to delete the VLAN, by clicking the Delete this VLAN button.

Repeat as needed. To view the VLANs select the System Configuration > Interfaces menu option and select the appropriate VLAN ID from the drop-down list.

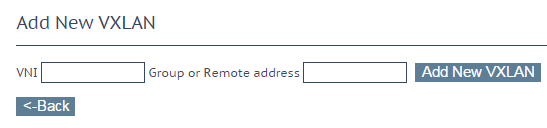

Adding a VXLAN

Select the relevant interface and then click the VXLAN Configuration button.

Enter a new VXLAN Network Identifier (VNI) in the VNI text box. Enter the multicast group or remote address in the Group or Remote address text box. Click Add New VXLAN.

To modify the VXLAN, go to System Configuration > Interfaces and select the VXLAN from the drop-down list.

On this screen, the interface address of the VXLAN can be specified. The VXLAN can also be deleted from this screen.

If HA is enabled, HA parameters can be set in the VXLAN:

The HA Shared IP address. This is the IP address used to configure the HA pair.

The IP address of the partner machine

Specify whether or not this interface is used for HA health checking

10.1.2 Host & DNS Configuration

Set Hostname

Set the hostname of the local machine by entering the hostname in the Hostname text box and clicking Set Hostname. Only alphanumeric characters are allowed.

Add NameServer (IP Address)

Enter the IP address of a DNS server to resolve names locally on the LoadMaster in this field and click Add. A maximum of three DNS servers are allowed.

It is not possible to delete the last remaining NameServer if the DNSSEC client is enabled. You can disable the DNSSEC client on the Host & DNS Configuration screen.

Add Search Domain

Specify the domain name to prepend to requests to the DNS NameServer in this field and click Add. A maximum of six Search Domains are allowed.

Add/Modify Hosts for Local Resolution

These fields provide the ability to manipulate the host file from the LoadMaster WUI. Specify the IP address and the host FQDN for the entry.

Enable DNSSEC Resolver

By default, the LoadMaster DNSSEC client is disabled. Only enable this option if needed. In some circumstances, the DNSSEC validation takes a significant amount of time to fail. This can cause the LoadMaster to appear to freeze or hang.

Selecting this option enables DNSSEC capabilities on the LoadMaster. You must add at least one Nameserver before DNSSEC can be enabled. The LoadMaster must be rebooted after changing the DNSSEC option to activate/deactivate the feature. When the setting is changed, it cannot be changed again until the LoadMaster has been rebooted.

When using HA - the DNSSEC option must be configured on both devices separately.

DNSSEC works with the following utilities in the LoadMaster:

Vipdump

Ping and ping6

Syslog

SNMP

Wget

NTP

SMTP

Real Servers

Automatically Update DNS Entries

When this option is enabled, the LoadMaster attempts to automatically update any changed DNS names (based on the DNS Update Interval):

If the address is not found, or if it is the same as before - nothing is done (except a log entry is generated).

If the address is different, the Real Server entry is updated with the new address, if possible.

If the new address is invalid for some reason, for example if it is a non-local address and the Enable Non-Local Real Servers option is disabled, no changes are made and a log is generated.

DNS Update Interval

Set the update interval for DNS entries. Valid values range from 1 to 60 (minutes). The default value is 60.

Reload DNS Entries for RS Errors

When this option is enabled, DNS entries are reloaded when health checks have errors and an FQDN is associated with the Real Server IP address.

Resolve DNS Names now

Clicking the Run Resolver Now button forces a new resolution of DNS names. The behavior is the same as the Automatically Update DNS Entries option, except this is a manual (not an automatic) check.

10.1.3 Default Gateway

The network interface addresses must be set before configuring the default gateway.

The LoadMaster requires a default gateway through which it can communicate with the Internet.

If both IPv4 and IPv6 addresses are being used on the LoadMaster, then both an IPv4 and IPv6 Default Gateway Address are required.

IPv4 and IPv6 default gateways must be on the same interface.

10.1.4 Additional Routes

Further routes can be added. These routes are static and the gateways must be on the same network as the LoadMaster. To segment traffic you can also leverage the Virtual Service level default gateway.

10.1.5 Packet Routing Filter

Packet Routing Filter

If GEO is enabled, the Packet Routing Filter is enabled by default and cannot be disabled. If GEO is disabled, the Packet Routing Filter is configurable - it can be either enabled or disabled. To disable GEO, on a LoadMaster which has GEO functionality, in the main menu, select Global Balancing and Disable GSLB.

If the filter is not activated, the LoadMaster also acts as a simple IP-forwarder.

When the filter is activated, it restricts traffic to the LoadMaster but client access to services running on the interface addresses (SSH 22, HTTPS 443, SNMP 161, and DNS 53) is unaffected. Enabling SNAT prevents you from blocking traffic to a Virtual Service that has the same IP address as the LoadMaster's default gateway interface. This can affect Azure or any cloud platforms that use a single IP address.

The Reject/Drop blocked packets and Restrict traffic to Interfaces fields will not be displayed if the Packet Routing Filter is disabled.

Reject/Drop blocked packets

When an IP packet is received from a host, which is blocked using the Access Control Lists (ACLs), the request is normally ignored (dropped). The LoadMaster may be configured to return an ICMP reject packet, but for security reasons it is usually best to drop any blocked packets silently.

Restrict traffic to Interfaces

This setting enforces restrictions upon routing between attached subnets.

Add Blocked Address(es)

The LoadMaster supports a "blacklist" Access Control List (ACL) system. Any host or network entered into the ACL will be blocked from accessing any service provided by the LoadMaster.

The ACL is only enabled when the Packet Filter is enabled.  The whitelist allows a specific IP address or address range access. If the address or range is part of a larger range in the blacklist, the whitelist will take precedence for the specified addresses.

If a user does not have any addresses listed in their blacklist and only has addresses listed in their whitelist, then only connections from addresses listed on the whitelist are allowed and connections from all other addresses are blocked.

This option allows a user to add or delete a host or network IP address to the Access Control List. In addition to IPv4 addresses - IPv6 addresses are allowed in the lists if the system is configured with an IPv6 address family. Using a network specifier specifies a network.

For example, specifying the address 192.168.200.0/24 in the blacklist will block all hosts on the 192.168.200 network.

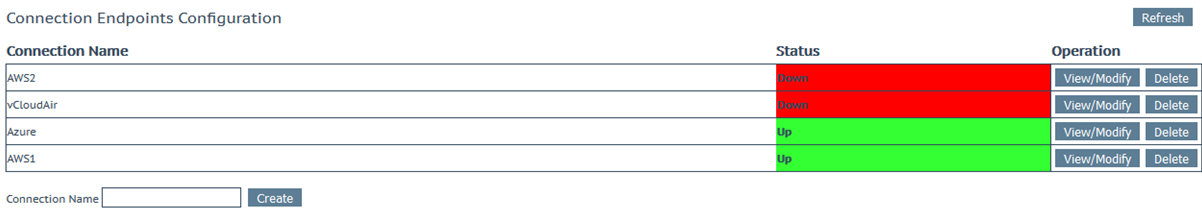

10.1.6 VPN Management

The VPN Management link/screen will only be available if the LoadMaster is licensed for IPsec tunneling.

This is document covers the policy-based VPN functionality that is available in the latest LoadMaster Long Term Support (LTS) release. As of LoadMaster firmware version 7.2.53, the VPN Management menu option changed to Policy Based VPN and support was added for route-based VPNs. For further details, refer to the following article: https://support.kemptechnologies.com/hc/en-us/articles/360056833372.

For further information on IPsec tunneling, including step-by-step instructions on how to set it up, refer to the IPSec Tunnelling Feature Description.

Connection Name

Specify a unique name to identify the connection.

Create

Create a uniquely identifiable connection with the specified name.

View/Modify

View or modify the configuration parameters for this connection.

Delete

Delete this connection.

All associated configuration will be permanently deleted. A connection can be deleted at any time, even if it is running.

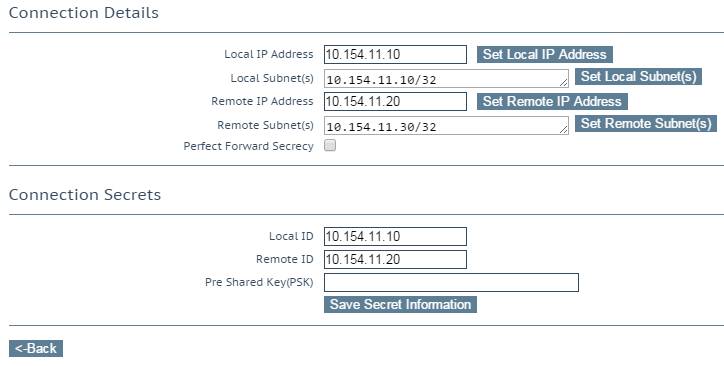

10.1.6.1 View/Modify VPN Connection

When initially creating a connection, or when modifying a connection, the View/Modify VPN Connection screen appears.

Local IP Address

Set the IP address for the local side of the connection.

In non-HA mode, the Local IP Address should be the LoadMaster IP address, that is, the IP address of the default gateway interface.

In HA-mode, the Local IP Address should be the shared IP address. This will be automatically populated if HA has already been configured. For more information on setting up tunneling in a HA configuration, refer to the next section.

Local Subnet Address

When the Local IP Address is set the Local Subnet Address text box is automatically populated. The local IP can be the only participant if applicable, given the /32 CIDR. Review the Local Subnet Address and update it if needed. Ensure to click Set Local Subnet Address to apply the setting, whether the address has been changed or not. Multiple local subnets can be specified using a comma-separated list. Up to 10 IP addresses can be specified.

Remote IP Address

Set the IP address for the remote side of the connection. In the context of an Azure endpoint, this IP address is expected to be the public-facing IP address for the Virtual Private Network (VPN) Gateway device.

Remote Subnet Address

Set the subnet for the remote side of the connection. Multiple remote subnets can be specified using a comma-separated list. Up to 10 IP addresses can be specified.

Perfect Forward Secrecy

Activate or deactivate the Perfect Forward Secrecy option.

The cloud platform being used will determine what the Perfect Forward Secrecy option should be set to. Perfect Forward Secrecy is needed for some platforms but is unsupported on others. To find out what will work with your cloud platform, refer to the document.

Local ID

Identification for the local side of the connection. This may be the local IP address. This field is automatically populated with the same address as the Local IP Address if the LoadMaster is not in HA mode.

If the LoadMaster is in HA mode, the Local ID field will be automatically set to %any. This value cannot be updated when the LoadMaster is in HA mode.

Remote ID

Identification for the remote side of the connection. This may be the remote IP address.

Pre Shared Key (PSK)

Enter the pre-shared key string.

Save Secret Information

Generate and save the connection identification and secret information.

10.2  HA and Clustering

This section in the WUI is only called HA and Clustering if you have a LoadMaster license with clustering enabled. If you do not have clustering, this section will be called HA Parameters and you will not see the screen shown above. If clustering has been configured, this section will be called Cluster Control.

This screen describes both HA Mode and Clustering. Select the relevant option and click Confirm to continue.

Once clustering is configured, the HA mode options will be unavailable.

10.2.1 HA Mode

If you are using the LoadMaster in a cloud environment, refer to the Azure HA Parameters or AWS HA Parameters section.

If you are using the LoadMaster for AWS product, refer to the AWS HA Parameters

 The role of the appliance can be changed by setting the HA Mode.  If HA (First) Mode or HA (Second) Mode is selected as the HA Mode, a prompt will appear reminding to add a shared IP. Changing the HA Mode will require a reboot, so after the details are set, click the Reboot button provided. Once the LoadMaster has rebooted, the HA menu option will be available in the System Configuration section provided the role is not "Non HA Mode".  HA will NOT work if both machines are specified the same.

When logged into the HA cluster, use the shared IP address to view and set full functionality to the pair.  If you log into the direct IP address of either one of the devices the menu options are quite different (see menus below).  Logging into one of the LoadMaster directly is usually reserved for maintenance.

When a LoadMaster is in HA mode, the following screen appears when you select the HA Parameters menu option.

HA Status

At the top of the screen, next to the time, icons are shown to denote the real-time status of the LoadMaster units in the cluster. There will be an icon for each unit in the cluster. You can open the WUI for the first or second HA unit by clicking the relevant status icon.

The possible icons are:

Green (with 'A')		The unit is online and operational and the HA units are correctly paired. The A in the middle of the square indicates that this is the master (active) unit.
Green (without 'A')		The unit is online and operational and the HA units are correctly paired. The absence of an 'A' in the middle of the square indicates that this is not the master unit (standby).
Red/Yellow		The unit is not operational. It may be offline or misconfigured. The unit is not ready to take over. It may be offline or incorrectly paired.
Blue		When the unit reboots more than 3 times in 5 minutes it moves into a pacified state. In this state the machine is only accessible using the direct machine WUI (not the shared WUI), and, it is not participating in any HA activity, that is, no changes from the master are received and it will not take over if the master fails. To remove the unit from the pacified state, log in to the pacified LoadMaster through SSH or the console and reboot.
Grey		The machine is in an indeterminate state and may require a reboot to return to operation. In some cases, this may mean Bboth machines are active, that is, both are set to master, and something has gone seriously wrong. CALLall Kemp Support for assistance with this issue, if rebooting does not solve it.
No HA icons		If the HA status squares are not appearing in the WUI, it probably means that HA is not enabled. Go to System Administration and select the HA option. Ensure the HA Mode is set to either First or Second.

In HA mode each LoadMaster will have its own IP address used only for diagnostic purposes directly on the unit. The HA pair have a shared IP address over which the WUI is used to configure and manage the pair as a single entity.

Both HA1 and HA2 must be on the same subnet with the same default gateway and be in the same physical site. They must not be separated by an intra-site link and must use the same gateway to return traffic.

 HA Mode

If using a single LoadMaster, select Non-HA Mode. When setting up HA mode, one LoadMaster must be set to HA (First) and the other HA (Second). If they are both set to the same option, HA will not operate.

 HA Timeout

 The time that the Master machine must be unavailable before a switchover occurs. With this option, the time it takes an HA cluster to detect a failure can be adjusted from 3 seconds to 15 seconds in 3 second increments. The default value is 9 seconds. A lower value will detect failures sooner, whereas a higher value gives better protection against a DOS attack.

 HA Initial Wait Time

How long after the initial boot of a LoadMaster, before the machine decides that it should become active. If the partner machine is running, then this value is ignored. This value can be changed to mitigate the time taken for some intelligent switches to detect that the LoadMaster has started and to bring up the link.

 HA Virtual ID

 When using multiple HA LoadMaster clusters on the same network, this value uniquely identifies each cluster so that there are no potential unwanted interactions.

All LoadMasters on the network that are or will be configured into HA pairs must be assigned unique HA Virtual ID numbers.

As of the 7.2.36 release, the LoadMaster selects a virtual ID based on the shared IP address of the first configured interface (the last 8 bits). It is selected and displayed once both the shared address and the partner address have been set. You can change the value to whatever you want (in the range 1 - 255) or you can keep it at the value it already selected. Please ensure the virtual ID is unique on each LoadMaster on the network.

Use Broadcast IP address

By default, the LoadMaster uses an IP multicast address when sending CARP packets. Enabling this option forces the use of the IP broadcast address instead.

Switch to Preferred Server

 By default, neither partner in a HA cluster has priority. So that when a machine restarts after a switchover, the machine becomes the slave and stays in that state until forced to Master. Specifying a preferred host means that when this machine restarts, it will always try to become master and the partner will revert to slave mode. If a preferred server is specified, this will result in a double failover event because if the master unit fails, the slave unit will take over as master and when the preferred unit comes back up it will take over as master.

 HA Update Interface

 The interface used to synchronize the HA information within the HA cluster.

Hard Reboot on link Failure

In LoadMaster firmware version 7.2.53, a new option was introduced that allows you to specify that a LoadMaster configured in HA reboots if any configured interface loses connectivity with the network (that is, experiences a link failure). For further details, refer to the following article: HA Interface Reboot Feature.

Force Partner Update

Immediately forces the configuration from the active to standby unit without waiting for a normal update.

 Inter HA L4 TCP Connection Updates

 When using L4 services, enabling updates will allow L4 connections to be maintained across a HA switchover by sharing the connection table. This option is ignored for L7 services.

 Inter HA L7 Persistence Updates

 When using L7 services, enabling this option will allow persistence information to be shared between the HA partners. If an HA failover occurs, the persistence information will not be lost. Enabling this option can have a significant performance impact.

HA Multicast Interface

The network interface used for multicast traffic which is used to synchronize Layer 4 and Layer 7 traffic when Inter-HA Updates are enabled.

Use Virtual MAC Addresses

Enabling this option forces the MAC address to switch between a HA pair during a switchover which is useful when gratuitous ARPs (used in communicating changes in HA IP addresses to switches) are not allowed.

This option is only available for hardware LoadMasters.

10.2.1.1 Azure HA Parameters

This screen is only available in LoadMaster for Azure products.

Azure HA Mode

Select the required HA mode for this unit. There are three options:

Master HA Mode

Slave HA Mode

Non HA Mode

If you are only using a single LoadMaster, select Non HA Mode.

When using HA mode, one machine must be specified as the Master and the second machine must be specified as the Slave.

You can tell, at a glance, which unit is the master, and which is the slave, by checking the mode in the top bar of the LoadMaster.

Switch to Preferred Server

There are two possible values to select:

No Preferred Host: Each unit takes over when the other unit fails. No switchover is performed when the partner is restarted.

Prefer Master: The HA1 (master) unit always takes over. This is the default option.

Partner Name/IP

Specify the host name or IP address of the HA partner unit.

Health Check Port

Set the port over which the health check will be run. The port must be the same on both the master and slave unit for HA to function correctly.

Health Check on All Interfaces

When this option is enabled, the health check listens on all interfaces. This is required when using a multi-arm configuration. If this is disabled, the health check listens on the primary eth0 address (this is the default behavior).

If a unit is in standby mode, WUI access is restricted to Local Administration only. Full WUI access is available if the unit is in an active or unchecked state.

10.2.1.2 AWS HA Parameters

This screen is only available in LoadMaster for Amazon Web Services (AWS) products.

AWS HA Mode

Select the required HA mode for this unit. There are three options:

Master HA Mode

Slave HA Mode

Non HA Mode

If you are only using a single LoadMaster, select Non HA Mode.

When using HA mode, one machine must be specified as the Master and the second machine must be specified as the Slave.

You can tell, at a glance, which unit is the master, and which is the slave, by checking the mode in the top bar of the LoadMaster.

Switch to Preferred Server

There are two possible values to select:

No Preferred Host: Each unit takes over when the other unit fails. No switchover is performed when the partner is restarted.

Prefer Master: The HA1 (master) unit always takes over. This is the default option.

Partner Name/IP

Specify the host name or IP address of the HA partner unit.

Health Check Port

Set the port over which the health check will be run. The port must be the same on both the master and slave unit for HA to function correctly.

Health Check on All Interfaces

When this option is enabled, the health check listens on all interfaces. This is required when using a multi-arm configuration. If this is disabled, the health check listens on the primary eth0 address (this is the default behavior).

If a unit is in standby mode, WUI access is restricted to Local Administration only. Full WUI access is available if the unit is in an active or unchecked state.

10.2.2 Cluster Control

The Cluster Control option will only be available on LoadMasters which have a clustering license. To add the clustering feature to your license, please contact a Kemp representative. For further information on clustering, refer to the LoadMaster Clustering Feature Description.

Create New Cluster: If setting up a new cluster, click this button.

Add to Cluster: Add this LoadMaster to an already existing cluster.

When the Create New Cluster button is clicked, the screen above will appear which prompts to set the shared IP address of the cluster. The shared IP address is the address which will be used to administer the cluster.

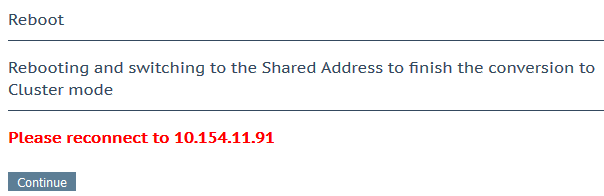

When the Create a New Cluster button is clicked, the LoadMaster reboots. A message will appear asking to reconnect to the shared IP address that was just set.

After creating a cluster, the Cluster Control screen in the WUI of the shared IP address will allow the addition of LoadMaster nodes into the cluster.

A LoadMaster can only be added to a cluster when the cluster is available and the LoadMaster is waiting to join the cluster. Refer to the LoadMaster Clustering Feature Description for further information and steps.

The Cluster Control screen, in the shared IP address WUI, displays details for each of the nodes in the cluster.

Show Options: Clicking the Show Options button will display the Cluster Parameters section which contains two additional fields which can be used to set the Cluster Virtual ID and Node Drain Time. For further information, refer to the LoadMaster Clustering Feature Description on the Kemp Documentation Page.

ID: The cluster ID.

Address: The IP address of the LoadMaster node. If a second IP address appears in brackets after the first one - the second IP address is the IP address of the interface port. Icons are displayed depending on the status:

Icon	Status	Description
	Admin	The node is the primary control node.
	Disabled	The node is disabled - connections will not be sent to that node.
	Starting	The node is starting (enabling).
	Up	The node is up.
	Down	The node is down.
	Draining	The node has been disabled and the connections are being shut down in an orderly fashion. Drain stopping lasts for 10 seconds by default. This can be updated by changing the Node Drain Time value on the Cluster Control screen. For more information, refer to the LoadMaster Clustering Feature Description.

Operation: The different operations that can be performed in relation to the notes:

Disable: Disable the node. Nodes that are disabled will first go through drain stopping. During the drain stopping time, the connections are shut down in an orderly fashion. After the drain, the node will be disabled and no traffic will be directed to that node.

Enable: Enable the node. When a node comes up, it will not be immediately be brought into rotation. It will only come online after it has been up for 30 seconds.

Delete: Delete a node from the cluster. When a node is deleted it becomes a regular single LoadMaster instance. If the LoadMaster is later added back in to the cluster, any configuration changes that have been made in the shared IP address will propagate to the node LoadMaster.

Reboot: When performing a cluster-wide firmware update, a Reboot button will appear on this screen after uploading the firmware update patch. For step-by-step instructions on how to perform a cluster-wide firmware update, refer to the LoadMaster Clustering Feature Description.

Add New Node: Add a new node with the specified IP address to the cluster.

10.2.2.1 Cluster Parameters

When the Show Options button is clicked, the Cluster Parameters section appears. This section contains two additional WUI options - Cluster Virtual ID and Node Drain Time.

Cluster Virtual ID

When using multiple clusters or LoadMaster HA systems on the same network, the virtual ID identifies each cluster so that there are no potential unwanted interactions. The cluster virtual ID is set to 1 by default, but it can be changed if required. Valid IDs range from 1 to 255. Changes made to an admin Loadmaster propagate across all nodes in the cluster.

Node Drain Time

When a node is disabled, the connections that are still being served by the node are allowed to continue for the amount of seconds specified in the Node Drain Time text box. No new connections will be handled by the node during this time. The Node Drain Time is set to 10 seconds by default, but it can be changed if required. Valid values range from 1 to 600 (seconds).

During the drain time the status changes to Draining until the specified drain time elapses.

When the drain time has elapsed the status changes to disabled.

10.3 System Administration

 These options control the base-level operation of the LoadMaster. It is important to know that applying changes to these parameters in a HA pair must be done using the floating management IP. Many of these options will require a system reboot. When configuring these parameters, only the active system in a pair is affected.

10.3.1 User Management

The content below describes the different user management WUI fields. For further information on user management and WUI authentication, refer to the User Management Feature Description.

 The Change Password section can be used to change the appliance password. This is a local change only and does not affect the password of the partner appliance in a HA deployment.

Minimum Password length

Set the minimum password length for all local user passwords. After selecting a different value for this field, you must refresh the page for the new value to be enforced.

The Local Users section lists any existing local users. Two options are available for existing users:

• Modify: Change details for an existing local user, such as their permissions and password. For further information, refer to the Modify User section.

• Delete: Delete the relevant user.

New users can be added in the Add User section.

Usernames can be a maximum of 64 characters long. Usernames can start with a digit and can contain alphanumeric characters, in addition to the following special characters:

=~^._+#@/-

The minimum password length is defined by what is set in the Minimum password length field. All characters are allowed.

The Use RADIUS Server option allows you to determine if RADIUS server authentication will be used when the user is logging in to the LoadMaster. The RADIUS Server details must be setup before this option can be used.

When RADIUS authentication is in use, the LoadMaster passes the user's details to the RADIUS server and the RADIUS server informs the LoadMaster whether the user is authenticated or not. For further details on how to configure the RADIUS Server details please refer to the WUI Authentication and Authorization section and the .

When Session Management is enabled, the Use RADIUS Server option is not available within this screen. Please refer to the WUI Authentication and Authorization section for further information on how to configure RADIUS Server when Session Management is enabled.

When Session Management is enabled, a check box called No Local Password will be displayed in the Add User section. This option can be enabled if client certificate authentication will be used to authenticate this user when they are accessing the LoadMaster. To enable client certificate authentication, set the Admin Login Method in the Remote Access screen. For further information, refer to the Remote Access section or the User Management Feature Description.

When running API commands, you can authenticate using an API key. An API key is a unique identifier used to authenticate a user.

The API Keys section on the User Management screen displays any API keys currently generated for the logged in user. You can have up to 16 API keys per user - if you try to create more, the oldest is silently deleted. The oldest API key is listed at the top.

To generate an API key for a specific user, go to the Modify screen for that particular user.

The Remote User Groups section displays any remote user groups that have been created. The group name and associated permissions are displayed. These groups can be selected for LDAP WUI authentication in the following location: Certificates & Security > Remote Access > WUI Authorization Options. For further information, refer to the WUI Authentication and Authorization section.

It is important to select and apply the group, or groups. If there are no groups selected, no group checking is performed and remote users can log in without a group check.

You can add a new remote user group by entering a name and clicking Add Group.

The following characters are permitted in the group name: alphanumeric characters, spaces, or the following special symbols: =~^._+#,@/-.

Click Modify to edit the group permissions.

For further information regarding group permissions, refer to the User Management Feature Description.

Enabling the Allow Extended Permissions option makes an additional permission called Add Virtual Services visible on the user permissions screen. For details on this, refer to the User Management Feature Description.

10.3.1.1 Modify User

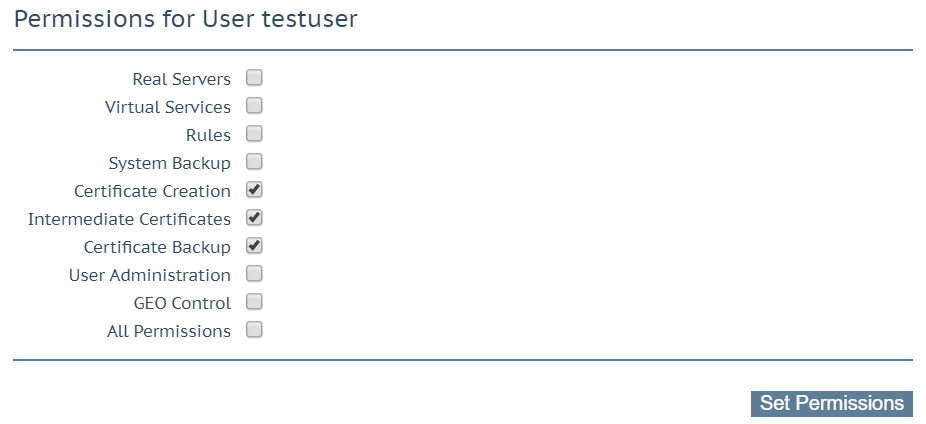

In this screen you may set the level of user permissions. This determines what configuration changes the user is allowed to perform. The primary user (bal) always has full permissions. Secondary users may be restricted to certain functions.

For further information regarding user permissions, please refer to the User Management Feature Description.

The Change Password section can be used to modify a user's password. It is also possible to enable and disable RADUIS server authentication for a user.

When Session Management is enabled, the Use RADIUS Server option is not available within this screen. Please refer to the section for further information on how to configure RADIUS Server when Session Management is enabled.

When Session Management is enabled, a check box called No Local Password will be displayed in the Change Password section. This option can be enabled if client certificate authentication will be used to authenticate this user when they are accessing the LoadMaster. To enable client certificate authentication, set the Admin Login Method in the Remote Access screen. For further information, refer to the Remote Access or the User Management Feature Description on the Kemp Documentation Page.

Named users, even those without User Administration privileges, can change their own passwords. When a named user clicks the System Administration > User Management menu option the Change Password screen appears.

From within this screen, users can change their own password. The minimum password length is defined by what is set in the Minimum password length field. All characters are allowed, except \"`'. Once changed, a confirmation screen appears after which the users will be forced to log back in to the LoadMaster using their new password.

When running API commands, you can authenticate using an API key. An API key is a unique identifier used to authenticate a user.

The API Keys section on the Modify user screen displays any API keys currently generated for that specific user. You can have up to 16 API keys per user - if you try to create more, the oldest is silently deleted. The oldest API key is listed at the top.

To generate an API key for a specific user, click Generate New APIKey.

In the Local Certificate section, a certificate can be generated for the user. A Passphrase can be optionally set which is used to encrypt the private key. Once that certificate has been downloaded, it can be used as a client certificate to allow password-less access to the LoadMaster API. Users with 'User Administration' permissions are able to manage local certificates for themselves and other users.

To enable client certificate authentication to the LoadMaster, set the Admin Login Method in the Remote Access screen. For further information, please refer to the Remote Access section or the User Management Feature Description on the Kemp Documentation Page.



10.3.2 Update License

In LoadMaster firmware version 7.2.53, the Update License screen was renamed to License Management and some other enhancements were made to this screen. For further details, refer to the following article: License Management Enhancements.

This screen displays the activation date and the expiration date of the current license. You would use the Update License function if your license has changed, for example if:

• You have renewed support
• You have renewed your license
• You have changed your license type

Before updating the license in the LoadMaster, you must either contact your Kemp representative, or use the Upgrade option. After you have contacted Kemp or used the upgrade option, there are two ways to update a license - using the Online method and using the Offline method. Refer to the sections below to find out details about the screens for each method.

For more information and instructions, refer to the Licensing Feature Description.

A Kill License button may appear on the Update License screen:

• If your LoadMaster license is either a Permanent (PERM), Temporary (TEMP), or Service Provider License Agreement (SPLA) license that was obtained from the Kemp Licensing Server (either online or offline), then clicking the Kill License button will invalidate your license on the Kemp licensing server and in the inventory of the Kemp ID that was used to license the LoadMaster.
• If your LoadMaster license is a Service Provider License Agreement (SPLA) or Metered Licensing Agreement (MELA) license that was obtained from a local Kemp 360 Central instance in your configuration, then clicking the Kill License button will return the LoadMaster license to the available license pool on Kemp 360 Central, and the LoadMaster will return to an unlicensed state.

Do not click Kill License unless instructed to by Kemp Support.

10.3.2.1 Online Method

To upgrade the license using the online method, the LoadMaster must be connected to the internet. You will need to enter your Kemp ID and Password to license using the online method.

A reboot is recommended after updating the license.

Do not click Kill License unless instructed to by Kemp Support.

10.3.2.2 Offline Method

To upgrade the license using the offline method, you need to enter license text in the LoadMaster. You can either get this from Kemp or using the Get License link.

A reboot is recommended after updating the license.  If upgrading to an ESP license, a reboot is required after the update.

10.3.2.3 Debug Checks

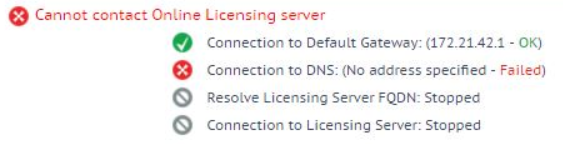

If you try to license and there are any issues, a number of checks are performed automatically and the results and associated error message are displayed.

These checks perform the following tasks:

Ping Default Gateway

Ping DNS Servers

Ping Licensing Server

10.3.3 System Reboot

Reboot

Reboot the appliance.

Shutdown

Clicking this button attempts to power down the LoadMaster. If, for some reason, the power down fails, it will at a minimum halt the CPU.

Reset Machine

 Reset the configuration of the appliance with exception of the license and username and password information. This only applies to the active appliance in a HA pair.

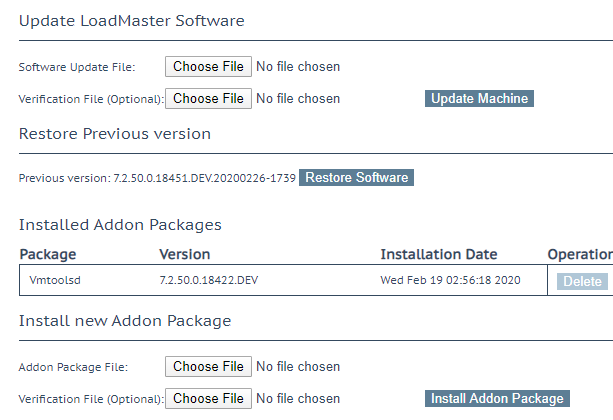

10.3.4 Update Software

You can download firmware patches from the Kemp Downloads page.

The Verification File field appears if the Update Verification Options field is set to Required or Optional in System Configuration > Miscellaneous Options > WUI Settings (this is set to Required by default).

By default, the integrity of a patch or add-on is verified at install time. This is done without the use of a secondary XML verification file.

Setting the Update Verification Options to Required or Optional allows the use of a secondary XML verification file to be uploaded at the same time as you are uploading a patch or add-on, which allows you to verify the digital signatures used to sign the update file archive. The patch/add-on will not be installed if the patch cannot be verified against the XML file.

If the Update Verification Options drop-down list is set to Required it is not possible to upgrade to LoadMaster firmware 7.2.51 or above. It is also not possible to downgrade from 7.2.51 to a version previous to that. To workaround this, set the Update Verification Options field to Optional or No verification file - deprecated before downgrading or upgrading between the specified versions. For further details, refer to the following article: Upgrade/Downgrade Notes Relating to Update Verification Options.

Update Machine

After you have downloaded the firmware you can browse to the file and upload the firmware directly into LoadMaster. The firmware will be unpacked and validated on LoadMaster. If the patch is validated successfully you will be asked to confirm the release information. To complete the update you will need to reboot the appliance. This reboot can be deferred if needed.

Update Cluster

The Update Cluster option will only be available on LoadMasters which have a clustering license. To add the clustering feature to your license, please contact a Kemp representative. For further information on clustering, refer to the LoadMaster Clustering Feature Description.

The firmware on all LoadMasters in a cluster can be updated using the shared IP address by clicking the Update Cluster button. For step-by-step instructions on how to perform a cluster-wide software update, refer to the LoadMaster Clustering Feature Description.

 Restore Software

If you have completed an update of LoadMasters firmware you can use this option to revert to the previous build.

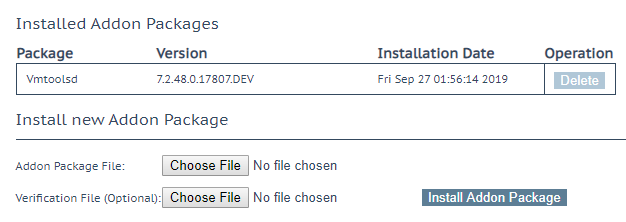

Installed Addon Packages

Add-on packages can be installed in the Kemp LoadMaster. Add-on packages provide features that are additional to those already included in the LoadMaster. Kemp plan on creating further add-on packages in the future.

Add-On packages can be downloaded from the Kemp website: www.kemptechnologies.com

10.3.5  Backup/Restore

 Create Backup File

 Generate a backup that contains the Virtual Service configuration, the local appliance information and statistics data. License information and SSL Certificate information is not contained in the backup.

For ease of identification, the Backup file name includes the LoadMaster's hostname.

By default, the LoadMaster includes a Netstat output in backups taken. When this is included, backups take longer to complete. You can stop the Netstat output from being included by disabling the Include Netstat in Backups option in the Debug Options screen (System Configuration > Logging Options > System Log Files > Debug Options).

 Restore Backup

When performing a restore (from a remote machine), the user may select what information should be restored:

VS Configuration

LoadMaster Base Configuration

GEO Configuration

ESP SSO Configuration (This restores the SSO domains, LDAP endpoints and SSO custom image sets. This does not restore the Virtual Service settings - use the VS Configuration option to restore those.)

A combination of the options

 Automated Backups

If the Enable Automated Backups check box is selected, the system may be configured to perform automated backups on a daily or weekly basis.

For ease of identification, the Backup file name includes the LoadMaster's hostname.

If the automated backups are not being performed at the correct time, ensure the NTP settings are configured correctly. For further information, refer to the Date/Time section.

When to perform backup

Specify the time (24 hour clock) of backup. Also select whether to backup daily or on a specific day of the week. When ready, click the Set Backup Time button.

Backup Method

Select the file transfer method for automated backups:

• Ftp (insecure)
• scp (secure)
• sftp (secure)

If using scp or sftp, the Private Key File must be supplied.

Remote user

Set the username required to access remote host.

Private Key File

If using scp as the backup method, the Private Key File must be provided. This is the SSH private key generated using ssh-keygen on the remote scp server.

Remote password

The Remote password is used when the Backup Method is set to Ftp (insecure). Set the password required to access remote host. This field accepts alphanumeric characters and most non-alphanumeric characters. Disallowed characters are as follows:

Control characters

' (apostrophe)

` (grave)

The delete character

Remote host

Set the IP address or hostname of the remote host to which you want the backup archives sent, optionally followed by a colon and the port number. If no port is specified, the default port for the selected protocol is used.

Remote Pathname

Set the location on the remote host to store the file.

Test Automated Backups

Clicking the Test Backup button performs a test to check if the automated backup configuration is working correctly. The results of the test can be viewed within the System Message File.

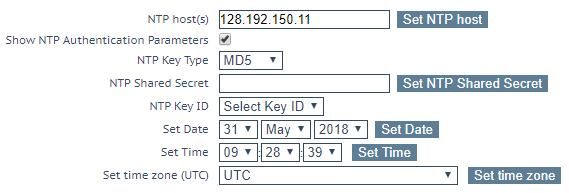

10.3.6 Date/Time

You can manually configure the date and time of LoadMaster or leverage an NTP server.

NTP host(s)

Specify the host which is to be used as the NTP server. NTP is a strongly preferred option for a HA cluster. For a single unit it is at the user's discretion. Clicking the Set NTP host button will refresh the time based on the details configured.

If you do not have a local NTP server, refer to www.pool.ntp.org for a list of public NTP server pools which can be used.

The time zone must always be set manually.

Show NTP Authentication Parameters/Disable NTP Authentication

The LoadMaster supports NTPv4 which uses cryptographic signing to query a secure NTP server. This uses a simple authorization scheme which uses a shared secret and key to validate that the response from the server is actually valid. Enable the Show NTP Authentication Parameters check box to display the parameters that are needed to support NTP authenticated requests. If you select the Show NTP Authentication Parameters checkbox and change any of the parameters, the name of the check box changes to Disable NTP Authentication.

For the NTPv4 feature to work, a file must be created on the server (/etc/ntp.keys), which has the following format:
<keyid> M <secret string>
...
<keyid> M <secret string>
To enable the use of the key, specify the keyid in the trustedkey line of /etc/ntp.conf, for example, if the keyid is 5 then you have to specify "trustedkey5". The trustedkey value can take multiple values, for example trustedkey 1 2 3 4 5 9 10).

NTP Key Type

Select either the MD5, SHA-1, or legacy SHA NTP key type.

NTP Shared Secret

The NTP shared secret string. The NTP secret can be a maximum of 20 ASCII characters long or 40 hexadecimal characters long.

NTP Key ID

Select the NTP key ID. The values range from 1 to 99. Different key IDs can be used for different servers.

Set Date

Set the date on the LoadMaster.

Set Time

Set the time on the LoadMaster.

Set time zone

Set the time zone where the LoadMaster is located.

10.4 Logging Options

Logging of LoadMaster events can be both pushed and also pulled from the appliance.  It is important to note that log files on LoadMaster are not historical, if the appliance reboots the logs are reset. It is important to keep a record of events generated on LoadMaster on a remote facility.

10.4.1 System Log Files

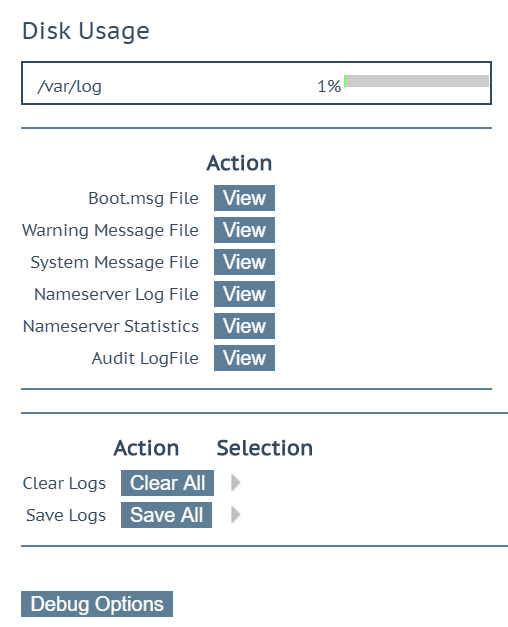

Disk Usage - This section provides an indication of the percentage used/free of the log partition. Color-coding is used to highlight different usage levels:

• 0% to 50%: green
• 50% to 90%: orange
• 90% to 100%: red

Boot.msg File - contains information, including the current version, during the initial starting of LoadMaster.

Warning Message File - contains warnings logged during the operation of LoadMaster.

System Message File - contains system events logged during the operation of LoadMaster. This includes both operating system-level and LoadMaster internal events.

Nameserver Log File - show the DNS name server log.

Nameserver Statistics - show the latest name server statistics.

IPsec IKE Log - show the IPsec IKE log.

The IPsec IKE Log button does not appear if VPN Management is not configured under System Configuration > Network Setup > VPN Management.

WAF Event Log - contains logs for most recently triggered WAF rules.

The WAF Event Log button does not appear if there are no WAF event logs.

Audit LogFile - contains a log for each action which is performed by a user; either using the API or the WUI. This will only function if session management is enabled. For further information on session management, refer to the Admin WUI Access section.

Clear Logs - clears the warning and system message logfiles. You can either click Clear All to clear all the system log files or click the arrow to select specific log files to clear.

Save Logs - you can use this option if you need to send logs to Kemp support as part of a support effort. Click Save All to save all system log files to your computer and forward them to Kemp support. Click the arrow to select specific log files to save.

For information on logrotate, refer to https://linux.die.net/man/8/logrotate. Alternatively, run man logrotate on a Linux machine. To cross check that with the logrotate configuration on the LoadMaster, look at the configuration files in /etc/logrotate.d/, especially syslog and userlogs.

10.4.1.1 Debug Options

The LoadMaster has a range of features that will help you and Kemp Support staff with diagnosing connectivity issues. Clicking Debug Options brings up the screen shown below.



Disable All Transparency

Disables transparency on every Virtual Service and forces them to use Layer 7. Use with caution.

This option is only for debugging and does not replace the normal controls to enable and disable transparency on a per-Virtual Service basis.

Using this option to disable transparency saves a copy of the configuration file before disabling transparency. When transparency is turned back on (not all Virtual Services may have had transparency turned on before the change), the original configuration is restored. Therefore, any changes to the configuration during this time are lost. This includes creating new Virtual Services.

Enable L7 Debug Traces

Generates log traffic in the message files. Due to the large amount of files being logged it slows down L7 processing.

Enabling this option can consume more resources and it is possible that some authorization parameters may be exposed. Only enable this option if recommended by Kemp Support.

Enable Extended L7 Debug

Click Enable Extended Debug to enable L7 extended debug options.

In LoadMaster firmware version 7.2.53, the Enable Extended Debug option was enhanced. Enabling this option may be needed when performing extensive testing. For further details, refer to the following article: Extended Debug Enhancements.

Enabling this option can consume more resources and it is possible that some authorization parameters may be exposed. Only enable this option if recommended by Kemp Support.

Enable IRQ Pinning

Click the button to enable Interrupt Request Line (IRQ) pinning. This is disabled by default.

Only enable this option in consultation with Kemp Support.

When you change the IRQ pinning option from off to on, IRQ pinning is enabled on all network interfaces that are assigned an IP address. When IRQ pinning is enabled and you add an IP address to an unconfigured interface, that interface will not have IRQ pinning enabled until you either toggle the IRQ pinning off and back on again, or the system is rebooted.

Perform an l7adm

Displays raw statistics about the L7 subsystem.

Enable WAF Debug Logging

Enable WAF debug traces.

Enable IRQ Balance

Enable this option only after consulting with Kemp support staff.

Enable TSO

Enable TCP Segmentation Offload (TSO).

Only modify this option after consultation with Kemp Technical Support. Changes to this option will only take affect after a reboot.

Enable TCP SACK

Click this button to enable TCP SACK (Selective ACKnowledgement) processing. This is a global setting that affects all Layer 7 Virtual Services. It only works if TCP SACK is enabled on a Virtual Service client and the LoadMaster.

Enable Layer 4 IPv6 Forwarding

This option, when enabled (the default), supports IPv6 forwarding behaviour as supported on LoadMaster versions previous to LoadMaster Operating System (LMOS) 7.2.50. When this option is disabled, it supports the IPv6 forwarding behavior required by the IPv6 standards. If IPv6 forwarding behavior that conforms to the IPv6 standards is required in your deployment, you should disable this option.

Enable/Disable CLI VS Management

Enable or disable the Command Line Interface (CLI) Service Management function.

Enable Bind Debug Traces

Enable bind debug trace logs for GEO.

Perform a PS

Performs a ps on the system.

Perform a Top

Performing a top command displays memory, CPU, and I/O usage for the LoadMaster. You can specify the number of samples and an interval between them (the default is 10 samples and a 1 second interval). You can also show threads and/or sort by memory usage by selecting the appropriate check boxes. By default the results are sorted by CPU usage.

Include Top in Backups

By default, the LoadMaster does not include a top output in backups. This can be enabled by selecting this check box. When included in backups, top is run using the default parameters (regardless of what is configured in the WUI) and is sorted by memory usage.

Display Meminfo

Displays raw memory statistics.

Display RAID Information

The Display RAID Information and Display RAID Disks Information buttons only appear if a RAID controller is installed on the LoadMaster.

Display the Redundant Array of Independent Disks (RAID) controller details. Some example information is below:

-------------------------------------------------------------------

Controller details

-------------------------------------------------------------------

- Chip ID................: 10

- Parent Controller Index: 255

- OS Physical Name.......: /dev/sda

- Serial Number..........: 427491329

- AES Power on State.....: 0

- Sata Ports.............: 2

-------------------------------------------------------------------

Raid Port 0 details

-------------------------------------------------------------------

- Raid Model Name..............: H/W RAID1

- Raid Serial Number...........: OUEYEXCXTQ53GE1BSOSN

- EZBackup Disk Support........: 0

- Port Multiplier port.........: 0

- Raid Capacity................: 953 (29 GB)

- Raid Capacity low word.......: 0

- Raid State...................: 1 (Active)

- Raid Status..................: 3 (Normal)

- Raid Level...................: 1 (Raid 1 (mirror))

- Mark Type....................: 0

- Active Member................: 15

- Active Level.................: 0

- Rebuild Priority.............: 3

- Standby Timer................: 0

- Total members in the RAID....: 2

Member disk 0

- Ready....................: 1

- Lba 48 Bit Support.......: 1

- SATA Page................: 0

- SATA Port................: 0

- SATA Base................: 0

- SATA Size................: 953

----------------------------------------------------------

Member disk 1

- Ready....................: 1

- Lba 48 Bit Support.......: 1

- SATA Page................: 0

- SATA Port................: 1

- SATA Base................: 0

- SATA Size................: 953

----------------------------------------------------------

Display RAID Disks Information

Display details about the RAID disks. Some example information is below:

-------------------------------------------------------------------

Sata Port 0 details

-------------------------------------------------------------------

- Disk Model Name..............: 32GB SATA Flash Drive

- Disk Serial Number...........: C0122916B01000000074

- Disk Firmware Version........: SFDC001D

- EZBackup Disk Support........: 1

- Port Multiplier port.........: 15

- Disk Capacity................: 954 (29 GB)

- Port Type....................: 2 (RAID)

- Port Speed...................: 2 (GB)

- Page 0 State.................: 2

- Page 0 Raid Index............: 0

- Page 0 Member Index..........: 0

- Page 0 Raid Name.............:

- Page 0 Raid Serial Number....:

- Page 0 Raid Segment Base.....: 0

- Page 0 Raid Size.............: 953

- Page 0 Raid EZ Backup Support: 0

- Page 1 State.................: 0

- Page 1 Raid Index............: 0

- Page 1 MemberIndex...........: 0

- Page 1 Raid Name.............:

- Page 1 Raid Serial Number....:

- Page 1 Raid Segment Base.....: 0

- Page 1 Raid Size.............: 0

- Page 1 Raid EZ Backup Support: 0

- PortErrorStatus..............: 0

-------------------------------------------------------------------

Sata Port 1 details

-------------------------------------------------------------------

- Disk Model Name..............: 32GB SATA Flash Drive

- Disk Serial Number...........: E011321290100000005A

- Disk Firmware Version........: SFDC001D

- EZBackup Disk Support........: 1

- Port Multiplier port.........: 15

- Disk Capacity................: 954 (29 GB)

- Port Type....................: 2 (RAID)

- Port Speed...................: 2 (GB)

- Page 0 State.................: 2

- Page 0 Raid Index............: 0

- Page 0 Member Index..........: 1

- Page 0 Raid Name.............:

- Page 0 Raid Serial Number....:

- Page 0 Raid Segment Base.....: 0

- Page 0 Raid Size.............: 953

- Page 0 Raid EZ Backup Support: 0

- Page 1 State.................: 0

- Page 1 Raid Index............: 0

- Page 1 MemberIndex...........: 0

- Page 1 Raid Name.............:

- Page 1 Raid Serial Number....:

- Page 1 Raid Segment Base.....: 0

- Page 1 Raid Size.............: 0

- Page 1 Raid EZ Backup Support: 0

- PortErrorStatus..............: 0

Display Slabinfo

Displays raw slab statistics.

Perform an Ifconfig

Displays raw Ifconfig output.

Perform a Netstat

Displays Netstat output.

Include Netstat in Backups

By default, the LoadMaster includes a Netstat output in backups taken. When this is included, backups take longer to complete. You can stop the Netstat output from being included by disabling this option.

Reset Statistic Counters

Reset all statistics counters to zero and delete any old graphs. This also deletes the Round Robin Database (RRD) files but these files are automatically recreated when needed.

Flush OCSPD Cache

When using OCSP to verify client certificates, OCSPD caches the responses it gets from the OCSP server. This cache can be flushed by pressing this button. Flushing the OCSPD cache can be useful when testing, or when the Certificate Revocation List (CRL) has been updated.

Stop IPsec IKE Daemon

Stop the IPsec IKE daemon on the LoadMaster.

If this button is clicked, the connection for all tunnels will go down.

Perform an IPsec Status

Display the raw IPsec status output.

Enable IKE Debug Level Logs

Control the IPsec IKE log level.

Flush SSO Authentication Cache

Clicking the Flush SSO Cache button flushes all Single Sign-On (SSO) records, resets all authentication server statuses, resets the KCD domain (if relevant) and re-reads the configuration. This has the effect of logging off all clients using Single Sign-On to connect to the LoadMaster.

SSO LDAP server timeout

Set the SSO LDAP server timeout value in seconds (default value is 5 seconds).

Linear SSO Logfiles

By default, older log files are deleted to make room for newer log files, so that the filesystem does not become full. Selecting the Linear SSO Logfiles check box prevents older files from being deleted.

When using Linear SSO Logging, if the log files are not periodically removed and the file system becomes full, access to ESP-enabled Virtual Services will be blocked, preventing unlogged access to the virtual service. Access to non-ESP enabled Virtual Services are unaffected by the Linear SSO Logfile feature.

Netconsole Host

If directed by a Kemp support engineer, you can use this feature to send critical kernel logs to a syslog server in the event of the LoadMaster failing or crashing. A syslog server configured as the Netconsole Host receives all critical kernel messages.

You can select which interface the Netconsole Host is set to using the Interface dropdown.

Please ensure that the Netconsole Host IP specified is on the selected interface as errors may occur if it is not.

The Netconsole Host parameter can be set to either an IPv4 or IPv6 address, the only restriction being that the Netconsole IP address must be in the same address family as the LoadMaster's IP address on the selected Interface. In other words, if the LoadMaster's IP address on the selected Interface is an IPv4 address, then the Netconsole Host IP address must be an IPv4 address as well. If you want to use an IPv6 address for Netconsole Host, then you must select an Interface on which the LoadMaster has an IPv6 address.

Netconsole is not configurable on a bonded interface.

Ping Host

Performs a ping on the specified host. The interface which the ping should be sent from can be specified in the Interface drop-down list. The Automatic option selects the correct interface to ping an address on a particular network.

The interface tries to determine if the address to ping is an IPv4 or IPv6 address and selects the correct command to perform the ping. For an address in numeric form this is simple, however this is not possible for non-numeric addresses so they will always be treated as an IPv4 address.

Ping6 Host

Perform a ping6 of a specific IPv6 host.

Traceroute Host

Perform a traceroute of a specific host.

Kill LoadMaster

Permanently disables all LoadMaster functions. The LoadMaster can be re-enabled by being relicensed.

Enable DHCPv6 Client

When this option is enabled, the DHCPv6 client will run on the primary interface. This provides the capability to obtain an IPv6 address on boot. If you want DHCPv6 to be run on every boot, keep this option enabled. However, this is a long running process and it keeps running in the background when it is enabled so if you only need an IPv6 address to be assigned and you do not need to renew and release the IPv6 address you should disable this option after the IPv6 address is assigned.

TCP dump

A TCP dump can be captured either by one or all Ethernet ports. Address and port parameters, as well as optional parameters may be specified.  The maximum number of characters permitted in the Options text box is 255.

You can stop and start the dump. You can also download it to a particular location. The results of the TCP dump can then be analysed in a packet trace analyser tool such as Wireshark.

For more information, refer to the Packet Trace Guide Technical Note.

10.4.2 Extended Log Files

The Extended Log Files screen provides options for logs relating to the ESP and WAF features.

To get to the Extended Log Files screen - in the LoadMaster WUI, go to System Configuration > Logging Options > Extended Log Files.

The WAF logs are not generated in real time - they can be up to two minutes behind what the WAF engine is actually processing.

Disk Usage - This section provides an indication of the percentage used/free of the log partition. Color-coding is used to highlight different usage levels:

• 0% to 50%: green
• 50% to 90%: orange
• 90% to 100%: red

There are multiple log files relating to ESP stored on the LoadMaster. These are listed below the Disk Usage section. These logs are persistent across LoadMaster reboots.

You can select one of the View or Save Action buttons with the default filter options to apply the action to the various log files (Connection Logs, Security Logs, and so on). For the Clear button, you must first select which logs to clear using the Selection controls.

To access the Selection Controls, click one of the right caret icons at the right of the buttons. For example, clicking on the icon to the right of the Clear and Save buttons, displays these controls.

You can filter the logs to clear or save by date, using the from and to controls, and also select a subset of log files from the multiple pick list on the right.

• ESP Connection Logs: logs recording each connection.
• ESP Security Logs: logs recording all security alerts.
• ESP User Logs: logs recording all user logins.

In LoadMaster firmware version 7.2.51, ESP user logs were expanded to be more useful and applicable to enterprise customers with extensive logging infrastructure. User Authentication, Authorization, and Accounting (AAA) information is included in the logs, including the time of request, username, domain, AAA server, AAA protocol type, AAA result, and error message. For further details, refer to the following article: Expanded ESP User Logs.

In LoadMaster firmware version 7.2.53, the ESP client session logging was further enhanced. The LoadMaster logs:
- The initially created ESP session
- If an ESP session is deleted
For further details, refer to the following article: Enhanced ESP Client Session Logging.

• WAF Audit Logs: recording WAF logs based on what has been selected for the Audit mode drop-down list in the WAF Options section of the Virtual Service modify screen. The number listed in each log entry corresponds to the ID of the Virtual Service. To get the Virtual Service ID, first ensure that the API interface is enabled (Certificates & Security > Remote Access > Enable API Interface). Then, in a web browser address bar, enter https://<LoadMasterIPAddress>/access/listvs. Check the index of the Virtual Service. This is the number that corresponds to the number on the audit log entry.

To view the logs, please select the relevant options and click the relevant View button.

Some of the logs can be filtered by a number of methods. To filter log messages by date, select the relevant dates in the from and to fields and click the View button.

When selecting dates for ESP logs, include the next date in the list to include all records for the desired dates (because the next day file may contain logs for the previous date).

One or more archived log files can be viewed by selecting the relevant file(s) from the list of file names and clicking View. You can filter the log files by entering a word(s) or regular expression in the filter field and clicking View.

Clear Extended Logs

All extended logs can be deleted by clicking Clear.

Specific log files can be deleted by filtering on a specific date range, selecting one or more individual log files in the log file list or selecting a specific log type (for example connection, security or user) in the log file list and clicking the Clear button. Click OK on any warning messages.

Save Extended Logs

Click the arrow to expand the options. Select a file type (for example, connection) or enter a date range. All extended logs can be saved to a file by clicking Save. This saves a file to your machine.

Specific log files can be saved by filtering on a specific date range, selecting one or more individual log files in the log file list or selecting a specific log type (for example connection, security or user) in the log file list and clicking Save.

Disable Local Extended ESP Logs

If Disable Local Extended ESP Logs is disabled (the default option), messages are written to the extended ESP logs expediently and are not sent to any remote syslog servers that are defined.

If Disable Local Extended ESP Logs is enabled, no messages are written to the extended ESP logs and messages are only sent to the remote logger (if one is defined). If a remote logger is not defined, no logs are recorded.

You can no longer configure the system to both populate the local extended ESP logs and send the same messages to remote syslog servers, as it was in previous releases.

Clear Temporary WAF Remote Log Data

Clear the temporary WAF remote log data.

Save Temporary WAF Remote Logs Data

Save the temporary WAF remote log data.

10.4.3 Syslog Options

The LoadMaster can produce various warning and error messages using the syslog protocol. Syslog messages include a full timestamp and the LoadMaster host name in every message. Syslog messages comply with RFC5424. These messages are normally stored locally. Syslog messages include a full timestamp and the LoadMaster host name in every message. Syslog messages comply with RFC5424.

It is also possible to configure the LoadMaster to transmit these error messages to a remote syslog server by entering the relevant IP address in the Syslog host text box, selecting the severity and clicking Add Syslog Host. Syslog messages are transmitted securely using TLS to remote servers.

The LoadMaster uses OCSP to check the validity of the server certificates supplied by configured syslog servers. If these checks fail, connections to the server are not permitted.

To delete a hosts entry, set the severity level to None.

Six different error message levels are defined and each message level may be sent to a different server. Notice messages are sent for information only; Emergency messages normally require immediate user action.

Up to 10 individual IP addresses can be specified. If there were more than 10 hosts configured in a previous LoadMaster version, after upgrading - all entries are displayed but no more can be added.

Examples of the type of message that may be seen are shown below:

• Emergency: Kernel-critical error messages
• Critical: Unit 1 has failed and unit 2 is taking over as master (in a HA setup)
• Error: Authentication failure for root from 192.168.1.1
• Warn: Interface is up/down
• Notice: Time has been synced
• Info: Local advertised Ethernet address

One point to note about syslog messages is they cascade in an upwards direction.  Thus, if a host is set to receive WARN messages, the message file includes messages from all levels above WARN but none for levels below.

If you enter the same host address again, the old entry for the same host is replaced. There is no need to have multiple entries for the same host because a single entry covers the syslog level that is defined, plus all other levels that are of higher priority. So, you only need to include one entry with the lowest level priority required.

You can also specify a non-standard port for syslog transfer by entering it into the Remote Syslog Port text box and clicking Set Port:

• If the Remote Syslog Port is not configured, logging is done on UDP on port 514.
• If the Remote Syslog Port is configured as 601, logging is done on TCP on port 601.
• If the Remote Syslog Port is configured as any port other than 601, logging is done on secured TCP, that is, over SSL on the configured port.

To enable a syslog process on a remote Linux server to receive syslog messages from the LoadMaster, the syslog must be started with the "-r" flag.

You can specify the protocol to use when connecting to a remote syslog server by selecting the appropriate option in the Remote Syslog Protocol drop-down list.

Server Certificate Validation

This check box only appears when TLS is selected as the Remote Syslog Protocol.

When Server Certificate Validation is enabled, it ensures that the host name or IP address that was used to initiate the secure connection resides in the Certificate Subject or Subject Alternative Names (SAN) of the certificate.

Server Certificate Validation is disabled by default.

10.4.4  SNMP Options

 With this menu, the SNMP configuration can be modified.

 Enable SNMP

 This check box enables or disables SNMP metrics. For example, this option allows the LoadMaster to respond to SNMP requests.

 By default, SNMP is disabled.

There is a significant performance hit when SNMP is enabled.

When the feature is enabled, the following traps are generated:

 ColdStart: generic (start/stop of SNMP sub-system)

VsStateChange: (Virtual Service state change)

 RsStateChange: (Real Server state change)

 HaStateChange: (HA configuration only: LoadMaster failover)

When using SNMP monitoring of ESP-enabled Virtual Services that were created using a template, ensure to monitor each SubVS directly rather than relying on the master service. This is because the Authentication Proxy sub-service will always be marked as up and, as a consequence, so will the master service.

The information regarding all LoadMaster-specific data objects is stored in the below enterprise-specific MIBs (Management Information Base).

MIB file	Related Data
IPVS-MIB.txt	Virtual Server stats
B100-MIB.txt	L7 LoadMaster configuration and status info
ONE4NET-MIB.txt	Enterprise ID
CERTS-MIB.txt	SSL certificate information

 These MIBs (located on the Kemp documentation page - http://kemptechnologies.com/documentation) need to be installed on the SNMP manager machine to be able to request the performance/config-data of the LoadMaster using SNMP.

The description of the counters can be taken from the LoadMaster MIBs (the description clause). Apart from just reading the MIB this can be done for Linux (and ucdsnmp) with the command:

snmptranslate -Td -OS <oid>

where <oid> is the object identifier in question.

Example: <oid> = .1.3.6.1.4.1.one4net.ipvs.ipvsRSTable.rsEntry.rSConns

snmptranslate -Td -Ov .1.3.6.1.4.1.one4net.ipvs.ipvsRSTable.rsEntry.rSConns.1.3.6.1.4.1.12196.12.2.1.12

rSConns OBJECT-TYPE

-- FROM IPVS-MIB

SYNTAXCounter32

MAX-ACCESSread-only

STATUScurrent

DESCRIPTION"the total number of connections for this RS"

::= { iso(1) org(3) dod(6) internet(1) private(4) enterprises(1) one4net(12196) ipvs(12) ipvsRSTable(2) rsEntry(1) 12 }

The Kemp OID is called one4net for legacy reasons.

The data object defined in the LoadMaster MIBS is a superset to the counters displayed by the WUI.

The data objects on the LoadMaster are not writable, so only GET requests (GET, GET-NEXT, GET-BULK, and so on) should be used.

You can retrieve SSL certificate information including the file name, certificate Subject Name, certificate serial number, certificate start date, certificate end date, and certificate issuer information using the CERTS-MIB.txt file. SNMP can display this information for up to 256 SSL certificates.

You can also retrieve disk space usage details using SNMP. The /var/log and /var/log/userlog partition information is available.

Regarding the data partitions, these are not under the Kemp OID, they are under a standard OID. The details are as follows:

• Path where the disk is mounted: .1.3.6.1.4.1.2021.9.1.2.1
• Path of the device for the partition: .1.3.6.1.4.1.2021.9.1.3.1
• Total size of the disk/partition (kBytes): .1.3.6.1.4.1.2021.9.1.6.1
• Available space on the disk: .1.3.6.1.4.1.2021.9.1.7.1
• Used space on the disk: .1.3.6.1.4.1.2021.9.1.8.1
• Percentage of space used on disk: .1.3.6.1.4.1.2021.9.1.9.1
• Percentage of inodes used on disk: .1.3.6.1.4.1.2021.9.1.10.1

Enable SNMP V3

This check box enables SNMPv3 metrics. SNMPv3 primarily added security and remote configuration enhancements to SNMP.

When this option is enabled, two additional fields become available - Username and Password.

Authentication protocol

Select the relevant Authentication protocol - MD5 or SHA. SHA is recommended.

Privacy protocol

Select the relevant Privacy protocol - AES or DES. AES is recommended.

 SNMP Clients

 With this option, the user can specify from which SNMP management hosts the LoadMaster will respond to.

 If no client has been specified, the LoadMaster will respond to SNMP management requests from any host.

 SNMP Community String

 This option allows the SNMP community string to be changed. The default value is "public".

Allowed characters in the Community String are as follows: a-z, A-Z, 0-9, _.-@()?#%^+~!.

 Contact

 This option allows the SNMP Contact string to be changed. For example, this could be e-mail address of the administrator of the LoadMaster.

 SNMP Location

 This option allows the SNMP location string to be changed.

 SNMP traps

 When an important event happens to a LoadMaster a Virtual Service or to a Real Server, a trap is generated. These are sent to the SNMP trap sinks. If a change is made, the LoadMaster waits for all changes to finish and then waits five seconds before reading it. At that point, all changes will have stabilized and SNMP traps can then be sent. If there are any state changes within the five second wait, the state changes are handled and then the wait is restarted.

 Enable/Disable SNMP Traps

 This toggle option enables and disables the sending of SNMP traps.

 SNMP traps are disabled by default.

Send SNMP traps from the shared address

This check box is only visible when the LoadMaster is in HA mode.

By default, SNMP traps are sent using the IP address of the master HA unit as the source IP address. Enabling this option will send SNMP traps from the master HA unit using the shared IP address.

 SNMP Trap Sink1

This option allows the user to specify a list of hosts to which a SNMPv1 trap will be sent when a trap is generated.

 SNMP Trap Sink2

This option allows the user to specify a list of hosts to which a SNMPv2 trap will be sent when a trap is generated.

10.4.5 Email Options

This screen permits the configuration of email alerting for LoadMaster events.  Email notification can be delivered for six predefined informational levels.  Each level can have a distinct email address and each level supports multiple email recipients. Email alerting depends on a mail server, support for both an open relay mail server and a secure mail server is provided.

A sample email alert is above. This is from the Info level. Syslog emails contain one or more lines of syslogs (they are grouped together if possible).

 SMTP Server

Enter the FQDN or IP address of the mail server. If you are using FQDN please make sure to set the DNS Server.

Port

Specify the port of the SMTP server which will handle the email events.

Server Authorization (Username)

Enter the email address to use as the 'From' address in the email headers.

Authorization Password

Enter the password if your mail server requires authorization for mail delivery. This is not a required if you mail server does not require authorization.

Local Domain

Enter the top-level domain, if your mail server is part of a domain. This is not a required parameter.

Connection Security

Select the type of security for the connection;

None

STARTTLS, if available

STARTTLS

SSL/TLS

Set Email Recipient

In the various Recipients text boxes, enter the email address that corresponds with the level of notification desired. Notifications will be sent for the level of severity, plus anything with a higher severity - so there is no need to enter the email address in multiple text boxes as that will lead to duplicate notifications being sent. For example, any email address entered into the Critical Recipients text box will get critical emails, but will also get emergency emails.

Multiple email addresses are supported by a comma-separated list, such as:

Info Recipients:  info@kemptechnologies.com, sales@kemptechnologies.com

Error Recipients:  support@kemptechnologies.com

Clicking the Send Test Email to All Recipients button sends a test email to all the listed email recipients.

An example email alert is shown above. The Subject of the email contains the relevant highest alert level. There can be multiple alerts in a single email - they are collated together for a period of 30 seconds to avoid flooding inboxes.

10.4.6 SDN Log Files

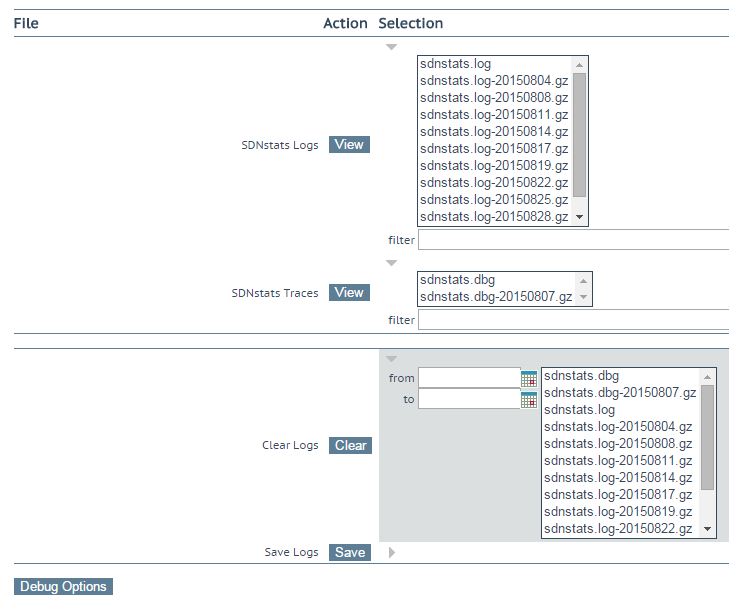

The SDN Log Files screen provides options for logs relating to the SDN feature. To view all of the options click the icons.

View SDNstats Logs

To view the SDNstats logs please select the relevant log files and click View.

The sdnstats.log file is the main, rolling log file. The .gz files are backups of logs for a particular day.

One or more archived log files can be viewed by selecting the relevant file(s) from the list of file names and clicking the View button. The log files can be filtered by entering a word(s) or regular expression in the filter field and clicking the View button.

View SDNstats Traces

This option is only available if SDNstats debug logging is enabled (System Configuration > Logging Options > SDN Log Files > Debug Options > Enable Debug Log).

To view the SDNstats logs please select the relevant log files and click View.

One or more archived log files can be viewed by selecting the relevant file(s) from the list of file names and clicking View. The log files can be filtered by entering a word(s) or regular expression in the filter field and clicking View.

The traces show probing results - this indicates if the LoadMaster can successfully communicate with the SDN controller.

Clear Logs

All SDN logs can be deleted by clicking the Clear button.

A specific range of log files can be filtered by specifying a date range using the from and to fields. Specifying a date range will simply select the relevant log files that apply in the right-hand box. Individual log files can still be selected/deselected as needed on the right.

Important: If the sdnstats.log file is selected, all logs in that file will be cleared, regardless of what dates are selected in the date range fields.

Save Extended Logs

All SDN logs can be saved to a file by clicking the Save button.

Specific log files can be saved by filtering on a specific date range and/or selecting one or more individual log files in the log file list in the log file list and clicking the Save button.

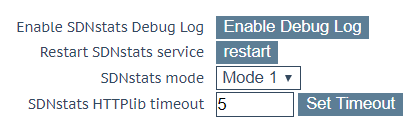

10.4.6.1 Debug Options

To get to the SDN Debug Options screen, click the Debug Options button on the SDN Log Files screen.

Enable Debug Log

Enable SDNstats debug logging.

To view the SDN Statistics logs, open System Configuration > Logging Options > SDN Log Files, select the log file you wish to view and click the View button.

Debug logging should only be enabled when troubleshooting because it will impact performance of the LoadMaster.

Restart SDNstats service

When troubleshooting issues with SDN, the entire SDN service can be restarted. Restarting the connection will not affect any traffic connections - it just restarts the connection between the LoadMaster and the SDN controller.

If successful the Process ID will change to a new id.

The Process ID can be found by clicking the Debug button in System Configuration > Logging Options > System LogFiles and clicking the ps button.

This will restart the connection to all attached SDN controllers.

SDNstats mode

There are two modes that can be used to gather the SDN statistics.

The mode can be set by going to System Configuration > Logging Options > SDN Log Files > Debug Options and setting the SDNstats mode.

The modes are described below:

Mode 1: When set to mode 1, the statistics are taken from the switch port that is connected to the server and the statistics are relayed back to the LoadMaster.

Mode 2: When set to mode 2, the information is taken from all of the switch ports along the path.

SDNstats HTTPlib timeout

This field enables you to increase the amount of time to wait for the SDN controller to respond. This can reduce the possibility of time outs caused by latency in the environment. Valid values for this field range from 5 to 60.

10.5 Miscellaneous Options

10.5.1 WUI Settings

Only the bal user or users with 'All Permissions' set can use this functionality. Users with different permissions can view the screen but all buttons and input fields are grayed out.

Enable Hover Help

Enables blue hover notes shown when the pointer is held over a field.

Message of the Day (MOTD)

Type in text into the field and click the Set MotD button. This message will be displayed within the LoadMaster Home screen.

If WUI Session Management is enabled, the MOTD is displayed on the login screen rather than the Home screen.

The maximum allowed message length is 5,000 characters. HTML is supported, but not required. Single quotes (') and double quotes (") are not allowed, though you can use the equivalent HTML character codes. For example, entering &#34it&#39s allowed&#34 would result in a MOTD of "it's allowed".

Set Statistics Display Size

This sets the maximum number of rows that can be displayed in the Statistics page. The allowable range is between 10 and 100 rows being displayed on the page.

End User License

Click the Show EULA button to display the LoadMaster End User License Agreement.

Enable Historical Graphs

Enable the gathering of historical statistics for the Virtual Services and Real Servers.

Collect All Statistics

By default, this option is disabled. This means that only the statistics for the Virtual Services and Real Servers that are configured to be displayed on the home page are collected. Enabling this option will force the LoadMaster to collect statistics for all Virtual Services and Real Servers.

If there are a large number of Virtual Services and Real Servers this option can cause CPU utilization to become very high.

Update Verification Options

This field is set to Required by default. The other options are Optional and No verification file - deprecated. The different options are described below:

• Required: A Verification File option is displayed in the Update Software screen for updating the LoadMaster software and installing add-on packages. In this case, the verification file is mandatory and you cannot update the LoadMaster software or install an add-on without providing the verification file.

• Optional: A Verification File option is displayed in the Update Software screen for updating the LoadMaster software and installing add-on packages. In this case, the verification file is optional and you can update the LoadMaster software or install an add-on without providing the verification file.

• No verification file - deprecated: The Verification File option is not displayed in the Update Software screen. In this case, you can update the LoadMaster software or install an add-on without providing the verification file. This option is provided for compatibility with legacy releases only and is deprecated.

The Verification File option provides an extra level of verification above the integrity checks that are always performed on update and add-on images, by allowing a secondary XML verification file to be uploaded at the same time that you are uploading a patch or add-on. This XML file is used to verify the digital signatures associated with the update or add-on which will not be installed if the patch cannot be verified against the uploaded XML file.

For FIPS machines - the Update Verification Options field is not shown because the uploading of a secondary XML verification file is mandatory when uploading a patch or add-on.

10.5.2 L7 Configuration

Allow Connection Scaling over 64K Connections

Under very high load situations, Port Exhaustion can occur. Enabling this option will allow the setting of Alternate Source Addresses which can be used to expand the number of local ports available.

Always Check Persist

By default, the L7 module will only check persist on the first request of a HTTP/1.1 connection. Selecting Yes for this option will check the persistence on every request. Selecting Yes - Accept Changes means that all persistence changes will be saved, even in the middle of a connection.

Add Port to Active Cookie

When using active cookies, the LoadMaster creates the cookie from (among other things) the IP address of the client. However, if many clients are behind a proxy server, all of those clients come from the same IP address. Turning this on adds the clients source port to the string as well, making it more random.

Conform to RFC

This option addresses parsing the header of a HTTP request in conformance with RFC 1738.

The request consists of 3 parts: GET /pathname HTTP/1.1 and when "conform" is on, the LoadMaster scans through the pathname until it finds a space. It then presumes that the next thing is HTTP/1.x. If the pathname contains spaces and the browser is conformant to the RFC, the pathname will have the spaces escaped to "%20" so the scan for a space will function correctly.

However, on some non-conformant browsers, spaces are not escaped and the wrong pathname is processed. And since the system cannot find the HTTP/1.x, the LoadMaster will reject the request.

Turning off this feature forces the LoadMaster to assume that the pathname extends to the last space on the line. It is then assumed that what follows is HTTP/1.x. So making pathnames with spaces in them useable - however, it is non-conformant to the RFC 1738.

Close on Error

If the LoadMaster has to send back a failure report to the client, for example if a file is newer in the cache; this forces the LoadMaster to close the connection after sending the response. You can continue using the connection after sending a failure report, but some systems could become confused. This option forces the close instead of continuing.

Add Via Header In Cache Responses

The relevant HTTP RFC states that proxies should add a Via header to indicate that something came from the cache. Unfortunately, older LoadMaster versions did not do this. This check box is used to enable backward compatibility with older versions (if needed).

Real Servers are Local

The LoadMaster has an automatic detection of local/non-local clients for the purpose of transparency (selective transparency). This works well in most cases, but it does not work well if the client is actually a Real Server. Turning this option on helps the LoadMaster to determine that a Real Server is actually local, therefore making selective transparency work.

When this option is enabled in a two-armed environment (with clients and Real Servers on the second interface) the Real Servers are treated as if they are local to the clients, that is, non-transparent. If the Real Servers are on a completely different network, then they cannot be local and will always be treated as not local. Local is defined as being on the same network.

Enabling this option requires careful network topology planning and should not be attempted before contacting the Kemp Support team.

Drop Connections on RS Failure

This is useful for Microsoft Outlook users whereby it closes the connection immediately when a Real Server failure is detected.

Exchange users should always select this option. The Idle Connection Timeout option is also set to 86400 at the same time. For further information, refer to the Microsoft Exchange 2010 Deployment Guide.

Drop at Drain Time End

If enabled, all open connections to disabled Real Servers will be dropped at the end of the Real Servers Drain Stop Time or immediately if there are no persist entries associated with the Real Server.

L7 Authentication Timeout (secs)

This option supports the integration with 3rd party, multi-factor, authentication solutions which may have secondary processes such as SMS or telephone verification. This setting determines how long (in seconds) the SSO form waits for authentication verification to complete before timing out.

L7 Client Token Timeout (secs)

The duration of time (in seconds) to wait for the client token while the process of authentication is ongoing (used for RSA SecurID and RADIUS authentication). The range of valid values is 60 to 300. The default value is 120.

L7 Wait after POST(ms)

In LoadMaster firmware version 7.2.51, a new option was introduced called L7 Wait after POST(ms). For further details, refer to the following article: L7 Wait After POST Option.

 L7 Connection Drain Time (secs)

 L7 Connection Drain Time impacts only new connections. Existing connections continue relaying application data to a disabled server until that connection is terminated, unless the Drop at Drain Time End checkbox is selected.

 Setting the L7 Connection Drain Time (secs) to 0 forces all the connections to be dropped immediately when a Real Server is disabled.

If the service is operating at Layer 4, drain stop does not apply. In this case, the persistence record is discarded, the connection is scheduled to an enabled and healthy server and a new persistence record is created.

When you disable the Real Server, it does not close all connections immediately - it is a gentle close down. New connections will not go to the Real Server during the drain time unless there is a valid persistence record for it. When the drain time expires, if Drop at Drain Time End is selected, all existing connections are forcibly removed. Otherwise, the connection remains open. The drain stop timer does not impact existing connections unless Drop at Drain Time End is enabled.

The drain stop timer does not impact existing connections.

 Additional L7 Header

 This enables Layer 7 header injection for HTTP/HTTPS Virtual Services. Header injection can be set to X-ClientSide (Kemp LoadMaster specific), X-Forwarded-For, or None. The default value is X-Forwarded-For.

100-Continue Handling

Determines how 100-Continue Handling messages are handled. The available options are:

RFC-2616 Compliant: conforms with the behavior as outlined in RFC-2616

Require 100-Continue: forces the LoadMaster to wait for the 100-Continue message

RFC-7231 Compliant: ensures the LoadMaster does not wait for 100-Continue messages. This is the default value.

Modifying how 100 Continue messages are handled by the system requires an understanding of the relevant technologies as described in the RFCs listed above. It is recommended that you speak with a Kemp Technical Support engineer before making changes to these settings.

Allow Empty POSTs

By default the LoadMaster blocks POSTs that do not contain a Content-Length or Transfer-Encoding header to indicate the length of the requests payload. When the Allow Empty POSTs option is enabled, such requests are assumed to have no payload data and are therefore not rejected.

In version 7.1-24 and later releases, the supported Content-Length limit has been increased to 2TB (from 2GB).

Force Complete RS Match

By default, when the LoadMaster is trying to locate a Real Server for use with content switching, it tries to use the same Real Server as currently selected, even if the port is not the same. Enabling this option forces the port to also be compared.

Least Connection Slow Start

When using the Least Connection or Weighted Least Connection scheduling methods, a period can be specified globally using the Least Connection Slow Start field during which the number of new connections are throttled and gradually increased to a Real Server which has come online and has returned to the scheduling process. When any Real Server is brought back into service and the Least Connection Slow Start is set to a non-zero value, the LoadMaster throttles new traffic to the Real Server so that is it not potentially overwhelmed by a sudden stream of traffic. Under testing, the observed Connections Per Second (CPS) rate limit is observed to grow slowly over the specified time period until the full Real Server connection capacity is permitted. The slow start applies regardless of the reason the Real Server was removed from the scheduling process (for example, manually disabled, rate-limited, and so on).

The value of this Slow Start period can be between 0 (disabled - this is the default) and 600 seconds.

The Least Connection Slow Start feature can be used in conjunction with the Connection Rate Limit feature that was introduced in LoadMaster firmware version 7.2.51. For further details on this, refer to the following article: Real Server Rate Limit.

Share SubVS Persistence

By default, each SubVS of a Virtual Service has an independent persistence table. Enabling this option will allow the SubVS to share this information. For this to work, the persistence mode must be the same on all SubVSs within that Virtual Service. A reboot is required to activate this option.

The only Persistence Mode that cannot be shared is SSL Session ID.

When setting up shared SubVS persistence, there are some requirements to get this feature fully functional:

All Real Servers in the SubVS need to be the same

The Persistence Mode needs to be the same across all SubVSs

The timeouts need to be set with the same timeout value

If the above requirements are not correct, the persistence may not work correctly either within the SubVS or across the SubVSs.

Log Insight Message Split Interval

The Log Insight Split Interval value controls how many syslog messages should be sent to each server in the pool before moving to the next server. For example, if there are three Log Insight nodes and the Log Insight Message Split Interval is set to 1 - a single message is sent to server A, and then to server B and then server C before again distributing a message to server A.

Include User Agent Header in User Logs

When enabled, the User Agent header field gets added to the User Logs.

NTLM Proxy Mode

In LoadMaster firmware version 7.2.48.4 Long Term Support (LTS) and 7.2.53, the NTLM Proxy Mode option was added to the LoadMaster. When upgrading from an older version of LoadMaster firmware to one of these versions (or above) the NTLM Proxy Mode option is not enabled by default. As a result, you must manually enable NTLM Proxy Mode after upgrading.

For all new deployments of LoadMasters after 7.2.48.4 LTS or 7.2.53, NTLM Proxy Mode is enabled by default.

When NTLM Proxy Mode is enabled, NTLM authorization works against the Real Servers. If NTLM Proxy Mode is disabled, the old insecure NTLM processing is performed.

Kemp highly recommends ensuring that NTLM Proxy Mode is enabled.

When NTLM Proxy Mode is enabled globally, the Client Authentication Mode in Virtual Services is called NTLM-Proxy. If NTLM Proxy Mode is disabled globally, the Client Authentication Mode in Virtual Services is called NTLM.

10.5.3 Network Options

Enable Server NAT

This option enables Server Network Address Translation (SNAT). If this is disabled, the Real Server IP address is used when connecting.

If this is enabled, addresses that are of the same address family (IPv4/IPv6) as the primary address of the default gateway are NATed to the "primary address". If the Use Address for Server NAT is enabled in the Virtual Service, the Virtual Service address will be used. For further information on the Use Address for Server NAT option, refer to the Standard Options section.

If the source address is not in the same family as the primary address, then the address will be SNATed to the first additional address which is on the same network as the default gateway for that address family.

For example, if the primary address of the default interface is an IPv6 address, then IPv6 addresses will be SNATed to that address. If the primary address is an IPv4 address, then IPv6 addresses will be SNATed to the first additional address (IPv6) which is on the same network as the IPv6 default gateway.

Similarly, if the primary address of the default interface is an IPv4 address, then IPv4 addresses will be SNATed to that address. If the primary address is an IPv6 address, then IPv4 addresses will be SNATed to the first additional address (IPv4) which is on the same network as the IPv4 default gateway.

Connection Timeout (secs)

The length of time (in seconds) that a connection may remain idle before it is closed. This value is independent of the Persistence Timeout value.

Setting a value of 0 will reset the value to the default setting of 660 seconds.

Enable Non-Local Real Servers

Allow non-local Real Servers to be assigned to Virtual Services. This may be needed if the LoadMaster can only have one interface and the Real Servers are on a different network to the interface. This option is enabled by default.

Enable Alternate GW support

If there is more than one interface enabled, this option provides the ability to move the default gateway to a different interface.

Enabling this option adds another option to the Interfaces screen - Use for Default Gateway.

The Enable Alternate GW support option will appear on a different screen in GEO only LoadMasters.

Alternate default gateway support is not permitted in a cloud environment.

Enable TCP Timestamps

The LoadMaster can include timestamps in the SYN on both connections from clients and connections to Real Servers.

Note this may impact connections that are NATed and should only be enabled on consultation with Kemp Customer Support.

Enable TCP Keepalives

By default the TCP keepalives are enabled which improves the reliability of TCP connections that are long lived (SSH sessions). Keepalives are not usually required for normal HTTP/HTTPS services, but may be required for FTP services, for example.

The keepalive messages are sent from the LoadMaster to the Real Server and to the client.  Therefore, if the client is on a mobile network, there may be an issue with additional data traffic.

Enable Reset on Close

When this setting is disabled (the default), unencrypted and encrypted TCP connections to the LoadMaster on both the client and server sides are closed using the standard TCP exchange of FIN and ACK packets. In situations where a Virtual Service is under a high incoming connection load, the ability to establish new connections to the Virtual Service can be improved by turning on Enable Reset on Close; this tells the LoadMaster to close TCP connections with a single TCP RST (reset) packet, rather than the normal TCP closing exchange.

Subnet Originating Requests

With this option enabled, the source IP address of non-transparent requests will come from the LoadMaster's address on the relevant subnet, that is, the subnet where the Real Server is located or the subnet of the gateway that can route to the Real Server (if the Real Server is non-local and configured to use static route). For more information on configuring a static route, refer to the following Kemp knowledge base article: Creating a Static Route.

This is the global option/setting.

It is recommended that the Subnet Originating Requests option is enabled on a per-Virtual Service basis.

When the global option is disabled, the per Virtual Service Subnet Originating Requests option takes precedence, that is, it can be enabled or disabled per Virtual Service. This can be set in the Standard Options section of the Virtual Services properties screen (if Transparency is disabled). For more information on the per Virtual Service option, refer to the Standard Options section.

If this option is switched on for a Virtual Service that has SSL re-encryption enabled, all connections currently using the Virtual Service will be terminated because the process that handles the connection must be killed and restarted.

Enable Strict IP Routing

When this option is selected, only packets which arrive at the machine over the same interface as the outbound interface are accepted.

The Use Default Route Only option may be a better way to achieve this.

Handle non HTTP Uploads

Enabling this option ensures that non HTTP uploads (such as FTP uploads) function correctly.

Enable Connection Timeout Diagnostics

By default, connection timeout logs are not enabled. This is because they may cause too many unnecessary logs. If you wish to generate logs relating to connection timeouts, select the Enable Connection Timeout check box.

Legacy TCP Timewait Handling

Enable this option to revert to the legacy mode of reusing TCP timewait connections.

Only enable the Legacy TCP Timewait Handling option after consulting with Kemp Support.

Enable SSL Renegotiation

By default, the LoadMaster allows a client to automatically renegotiate during an SSL transaction. Unchecking this option causes SSL connections to terminate if a renegotiation is requested by the client.

Force Real Server Certificate Checking

By default, when re-encrypting traffic the LoadMaster does not check the certificate provided by the Real Server. This option forces the LoadMaster to verify that the certificate on the Real Server is valid, that is, the certificate authority and expiration are OK. This includes all intermediate certificates.

Disable Master Secret Handling

In LoadMaster firmware version 7.2.52, the Disable Master Secret Handling check box was added. By default, the LoadMaster processes the Master Secret SSL Extension. This can cause problems for some legacy clients so it is possible to optionally disable this functionality by selecting the Disable Master Secret Handling check box. For further details, refer to the following article: Disable Master Secret Handling.

Size of SSL Diffie-Hellman Key Exchange

Select the strength of the key used in the Diffie-Hellman key exchanges. If this value is changed, a reboot is required to use the new value. The default value is 2048 Bits.

As of LoadMaster firmware version 7.2.53, you can select 4096 as a value in the Size of SSL Diffie-Hellman Key Exchange drop-down list. For further details, refer to the following article: 4k SSL Diffie-Hellman Key Exchange Size.

Log SSL errors

Set the level of SSL error reporting in the logs. By default, the LoadMaster will not log common SSL alerts. You can increase the verbosity of SSL error logging by setting this value to either of the following:

• Fatal errors only - only fatal errors are logged
• Include Client errors - this setting logs all client errors reported to the LoadMaster.
• All errors - this setting logs all SSL errors observed in the LoadMaster, including all common alerts and warnings that may or may not indicate an actual issue.

OpenSSL Version

By default, the LoadMaster uses the latest version of OpenSSL. This may cause performance problems on heavily-loaded sites. It is possible using the OpenSSL version field to switch back to the old library which should alleviate some of these problems. Using the old library means that there is no support for TLS 1.3. Therefore, the TLS1.3 check box is no longer available in the SSL Properties section of the Virtual Service modify screen.

If you switch from using the old library to using the current library in the OpenSSL Version field, TLS1.3 is automatically re-enabled on all Virtual Services.

This option is not applicable for Cavium5 machines - those cards do not support the old libraries. Therefore, this option is not applicable following LoadMaster/Kemp ECS Connection Manager models:
- LM-X25
- LM-X40 Rev 05
- LM-X40M
- LM XHC 25G/40G/100G
- ECS Connection Manager H3 Rev 02
- ECS Connection Manager H3M
- ECS Connection Manager H3 25G/40G/100G
For these LoadMaster models, the OpenSSL Version field is available but the LoadMaster will continue to use the current OpenSSL implementation even if the OpenSSL Version field is set to Use older SSL library - no TLS 1.3.

Switching the OpenSSL version causes a total SSL outage during the switch. This operation should not be performed during working hours.

Use Default Route Only

Forces traffic from Virtual Services that have default route entries set, to be only routed to the interface where the Virtual Service's default route is located. This setting can allow the LoadMaster to be directly connected to client networks without returning traffic directly using the adjacent interface.

Enabling this option affects all Virtual Services in the same network.

HTTP(S) Proxy

This option allows clients to specify the HTTP(S) proxy server and port the LoadMaster will use to access the internet.

10.5.4  AFE Configuration

Maximum Cache Size

This defines how much memory can be utilized by the cache in megabytes. The Maximum Cache Size defines how much of the main memory should be assigned to the cache. It can never be more than one fifth of the total memory of the machine. Assigning more memory for the cache will reduce the amount of memory available for connections and persist entries. In a system that is correctly configured, there should be enough memory for a full cache and all connections that the system that is expected to handle. If this is not the case, the system could run out of memory.

Cache Virtual Hosts

When this option is disabled, the cache presumes there is only one virtual host supported on the Real Server. Enabling this option allows the cache to support multiple virtual hosts which have different content.

File Extensions Not to Cache

A list of files types that should not be cached.

File Extensions Not to Compress

A list of file types that should not be compressed.

Detection Rules

Select the relevant detection rules and click the Install New Rules button to install them.

If you are implementing SNORT rules, please remember the following:

• The destination port must be $HTTP_PORTS
• A 'msg' may be optionally set
• The flow must be set to 'to_server,established'
• The actual filter may be either 'content' or 'pcre'
• Additional 'http_' parameters may be set
• The classtype must be set to a valid value

To get updated or customized SNORT rules, please refer to the SNORT website: https://www.snort.org/.

Detection Level

Supports four levels of what to do when problems are encountered:

Low - only logging with no rejection

Default - only critical problems rejected

High - Serious and critical problems rejected

Paranoid - All detected problems rejected

The four levels of severity are classified according to the classtype value in the SNORT rules configuration file. If the severity is less than the configured value, a diagnostic is generated and the call is dropped. The levels of severity correspond to the following values - Low = 1, Default = 2, and High = 3. You can view the SNORT rule classtypes and their corresponding values in the table below.

Classtype	Value
not-suspicious	3
unknown	3
bad-unknown	2
attempted-recon	2
successful-recon-limited	2
successful-recon-largescale	2
attempted-dos	2
successful-dos	2
attempted-user	1
unsuccessful-user	1
successful-user	1
attempted-admin	1
successful-admin	1
rpc-portmap-decode	2
shellcode-detect	1
string-detect	3
suspicious-filename-detect	2
suspicious-login	2
system-call-detect	2
trojan-activity	1
unusual-client-port-connection	2
network-scan	3
denial-of-service	2
non-standard-protocol	2
protocol-command-decode	3
web-application-activity	2
web-application-attack	1
misc-activity	3
misc-attack	2
icmp-event	3
kickass-porn	1
inappropriate-content	1
policy-violation	1
default-login-attempt	2
sdf	2

Client Limiting

It is possible to set a limit of the number of connections per second from a given host (limits up to 100K are allowed). After setting the "default limit" to a value, the system allows you to set different limits for specific hosts/networks so you can limit a network and/or host.

If you set a network and a host on that network, the host should be placed first since the list is processed in the order that it is displayed.

To turn client limiting off, set the Client Connection Limiter value to 0.

In LoadMaster firmware version 7.2.52, the Client Limiting options were moved to System Configuration > Limiting. For further details, refer to the Rate Limiting Feature Description.

10.5.5 SDN Configuration

Add New

Add a new SDN controller connection.

Modify

Modify an existing SDN controller connection.

Delete

Delete an existing SDN controller connection.

10.5.5.1 SDN Controller Settings

When adding a new SDN controller connection, initially a screen will appear asking for the Cluster, IPv4 address and Port. After an SDN controller connection has been added, the settings can be updated by clicking Modify on the SDN Statistics screen.

Cluster

The cluster that the SDN controller will be a member of.

Keep the Cluster field set to the default value.

IPv4

The IPv4 address of the SDN controller.

Port

The port of the SDN controller WUI.

HTTPS

Use HTTP/HTTPS to access the SDN controller.

User

The username to be used to access the SDN controller.

Password

The password of the user to be used to access the SDN controller.



10.5.6 Kemp 360 Central Activation Settings

To view the Kemp 360 Central Activation Settings, click System Configuration > Miscellaneous Options > Kemp 360 Central Activation Settings. If the LoadMaster is already licensed from Kemp 360 Central, the Kemp 360 Central IP address and port appear here. If blank, you can use the controls on this page to provide the IP address and port of a Kemp 360 Central deployment from which you want to request a license. By activating your LoadMaster here, it is automatically added to Kemp 360 Central and the system can start obtaining statistics from it immediately.

The Deactivation button removes the current license from the LoadMaster, returning the LoadMaster to an unlicensed state. This stops any active traffic to the LoadMaster, and so should be invoked with great caution.

For more information, refer to the Metered Licensing Management Installation Guide.

11 Network Telemetry

Network telemetry requires an external collector to collect the NetFlow/IPFIX application flow data. The Kemp Flowmon Collector is the ideal network monitoring appliance that captures, stores, and processes flow data, including normalization, visualization, and analysis. You can download the Kemp Flowmon Collector by clicking Download Flowmon Collector on the Network Telemetry screen.

Network telemetry is available by default on all new LoadMaster deployments for firmware version 7.2.53 and above.

Enabling Network Telemetry may impact performance throughputE

On Long Term Support (LTS) LoadMaster versions, or older versions of the LoadMaster that have been patched to a newer version, you may need to enable the network telemetry feature. To enable the network telemetry feature, click Network Telemetry in the main menu of the LoadMaster WUI and click Install.

After you successfully install network telemetry on the LoadMaster, you should see a number of fields to configure on the Network Telemetry screen. Details on each of these options are below:

• IP address of Collector: Define the destination IP address or Fully Qualified Domain Name (FQDN) and port number of your IPFIX collector (for example, 1.1.1.1:2055 or collector.local:3000). The IPFIX export runs over the UDP protocol and you must ensure that the collector is reachable over the network from the LoadMaster. Once you configure the collector IP address or FQDN you can validate the network connectivity by clicking Validate and clicking OK. Validation is based on a plain ICMP ping message and it validates the IP or FQDN (not the port).

Because the network telemetry is not encrypted it should only be exported over a secure network. This is not a LoadMaster limitation - this is because IPFIX is a plain text UDP packet stream.

• Active Timeout: Set the global active timeout value. The default value is 300.

• Inactive Timeout: Set the global inactive timeout value. The default value is 30.

• Export Protocol: The export protocol (IPFIX is currently the only selectable protocol).

• Advanced Settings: Enable/disable the check boxes here depending on what values you would like to collect.

There are some check boxes in the Advanced settings section that are not possible to change at present. These will be configurable in a future release.

• Activate export of Application Flow Data: Select the relevant interface (or interfaces) to collect data for.

The network interface screens (for example, System Configuration > Network Setup > Interfaces > eth0) indicate if network telemetry monitoring is enabled or disabled for that interface (depending on what interfaces are selected on the Network Telemetry screen).

In order to enable Network Telemetry on an interface, the interface must have an IP Address. Interfaces configured with Virtual LANs can not have Network Telemetry enabled unless an IP Address is assigned.



When two LoadMasters are operating as a HA pair, the Network Telemetry traffic will present from the physical address of the LoadMaster and not the shared address. It is necessary to create a profile for both the LoadMasters in the HA pair on the Kemp Flowmon Collector.

For further details on network telemetry, refer to the Network Telemetry Feature Description on the Kemp Documentation page.

12 Help

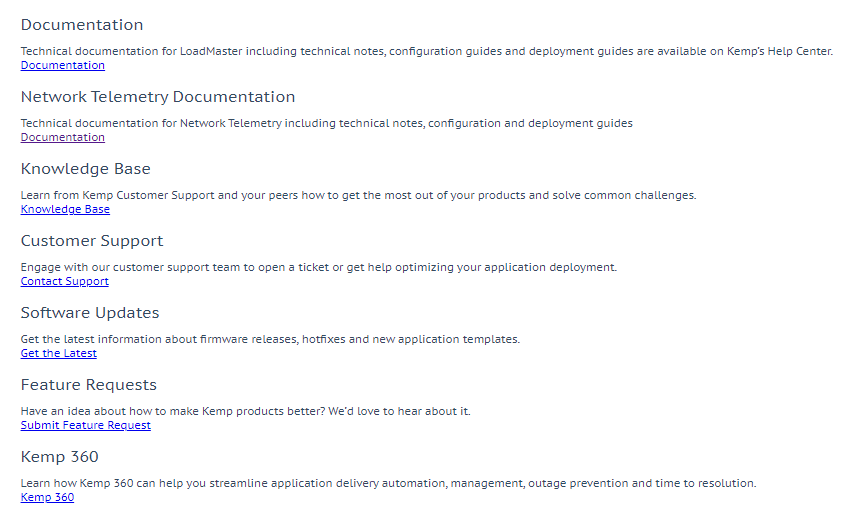

The Help screen provides a consolidated location for access to external Kemp services.

Documentation

Access the Kemp technical documentation, including Deployment Guides, Installation Guides, Feature Descriptions, Technical Notes, Overviews, Release Notes, and Interface Descriptions.

Network Telemetry Documentation

Access the documentation relating to the network telemetry feature.

Knowledge Base

Access Knowledge Base articles on a variety of subjects such as SSO/ESP, Fault Tolerance, Operational Maintenance, Applications, Security, Platforms, Routing/Switching, and Content Delivery.

Customer Support

Open a ticket with Kemp's Customer Support team.

Software Updates

Get the latest information about firmware releases, hot fixes and new application templates.

Feature Requests

Take a look at existing feature requests submitted by other customers, and raise your own feature request.

Kemp 360

Learn about our Kemp 360 products, which can help to streamline application delivery automation, outage prevention, and time to resolution.

References

Unless otherwise specified, the below documents can be found on http://kemptechnologies.com/documentation.

Virtual Services and Templates, Feature Description

RSA Two Factor Authentication, Feature Description

Content Rules, Feature Description

LoadMaster 5.1 to 6.0 Migration, Technical Note

Header Modification Guide, Technical Note

GEO, Feature Description

GEO Sticky DNS, Feature Description

Packet Trace Guide, Technical Note

VMware Tools Add-On Package, Feature Description

Custom Authentication Form, Technical Note

Port Following, Feature Description

SSL Accelerated Services, Feature Description

Kerberos Constrained Delegation, Feature Description

IPsec Tunneling, Feature Description

Kemp LoadMaster, Product Overview

SDN Adaptive Load Balancing, Feature Description

DoD Common Access Card (CAC) Authentication, Feature Description

RESTful API, Interface Description

Licensing, Feature Description

Radius Authentication and Authorization, Technical Note

LoadMaster Clustering, Feature Description

MS Exchange 2010, Deployment Guide

RADIUS Authentication and Authorization, Technical Note

User Management, Feature Description

Last Updated Date

This document was last updated on 19 March 2021.
