1 Introduction

Full HTTP/2 support is available across all Kemp Application Delivery Controllers (ADCs) and can be enabled at the push of a button. Kemp's HTTP/2 support greatly improves user experience on applications and websites, simplifying the performance upgrade path for site administrators.

HTTP/2 is the latest version of Hypertext Transfer Protocol (HTTP) and is designed to optimize the delivery of content on everything from websites to mobile apps leading to a much better end user experience. It is supported across modern browsers including the latest versions of Google Chrome, Mozilla Firefox, Apple Safari, Microsoft Internet Explorer, and Edge.

HTTP/2 has huge potential. There are a number of inflexibility, inefficiency and performance challenges with HTTP/1 that are solved by HTTP/2. Several of the benefits of HTTP/2 are below:

Multiplexing and concurrency: Several requests can be sent in rapid succession in the same TCP connection. Responses can be received out of order - eliminating the need for multiple connections between the client and the server.

Stream dependencies: The client can indicate to the server which of the resources are more important than others

Header compression: HTTP header size is drastically reduced

Server push: The server can send resources that the client has not yet requested

The LoadMaster also supports HTTP/2 - the LoadMaster can convert HTTP/2 traffic to HTTP/1.1 traffic in the back-end before it hits the Real Servers. These Real Servers do not need to have SSL enabled.

The HTTP/2 functionality in the LoadMaster provides optimizations, such as request pipelining and request multiplexing to reduce the request load on back-end servers. This results in a significantly improved end user experience when using a browser with HTTP/2 support. HTTP/2 works with a number of LoadMaster features, such as content switching, content caching, advanced persistence, header injection and the Web Application Firewall (WAF).

1.1 Document Purpose

The purpose of this document is to show you how to enable HTTP/2 in the LoadMaster and provide test website content for you to test the functionality against.

1.2 Intended Audience

This document is intended to be used by anyone interested in enabling HTTP/2 in the LoadMaster.

1.3 Related Firmware Version

Published with LMOS version 7.2.48.3 LTS. This document has not required changes since 7.2.48.3 LTS. However, the content is in sync with the latest LoadMaster LTS firmware.

1.4 Limitations

Some limitations are listed below:

Certain ciphers are not supported when using HTTP/2 - but these are automatically disabled when HTTP/2 support is enabled in the LoadMaster.

If either NT LAN Manager (NTLM) or Kerberos authentication is enabled on a Virtual Service, HTTP/2 will be disabled. Similarly, if HTTP/2 support is enabled on a Virtual Service, NTLM/Kerberos authentication will be disabled.

SAML authentication does not currently work correctly with HTTP/2.

TLS 1.2 must be enabled in the Supported Protocols in the SSL Properties section for HTTP/2 to work

The Process Responses option in the WAF Options section cannot be enabled if HTTP/2 is enabled

Content switching when matching inside a POST does not work with HTTP/2.

When using HTTP/2, after killing a session the HTTP/2 client still has access to the application until the underlying connection is closed. Examples of closing the underlying connection are; the user closes the browser, the user does a hard reset (Ctrl + F5), or the connection reaches an idle timeout.

When using HTTP/2, transparency is not used even if it is enabled. This is because one connection is mapped to multiple connections. HTTP/1.1 clients are still transparent when HTTP/2 and transparency are both enabled.

Packet counts are not reported when using HTTP/2.

1.5 Support

If you have any questions or need assistance, please contact Kemp Support: https://support.kemptechnologies.com.

2 Enable HTTP/2 in a Virtual Service

Follow the steps below to enable HTTP/2 in a Virtual Service in the LoadMaster:

1. In the LoadMaster Web User Interface (WUI), go to Virtual Services > View/Modify Services.

2. Click Modify on the relevant Virtual Service.

3. Expand the SSL Properties section.

4. Select the Enabled check box.

HTTP/2 is only available if SSL Acceleration is Enabled.

HTTP/2 also works with SSL re-encryption, which helps with applications that require both encrypted flows in addition to L7 functionality.

5. Select BestPractices as the Cipher Set.

6. Expand the Advanced Properties section.

7. Select the Enable HTTP/2 Stackcheck box.

8. Configure any other settings as needed.

As with HTTP/1, enabling caching improves performance.

For details on each of the options in the WUI, refer to the Web User Interface (WUI), Configuration Guide.

2.1 HTTP/2 Pass Through Service Type

In addition to the Enable HTTP/2 Stack option in Advanced Properties, there is also a HTTP/2 Pass Through Virtual Service Type. However, this only offers generic pass through. This option has no impact and should not be selected.

HTTP/2 does not support transparency. Subnet originating, alternate source address functionality, caching, compression and body rewrites all work, as required.

3 Evaluating HTTP/2

To assist with the evaluation of HTTP/2, Kemp have provided a simple web page that consists of an image made up of 1024 individual image 'tiles'. This page provides a visual guide to the optimization available with HTTP/2 as the tiled image renders much faster with HTTP/2. The sections below provide details about the test environment setup but to access the test page refer to the Performing Tests section.

3.1 Example Test Environment

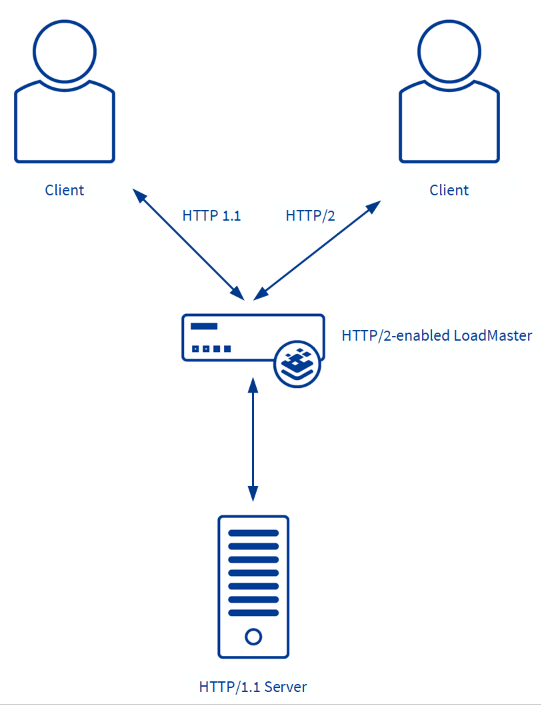

The test environment is focused on providing a visual comparison of the same page being loaded using HTTP/2 and HTTP 1.1. A web page is hosted on a Real Server and the LoadMaster is configured with a Virtual Service for HTTP/2 and a Virtual Service for HTTP 1.1. Both Virtual Services use the same Real Server.

The following are recommended in order to evaluate HTTP/2 correctly:

Browser: Google Chrome is probably the best browser to use for HTTP/2 testing. To check what browsers support HTTP/2, please visit the following website: http://caniuse.com/#feat=http2

LoadMaster: Use LoadMaster firmware version 7.1.35 or later.

Web Server: Any HTTP 1.1 capable server will suffice. The sample page provided is a simple web page with multiple images.

For the test, Kemp created a:

HTTP 1.1 Virtual Service on port 80 with SSL Acceleration disabled.

HTTP/2 Virtual Service on port 8080 with SSL Acceleration enabled.

In the example below, the Virtual Services are on 192.168.0.9 and the Real Server is on 192.168.0.10.

3.1.1 Create the HTTP 1.1 Virtual Service

To create the HTTP 1.1 Virtual Service, follow the steps below:

1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.

2. Enter a valid IP address in the Virtual Address text box.

3. Enter 80 in the Port text box.

4. Enter a Service Name, for example HTTP 1.1.

5. Click Add this Virtual Service.

6. Configure any other details as needed.

7. Expand the Real Servers section.

8. Click Add New.

9. Enter the Real Server Address.

10. Enter 80 as the Port.

11. Click Add This Real Server.

3.1.2 Create the HTTP/2 Virtual Service

To create the HTTP/2 Virtual Service, follow the steps below:

1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.

2. Enter a valid IP address in the Virtual Address text box.

3. Enter 8080 (or any other available port) in the Port text box.

4. Enter a Service Name, for example HTTP2 Test.

5. Click Add this Virtual Service.

6. Expand the SSL Properties section.

7. Tick the Enabled check box.

SSL is mandatory for HTTP/2.

8. Select BestPractices as the Cipher Set.

9. Expand the Advanced Properties section.

10. Select the Enable HTTP/2 Stack check box.

11. Configure any other details as needed.

As with HTTP/1, enabling caching improves performance.

12. Expand the Real Servers section.

13. Click Add New.

14. Enter the Real Server Address.

15. Enter 80 as the Port.

16. Click Add This Real Server.

The HTTP/2 Virtual Service on the LoadMaster will communicate with the server using HTTP 1.1.

3.1.3 Performing Tests

To test the performance gains from HTTP/2, the simplest way is to visualize the impact by using a web page which contains a large number of elements, such as images. Kemp have provided a sample web page that displays an image made up of 1024 image 'tiles'. Simply browse to the HTTP/2 and HTTP 1.1 Virtual Services to see the difference in performance. Ensure you use a HTTP/2-enabled browser, such as Chrome, when performing this test.

The Kemp HTTP/2 test page is available here: http://kemptechnologies.com/files/assets/tools/Kemp-TechPreview-HTTP2-TestPage.zip

Other tools and utilities for testing HTTP/2 are listed here: https://blog.cloudflare.com/tools-for-debugging-testing-and-using-http-2/

References

Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.
