BMC Remedy

1 Introduction

BMC Remedy is an IT Service Management suite providing effective collaboration, visibility, and reporting. BMC Remedy components such as Smart IT provides a single interface to create multiple ticket types such as incidents, work orders, change requests, or service requests.

The Kemp LoadMaster delivers an exceptional, cost effective, and easy to use solution which by employing High Availability, Global Server Load Balancing (GSLB), intelligent load balancing, and intelligent server health checking can support BMC Remedy's always-on application experience initiative.

1.1 Document Purpose

This document provides the recommended LoadMaster settings used when load balancing BMC Remedy. The Kemp Support Team is available to provide solutions for scenarios not explicitly defined. The Kemp Support site can be found at: https://support.kemptechnologies.com.

1.2 Intended Audience

This document is intended to be read by anyone who is interested in configuring the LoadMaster to optimize BMC Remedy.

2 Template

Kemp has developed a template containing our recommended settings for this workload. You can install this template to help create Virtual Services (VSs) because it automatically populates the settings. You can use the template to easily create the required VSs with the recommended settings. For some workloads, additional manual steps may be required such as assigning a certificate or applying port following, these steps are covered in the document, if needed.

You can remove templates after use and this will not affect deployed services. If needed, you can make changes to any of the VS settings after using the template.

Download released templates from the Templates section on the Kemp Documentation page.

For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description on the Kemp Documentation page.

3 Architecture

BMC Remedy consists of two back end server types that can be load balanced, AR servers, and Mid Tier servers.


4 Configure the LoadMaster

Refer to the sections below for details on some recommended global settings.

4.1 Enable Subnet Originating Requests Globally

It is best practice to enable the Subnet Originating Requests option globally.

In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.

In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.

When Subnet Originating Requests is enabled, the LoadMaster routes traffic so that the Real Server sees traffic arriving from the LoadMaster interface that is in that network/subnet.

When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to enable Subnet Originating Requests on a per-Virtual Service basis.

To enable Subnet Originating Requests globally, follow the steps below:

1. In the main menu of the LoadMaster Web User Interface (WUI), go to System Configuration > Miscellaneous Options > Network Options.


2. Select the Subnet Originating Requests check box.

4.2 Enable Check Persist Globally

It is recommended that you change the Always Check Persist option to Yes - Accept Changes. Use the following steps:

1. Go to System Configuration > Miscellaneous Options > L7 Configuration.


2. Click the Always Check Persist drop-down arrow and select Yes - Accept Changes.

5 Virtual Services

BMC Remedy consists of several components that can be load balanced and optimized depending on the environment in which it is deployed. BMC Remedy AR Server, Mid Tier, or both can leverage the Kemp LoadMaster to provide the necessary high availability and failover to ensure an always-on application experience.

This step-by-step setup of Virtual Services (VSs) leverages the Kemp application template for BMC Remedy.

The table in each section outlines the settings configured by the application template. You can use this information to manually configure Virtual Services or use the Kemp LoadMaster Application Programming Interface (API) and automation tools.

SSL/TLS certificates should be added before creating this Virtual Service. For further information on certificates, refer to the SSL Accelerated Services Feature Description.

5.1 Create the BMC Remedy AR Server Virtual Service

The following are the steps involved and the recommended settings to configure the BMC Remedy AR Server Virtual Service:

1. In the main menu of the LoadMaster User Interface (UI), go to Virtual Services > Add New.


2. Type a valid Virtual Address.

3. Select the BMC Remedy AR Server template in the Use Template drop-down list.

The BMC Remedy AR Server template uses tcp port 7654. This port can be changed to match the port used in the environment.

4. Click Add this Virtual Service.

5. Expand the Real Servers section.

6. Click Add New.

7. Type the Real Server Address.

8. Confirm that the port entered is the correct TCP port configured in the BMC Remedy environment.

9. Click Add This Real Server.

10. Repeat these steps to add more Real Servers as needed.

5.1.1 BMC Remedy AR Server Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.

API Parameter

API Value

port

7654

prot tcp
VStype gen
SubnetOriginating 1
Forcel7 1
Schedule lc
Persist none
CheckType tcp

5.2 Create the BMC Remedy Mid Tier HTTP Virtual Services

The following are the steps involved and the recommended settings to configure the BMC Remedy Mid Tier Virtual Service:

1. In the main menu of the LoadMaster UI, go to Virtual Services > Add New.


2. Type a valid Virtual Address.

3. Select the BMC Remedy Mid Tier HTTP template in the Use Template drop-down list.

The BMC Remedy Mid Tier HTTP template uses the default tcp port 8080. This port can be changed to match the port used in the environment.

4. Click Add this Virtual Service.

5. Expand the Real Servers section.

6. Click Add New.

7. Type the Real Server Address.

8. Confirm that the port entered is the correct TCP port configured in the BMC Remedy environment.

9. Click Add This Real Server.

10. Repeat these steps to add more Real Servers as needed.

5.2.1 BMC Remedy Mid Tier HTTP Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.

API Parameter

API Value

port

8080

prot tcp
VStype http
SubnetOriginating 1
Forcel7 1
Schedule lc
Persist src
PersistTimeout 360
CheckType http
CheckUseGet 1

5.3 Create the BMC Remedy Mid Tier HTTPS Offloaded Virtual Services

The following are the steps involved and the recommended settings to configure the BMC Remedy Mid Tier Virtual Service:

1. In the main menu of the LoadMaster UI, go to Virtual Services > Add New.


2. Type a valid Virtual Address.

3. Select the BMC Remedy Mid Tier HTTPS Offloaded template in the Use Template drop-down list.

The BMC Remedy Mid Tier HTTPS Offloaded template uses the default tcp port 8443. This port can be changed to match the port used in the environment.

4. Click Add this Virtual Service.

5. Expand the SSL Properties section.

6. Select the certificate to use from Available Certificates and click the arrow (>) to move it to Assigned Certificates.

7. Expand the Real Servers section.

8. Click Add New.

9. Type the Real Server Address.

10. Confirm that the port entered is the correct tcp port configured in the BMC Remedy environment.

11. Click Add This Real Server.

12. Repeat these steps to add more Real Servers as needed.

5.3.1 BMC Remedy Mid Tier HTTPS Offloaded Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.

API Parameter

API Value

port

8443

prot tcp
VStype http
SubnetOriginating 1
Forcel7 1
Schedule lc
Persist src
PersistTimeout 360
SSLAcceleration 1
SSLReencrypt 0
TLSType 3
CipherSet BestPractices
CheckType http
Checkport 8080
CheckUseGet 1

5.4 Create the BMC Remedy Mid Tier HTTPS Reencrypt Virtual Services

The following are the steps involved and the recommended settings to configure the BMC Remedy Mid Tier Virtual Service:

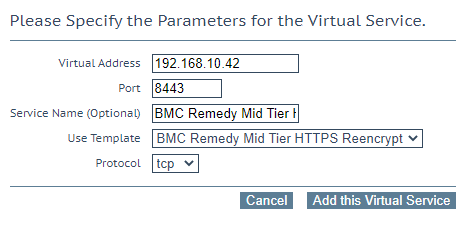

1. In the main menu of the LoadMaster UI, go to Virtual Services > Add New.


2. Type a valid Virtual Address.

3. Select the BMC Remedy Mid Tier HTTPS Re-encrypt template in the Use Template drop-down list.

The BMC Remedy Mid Tier HTTP Reencrypt template uses the default TCP port 8443. This port can be changed to match the port used in the environment.

4. Click Add this Virtual Service.

5. Expand the SSL Properties section.

6. Select the certificate to use from Available Certificates and click the arrow (>) to move it to Assigned Certificates.

7. Expand the Real Servers section.

8. Click Add New.

9. Type the Real Server Address.

10. Confirm that the port entered is the correct tcp port configured in the BMC Remedy environment.

11. Click Add This Real Server.

12. Repeat these steps to add more Real Servers as needed.

5.4.1 BMC Remedy Mid Tier HTTPS Reencrypt Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.

API Parameter

API Value

port

8443

prot tcp
VStype http
SubnetOriginating 1
Forcel7 1
Schedule lc
Persist src
PersistTimeout 360
SSLAcceleration 1
SSLReencrypt 1
TLSType 3
CipherSet BestPractices
CheckType https
CheckUseGet 1

Last Updated Date

This document was last updated on 14 August 2020.
