Evertz Mediator-X

1 Introduction

This guide details the steps required to load balance the Mediator-X user interface traffic and Application Programming Interface (API) endpoint traffic using the Kemp LoadMaster. Evertz Mediator-X unifies content acquisition, content processing, media management, production, playout, and delivery into a single, integrated environment. The unification of these services on a single platform delivers optimized media workflows and increased operational efficiency.

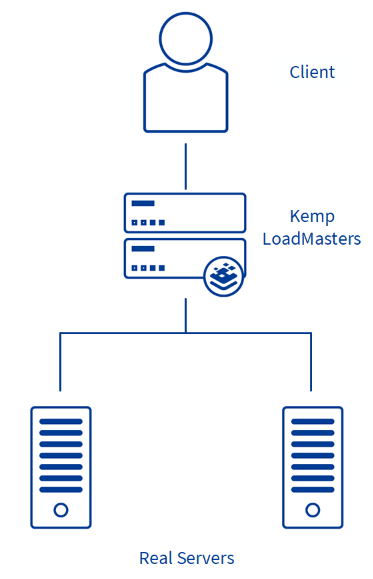

The LoadMaster offers advanced Layer 4 and Layer 7 server load balancing, SSL Acceleration, and a multitude of other advanced Application Delivery and Optimization (ADC) features. The Kemp LoadMaster can load balance the Evertz Mediator-X servers. The LoadMaster intelligently and efficiently distributes user traffic among the application servers so that users get the best experience possible.

This document provides guidance and recommended settings on how to load balance Evertz Mediator-X servers with a Kemp LoadMaster. The Kemp Support Team is available to provide solutions for scenarios not explicitly defined.

2 Template

Kemp has developed a template containing our recommended settings for this workload. You can install this template to help create Virtual Services (VSs) because it automatically populates the settings. You can use the template to easily create the required VSs with the recommended settings. For some workloads, additional manual steps may be required such as assigning a certificate or applying port following, these steps are covered in the document, if needed.

You can remove templates after use and this will not affect deployed services. If needed, you can make changes to any of the VS settings after using the template.

Download released templates from the Templates section on the Kemp Documentation page.

For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description on the Kemp Documentation page.

3 Virtual Service - Mediator-X Global Access

For instructions on how to use the template and details on the API configuration settings, refer to the sections below.

3.1 Using the Template

This step-by-step setup of the Virtual Service leverages the Kemp application template for Evertz Mediator-X.

The table in the API Configuration section outlines the settings configured by the application template. You can use this information to manually configure the Virtual Service or use the Kemp LoadMaster API and automation tools.

To configure a Virtual Service using the application template, perform the following steps:

1. In the main menu of the LoadMaster User Interface (UI), go to Virtual Services > Add New.

2. Type a valid Virtual Address.

3. Select Mediator X Global Access in the Use Template drop-down list.

4. Click Add this Virtual Service.

5. In the left-hand navigation select View/Modify Services.

6. Click Modify on the Mediator X Global Access Virtual Service on port tcp 80.

7. Expand the Real Servers section.

8. Click Add New.

9. Type the Real Server Address. (These are the Evertz Mediator servers.)

10. Confirm that port 80 is entered.

11. Click Add This Real Server.

12. Repeat these steps to add more Real Servers as needed.

13. In the left-hand navigation select View/Modify Services

14. Click Modify on the Mediator X Global Access Secure Virtual Service on port tcp 443.

15. Expand the Real Servers section.

16. Click Add New.

17. Type the Real Server Address. (These are the Evertz Mediator servers.)

18. Confirm that port 443 is entered.

19. Click Add This Real Server.

20. Repeat these steps to add more Real Servers as needed.

3.2 Configuring Evertz Mediator-X for Load Balancing

Some changes must be made to the Mediator-X back-end servers for them to be correctly load balanced. These changes should be configured by an Evertz Deployment Team. Contact your Evertz representative for further information.

1. On the Mediator-X deployment, connect to Node0 and log in as the root user. You can do this by executing the command sudo su and then entering the system-specific shell access password.

2. Navigate to the directory /srv/salt/pillar. You can do this by executing the command cd /srv/salt/pillar.

3. Edit the file system.sls, for example, using a text editor such as Nano or Vim: nano system.sls.

4. Find the virtual_ips parameter and add the virtual IP address that will be used for the load balanced deployment. This is the user-facing IP address that all clients will connect to when accessing the load balanced Mediator-X services.

5. The result should look like the following:

# Set the loadbalancer virtual ip or leave blank

virtual_ips : 10.0.1.50

6. Save and exit the system.sls file.

7. Run the salt command and call the state.highstate function, which automatically applies the changed configuration across all Mediator-X nodes. The full command to execute is:

sudo salt "*" state.highstate

8. Run the salt command and call a function to restart the NGINX service across all Mediator-X nodes. The full command to execute is:

sudo salt -G 'is_mediatorx:True' service.restart nginx

API Configuration

This table outlines the API parameters and values set using the Kemp application template. You can use these settings with scripts and automation tools.

Mediator X Global Access

The API parameter and value settings for the Mediator X Global Access Virtual Service are listed in the table below:

API Parameter

API Value

port

80

prot tcp
Schedule rr
Persist header
cookie X-Forwarded-For
Persisttimeout 300

Mediator X Global Access Secure

The API parameter and value settings for the Mediator X Global Access Secure Virtual Service are listed in the table below:

API Parameter

API Value

port

443

prot tcp
Schedule rr
Persist header
cookie X-Forwarded-For
Persisttimeout 300

Last Updated Date

This document was last updated on 31 July 2020.
