VMware vSphere PSC

1 Introduction

VMware, Inc. provide cloud and virtualization software and services. Platform Services Controller (PSC) is a component of the VMware Cloud Infrastructure Suite. PSC deals with identity management for administrators and applications that interact with the vSphere platform.

PSC provides one appliance- or Windows-based virtual machine platform to systems administrators for centralized management of these common infrastructure services. It is a distributed service that automatically replicates information such as licenses, permissions and roles to other PSC instances. The maximum number of PSCs per vSphere domain is set at eight. High-availability for PSCs is achieved through local load-balancing technologies, though only four PSCs can reside behind a load balancer. PSCs are also latency sensitive and can only tolerate up to five minutes of time skew between PSC nodes.

In vSphere 6, the following components are installed in PSC:

  •     VMware Appliance Management Service (only in appliance-based PSC)
  •     VMware License Service
  •     VMware Component Manager
  •     VMware Identity Management Service
  •     VMware HTTP Reverse Proxy
  •     VMware Service Control Agent
  •     VMware Security Token Service
  •     VMware Common Logging Service
  •     VMware Syslog Health Service
  •     VMware Authentication Framework
  •     VMware Certificate Service
  •     VMware Directory Service

1.1 Document Purpose

The purpose of this document is to explain how to configure the LoadMaster to optimize PSC.

1.2 Intended Audience

This document is intended to be read by anyone who is interested in configuring the LoadMaster to optimize the new features in PSC 6.X.

2 PSC Template

Kemp has developed a template containing our recommended settings for PSC. You can install this template on the LoadMaster and use it when creating Virtual Services. Using a template automatically populates the settings in the Virtual Services, which is quicker and easier than manually configuring each Virtual Service. If needed, you can make changes to any of the Virtual Service settings after using the template.

Download released templates from the following page: LoadMaster Templates.

For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description.

For steps on how to manually add and configure each of the Virtual Services, refer to the Configure the LoadMaster section.

3 Architecture




4 Configure the LoadMaster

The deployed VMware Systems environment determines which of the following setups is used.

4.1 Enable Subnet Originating Requests Globally

It is best practice to enable the Subnet Originating Requests option globally.

In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet), Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.

In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B - Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.

When Subnet Originating Requests is enabled, the LoadMaster routes traffic so that the Real Server sees traffic arriving from the LoadMaster interface that is in that network/subnet.

When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can select whether or not to enable Subnet Originating Requests on a per-Virtual Service basis.

To enable Subnet Originating Requests globally, follow the steps below:

1. In the main menu of the LoadMaster WUI, go to System Configuration > Miscellaneous Options > Network Options.


2. Select the Subnet Originating Requests check box.

4.2 Enable Check Persist Globally

It is recommended that you change the Always Check Persist option to Yes - Accept Changes. Use the following steps:

1. Go to System Configuration > Miscellaneous Options > L7 Configuration.

2. Click the Always Check Persist dropdown arrow and select Yes - Accept Changes.

4.3 Create the Virtual Services

4.3.1 Create a vSphere Platform Service Controllers Virtual Service

To add the Virtual Services for vSphere Platform Service Controller with the template, follow the steps below:

1. Click the Add New button.


2. Enter a valid Virtual Address.

3. Select the vSphere Platform Service Controllers template from the Use Template drop-down list.

4. Click Add this Virtual Service.

4.3.1.1 Configure vSphere Platform Service Controller SSL ReEncrypt Virtual Service

To configure the vSphere Platform Service Controller SSL ReEncrypt Virtual Service, follow the steps below:

1. Select View/Modify Services under Virtual Services in the left-hand navigation.


2. Click Modify on the vSphere Platform Services Controllers SSL ReEncrypt Virtual Service.

3. Expand the SSL Properties section.

4. Select a valid certificate that was previously imported and click the > button to assign the certificate.

5. Click Set Certificate.

6. Expand the Real Servers section.

7. Click Add New.

8. Enter the Real Server Address.

9. Confirm that Port 443 is entered.

10. Click Add This Real Server.

11. Add additional Real Servers as needed.

4.3.1.1.1 vSphere Platform Service Controllers Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. These settings can be used with scripts and automation tools.

API Parameters

API Value

port

443

prot

tcp

SubnetOriginating

1

SSLAcceleration

1

SSLReencrypt

1

Persist

src

PersistTimeout

28800

Schedule

lc

Idletime

28800

CheckType

https

CheckURL

/websso

CheckUseGet

HEAD

4.3.1.2 vSphere Platform Service Controllers 2012 Virtual Service

To configure the vSphere Platform Service Controllers 2012 Virtual Service, follow the steps below:

1. Select View/Modify Services under Virtual Services in the left-hand navigation.


2. Click Modify on the vSphere Platform Service Controller 2012 Virtual Service.

3. Expand the Real Servers section.

4. Click Add New.

5. Enter the Real Server Address.

6. Confirm that Port 2012 is entered.

7. Click Add This Real Server.

8. Add additional Real Servers as needed.

4.3.1.2.1 vSphere Platform Service Controllers 2012 Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. These settings can be used with scripts and automation tools.

Option

Value

port

2012

prot

tcp

VStype

gen

SubnetOriginating

1

Persist

src

PersistTimeout

28800

Schedule

lc

Idletime

28800

CheckType

tcp

CheckPort

2012

4.3.1.3 Configure vSphere Platform Service Controllers 2014 Virtual Service

To configure the vSphere Platform Service Controllers 2014 Virtual Service, follow the steps below:

1. Select View/Modify Services under Virtual Services in the left-hand navigation


2. Click Modify on the vSphere Platform Service Controller 2014 Virtual Service.

3. Expand the Real Servers section.

4. Click Add New.

5. Enter the Real Server Address.

6. Confirm that Port 2014 is entered.

7. Click Add This Real Server.

8. Add additional Real Servers as needed.

4.3.1.3.1 vSphere Platform Service Controllers 2014 Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. These settings can be used with scripts and automation tools.

Option

Value

port

2014

prot

tcp

VStype

gen

SubnetOriginating

1

Persist

src

PersistTimeout

28800

Schedule

lc

Idletime

28800

CheckType

tcp

CheckPort

2014

4.3.1.4 Configure vSphere Platform Service Controllers 2020 Virtual Service

To configure the vSphere Platform Service Controllers 2020 Virtual Service, follow the steps below:

1. Select View/Modify Services under Virtual Services in the left-hand navigation.


2. Click Modify on the vSphere Platform Service Controller 2020 Virtual Service.

3. Expand the Real Servers section.

4. Click Add New.

5. Enter the Real Server Address.

6. Confirm that Port 2020 is entered.

7. Click Add This Real Server.

8. Add additional Real Servers as needed

4.3.1.4.1 vSphere Platform Service Controllers 2020 Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. These settings can be used with scripts and automation tools.

Option

Value

port

2020

prot

tcp

VStype

gen

SubnetOriginating

1

Persist

src

PersistTimeout

28800

Schedule

lc

Idletime

28800

CheckType

tcp

CheckPort

2020

4.3.2 Create a vSphere PSC LDAP Virtual Service

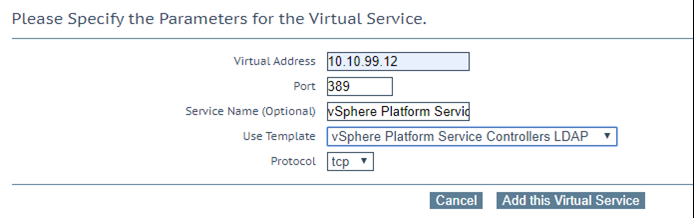

The following are the steps involved and the recommended settings to configure the VSphere PSC Systems LDAP Virtual Service. To add the Virtual Services for vSphere Platform Service Controller LDAP with the template, follow the steps below:

1. Click the Add New button.


2. Enter a valid Virtual Address.

3. Select the vSphere Platform Service Controllers LDAP template from the Use Template drop-down list.

4. Click Add This Virtual Service.

5. Expand the Real Servers section.

6. Click Add New.

7. Enter the Real Server Address.

8. Confirm that Port 389 is entered.

9. Click Add This Real Server.

10. Add additional Real Servers as needed.

4.3.2.1 vSphere Platform Service Controllers LDAP Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. These settings can be used with scripts and automation tools.

API Parameters

API Value

port

389

prot

tcp

VStype

gen

SubnetOriginating

1

Persist

src

PersistTimeout

28800

Schedule

lc

Idletime

28800

CheckType

tcp

CheckPort

389

4.3.3 Create a vSphere PSC LDAPS Virtual Service

The following are the steps involved and the recommended settings to configure the vSphere PSC Systems LDAPS Virtual Service. To add the Virtual Services for vSphere Platform Service Controller LDAPS with the template, follow the steps below:

1. . Click the Add New button.


2. Enter a Virtual Address.

3. Select the vSphere Platform Service Controllers LDAPS template from the Use Template drop-down list.

4. Click Add This Virtual Service.

5. Expand the Real Servers section.

6. Click Add New.

7. Enter the Real Server Address.

8. Confirm that Port 636 is entered.

9. Click Add This Real Server.

10. Add additional Real Servers as needed.

4.3.3.1 vSphere Platform Service Controllers LDAPS Virtual Service Recommended API Settings (optional)

This table outlines the API parameters and values set using the Kemp application template. These settings can be used with scripts and automation tools.

API Parameters

API Value

port

636

prot

tcp

VStype

gen

SubnetOriginating

1

Persist

src

PersistTimeout

28800

Schedule

lc

Idletime

28800

CheckType

tcp

CheckPort

636

References

Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.

Virtual Services and Templates, Feature Description

Last Updated Date

This document was last updated on 03 March 2022.
