Kerberos Constrained Delegation
Contents
1 Introduction
As part of Kemp's Edge Security Pack (ESP), the LoadMaster supports a number of authentication protocols, including Kerberos Constrained Delegation (KCD). When using KCD as the server authentication protocol, the LoadMaster provides seamless access to protected resources in a Kerberos realm, even when credentials provided are not directly valid for such an environment.
The KCD authentication protocol is used to confirm the identity of the users who are attempting to access resources on a network. KCD authentication uses tickets that are encrypted and decrypted by secret keys and do not contain user passwords. These tickets are requested and delivered in Kerberos messages. When the user's password is not provided, a trusted administrator user account is used to get tickets on behalf of services and users.
1.1 Document Purpose
This document provides instructions on how to configure Kerberos in the LoadMaster.
1.2 Intended Audience
This document is intended to be read by anyone who is interested in finding out how to configure the LoadMaster to authenticate using KCD.
2 Configuring KCD and the LoadMaster
Refer to the sections below for instructions on how to configure KCD and the LoadMaster.
Cross-domain delegation (where a resource resides in a different domain to the user) is not supported.
2.1 Lab Topology
Here are the details for the example topology used to create the instructions in this document:
|
Item |
Value |
|---|---|
|
Domain |
KempLAB.intra |
|
Domain Controller |
ad01.kemplab.intra |
|
IP |
192.168.1.50 |
|
Item |
IP Address |
Fully Qualified Domain Name (FQDN) |
|---|---|---|
|
Kemp-HA Shared IP |
192.168.1.35 |
kempha.kemplab.intra |
|
High Availability (HA) Unit 1 |
192.168.1.30 |
kempvlm01.kemplab.intra |
|
HA Unit 2 |
192.168.1.50 |
kempvlm02.kemplab.intra |
|
Item |
IP Address |
FQDN |
|---|---|---|
|
Virtual Service |
192.168.1.90 |
vx13.kemplab.intra |
|
Real Server |
IP Address |
FQDN |
|---|---|---|
|
Exchange 2013 CU13 |
192.168.2.200 |
ex01.kemplab.intra |
|
Exchange 2013 CU13 |
192.168.2.201 |
ex02.kemplab.intra |
|
Exchange 2016 |
192.168.2.202 |
ex03.kemplab.intra |
2.2 Ensure All Relevant Stations Use the Same Domain Name System (DNS) Server
Verify that the Virtual Service and the Real Servers have Pointer (PTR) records by running a ping command, for example ping -a 192.168.2.200.
2.3 Check if the LoadMaster is Configured to Reverse Resolve IP Addresses
From the SSOMGR in debug mode, you should see similar logs:
Aug 4 15:56:54 vwagwosevlb00 ssomgr: #18806# >>> kcd_get_user_ticket
Aug 4 15:56:54 vwagwosevlb00 ssomgr: #18806# >>>resolve_destination_address: Attempt to resolve destination [10.179.194.80][2]
Aug 4 15:56:54 vwagwosevlb00 ssomgr: #18806# <<<resolve_destination_address: Resolved destination host name [wosevtspf3.wof.az.xyz]
This provides a quick indication that the LoadMaster is correctly configured to reverse resolve IP addresses.
2.4 Ping Simple Host Names
Ensure that it works with just the name, not the Fully Qualified Domain Name (FQDN).
When adding Real Servers to the Delegation tab of the trusted user (in a later step), Windows automatically adds both simple host names and FQDNs.
To test if the host name works, ping it by following the steps below:
1. In the main menu of the LoadMaster Web User Interface (WUI), expand System Configuration > Logging Options and click System Log Files.
2. Click Debug Options.
3. Type the host name in the Ping Host text box and click Ping.
If the result is unknown host, you must provide the domain realm to append to the hostname as a Search Domain. Refer to the Specify a Search Domain section for steps on how to do this.
2.5 Specify a Search Domain
If you got an unknown host error when pinging the host name in the Ping Simple Host Names section, you must provide the domain realm to append to the hostname as a Search Domain. To do this, follow the steps below:
1. In the main menu of the LoadMaster WUI, expand System Configuration > Network Setup and click Host & DNS Configuration.
2. Type the domain realm in the Domain field and click Add.
3. Run a ping again (follow the steps in the Ping Simple Host Names section). Now that the search domain is added, the ping should be successful.
4. Run a ping on each of the relevant Real Servers to ensure they correctly resolve.
2.6 Ensure Time/Date/Time Zone Settings Are Correct
Ensure that all devices are on the same time, date and time zone settings. The LoadMaster settings are available in System Configuration > System Administration > Date/Time.
2.7 Create the Trusted User
Follow the steps below to create the trusted user in the Active Directory settings.
1. Log in to your Domain Controller.
2. Launch Active Directory Users and Computers and select Advanced Features from the View menu.
3. Click View and click Advanced Features.

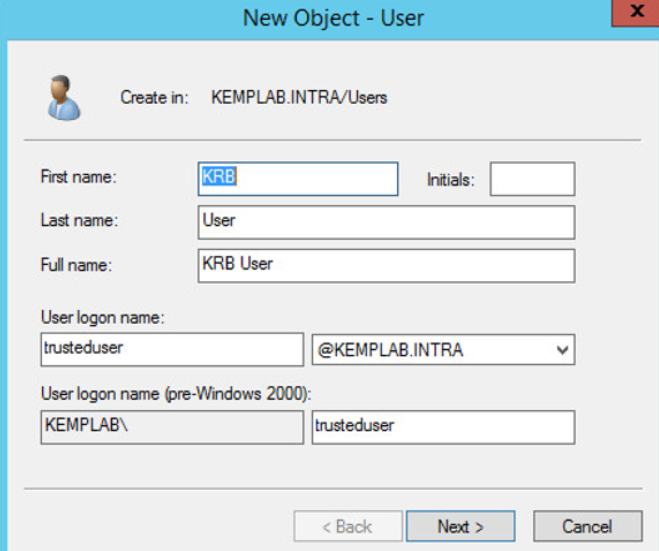

4. Create a new user as shown below.
5. Set the password to never expire.
6. Select the Attribute Editor tab.
7. Navigate to servicePrincipalName.
8. Select servicePrincipalName and click Edit.
9. Type http/trusteduser in the Value to add field and click Add.
10. Click Apply and OK. The window must close before you open it again (to see the new Delegation tab).
11. Open the user properties window again and the Delegation tab becomes available.
12. Select the Delegation tab.
13. Select Trust this user for delegation to specified services only.
14. Select Use any authentication protocol.

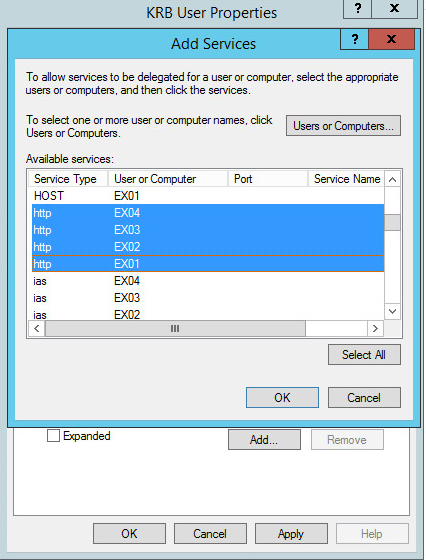

15. Add the Real Servers and add http as the service.
For SharePoint Apps: You might have to add the namespace published by SharePoint to enable KCD, instead of the actual server FQDNs.
16. Click Advanced.

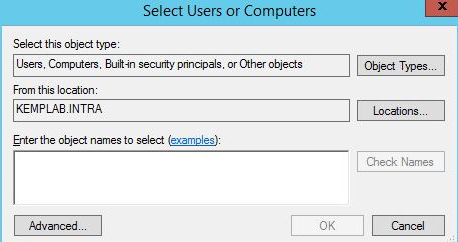

17. Find the servers by name.
18. Select the Expanded check box.
19. You can see all servers with both the host name and the FQDN.
If you have a SharePoint environment that uses distributed name spaces, you must register these name spaces instead of the actual servers hosting the content.
20. For SharePoint, the settings may need to be configured as outlined in the above screenshot.
2.8 Create the Outbound Single Sign On (SSO) Domain
To create the outbound SSO domain, follow the steps below in the LoadMaster WUI:
1. Expand Virtual Services > Manage SSO.
2. Enable or disable the Use AES56 SHA1 KCD cipher check box.
When this check box is selected, the AES256 SHA1 KCD cipher is used (by default the RC4, DES, and DES3 ciphers are used).

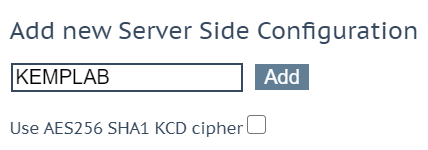

3. Type a name in the Add new Server Side Configuration text box and click Add.

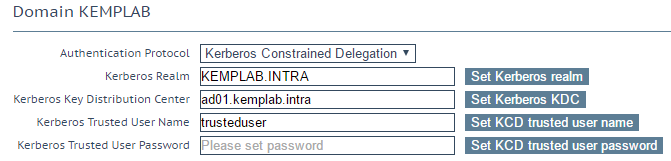

4. Type the Kerberos Realm and click Set Kerberos realm.
5. Type the Kerberos Key Distribution Center and click Set Kerberos KDC.
In LoadMaster firmware version 7.2.51, two Key Distribution Center (KDC) servers can be set per domain. The first one entered becomes active until it fails. KDC availability is checked and if the KDC fails to respond successfully three times or if it times out for five seconds, the active KDC is switched. The active Kerberos KDC is shown underneath when two addresses are entered in the Kerberos Key Distribution Center field.
If you are entering more than one KDC, the username and password must be the same for both KDCs.
Double and single quotes are not allowed in the Kerberos Key Distribution Center field.
6. Type the Kerberos Trusted User Name and click Set KCD trusted user name.
7. Type the Kerberos Trusted User Password and click Set KCD trusted user password.
2.9 Set the L7 Wait after POST Value
In LoadMaster firmware version 7.2.51, a new option was introduced that is applicable when performing Kerberos Constrained Delegation (KCD) back-end authentication. The field is called L7 Wait after POST. This option is configurable in the LoadMaster User Interface (UI). The L7 Wait after POST option allows you to change the length of time to wait for a 401 response from a POST before sending the remainder of the POST body. Valid values for the wait period range from 1 to 2000 milliseconds (ms). The default value is 2000. If KCD is not being used, this option has no effect.
To configure the L7 Wait after POST value, follow the steps below:
-
In the main menu, go to System Configuration > Miscellaneous Options > L7 Configuration.
-
Enter the new value in the L7 Wait after POST text box and click Set Post Wait.
3 KCD Compatibility with Other LoadMaster Features
There are some compatibility issues with KCD and other LoadMaster features. For further information, refer to the sections below.
3.1 KCD Compatibility with the Web Application Firewall
As of the 7.2.40 LoadMaster firmware version, you cannot enable both WAF and KCD at the same Virtual Service level. For example:
If WAF is enabled in the parent Virtual Service, you cannot enable KCD as the Server Authentication Mode in the parent Virtual Service
If KCD is enabled in the parent Virtual Service, you cannot enable WAF
However, you can enable ESP/KCD in the SubVS and then enable WAF in the parent Virtual Service.
If you had WAF and KCD enabled at the same level before upgrading to 7.2.40 and you upgrade the firmware to 7.2.40 or above, the configuration will not be changed. File attachments in SharePoint will not work. To resolve this, enable WAF on the parent Virtual Service and ESP/KCD on the SubVS.
The following combination is not supported: WAF with ESP Client Certificate authentication and KCD.
3.2 KCD Compatibility with Response Body Modification Rules
Response body rules are not compatible with KCD. If KCD is enabled on a Virtual Service, it is not possible to assign a body rule to it.
4 Appendix - Kerberos (krb5) Error Messages
Refer to the table below for a list of Kerberos error messages, their symbolic names and descriptions.
|
Error Number |
Symbolic Name |
Descriptive Text |
|---|---|---|
|
-1765328383 |
KRB5KDC_ERR_NAME_EXP |
Client's entry in database has expired |
|
-1765328382 |
KRB5KDC_ERR_SERVICE_EXP |
Server's entry in database has expired |
|
-1765328381 |
KRB5KDC_ERR_BAD_PVNO |
Requested protocol version not supported |
|
-1765328380 |
KRB5KDC_ERR_C_OLD_MAST_KVNO |
Client's key is encrypted in an old master key |
|
-1765328379 |
KRB5KDC_ERR_S_OLD_MAST_KVNO |
Server's key is encrypted in an old master key |
|
-1765328378 |
KRB5KDC_ERR_C_PRINCIPAL_UNKNOWN |
Client not found in Kerberos database |
|
-1765328377 |
KRB5KDC_ERR_S_PRINCIPAL_UNKNOWN |
Server not found in Kerberos database |
|
-1765328376 |
KRB5KDC_ERR_PRINCIPAL_NOT_UNIQUE |
Principal has multiple entries in Kerberos database |
|
-1765328375 |
KRB5KDC_ERR_NULL_KEY |
Client or server has a null key |
|
-1765328374 |
KRB5KDC_ERR_CANNOT_POSTDATE |
Ticket is ineligible for postdating |
|
-1765328373 |
KRB5KDC_ERR_NEVER_VALID |
Requested effective lifetime is negative or too short |
|
-1765328372 |
KRB5KDC_ERR_POLICY |
KDC policy rejects request |
|
-1765328371 |
KRB5KDC_ERR_BADOPTION |
KDC cannot fulfil requested option |
|
-1765328370 |
KRB5KDC_ERR_ETYPE_NOSUPP |
KDC has no support for encryption type |
|
-1765328369 |
KRB5KDC_ERR_SUMTYPE_NOSUPP |
KDC has no support for checksum type |
|
-1765328368 |
KRB5KDC_ERR_PADATA_TYPE_NOSUPP |
KDC has no support for padata type |
|
-1765328367 |
KRB5KDC_ERR_TRTYPE_NOSUPP |
KDC has no support for transited type |
|
-1765328366 |
KRB5KDC_ERR_CLIENT_REVOKED |
Clients credentials have been revoked |
|
-1765328365 |
KRB5KDC_ERR_SERVICE_REVOKED |
Credentials for server have been revoked |
|
-1765328364 |
KRB5KDC_ERR_TGT_REVOKED |
TGT has been revoked |
|
-1765328363 |
KRB5KDC_ERR_CLIENT_NOTYET |
Client not yet valid - try again later |
|
-1765328362 |
KRB5KDC_ERR_SERVICE_NOTYET |
Server not yet valid - try again later |
|
-1765328361 |
KRB5KDC_ERR_KEY_EXP |
Password has expired |
|
-1765328360 |
KRB5KDC_ERR_PREAUTH_FAILED |
Pre-authentication failed |
|
-1765328359 |
KRB5KDC_ERR_PREAUTH_REQUIRED |
Additional pre-authentication required |
|
-1765328358 |
KRB5KDC_ERR_SERVER_NOMATCH |
Requested server and ticket do not match |
|
-1765328357 |
KRB5PLACEHOLD_27 |
KRB5 error code 27 |
|
-1765328356 |
KRB5PLACEHOLD_28 |
KRB5 error code 28 |
|
-1765328355 |
KRB5PLACEHOLD_29 |
KRB5 error code 29 |
|
-1765328354 |
KRB5PLACEHOLD_30 |
KRB5 error code 30 |
|
-1765328353 |
KRB5KRB_AP_ERR_BAD_INTEGRITY |
Decrypt integrity check failed |
|
-1765328352 |
KRB5KRB_AP_ERR_TKT_EXPIRED |
Ticket expired |
|
-1765328351 |
KRB5KRB_AP_ERR_TKT_NYV |
Ticket not yet valid |
|
-1765328350 |
KRB5KRB_AP_ERR_REPEAT |
Request is a replay |
|
-1765328349 |
KRB5KRB_AP_ERR_NOT_US |
The ticket is not for us |
|
-1765328348 |
KRB5KRB_AP_ERR_BADMATCH |
Ticket/authenticator do not match |
|
-1765328347 |
KRB5KRB_AP_ERR_SKEW |
Clock skew too great |
|
-1765328346 |
KRB5KRB_AP_ERR_BADADDR |
Incorrect net address |
|
-1765328345 |
KRB5KRB_AP_ERR_BADVERSION |
Protocol version mismatch |
|
-1765328344 |
KRB5KRB_AP_ERR_MSG_TYPE |
Invalid message type |
|
-1765328343 |
KRB5KRB_AP_ERR_MODIFIED |
Message stream modified |
|
-1765328342 |
KRB5KRB_AP_ERR_BADORDER |
Message out of order |
|
-1765328341 |
KRB5KRB_AP_ERR_ILL_CR_TKT |
Illegal cross-realm ticket |
|
-1765328340 |
KRB5KRB_AP_ERR_BADKEYVER |
Key version is not available |
|
-1765328339 |
KRB5KRB_AP_ERR_NOKEY |
Service key not available |
|
-1765328338 |
KRB5KRB_AP_ERR_MUT_FAIL |
Mutual authentication failed |
|
-1765328337 |
KRB5KRB_AP_ERR_BADDIRECTION |
Incorrect message direction |
|
-1765328336 |
KRB5KRB_AP_ERR_METHOD |
Alternative authentication method required |
|
-1765328335 |
KRB5KRB_AP_ERR_BADSEQ |
Incorrect sequence number in message |
|
-1765328334 |
KRB5KRB_AP_ERR_INAPP_CKSUM |
Inappropriate type of checksum in message |
|
-1765328333 |
KRB5PLACEHOLD_51 |
KRB5 error code 51 |
|
-1765328332 |
KRB5PLACEHOLD_52 |
KRB5 error code 52 |
|
-1765328331 |
KRB5PLACEHOLD_53 |
KRB5 error code 53 |
|
-1765328330 |
KRB5PLACEHOLD_54 |
KRB5 error code 54 |
|
-1765328329 |
KRB5PLACEHOLD_55 |
KRB5 error code 55 |
|
-1765328328 |
KRB5PLACEHOLD_56 |
KRB5 error code 56 |
|
-1765328327 |
KRB5PLACEHOLD_57 |
KRB5 error code 57 |
|
-1765328326 |
KRB5PLACEHOLD_58 |
KRB5 error code 58 |
|
-1765328325 |
KRB5PLACEHOLD_59 |
KRB5 error code 59 |
|
-1765328324 |
KRB5KRB_ERR_GENERIC |
Generic error (see e-text) |
|
-1765328323 |
KRB5KRB_ERR_FIELD_TOOLONG |
Field is too long for this implementation |
|
-1765328322 |
KRB5PLACEHOLD_62 |
KRB5 error code 62 |
|
-1765328321 |
KRB5PLACEHOLD_63 |
KRB5 error code 63 |
|
-1765328320 |
KRB5PLACEHOLD_64 |
KRB5 error code 64 |
|
-1765328319 |
KRB5PLACEHOLD_65 |
KRB5 error code 65 |
|
-1765328318 |
KRB5PLACEHOLD_66 |
KRB5 error code 66 |
|
-1765328317 |
KRB5PLACEHOLD_67 |
KRB5 error code 67 |
|
-1765328316 |
KRB5PLACEHOLD_68 |
KRB5 error code 68 |
|
-1765328315 |
KRB5PLACEHOLD_69 |
KRB5 error code 69 |
|
-1765328314 |
KRB5PLACEHOLD_70 |
KRB5 error code 70 |
|
-1765328313 |
KRB5PLACEHOLD_71 |
KRB5 error code 71 |
|
-1765328312 |
KRB5PLACEHOLD_72 |
KRB5 error code 72 |
|
-1765328311 |
KRB5PLACEHOLD_73 |
KRB5 error code 73 |
|
-1765328310 |
KRB5PLACEHOLD_74 |
KRB5 error code 74 |
|
-1765328309 |
KRB5PLACEHOLD_75 |
KRB5 error code 75 |
|
-1765328308 |
KRB5PLACEHOLD_76 |
KRB5 error code 76 |
|
-1765328307 |
KRB5PLACEHOLD_77 |
KRB5 error code 77 |
|
-1765328306 |
KRB5PLACEHOLD_78 |
KRB5 error code 78 |
|
-1765328305 |
KRB5PLACEHOLD_79 |
KRB5 error code 79 |
|
-1765328304 |
KRB5PLACEHOLD_80 |
KRB5 error code 80 |
|
-1765328303 |
KRB5PLACEHOLD_81 |
KRB5 error code 81 |
|
-1765328302 |
KRB5PLACEHOLD_82 |
KRB5 error code 82 |
|
-1765328301 |
KRB5PLACEHOLD_83 |
KRB5 error code 83 |
|
-1765328300 |
KRB5PLACEHOLD_84 |
KRB5 error code 84 |
|
-1765328299 |
KRB5PLACEHOLD_85 |
KRB5 error code 85 |
|
-1765328298 |
KRB5PLACEHOLD_86 |
KRB5 error code 86 |
|
-1765328297 |
KRB5PLACEHOLD_87 |
KRB5 error code 87 |
|
-1765328296 |
KRB5PLACEHOLD_88 |
KRB5 error code 88 |
|
-1765328295 |
KRB5PLACEHOLD_89 |
KRB5 error code 89 |
|
-1765328294 |
KRB5PLACEHOLD_90 |
KRB5 error code 90 |
|
-1765328293 |
KRB5PLACEHOLD_91 |
KRB5 error code 91 |
|
-1765328292 |
KRB5PLACEHOLD_92 |
KRB5 error code 92 |
|
-1765328291 |
KRB5PLACEHOLD_93 |
KRB5 error code 93 |
|
-1765328290 |
KRB5PLACEHOLD_94 |
KRB5 error code 94 |
|
-1765328289 |
KRB5PLACEHOLD_95 |
KRB5 error code 95 |
|
-1765328288 |
KRB5PLACEHOLD_96 |
KRB5 error code 96 |
|
-1765328287 |
KRB5PLACEHOLD_97 |
KRB5 error code 97 |
|
-1765328286 |
KRB5PLACEHOLD_98 |
KRB5 error code 98 |
|
-1765328285 |
KRB5PLACEHOLD_99 |
KRB5 error code 99 |
|
-1765328284 |
KRB5PLACEHOLD_100 |
KRB5 error code 100 |
|
-1765328283 |
KRB5PLACEHOLD_101 |
KRB5 error code 101 |
|
-1765328282 |
KRB5PLACEHOLD_102 |
KRB5 error code 102 |
|
-1765328281 |
KRB5PLACEHOLD_103 |
KRB5 error code 103 |
|
-1765328280 |
KRB5PLACEHOLD_104 |
KRB5 error code 104 |
|
-1765328279 |
KRB5PLACEHOLD_105 |
KRB5 error code 105 |
|
-1765328278 |
KRB5PLACEHOLD_106 |
KRB5 error code 106 |
|
-1765328277 |
KRB5PLACEHOLD_107 |
KRB5 error code 107 |
|
-1765328276 |
KRB5PLACEHOLD_108 |
KRB5 error code 108 |
|
-1765328275 |
KRB5PLACEHOLD_109 |
KRB5 error code 109 |
|
-1765328274 |
KRB5PLACEHOLD_110 |
KRB5 error code 110 |
|
-1765328273 |
KRB5PLACEHOLD_111 |
KRB5 error code 111 |
|
-1765328272 |
KRB5PLACEHOLD_112 |
KRB5 error code 112 |
|
-1765328271 |
KRB5PLACEHOLD_113 |
KRB5 error code 113 |
|
-1765328270 |
KRB5PLACEHOLD_114 |
KRB5 error code 114 |
|
-1765328269 |
KRB5PLACEHOLD_115 |
KRB5 error code 115 |
|
-1765328268 |
KRB5PLACEHOLD_116 |
KRB5 error code 116 |
|
-1765328267 |
KRB5PLACEHOLD_117 |
KRB5 error code 117 |
|
-1765328266 |
KRB5PLACEHOLD_118 |
KRB5 error code 118 |
|
-1765328265 |
KRB5PLACEHOLD_119 |
KRB5 error code 119 |
|
-1765328264 |
KRB5PLACEHOLD_120 |
KRB5 error code 120 |
|
-1765328263 |
KRB5PLACEHOLD_121 |
KRB5 error code 121 |
|
-1765328262 |
KRB5PLACEHOLD_122 |
KRB5 error code 122 |
|
-1765328261 |
KRB5PLACEHOLD_123 |
KRB5 error code 123 |
|
-1765328260 |
KRB5PLACEHOLD_124 |
KRB5 error code 124 |
|
-1765328259 |
KRB5PLACEHOLD_125 |
KRB5 error code 125 |
|
-1765328258 |
KRB5PLACEHOLD_126 |
KRB5 error code 126 |
|
-1765328257 |
KRB5PLACEHOLD_127 |
KRB5 error code 127 |
|
-1765328256 |
KRB5_ERR_RCSID |
$Id: krb5_err.et,v 1.1 1998/05/06 20:23:54 mione Exp $ |
|
-1765328255 |
KRB5_LIBOS_BADLOCKFLAG |
Invalid flag for file lock mode |
|
-1765328254 |
KRB5_LIBOS_CANTREADPWD |
Cannot read password |
|
-1765328253 |
KRB5_LIBOS_BADPWDMATCH |
Password mismatch |
|
-1765328252 |
KRB5_LIBOS_PWDINTR |
Password read interrupted |
|
-1765328251 |
KRB5_PARSE_ILLCHAR |
Illegal character in component name |
|
-1765328250 |
KRB5_PARSE_MALFORMED |
Malformed representation of principal |
|
-1765328249 |
KRB5_CONFIG_CANTOPEN |
Cannot open/find Kerberos configuration file |
|
-1765328248 |
KRB5_CONFIG_BADFORMAT |
Improper format of Kerberos configuration file |
|
-1765328247 |
KRB5_CONFIG_NOTENUFSPACE |
Insufficient space to return complete information |
|
-1765328246 |
KRB5_BADMSGTYPE |
Invalid message type specified for encoding |
|
-1765328245 |
KRB5_CC_BADNAME |
Credential cache name malformed |
|
-1765328244 |
KRB5_CC_UNKNOWN_TYPE |
Unknown credential cache type |
|
-1765328243 |
KRB5_CC_NOTFOUND |
Matching credential not found |
|
-1765328242 |
KRB5_CC_END |
End of credential cache reached |
|
-1765328241 |
KRB5_NO_TKT_SUPPLIED |
Request did not supply a ticket |
|
-1765328240 |
KRB5KRB_AP_WRONG_PRINC |
Wrong principal in request |
|
-1765328239 |
KRB5KRB_AP_ERR_TKT_INVALID |
Ticket has invalid flag set |
|
-1765328238 |
KRB5_PRINC_NOMATCH |
Requested principal and ticket do not match |
|
-1765328237 |
KRB5_KDCREP_MODIFIED |
KDC reply did not match expectations |
|
-1765328236 |
KRB5_KDCREP_SKEW |
Clock skew too great in KDC reply |
|
-1765328235 |
KRB5_IN_TKT_REALM_MISMATCH |
Client/server realm mismatch in initial ticket request |
|
-1765328234 |
KRB5_PROG_ETYPE_NOSUPP |
Program lacks support for encryption type |
|
-1765328233 |
KRB5_PROG_KEYTYPE_NOSUPP |
Program lacks support for key type |
|
-1765328232 |
KRB5_WRONG_ETYPE |
Requested encryption type not used in message |
|
-1765328231 |
KRB5_PROG_SUMTYPE_NOSUPP |
Program lacks support for checksum type |
|
-1765328230 |
KRB5_REALM_UNKNOWN |
Cannot find KDC for requested realm |
|
-1765328229 |
KRB5_SERVICE_UNKNOWN |
Kerberos service unknown |
|
-1765328228 |
KRB5_KDC_UNREACH |
Cannot contact any KDC for requested realm |
|
-1765328227 |
KRB5_NO_LOCALNAME |
No local name found for principal name |
|
-1765328226 |
KRB5_MUTUAL_FAILED |
Mutual authentication failed |
|
-1765328225 |
KRB5_RC_TYPE_EXISTS |
Replay cache type is already registered |
|
-1765328224 |
KRB5_RC_MALLOC |
No more memory to allocate (in replay cache code) |
|
-1765328223 |
KRB5_RC_TYPE_NOTFOUND |
Replay cache type is unknown |
|
-1765328222 |
KRB5_RC_UNKNOWN |
Generic unknown RC error |
|
-1765328221 |
KRB5_RC_REPLAY |
Message is a replay |
|
-1765328220 |
KRB5_RC_IO |
Replay I/O operation failed XXX |
|
-1765328219 |
KRB5_RC_NOIO |
Replay cache type does not support non-volatile storage |
|
-1765328218 |
KRB5_RC_PARSE |
Replay cache name parse/format error |
|
-1765328217 |
KRB5_RC_IO_EOF |
End-of-file on replay cache I/O |
|
-1765328216 |
KRB5_RC_IO_MALLOC |
No more memory to allocate (in replay cache I/O code) |
|
-1765328215 |
KRB5_RC_IO_PERM |
Permission denied in replay cache code |
|
-1765328214 |
KRB5_RC_IO_IO |
I/O error in replay cache i/o code |
|
-1765328213 |
KRB5_RC_IO_UNKNOWN |
Generic unknown RC/IO error |
|
-1765328212 |
KRB5_RC_IO_SPACE |
Insufficient system space to store replay information |
|
-1765328211 |
KRB5_TRANS_CANTOPEN |
Cannot open/find realm translation file |
|
-1765328210 |
KRB5_TRANS_BADFORMAT |
Improper format of realm translation file |
|
-1765328209 |
KRB5_LNAME_CANTOPEN |
Cannot open/find lname translation database |
|
-1765328208 |
KRB5_LNAME_NOTRANS |
No translation available for requested principal |
|
-1765328207 |
KRB5_LNAME_BADFORMAT |
Improper format of translation database entry |
|
-1765328206 |
KRB5_CRYPTO_INTERNAL |
Cryptosystem internal error |
|
-1765328205 |
KRB5_KT_BADNAME |
Key table name malformed |
|
-1765328204 |
KRB5_KT_UNKNOWN_TYPE |
Unknown Key table type |
|
-1765328203 |
KRB5_KT_NOTFOUND |
Key table entry not found |
|
-1765328202 |
KRB5_KT_END |
End of key table reached |
|
-1765328201 |
KRB5_KT_NOWRITE |
Cannot write to specified key table |
|
-1765328200 |
KRB5_KT_IOERR |
Error writing to key table |
|
-1765328199 |
KRB5_NO_TKT_IN_RLM |
Cannot find ticket for requested realm |
|
-1765328198 |
KRB5DES_BAD_KEYPAR |
DES key has bad parity |
|
-1765328197 |
KRB5DES_WEAK_KEY |
DES key is a weak key |
|
-1765328196 |
KRB5_BAD_ENCTYPE |
Bad encryption type |
|
-1765328195 |
KRB5_BAD_KEYSIZE |
Key size is incompatible with encryption type |
|
-1765328194 |
KRB5_BAD_MSIZE |
Message size is incompatible with encryption type |
|
-1765328193 |
KRB5_CC_TYPE_EXISTS |
Credentials cache type is already registered. |
|
-1765328192 |
KRB5_KT_TYPE_EXISTS |
Key table type is already registered. |
|
-1765328191 |
KRB5_CC_IO |
Credentials cache I/O operation failed XXX |
|
-1765328190 |
KRB5_FCC_PERM |
Credentials cache file permissions incorrect |
|
-1765328189 |
KRB5_FCC_NOFILE |
No credentials cache file found |
|
-1765328188 |
KRB5_FCC_INTERNAL |
Internal file credentials cache error |
|
-1765328187 |
KRB5_CC_WRITE |
Error writing to credentials cache file |
|
-1765328186 |
KRB5_CC_NOMEM |
No more memory to allocate (in credentials cache code) |
|
-1765328185 |
KRB5_CC_FORMAT |
Bad format in credentials cache |
|
-1765328184 |
KRB5_INVALID_FLAGS |
Invalid KDC option combination (library internal error) |
|
-1765328183 |
KRB5_NO_2ND_TKT |
Request missing second ticket |
|
-1765328182 |
KRB5_NOCREDS_SUPPLIED |
No credentials supplied to library routine |
|
-1765328181 |
KRB5_SENDAUTH_BADAUTHVERS |
Bad sendauth version was sent |
|
-1765328180 |
KRB5_SENDAUTH_BADAPPLVERS |
Bad application version was sent (using sendauth) |
|
-1765328179 |
KRB5_SENDAUTH_BADRESPONSE |
Bad response (during sendauth exchange) |
|
-1765328178 |
KRB5_SENDAUTH_REJECTED |
Server rejected authentication (during sendauth exchange) |
|
-1765328177 |
KRB5_PREAUTH_BAD_TYPE |
Unsupported preauthentication type |
|
-1765328176 |
KRB5_PREAUTH_NO_KEY |
Required pre-authentication key not supplied |
|
-1765328175 |
KRB5_PREAUTH_FAILED |
Generic pre-authentication failure |
|
-1765328174 |
KRB5_RCACHE_BADVNO |
Unsupported replay cache format version number |
|
-1765328173 |
KRB5_CCACHE_BADVNO |
Unsupported credentials cache format version number |
|
-1765328172 |
KRB5_KEYTAB_BADVNO |
Unsupported key table format version number |
|
-1765328171 |
KRB5_PROG_ATYPE_NOSUPP |
Program lacks support for address type |
|
-1765328170 |
KRB5_RC_REQUIRED |
Message replay detection requires rcache parameter |
|
-1765328169 |
KRB5_ERR_BAD_HOSTNAME |
Hostname cannot be canonicalized |
|
-1765328168 |
KRB5_ERR_HOST_REALM_UNKNOWN |
Cannot determine realm for host |
|
-1765328167 |
KRB5_SNAME_UNSUPP_NAMETYPE |
Conversion to service principal undefined for name type |
|
-1765328166 |
KRB5KRB_AP_ERR_V4_REPLY |
Initial Ticket response appears to be Version 4 error |
|
-1765328165 |
KRB5_REALM_CANT_RESOLVE |
Cannot resolve KDC for requested realm |
|
-1765328164 |
KRB5_TKT_NOT_FORWARDABLE |
Requesting ticket cannot get forwardable tickets |
|
-1765328163 |
KRB5_FWD_BAD_PRINCIPAL |
Bad principal name while trying to forward credentials |
|
-1765328162 |
KRB5_GET_IN_TKT_LOOP |
Looping detected inside krb5_get_in_tkt |
|
-1765328161 |
KRB5_CONFIG_NODEFREALM |
Configuration file does not specify default realm |
|
-1765328160 |
KRB5_SAM_UNSUPPORTED |
Bad SAM flags in obtain_sam_padata |
|
-1765328159 |
KRB5_KT_NAME_TOOLONG |
Keytab name too long |
|
-1765328158 |
KRB5_KT_KVNONOTFOUND |
Key version number for principal in key table is incorrect |
References
Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.
Last Updated Date
This document was last updated on 03 March 2022.
