IIS
Contents
1 Introduction
Internet Information Services (IIS, formerly Internet Information Server) is an extensible web server created by Microsoft for use with Windows NT family. IIS supports HTTP, HTTPS, FTP, FTPS, SMTP and NNTP. It has been an integral part of the Windows NT family since Windows NT 4.0, though it may be absent from some editions (for example, Windows XP Home edition), and is not active by default.
The Kemp LoadMaster is used to load balance the IIS workload. The LoadMaster offers advanced Layer 4 and Layer 7 server load balancing, SSL Acceleration and a multitude of other advanced Application Delivery Controller (ADC) features. The LoadMaster intelligently and efficiently distributes user traffic among the application servers so that users get the best experience possible.
1.1 Document Purpose
This document provides the recommended LoadMaster settings used when load balancing the IIS workload. The Kemp Support Team is available to provide solutions for scenarios not explicitly defined. The Kemp support site can be found at: https://support.kemptechnologies.com
1.2 Intended Audience
This document is intended to be read by anyone who is interested in configuring the LoadMaster to optimize the IIS server.
2 Template
Kemp has developed a template containing our recommended settings for this workload. You can install this template to help create Virtual Services (VSs) because it automatically populates the settings. You can use the template to easily create the required VSs with the recommended settings. For some workloads, additional manual steps may be required such as assigning a certificate or applying port following, these steps are covered in the document, if needed.
You can remove templates after use and this will not affect deployed services. If needed, you can make changes to any of the VS settings after using the template.
Download released templates from the following page: LoadMaster Templates.
For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description on the Kemp Documentation page.
3 Architecture
4 Configure the LoadMaster
The deployed IIS environment determines which of the following setups is used.
4.1 Enable Subnet Originating Requests Globally
It is best practice to enable the Subnet Originating Requests option globally.
In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.
In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.
When Subnet Originating Requests is enabled, the Real Server sees traffic originating from 10.20.20.21 (LoadMaster eth1 address) and responds correctly in most scenarios.
With Subnet Originating Requests disabled, the Real Server sees traffic originating from 10.0.0.15 (LoadMaster Virtual Service address on eth0) and responds to eth0 which could cause asymmetric routing.
When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to enable Subnet Originating Requests on a per-Virtual Service basis.
To enable Subnet Originating Requests globally, follow the steps below:
1. In the main menu of the LoadMaster User Interface (UI), go to System Configuration > Miscellaneous Options > Network Options.
2. Select the Subnet Originating Requests check box.
4.2 Enable Check Persist Globally
It is recommended that you change the Always Check Persist option to Yes - Accept Changes. Use the following steps:
1. Go to System Configuration > Miscellaneous Options > L7 Configuration.
2. Click the Always Check Persist drop-down arrow and select Yes - Accept Changes.
Enable Check Persist is not required if active cookie is enabled.
4.3 Create the IIS Virtual Services
The following sections describe the recommended settings for the IIS Virtual Services.
4.3.1 Create an IIS HTTP Virtual Service
The following are the steps involved and the recommended settings to configure the IIS Virtual Service:
1. In the main menu of the LoadMaster Web User Interface (WUI), go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Type 80 as the Port.
4. Enter a recognizable Service Name, such as IIS HTTP Virtual Service.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
Comment |
|---|---|---|---|
|
Standard Options |
Timeout |
1 Hour |
|
|
|
Cookie name |
JSESSIONID |
|
|
|
Scheduling Method |
least connection |
|
7. Add the Real Servers:
8. Expand the Real Servers section.
9. Click Add New.
a) Enter the address of the relevant Real Server.
b) Complete the other fields as required.
c) Click Add this Real Server then click OK to the pop-up message.
d) Repeat the steps above to add more Real Servers as needed, based on your environment.
4.3.2 Create an IIS HTTPS Virtual Service
The following are the steps involved and the recommended settings to configure the IIS HTTPS Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Type 443 as the Port.
4. Enter a recognizable Service Name, such as IIS HTTPS Virtual Service.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
Comment |
|---|---|---|---|
|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
|
Timeout |
1 Hour |
|
|
|
Scheduling Method |
least connection |
|
|
|
Idle Connection Timeout |
900 |
|
|
Advanced Properties |
Add a Port 80 Redirector VS |
https://%h%s |
Click Add HTTP Redirector. This automatically creates a redirect on port 80. |
|
Real Servers |
URL |
/ |
|
7. Add the Real Servers:
8. Expand the Real Servers section.
9. Click Add New.
a) Enter the address of the relevant Real Server.
b) Complete the other fields as required.
c) Click Add this Real Server then click OK to the pop-up message.
d) Repeat the steps above to add more Real Servers as needed, based on your environment.
Create an IIS HTTPS Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Real Server Check Method and Persistence Mode to None.

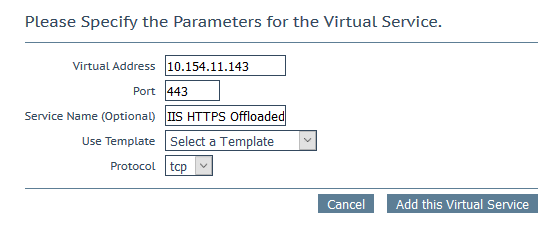

4.3.3 Create an IIS HTTPS Offloaded Virtual Service
The following are the steps involved and the recommended settings to configure the IIS HTTPS Offloaded Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Type 443 as the Port.
4. Enter a recognizable Service Name, such as IIS HTTPS Offloaded HTTP Virtual Service.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
Comment |
|---|---|---|---|
|
Standard Options |
Persistence Mode |
Active Cookie |
SSL Acceleration must be enabled before you can select Active Cookie as a Persistence Mode. |
|
|
Timeout |
1 Hour |
|
|
|
Scheduling Method |
least connection |
|
|
|
Idle Connection Timeout |
900 |
|
|
SSL Properties |
SSL Acceleration |
Enabled |
|
|
|
Cipher Set |
BestPractices |
|
|
Advanced Properties |
Add a Port 80 Redirector VS |
https://%h%s |
Click Add HTTP Redirector. This automatically creates a redirect on port 80. |
|
Real Servers |
Real Server Check Method |
HTTPS Protocol |
|
|
|
URL |
/ |
|
7. Add the Real Servers:
8. Expand the Real Servers section.
9. Click Add New.
a) Enter the address of the relevant Real Server.
b) Complete the other fields as required.
c) Click Add this Real Server then click OK to the pop-up message.
d) Repeat the steps above to add more Real Servers as needed, based on your environment.
Create an IIS HTTPS Offloaded Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Real Server Check Method and Persistence Mode to None.
4.3.4 Create an IIS HTTPS Re-encrypt Virtual Service
The following are the steps involved and the recommended settings to configure the IIS HTTPS Re-encrypt Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Type 443 as the Port.
4. Enter a recognizable Service Name, such as IIS HTTPS Re-encrypt Virtual Service.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
Comment |
|---|---|---|---|
|
Standard Options |
Persistence Mode |
Active Cookie |
SSL Acceleration must be enabled before you can select Active Cookie as a Persistence Mode. |
|
|
Timeout |
1 Hour |
|
|
|
Cookie name |
JSESSSIONID |
|
|
|
Scheduling Method |
least connection |
|
|
|
Idle Connection Timeout |
900 |
|
|
SSL Properties |
SSL Acceleration |
Enabled |
|
|
|
Reencrypt |
Enabled |
|
|
|
Cipher Set |
Best Practices |
|
|
Advanced Properties |
Add a Port 80 Redirector VS |
https://%h%s |
Click Add HTTP Redirector. This automatically creates a redirect on port 80. |
|
Real Servers |
URL |
/ |
|
7. Add the Real Servers:
8. Expand the Real Servers section.
9. Click Add New.
a) Enter the address of the relevant Real Server.
b) Complete the other fields as required.
c) Click Add this Real Server then click OK to the pop-up message.
d) Repeat the steps above to add more Real Servers as needed, based on your environment.
Create an IIS HTTPS Re-encrypt Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Real Server Check Method and Persistence Mode to None.
4.4 Create the IIS and WAF Virtual Services
The following sections describe the recommended settings for the IIS and WAF Virtual Services.

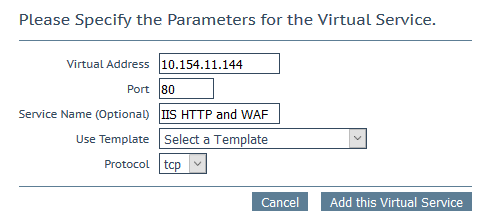

4.4.1 Create an IIS HTTP and WAF Virtual Service
The following are the steps involved and the recommended settings to configure the IIS HTTP WAF Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Type 80 as the Port.
4. Enter a recognizable Service Name, such as IIS HTTP WAF Virtual Service.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
|---|---|---|
|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
Timeout |
6 Minutes |
|
|
Scheduling Method |
least connection |
|
WAF Options |
Enabled |
Yes |
|
|
Default Operation |
Block Mode |
|
|
Audit mode |
Audit Relevant |
|
|
Enabled Rules |
owasp_protocol_violations |
|
|
|
owasp_protocol_anomalies |
|
|
|
owasp_request_limits |
|
|
|
owasp_bad_robots |
|
|
|
owasp_generic_attacks |
|
|
|
owasp_xss_attacks |
|
|
|
owasp trojans |
|
|
|
owasp_common_exceptions |
|
|
Application Specific |
iis_attacks |
|
Real Servers |
Real Server Check Method |
HTTPS Protocol |
|
Real Servers |
URL |
/ |
7. Add the Real Servers:
8. Expand the Real Servers section.
9. Click Add New.
a) Enter the address of the relevant Real Server.
b) Complete the other fields as required.
c) Click Add this Real Server then click OK to the pop-up message.
d) Repeat the steps above to add more Real Servers as needed, based on your environment.
4.4.2 Create an IIS HTTPS Offloaded and WAF Virtual Service
The following are the steps involved and the recommended settings to configure the IIS HTTPS Offloaded and WAF Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Type 443 as the Port.
4. Enter a recognizable Service Name, such as IIS HTTPS Offloaded WAF Virtual Service.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
Comments |
|---|---|---|---|
|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
|
Timeout |
6 Minutes |
|
|
|
Scheduling Method |
least connection |
|
|
|
Idle Connection Timeout |
900 |
|
|
SSL Properties |
Enabled |
Selected |
|
|
|
Cipher Set |
Best Practices |
|
|
Advanced Properties |
Add a Port 80 Redirector VS |
https://%h%s |
Click Add HTTP Redirector. This automatically creates a redirect on port 80. |
|
WAF Options |
Enabled |
Yes |
|
|
|
Default Operation |
Block Mode |
|
|
|
Audit Mode |
Audit Relevant |
|
|
|
Enabled Rules |
owasp_protocol_violations |
|
|
|
|
owasp_protocol_anomalies |
|
|
|
|
owasp_request_limits |
|
|
|
|
owasp_bad_robots |
|
|
|
|
owasp_generic_attacks |
|
|
|
|
owasp_xss_attacks |
|
|
|
|
owasp_trojans |
|
|
|
|
owasp_common_exceptions |
|
|
|
Application Specific |
iis_attacks |
|
|
Real Servers |
Real Server Check Method |
HTTPS Protocol |
|
|
Real Servers |
URL |
/ |
|
7. Add the Real Servers:
8. Expand the Real Servers section.
9. Click Add New.
a) Enter the address of the relevant Real Server.
b) Complete the other fields as required.
c) Click Add this Real Server then click OK to the pop-up message.
d) Repeat the steps above to add more Real Servers as needed, based on your environment.
Create an IIS HTTPS Offloaded and WAF Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Real Server Check Method and Persistence Mode to None.
4.4.3 Create an IIS HTTPS Re-encrypt and WAF Virtual Service
The following are the steps involved and the recommended settings to configure the IIS HTTPS Re-encrypt and WAF Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Type 443 as the Port.
4. Enter a recognizable Service Name, such as IIS HTTPS Re-encrypt and WAF Virtual Service.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
|
Section |
Option |
Value |
Comments |
|---|---|---|---|
|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
|
Timeout |
6 Minutes |
|
|
|
Scheduling Method |
least connection |
|
|
|
Idle Connection Timeout |
900 |
|
|
SSL Properties |
Enabled |
Selected |
|
|
|
Reencrypt |
Selected |
|
|
|
Cipher Set |
Best Practices |
|
|
Advanced Properties |
Add a Port 80 Redirector VS |
https://%h%s |
Click Add HTTP Redirector. This automatically creates a redirect on port 80. |
|
WAF Options |
Enabled |
Yes |
|
|
|
Default Operation |
Block Mode |
|
|
|
Audit mode |
Audit Relevant |
|
|
|
Enabled Rules |
owasp_protocol_violations |
|
|
|
|
owasp_protocol_anomolies |
|
|
|
|
owasp_request_limits |
|
|
|
|
owasp_bad_robots |
|
|
|
|
owasp_generic_attacks |
|
|
|
|
owasp_xss_attacks |
|
|
|
|
owasp_trojans |
|
|
|
|
owasp_common_exceptions |
|
|
|
Application Specific |
iis_attacks |
|
|
Real Servers |
Real Server Check Method |
HTTPS Protocol |
|
|
Real Servers |
URL |
/ |
|
7. Add the Real Servers:
8. Expand the Real Servers section.
9. Click Add New.
a) Enter the address of the relevant Real Server.
b) Complete the other fields as required.
c) Click Add this Real Server then click OK to the pop-up message.
d) Repeat the steps above to add more Real Servers as needed, based on your environment.
Create an IIS HTTPS Re-encrypt and WAF Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Real Server Check Method and Persistence Mode to None.
References
Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.
Virtual Services and Templates, Feature Description
Last Updated Date
This document was last updated on 18 February 2022.
