Security Assertion Markup Language (SAML) is a standards-defined protocol. The specification defines the syntax and semantics for assertions made about a subject. Subjects are typically end users of a system. SAML assertions and protocol messages are XML-encoded but rely on HTTP-based mechanisms for transport between entities.
SAML enables web-based Single Sign On (SSO). It also provides for centralized federated identity and authentication management. Microsoft Active Directory Federation Services (AD FS) is the SAML-based Identity Provider (IdP) which has been tested and which is referred to in this document. However, other IdPs may also work. AD FS is a standards-based service running on a Microsoft box that allows the secure sharing of identity information between trusted parties. In general terms, this is known as a federation. AD FS supports SAML, essentially playing the role of a SAML IdP. The LoadMaster supports SAML, playing the role of a SAML service provider. The service provider provides secure, gated access to a resource.
1.1 Document Purpose
The purpose of this document is to provide information and instructions on how to configure SAML authentication with the Kemp LoadMaster.
1.2 Intended Audience
This document is intended to be used by anyone who is interested in finding out further information about using SAML authentication with the LoadMaster.
2 SAML Authentication Flow
When using other Edge Security Pack (ESP) authentication protocols in the LoadMaster, end users are presented with the standard Kemp login form. This is not displayed by LoadMaster when using SAML because a login form is not provided by Kemp. The LoadMaster instead redirects the client to a login form which is located at the IdP.
The LoadMaster implementation relies on protocol bindings for HTTP redirect which is used for redirections to a claims provider, alternatively known as an IdP. The LoadMaster also has a dependency on HTTP POST - the LoadMaster expects HTTP POST messages for IdP responses, where applicable.
The domain is fundamentally different to other types of SSO domain that are configurable on the LoadMaster because the LoadMaster does not interact directly with the authentication server (AD FS in this scenario). The LoadMaster redirects and informs the client to interact directly with AD FS so that the client can input the credentials that are required for authentication.
The URL provided in the original request from L7 is preserved. This URL is given precedence over the destination URL from the SAML response. For example, if a user logs in to a URL such as https://sharepoint.kemptest.com/personal/admin, they are directed to https://sharepoint.kemptest.com/personal/admin and not https://sharepoint.kemptest.com.
Here is a description of the flow:
1. The client attempts to connect to the Virtual Service on the LoadMaster.
2. The LoadMaster identifies that there is no cookie for the session. As this is a SAML-based domain - the authentication request is built.
3. The client is informed to redirect to the IdP.
4. The client sees the login form from the IdP federation server and enters their credentials. This interaction is between the client and the IdP. The credentials are passed between the client and the Federation Server.
5. The IdP parses the SAML request and authenticates the user.
6. The IdP generates the SAML response.
7. The IdP returns the encoded SAML response to the browser in the URL.
8. A POST request, including the SAML response is passed back to the Service Provider (the LoadMaster).
9. The LoadMaster validates the contents of the SAML response and grants/denies access. Back-end KCD processing is performed at this point, if KCD is in use.
Logging out results in another series of events:
10. The user signs out.
11. The client gets logged out of the LoadMaster and redirected to the IdP again to allow the user to log back in, if necessary.
12. A logout response is passed from the IdP to the client.
13. A logout response is passed from the client to the LoadMaster.
This flow is known as SP-initiated authentication; IdP-initiated authentication is not supported.
3 AD FS Settings
Some information is provided below on some of the key AD FS settings. The AD FS settings can be configured using the AD FS management console which is available in the Server Manager by going to Tools > AD FS Management.
3.1 Terminology Differences
There is a difference in terminology between AD FS terms and SAML terms. AD FS supports SAML and implements SAML but the terminology associated with AD FS varies in comparison to the terminology that is used in the context of SAML.
Some examples of these terminology differences are provided in the table below.
AD FS Name
A package of security information, describing a user, created and consumed during a federated access request.
Identity Provider (IdP)
Partner in a federation that creates security tokens for users.
Service Provider (SP)
Partner in a federation that consumes security tokens for providing access to applications.
Data about users that is sent inside security tokens.
3.2 Ensure the Services are Running
Before making changes to the AD FS settings, ensure the Active Directory Federation Services and Device Registration Service are running.
To do this, follow the steps below:
1. Click the Start menu in the bottom-left corner of the screen.
2. Type run and click the Run option.
3. Enter services.msc and click OK.
4. Ensure the Active Directory Federation Services is running. If it is not, right-click it and click Start.
5. Ensure the Device Registration Service is running. If it is not, right-click them and click Start.
3.3 Service Settings
To access the Federation Service Properties, click the AD FS folder and click Edit Federation Service Properties on the right.
The Federation Service display name is the corporation name. This is shown on the log on screen when the client is redirected to the form-based authentication on the IdP. In the example screenshot above, the Federation Service display name is set to samltest corporation.
The Federation Service name is the qualified server name (Fully Qualified Domain Name (FQDN)) for this federation service (AD FS).
The Federation Service identifier is the IdP entity ID, such as http://<FQDN>/adfs. This must match the IdP entity ID in the context of SAML.
In the Events tab, the first three options should be selected.
3.4 Endpoint Settings
The Services > Endpoints folder contains a list of the endpoints that are served by AD FS.
The Metadata section contains a path to the FederationMetadata.xml file which can be imported into the LoadMaster when configuring the SAML domain. This path will form part of a full URL which includes the federation service server. Go to this URL (for example, https://<FQDN>/FederationMetadata/2007-06/FederationMetadata.xml) in a web browser to download the metadata file which can then be imported using the IdP Metadata File field in the LoadMaster. Importing this file automatically populates the IdP Entity ID, IdP SSO URL and IdP Logoff URL fields with the relevant data.
3.5 Certificate Settings
All communications between the service provider and the IdP (AD FS in this case) must be secure. The certificate infrastructure must be in place on AD FS. Kemp assumes that this is in place in the case of production environments. If setting up AD FS for the first time, please ensure the correct certificate infrastructure is in place.
In the Certificates folder, there are certificates for service communication, token decrypting and token signing. The token signing certificate is important. When referring to tokens in AD FS, they generally map to assertions in the context of SAML. The token signing certificate is used for signing any response data from the AD FS. The LoadMaster requires this certificate to verify the signature on the service provider side (that is, on the LoadMaster side).
Export the token signing certificate from AD FS by following the steps below:
1. Go to Services > Certificates in AD FS.
2. Select the Token-signing certificate.
3. Click View Certificate.
4. Click Copy to File.
5. Follow the steps in the certificate export wizard.
6. Provide a filename for the certificate.
You must convert the certificate to a .pem format before importing it to the LoadMaster. There are many certificate converters available online. Alternatively, you can use an openssl command to perform the conversion.
Import the .pem certificate into the LoadMaster by following the steps below in the LoadMaster Web User Interface (WUI):
7. In the main menu, go to Certificates & Security > Intermediate Certs.
8. Click Choose File.
9. Browse to and select the certificate file.
10. Enter a Certificate Name and click Add Certificate.
This token signing certificate is now available to select in the IdP Certificate drop-down list in the SAML SSO domain in the LoadMaster.
3.6 Claim Description Settings
The Claim Descriptions folder contains a list of all the claims that can be asked and provided for. Usually this is backed up by Active Directory. There is a mapping between LDAP attributes and the claims that can be provided by AD FS.
3.7 Trust Relationships Settings
The trust relationship is about establishing trust between an IdP and a service provider. In AD FS terminology - the relying party is the service provider (the LoadMaster).
Identifiers are configured here in AD FS which are used when building request messages from the service provider.
3.7.1 Ensure Active Directory is Enabled
To ensure Active Directory is enabled, click the Claims Provider Trusts folder.
3.7.2 Add a Relying Party Trust
To add a Relying Party Trust, follow the steps below:
1. Click the Relying Party Trusts folder.
2. Click Add Relying Party Trust.
3. Click Start.
4. Select Enter data about the relying party manually and click Next.
5. Enter a Display name for the Relying Party Trust and click Next.
6. Select the AD FS profile option (this supports SAML 2.0) and click Next.
7. Click Next and do not add a token encryption certificate. Encryption is not supported.
8. Do not select either option on the Configure URL screen and click Next.
9. Enter the Relying party trust identifier in the form of a URL and click Add.
10. Click Next.
11. Select I do not want to configure multi-factor authentication settings for this relying party trust at this time and click Next.
12. Select Permit all users to access this relying party and click Next.
13. Click Next.
14. Click Finish.
3.7.3 Add End Points
Now, add the end points by following the steps below:
1. Go to the Properties of the relying party trust.
2. Select the Endpoints tab.
3. Click Add SAML.
4. Select SAML Assertion Consumer from the Endpoint type drop-down list.
5. Select POST as the Binding.
6. Enter the Virtual Service FQDN in the Trusted URL text box. Then, click OK.
7. Click Add SAML again to add the logout endpoint.
8. Select SAML Logout as the Endpoint type.
9. Select POST as the Binding.
10. Enter the logout URL in the Trusted URL text box, for example https://<VirtualServiceFQDN>/<LogoutURL>.
11. Copy the URL from the Trusted URL text box into the Response URL text box. Then, click OK.
Both URLs should point towards the Virtual Service.
3.7.4 Import the Certificate
Export the certificate from the LoadMaster by going to Virtual Services > Manage SSO, clicking Modify on the SAML SSO domain and clicking Download.
To import the certificate in AD FS, follow the steps below:
1. Select the Signature tab.
2. Click Add.
3. Browse to and select the certificate that was downloaded from the LoadMaster.
In the context of log out processing - the service provider signs the log out request message. Therefore, on the AD FS side - there must be a certificate to verify that the signature is accurate and correct for the message that was signed on the service provider.
4. Click OK.
3.7.5 Configure the Identifiers
Configure the identifiers by following the steps below:
1. Select the Identifiers tab.
2. Enter the Display name. This value should be entered as the SP Entity ID in the LoadMaster.
3. For the Relying party identifiers, include all possible connotations of the URL, for example http://<ID>, https://<ID>.
4. Click OK.
3.7.6 Claim Rules
A single claim is required. While multiple claims may be configured, it is recommended you use a single claim only, which should be most appropriate for the environment. In the Claim Rule, the LDAP attributes are mapped to the outgoing claim types. The LoadMaster supports:
- The User-Principal-Name which maps to the UPN (which is the outgoing claim type)
- The SAM-Account-Name (which is the typical Windows samAccountName attribute from an LDAP perspective) which maps to the Windows account name
- The User-Principal-Name which maps to the Name ID outgoing claim type
The User-Principal-Name is important because without it - a session index is not included in the SAML response. The session index is very important to correlate an existing session and a log out operation.
These three attributes are the minimum required. The UPN is required to proceed with KCD processing on the back end.
To add the Claim Rule, follow the steps below:
1. Select the Relying Party Trusts folder.
2. Right-click the relevant Display Name and select Edit Claim Rules.
3. Edit the relevant rule.
4. Add the attribute mappings.
5. Ensure that all users are permitted access by selecting the Issuance Authorization Rules tab.
3.8 Authentication Policies Setting
Right-click the Authentication Policies folder and select Edit Global Primary Authentication.
Select the Primary tab. Depending on production requirements (external/internal, and so on), Forms Authentication may need to be enabled for both the Extranet and Intranet. Deselect the other options. Click OK to save the settings.
4 Configure SAML Authentication in the LoadMaster
Follow the steps in the sections below to configure the options for SAML in the LoadMaster.
Refer to the sections below for information on some limitations when using SAML.
4.1.1 Certificate Signature Verification
Since LoadMaster firmware version 7.2.40, the signature verification in the case of having a SAML IDP Token Signing certificate, which was signed by your Root Certificate, will not (should not) work.
In previous versions, you could set your SAML IDP Token Signing Certificate on your IDP Provider. The Root certificate configured in your SSO Domain was then used to verify the signature and trust was established.
Since 7.2.40, the certificate in the response must match the certificate assigned in the SAML SSO domain. This means that your certificate can not be created by a Third Party Provider, such as Go Daddy, and it should be a trusted Root Cert.
4.1.2 Persistent Cookies
The persistent cookie feature works with SAML. However, it is susceptible to browser behavior and may be effective to use with Internet Explorer only. Also, depending on testing performed and multiple cookies being in use, the cookie that can be used varies.
4.2 Configure the SSO Domain
SAML SSO domains are fundamentally different from other SSO domains which can be configured on the LoadMaster. This is because the LoadMaster does not directly interact with the authentication server. In the context of SAML, the LoadMaster performs redirections. The LoadMaster asks the client to redirect to an IdP to issue some claims and get the required assertions back.
To configure a SAML-based SSO domain in the LoadMaster, follow the steps below:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Manage SSO.
2. Enter a name for the SSO domain in the Add new Client Side Configuration text box and click Add.
3. Select SAML as the Authentication Protocol.
4. Select the relevant IdP Provisioning option.
The Manual option enables you to manually input details into the IdP fields.
The MetaData File option enables you to upload an IdP MetaData File. This simplifies the configuration of the IdP attributes, including the IdP Entity ID, IdP SSO URL and IdP Logoff URL. The metadata file can be downloaded from the IdP. For further information, refer to the Endpoint Settings section. To upload the file - click Browse, navigate to and select the relevant file and click Import IdP MetaData File.
5. Select an IdP Certificate for use in the context of assertion verification.
The certificate can be exported from the IdP and imported in the LoadMaster in the Certificates & Security section.
The IdP Certificate is very important in terms of verification of the assertions that must be contained in the SAML response that is received from the IdP. Without the certificate, verification cannot proceed.
6. Decide whether or not to enable the IdP Certificate Match check box.
If this option is enabled, the IdP certificate assigned must match the certificate in the IdP SAML response.
7. Enter the SP Entity ID and click Set SP Entity ID.
This is an identifier that is shared to enable the IdP to understand, accept and have knowledge of the entity when request messages are sent from the LoadMaster. This must correlate to the identifier of the relying party on the AD FS server.
8. Select the relevant SP Signing Certificate option.
It is optional to sign requests that are sent in the context of logon. Currently, the LoadMaster does not sign those requests.
In the context of log off requests - it is mandatory and these requests must be signed. This is to avoid any spoofing and to provide extra security in relation to log off functionality. This ensures that users are not being hacked and not being logged off unnecessarily.
In the SP Signing Certificate field, you can use a self-signed certificate to perform the signing.
9. If using a self-signed certificate, click the Download button to download the certificate. This certificate must be installed on the IdP server (for example AD FS) to be added to the relying party signature.
The AD FS server requires this certificate for use of the public key to verify the signatures that the LoadMaster generates.
10. Select the relevant Session Control option.
The IdP maximum duration value cannot be set in the LoadMaster. The value is taken from the IdP protocol. If the value is not already set in the IdP authentication response, the default value of 30 minutes is assigned as the IdP maximum duration.
11. If using SP Session Idle Duration, enter the SP Session Idle Duration and click Set SP Idle Duration.
12. If using SP Session Max Duration, enter the SP Session Max Duration and click Set SP Max Duration.
4.3 Configure the Virtual Service
Follow the steps below to configure the Virtual Service to use SAML authentication:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Enter a valid IP address in the Virtual Address text box.
3. Enter the Port.
4. Enter a Service Name.
5. Click Add this Virtual Service.
6. Expand the ESP Options section.
7. Select the Enable ESP check box.
8. Select SAML as the Client Authentication Mode.
9. Select the SAML SSO Domain.
10. Enter any Allowed Virtual Hosts, as needed.
11. Enter the Logoff String and click Set SSO Logoff String.
The Logoff String is important. The Logoff String has a special protocol flow associated with it in the context of SAML. Not only do you want to log out of the Service Provider on the LoadMaster, but the user also must be logged out of the IdP.
12. If required, enter the Additional Authentication Header and click Set Additional Authentication Header.
The Additional Authentication Header specifies the name of the HTTP header. This header is added to the HTTP request from the LoadMaster to the Real Server and its value is set to the user ID for the authenticated session.
13. Select the Server Authentication Mode.
The Server Authentication Mode can be set to None, KCD, or Server Token. Basic Authentication is not supported because the LoadMaster does not have access to the username and password.
If you select Server Token as the Server Authentication Mode on reception and verification of the SAML response, the LoadMaster requests a long-lived token. The LoadMaster then builds a redirection URL with the token specified.
14. If using KCD as the Server Authentication Mode, please select the relevant option for Server Side configuration.
For further information on KCD, refer to the Kerberos Constrained Delegation, Feature Description.
15. Configure any other settings as needed.
5 Appendix A: Logging

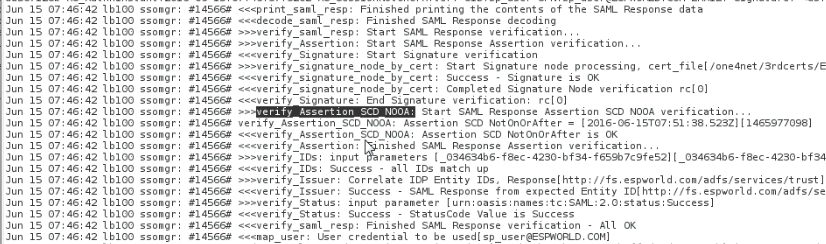

There are very detailed logs available to assist in investigating issues. Some things to look out for in the logs are:
- Ensure there is a SAML domain assigned
- An ID must be generated for the request
- The SAML request is encoded
- The authentication request is built up and sent back down to L7
- At some point later, a response is received
- An XML-encoded SAML response gets parsed
- Some of the information which is in the SAML response is displayed
- That information is processed
- The required pieces are extracted to perform a significant amount of verification checks
- When finished processing the XML, the verification steps begin
- As part of the verification:
- The signature is checked to ensure it is OK
- The "Not On Or After" (NOOA) time is checked to ensure that time has not passed because the assertion has a lifetime associated with it
- All of the IDs are checked to ensure they match. There is an original ID which is allocated as part of a request. That ID is received back as part of a response so it is checked to ensure it matches in two places in the response document.
- The issuer is verified to ensure that the response is received from the IdP which was configured previously
- A success code is displayed in the response. That has to be successful to indicate that the user was successfully authenticated at the IdP.
- The username entered when signing in is displayed
- Next, the KCD processing occurs (if relevant)
- Once the KCD processing is finished, the site is browsed
- At some point there is a log out operation
- An operation is seen for L7 authentication SAML logout
- The logout request is built
- The logout request is sent to L7
- The client redirects to the logout
- A digest is created and there is a full query string
Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.
Kerberos Constrained Delegation, Feature Description
Last Updated Date
This document was last updated on 21 February 2022.
