1 Introduction
JBoss is an application server authored by JBoss, which is now developed by Red Hat. It was renamed WildFly in November 2014. It is written in Java and implements the Java Platform, Enterprise Edition (Java EE) specification. It runs on multiple platforms and is open source.
The Kemp LoadMaster is used to load balance the JBoss workload. The LoadMaster offers advanced Layer 4 and Layer 7 server load balancing, SSL Acceleration and a multitude of other advanced Application Delivery Controller (ADC) features. The LoadMaster intelligently and efficiently distributes user traffic among the application servers so that users get the best experience possible.
1.1 Document Purpose
This document provides the recommended LoadMaster settings used when load balancing the JBoss workload. The Kemp Support Team is available to provide solutions for scenarios not explicitly defined. The Kemp support site can be found at: https://support.kemptechnologies.com
1.2 Intended Audience
This document is intended to be read by anyone who is interested in configuring the LoadMaster to optimize JBoss Application Server.
2 Template
Kemp has developed a template containing our recommended settings for this workload. You can install this template to help create Virtual Services (VSs) because it automatically populates the settings. You can use the template to easily create the required VSs with the recommended settings. You can remove templates after use and this will not affect deployed services. If needed, you can make changes to any of the VS settings after using the template.
Download released templates from the following page: LoadMaster Templates.
For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description on the Kemp Documentation page.
3 Architecture
4 Configure the LoadMaster
The deployed JBoss environment determines which of the following setups is used.
4.1 Enable Subnet Originating Requests Globally
It is best practice to enable the Subnet Originating Requests option globally.
In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.
In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.
When Subnet Originating Requests is enabled, the LoadMaster routes traffic so that the Real Server sees traffic arriving from the LoadMaster interface that is in that network/subnet.
When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to enable Subnet Originating Requests on a per-Virtual Service basis.
To enable Subnet Originating Requests globally, follow the steps below:
1. In the main menu of the LoadMaster Web User Interface (WUI), go to System Configuration > Miscellaneous Options > Network Options.
2. Select the Subnet Originating Requests check box.
4.2 Enable Check Persist Globally
It is recommended that you change the Always Check Persist option to Yes - Accept Changes. Use the following steps:
1. Go to System Configuration > Miscellaneous Options > L7 Configuration.
2. Click the Always Check Persist drop-down arrow and select Yes - Accept Changes.
4.3 Create the JBoss Virtual Services
The following sections describe the recommended settings for the JBoss Virtual Services.
4.3.1 Create a JBoss Web App HTTP Virtual Service
The following are the steps involved and the recommended settings to configure the JBoss Web App HTTP Virtual Service:
1. In the main menu of the LoadMaster Web User Interface (WUI), go to Virtual Services > Add New.
2. Enter a valid Virtual Address.
3. Enter 80 as the Port.
4. Enter a recognizable Service Name, such as JBoss Web App HTTP.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
Section |
Option |
Value |
Comment |
---|---|---|---|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
Timeout |
1 Hour |
|
|
Scheduling Method |
least connection |
|
|
Idle Connection Timeout |
660 (seconds) |
Click Set Idle Timeout. |
Real Servers |
Checked Port |
8080 |
|
7. Add the Real Servers:
a) Expand the Real Servers section.
b) Click Add New.
c) Enter the address of the relevant real server.
d) Complete the other fields as required.
e) Click Add this Real Server then click OK to the pop-up message.
f) Repeat the steps above to add more Real Servers as needed, based on your environment.
4.3.2 Create a JBoss Web App HTTPS Offloaded Virtual Service
The following are the steps involved and the recommended settings to configure the JBoss Web App HTTPS Offloaded Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Enter a valid Virtual Address.
3. Enter 443 as the Port.
4. Enter a recognizable Service Name, such as JBoss Web App HTTPS Offloaded.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
Section |
Option |
Value |
Comment |
---|---|---|---|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
Timeout |
1 Hour |
|
|
Scheduling Method |
least connection |
|
|
Idle Connection Timeout |
660 (seconds) |
Click Set Idle Timeout. |
SSL Properties |
SSL Acceleration |
Enabled |
|
|
Cipher Set |
BestPractices |
|
Advanced Properties |
Add a Port 80 Redirector VS |
https://%h%s |
Click the Add HTTP Redirector button. This automatically creates a redirect on port 80. |
Real Servers |
Checked Port |
8080 |
|
7. Add the Real Servers:
a) Expand the Real Servers section.
b) Click Add New.
c) Enter the address of the relevant Real Server.
d) Complete the other fields as required.
e) Click Add this Real Server then click OK to the pop-up message.
f) Repeat the steps above to add more Real Servers as needed, based on your environment.
4.3.2.1 Create a JBoss Web App HTTPS Offloaded HTTP Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Persistence Mode to None.
4.3.3 Create a JBoss Web App HTTPS Reencrypted Virtual Service
The following are the steps involved and the recommended settings to configure the JBoss Web App HTTPS Reencrypted Virtual Service:

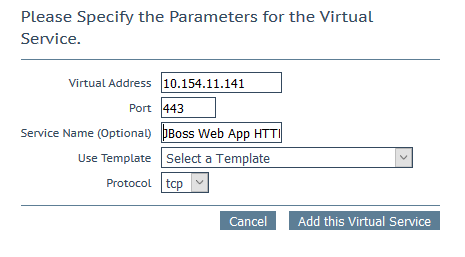

1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Enter a valid Virtual Address.
3. Enter 443 as the Port.
4. Enter a recognizable Service Name, such as JBoss Web App HTTPS Reencrypted.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
Section |
Option |
Value |
Comment |
---|---|---|---|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
Timeout |
1 Hour |
|
|
Scheduling Method |
least connection |
|
|
Idle Connection Timeout |
660 (seconds) |
Click Set Idle Timeout. |
SSL Properties |
SSL Acceleration |
Enabled |
|
|
Reencrypt |
Enabled |
|
|
Cipher Set |
Best Practices |
|
Advanced Properties |
Add a Port 80 redirector VS |
https://%h%s |
Click the Add HTTP Redirector button. This automatically creates a redirect on port 80. |
Real Servers |
Checked Port |
8443 |
|
7. Add the Real Servers:
a) Expand the Real Servers section.
b) Click Add New.
c) Enter the address of the relevant Real Server.
d) Complete the other fields as required.
e) Click Add this Real Server then click OK to the pop-up message.
f) Repeat the steps above to add more Real Servers as needed, based on your environment.
4.3.3.1 Create a JBoss Web App HTTPS Reencrypted Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Persistence Mode to None.
4.3.4 Create a JBoss Web App HTTPS Straight Through Virtual Service
The following are the steps involved and the recommended settings to configure the JBoss Web App HTTPS straight through Virtual Service:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Enter a valid Virtual Address.
3. Enter 443 as the Port.
4. Enter a recognizable Service Name, such as JBoss Web App HTTPS straight through.
5. Click Add this Virtual Service.
6. Configure the settings as recommended in the following table:
Section |
Option |
Value |
Comment |
---|---|---|---|
Standard Options |
Persistence Mode |
Source IP Address |
|
|
Timeout |
1 Hour |
|
|
Scheduling Method |
least connection |
|
|
Idle Connection Timeout |
660 |
Click Set Idle Timeout. |
Advanced Properties |
Add a Port 80 Redirector VS |
|
Click the Add HTTP Redirector button. This automatically creates a redirect on port 80. |
Real Servers |
Checked Port |
8443 |
|
7. Add the Real Servers:
a) Expand the Real Servers section.
b) Click Add New.
c) Enter the address of the relevant Real Server.
d) Complete the other fields as required.
e) Click Add this Real Server then click OK to the pop-up message.
f) Repeat the steps above to add more Real Servers as needed, based on your environment.
4.3.4.1 Create a JBoss Web App HTTPS Straight Through HTTP Redirect Virtual Service
Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Persistence Mode to None.
References
Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.
Virtual Services and Templates, Feature Description
Last Updated Date
This document was last updated on 10 March 2022.
