HA for Azure Resource Manager
Contents
1 Introduction
Microsoft Azure has two different models for deploying services: Resource Manager and Classic. The main body of this guide covers setting up the LoadMaster with High Availability using the Resource Manager method.
When deploying an application using the Microsoft Azure Infrastructure as a Service (IaaS) offering, you usually need to provide load balancing and other application delivery functions such as content switching, SSL Termination and IPS. Some of this functionality may also be necessary when deploying applications in Microsoft Azure Platform as a Service (PaaS). Kemp's LoadMaster for Azure enables you to address your needs of application delivery and High Availability (HA).
Deploying a single LoadMaster for Azure does not provide you with the high availability you need for your applications. When deploying a pair of LoadMasters in Azure, you can achieve high availability for your application. This document provides the details for a HA Kemp LoadMaster solution.
When using LoadMaster in High Availability on Azure, HA operates in much the same way as it does on non-cloud platforms, but with some key differences, which are listed below:
LoadMaster HA for Azure involves two LoadMasters that synchronize settings bi-directionally. Changes made to the master are replicated to the slave and changes made to the slave are replicated to the master.
The replication (synchronization) of settings (from master to slave) is not instant in all cases and may take a few moments to complete.
When synchronizing the GEO settings from master to slave, any Fully Qualified Domain Name (FQDN) or cluster IP addresses that match the master's IP address are replaced with the slave's IP address. Likewise, when synchronizing from slave to master, the slave's IP address is replaced with the master's IP address.
All user-defined settings are synchronized, with the exception of the following:
- Default gateway (both IPv4 and IPv6)
- IP addresses and netmasks
- Hostname
- Name server
- Domain
- Admin default gateway
- Administrative certificate settings (.cert, .pem and .setadmin files)
- Network interface settings: Link Status (Speed and Duplex), MTU and additional addresses
- Virtual LAN (VLAN) configuration
- Virtual Extensible LAN (VXLAN) configuration
- Additional routes
The cloud HA LoadMaster does not have a "force update" option.
By default, the master unit is always set as active and the slave unit can be standby or active if the master fails. The master unit is the master and never becomes the slave, even if it fails. Similarly the slave unit never becomes the master. When the master unit comes back up it is set as active and connections are automatically directed to the master again. Either the master or slave unit can be active or standby.
The HA Check Port must be set to the same port on both the master and slave units for HA to work correctly.
Depending on the design of the Network Security Groups, you must ensure the necessary ports are open inbound to allow for the traffic.
A complete description of non-cloud LoadMaster HA can be found in the High Availability (HA), Feature Description document.
2 Prerequisites
The following prerequisites must be met before proceeding to a high availability configuration:
An Azure Resource Manager (ARM) (V2) Virtual Network added to Azure to place the LoadMaster VMs
Application VMs deployed in Azure in the Virtual Network
An Azure Internal Load Balancer deployed to create the high availability pair
Two LoadMaster VMs deployed in ARM on the same Virtual Network as the Application VMs
- Both LoadMasters should be configured to be part of an availability set

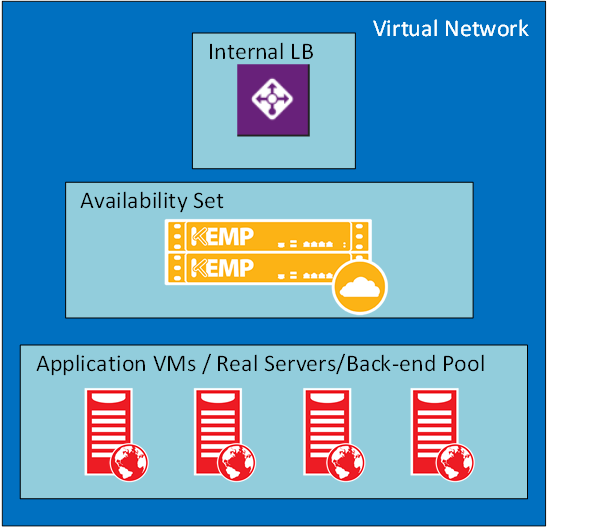

The following diagram provides overview of the configuration described above:
To configure high availability using the LoadMaster, the following configuration must be in place:
Application VMs are installed and configured
LoadMaster for Azure VMs are installed and configured
Important: The HA Check Port must be set to the same port on both the master and slave units for HA to work correctly. The same port must be configured as the probe port on the Internal Load Balancer.
The following management Load Balanced NAT Rules may be needed to access the LoadMasters:
- TCP Port 22 for SSH access
- TCP Port 8443 for Management Web User Interface (WUI) access
- Additional Load Balanced Rules for any traffic that is being transmitted through the LoadMaster
If using Kemp 360 Central, you must configure special NAT rules.
Use this table to record the necessary information required to create the LoadMaster Pair in Azure:
Fields Required for creation of LoadMaster Pair |
|
---|---|
Primary LoadMaster Name |
|
Secondary LoadMaster Name |
|
Pricing Tier |
|
Password for LoadMasters |
|
Availability Service Name |
|
Resource Group Name |
|
Virtual Network |
|
Internal Load Balancer Name |
|
Internal Load Balancer Public IP Address (PIP), if required |
|
It is not possible to bond interfaces on Azure LoadMasters.
3 Manually Configure LoadMaster HA in Azure
The steps in this section were correct at the time of writing. However, the Azure interface changes regularly so please refer to Azure documentation for up-to-date steps if needed.
Please complete the prerequisites documented in the earlier section.
3.1 Licensing Options
The following licensing options when deploying a LoadMaster for Azure:
- Hourly consumption
- Bring Your Own License (BYOL)
- Metered Enterprise License Agreement (MELA)
- Service Provider License Agreement (SPLA)
To use the BYOL option, follow the steps below:
1. Download the BYOL - Trial and perpetual license version of the Virtual LoadMaster (follow the steps in the section below to do this).
2. Contact a Kemp representative to get a license.
3. Update the license on your LoadMaster to apply the license change (System Configuration > System Administration > Update License).
4. Kemp recommends rebooting the LoadMaster after updating the license.
For more information on MELA and SPLA, refer to the relevant Feature Description on the Kemp documentation page.
3.2 Recommended Pricing Tier
When creating a LoadMaster for Azure Virtual Machine, you must select a pricing tier. The recommended pricing tiers are listed in the table below.
If the relevant pricing tier is not displayed in Azure, click View all.
Some availability groups only allow some Virtual LoadMaster (VLM) sizes.
VLM Model |
Recommended Pricing Tier |
---|---|
VLM 200 |
A1, A2, A3 |
VLM 2000 |
A2, A3, A4 |
VLM 5000 |
A3, A4, A5 |
VLM 10G |
A7, A8, A9 |
It is best practice to use Managed Disks.
If you are using Solid State Drive (SSD), Azure changes the Virtual Machine size for you: Standard DS3 (4 cores, 14 GB memory).
3.3 Create an SSH Key Pair
When creating a LoadMaster for Azure VM, there are two options for authentication - a password or an SSH public key. Kemp recommends using a password, but either way will work fine. If you choose to use a password, this section can be skipped and you can move on to the Create the First Virtual LoadMaster in Azure section to create the LoadMaster for Azure VM. If you choose to use an SSH public key, an SSH key pair will need to be created.
To create an SSH key pair, you will need to use a program such as the PuTTYgen or OpenSSH. As an example for this document, the steps in PuTTYgen are below:

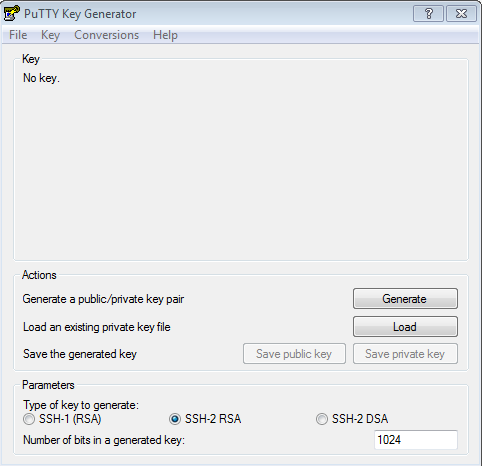

1. Open PuTTYgen.
2. Click Generate.

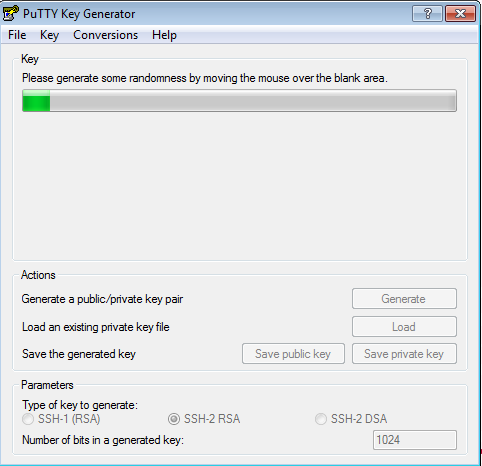

3. Move the mouse over the blank area in the middle. This generates a random pattern that is used to generate the key pair.
4. Copy and save the public and private key as needed.
It is recommended to store SSH keys in a secure location.
3.4 Create the First Virtual LoadMaster in Azure
The steps in this document reflect the steps in the Azure Marketplace (http://portal.azure.com).
The following procedure describes how to set up LoadMaster for Azure from the Microsoft Azure portal:
The steps below are carried out from http://portal.azure.com.
1. From the Azure Management Portal dashboard, click Marketplace.
2. In the Marketplace section, click the New icon.
3. Type Kemp in the search field and press Enter on your keyboard.
4. Select the appropriate Kemp Virtual LoadMaster image to deploy.
5. Click Create.

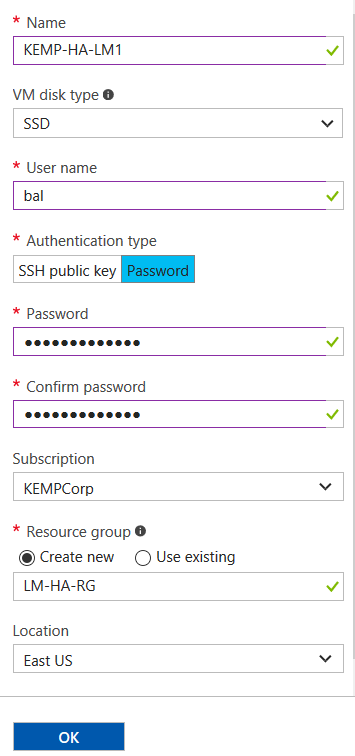

6. Provide details in the Create VM section. The details required to create a new VM are:
a) Name: Provide a unique name for VM identification. This is the host name.
b) User name: This is not used by LoadMaster for Azure. Provide a name of your choice. The default username for accessing the LoadMaster is bal.
c) Fill out the authentication details. There are two possible methods of authentication - using a password or an SSH key. Depending on what you select, complete the relevant step below:
- Password: Enter a password.
This password is used to access the LoadMaster WUI.
- SSH Public Key: Paste the SSH public key which was created in the Create an SSH Key Pair section. The private key is needed to connect to the LoadMaster using SSH.
It is recommended to store SSH keys in a secure location.
7. Use an existing or create a new Resource group for the LoadMasters to be a part of.
8. Select the Location in which to deploy the LoadMaster.
9. Click OK.
10. Select from the recommended pricing tiers. Click View all if the recommended pricing tiers do not meet the recommended requirements (see the Licensing Options section for further information regarding what tier to select).
11. Select the relevant Storage Account, or create a new one if needed.
12. Select an existing Virtual network, or create a new one if needed.
A Public IP Address (PIP) is not required for each of the LoadMasters. A single PIP is created for the Azure Load Balancer and NAT Translation Rules are created to allow management access.
13. Select the relevant Network security group, or create a new one if needed.
The security group must contain a rule for 8443. This is the WUI port. If the LoadMaster is public-facing, other recommended (but not mandatory) ports that should be in the security group for administrationare; 8441, 8442, 8443, 8444, 22, 221, 222, the Virtual Service ports (such as 80) and any other ports that are needed by the backend.
14. Select Disabled for Diagnostics.
15. Click Availability set.
16. Click Create new.
17. Provide a unique Name for the Availability Set.
Some availability groups only allow some Virtual LoadMaster (VLM) sizes.
18. Click OK.
19. Click OK.
20. Confirm that Validation Passed.
21. Click OK.
22. Click Purchase.
3.5 Create the Second LoadMaster in Azure
The process of setting up the second LoadMaster for Azure is similar to the first with a few exceptions, which are listed below.
You must select the same Virtual Network that was used during the first LoadMaster deployment.
You must select the same Availability Set that was created during the first LoadMaster deployment.
4 Create the Internal Load Balancer (ILB)
An Azure Internal Load Balancer must be deployed to monitor the health of the LoadMasters and direct traffic accordingly.
The following procedure describes how to set up an Azure Load Balancer from the Microsoft Azure portal:
The steps below are carried out from http://portal.azure.com.
1. From the Azure Management Portal dashboard, click the More services icon.
2. Select Load balancers.
3. Click Add.
4. Provide the necessary information for the Load Balancer:
a) Assign the Load Balancer a Name.
b) Select whether or not the Load Balancer is made available to the Internet (Public or Internal).
c) If you chose Public as the Type:
i. Click Choose a public IP address.
ii. Click Create new.
iii. Enter a Name.
iv. Select the Assignment type.
v. Click OK.
d) Assign the same Resource group as the LoadMasters.
e) Select the Location.
5. Click Create.
It may take some time for the ILB to propagate.
If you chose to use a Public IP (PIP) address the front end IP configuration is created automatically.
5 Configure the Azure Load Balancer
There are several settings that need to be configured to provide the high availability of the LoadMasters.
Create a backend address pool and add the LoadMasters to the pool.
Create Inbound NAT rules to direct traffic to the appropriate LoadMaster.
Create a Probe to monitor the health of the LoadMasters.
Create Load Balancing Rules to allow the necessary traffic.
Refer to the sections below for further information on each of these.
5.1 Create a Backend Pool
The Backend Pool is a collection of virtual machines (LoadMasters) which is load balanced to provide High Availability.
1. In the left hand navigation, click the More services icon.
2. Select Load balancers.
3. Click the name of the internal load balancer that was created in the Create the Internal Load Balancer (ILB) section.
4. Click Backend pools.
5. Click Add.
6. Provide a Name for the Backend Pool.
7. Click Availability set in the Associated to drop-down list.
8. Select the relevant Availability set.

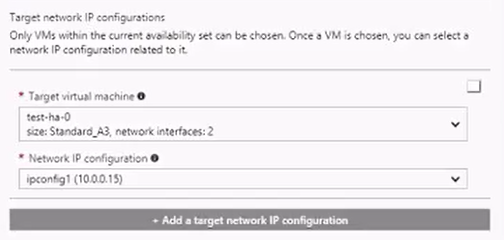

9. Click Add a target network IP configuration.
10. Select the master LoadMaster in the Target virtual machine drop-down list.
11. As multiple Network Interface Cards (NICs) are supported, you must select the relevant NIC in the Network IP configuration drop-down list.
12. Click OK.
13. Click Add a target network IP configuration to add the other machine.
14. Select the slave LoadMaster in the Target virtual machine drop-down list.
15. Select the relevant NIC in the Network IP configuration drop-down list.
16. Click OK.
It takes some time to propagate the information.
When finished, you can see the two machines in the backend pool.
5.2 Create Inbound NAT Rules
On Azure cloud, the ILB is used to create the Shared IP address (SIP) and to probe and route traffic to the LoadMaster instances. To allow 'public' access to the WUI of each LoadMaster, Kemp recommends creating ILB NAT rules:
- <SIP>:8441 maps to Node-1 port 8443
- <SIP>:8442 maps to Node-2 port 8443
If using the HA pair awareness functionality in Kemp 360 Central, you must be able to probe the shared IP address on the WUI port (for example, <SIP>:8443). This requires an ILB inbound rule for 8443 to allow access to the back-end pool. However, the ILB does not allow a port used in a NAT rule to also be used in an inbound rule. Therefore, if you want to use the HA pair awareness in Kemp 360 Central, you must create a different set of NAT rules.
Inbound NAT rules provide a translation for management access into each of the LoadMasters in the Backend pool. Each LoadMaster does not require a Public IP Address (PIP). A unique port must be configured in an Inbound NAT rule for each LoadMaster. The example rules are the following:
Target |
Port |
Target Port |
---|---|---|
LoadMaster1 - WUI |
8441 |
8443 |
LoadMaster1 - SSH |
221 |
22 |
LoadMaster2 - WUI |
8442 |
8443 |
LoadMaster2 - SSH |
222 |
22 |
The LoadMaster uses port 22 and 8443 by default. The remaining port numbers listed above are recommended, but you can use other port numbers if needed.
5.3 Create a Probe to Monitor LoadMaster Health
A probe must be created to monitor the health of the LoadMasters. This probe will determine which LoadMaster is active and send the necessary traffic. Should that LoadMaster go offline, the probe will take that LoadMaster out of service and direct all traffic to the secondary LoadMaster.
1. In the left hand navigation click the More services icon.
2. Click Load balancers.
3. Select the load balancer that was create in the Create the Internal Load Balancer (ILB) section.
4. Select Health probes.
5. Click Add.
6. Provide the following information:
7. Provide a Name.
8. Select HTTP as the Protocol.
9. Enter 8444 as the Port.
10. Enter / as the Path.
11. Enter 5 as the Interval.
12. Enter 2 as the Unhealthy threshold.
13. Click OK.
5.4 Create Load Balancing Rules to Allow Traffic
Load Balancing Rules must be configured for any traffic that is published through the LoadMaster. A Rule is set up for Port 8444 which can be used to check the state of the LoadMasters within the Backend Pool.
1. In the left hand navigation, click the More services icon.
2. Select Load balancers.
3. Select the load balancer that was created in the Create the Internal Load Balancer (ILB) section.
4. Click Load balancing rules.
5. Click Add.
6. Provide the following information:
a) Provide a Name.
b) Select TCP as the Protocol.
c) Enter 8444 as the Port.
d) Enter 8444 as the Backend port.
e) Select your Backend pool.
f) Select the Health probe for port 8444.
g) Select None as the Session persistence.
h) Select 4 as the Idle timeout (minutes).
7. Click OK.
Create additional Load Balancing Rules for any other traffic that is published through the LoadMaster.
6 Network Security Groups
Network Security Groups are used in Azure to control what traffic is allowed or denied access to Virtual Machines. Depending on your configuration, you are required to update one or more Network Security Groups to allow published traffic to access the LoadMasters and backend Real Servers.
The security group must contain a rule for 8443. This is the WUI port. If the LoadMaster is public-facing, other best practice, recommended (but not mandatory) ports that should be in the security group, are; 8441, 8442, 8444, 22, 221, 222, the Virtual Service ports (such as 80) and any other ports that are needed by the backend.
Do not block port 6973.
7 Configure the LoadMasters
To configure LoadMaster for HA, follow the steps outlined in the sections below:
1. If the LoadMaster does not have a public address itself and you are going through the Internal Load Balancer (ILB), you can access the WUI of the LoadMaster which is the master unit:
a) Access the WUI of master LoadMaster by going to https://<DNSNameURL>:8441.
b) Access the WUI of the slave LoadMaster by going to https://<DNSNameURL>:8442.
c) The default username is bal and the password is the password entered during the creation of the LoadMaster.
2. In the main menu, go to System Configuration > Azure HA Parameters.
3. Select Master HA Mode in the Azure HA Mode drop-down list.
4. Select the desired option in the Switch to Preferred Server drop-down list:
- No Preferred Host: Each unit takes over when the other unit fails. No switchover is performed when the partner is restarted.
- Prefer Master: The HA1 (master) unit always takes over. This is the default option.
5. Enter the internal address of the slave LoadMaster unit in the Partner Name/IP text box and click Set Partner Name/IP.
6. Enter 8444 as the Health Check Port and click Set Check Port.
The Health Check Port must be set to 8444 on both the master and slave units for HA to function correctly.
7. If using a multi-arm configuration, select the Health Check on All Interfaces check box.
If this option is disabled, the health check listens on the primary eth0 address.
8. Then, access the WUI of the slave unit. Complete the following steps in the slave unit, but select Slave HA Mode as the Azure HA Mode instead: In the main menu, go to System Configuration > Azure HA Parameters. to Enter the internal address of the slave LoadMaster unit in the Partner Name/IP text box and click Set Partner Name/IP.
HA will not work if both units have the same value selected for the Azure HA Mode.
9. After configuring both LoadMasters, reboot both units (System Configuration > System Administration > System Reboot > Reboot).
When HA is enabled on both devices, changes made to the Virtual Services in the master unit is replicated to the slave.
If a unit is in standby mode, WUI access is restricted to Local Administration only. Full WUI access is available if the unit is in an active or unchecked state.
You can tell, at a glance, which unit is the master, and which is the slave, by checking the mode in the top bar of the LoadMaster.
The current status of each LoadMaster, when HA is enabled, is shown as follows:
Status | Description |
![]() |
This is the master LoadMaster and it is currently active. |
![]() |
This is the slave LoadMaster and it is currently active. |
![]() |
This is the slave unit and it is currently the standby unit. |
8 LoadMaster Firmware Upgrades/Downgrades
Do not downgrade from firmware version 7.2.36 or higher to a version below 7.2.36. If you do this, the LoadMaster becomes inaccessible and you cannot recover it.
You should never leave two LoadMasters with different firmware versions paired as HA in a production environment. To avoid complications, follow the steps below in sequence and do not perform any other actions in between the steps. Please upgrade/downgrade during a maintenance window and expect service disruption because there are reboots.
The steps below are high-level, for detailed step-by-step instructions on how to upgrade the LoadMaster firmware, refer to the Updating the LoadMaster Software Feature Description on the Kemp documentation page: https://kemptechnologies.com/loadmaster-documentation.
8.1 Upgrade the LoadMaster Firmware
To upgrade the LoadMaster firmware with the least disruption, follow the steps below in sequence:
1. Identify the STAND-BY unit.
2. Upgrade the LoadMaster firmware on the STAND-BY unit. Once the STAND-BY unit has rebooted, it remains in the STAND-BY state and the WUI is limited to the Local Administration options.
3. Upgrade the LoadMaster firmware on the ACTIVE unit. When the ACTIVE unit is rebooting, the STAND-BY unit becomes ACTIVE.
4. Depending on Preferred Host settings in the HA configuration, the Slave unit may failback over to the Master unit.
After these steps are completed the upgrade is finished.
8.2 Downgrade the LoadMaster Firmware
To downgrade the LoadMaster firmware with the least disruption, follow the steps below in sequence:
1. Identify the STAND-BY unit.
2. Downgrade the LoadMaster firmware on the STAND-BY unit. Once the STANDY-BY unit has rebooted, it remains in the STAND-BY state and the WUI is limited to the Local Administration options.
3. Downgrade the LoadMaster firmware on the ACTIVE unit. When the ACTIVE unit is rebooting, the STAND-BY unit becomes ACTIVE.
4. Depending on Preferred Host settings in the HA configuration, the Slave unit may failback over to the Master unit.
After these steps are completed the downgrade is finished.
9 Troubleshooting
The sections below provide some basic troubleshooting tips. If further assistance is required, please contact Kemp Support: https://support.kemptechnologies.com.
9.1 Check which LoadMaster is Active
In addition to checking the status in the top-right of the LoadMaster WUI, it is also possible to check which LoadMaster is active by accessing port 8444 through the Public IP address since the Load Balanced Rule was created for this port, that is,
http://<PublicIPofAzureLoadBalancer>:8444
Ensure to use HTTP, not HTTPS. On the active unit, you should see "Master/Slave is active". On the standby, you should see a 503 service unavailable error. If you see these messages, it means the LoadMasters are working correctly/
9.2 Master/Slave Unconnected
When initially setting up cloud HA, the master unit should have MASTER in the top-right corner of the LoadMaster WUI.
The slave unit should show SLAVE.
After setting up the load balancer (Internal Load Balancer (ILB) for Azure or Classic Load Balancer (ELB) for AWS) the units should switch from:
- Master to Master Unconnected
- Slave to Slave Unconnected
This means the LoadMasters have not been polled by the load balancer. Once the load balancer has the health check correctly set, the units should switch from:
- Master Unconnected to Master (Active)/Master (Standby)
- Slave (Unconnected) to Slave (Active)/Slave (Standby)
9.3 Connection to Default Gateway Failed
Azure blocks pings in some cases. Therefore, on older LoadMaster firmware you may see an error message like the one above when licensing. This is a red herring and can be ignored - there is likely another problem such as an incorrect Kemp ID/password. If you are running the latest version of LoadMaster firmware, this check should be skipped.
9.4 Virtual Machine Inaccessible
It takes approximately five minutes for the Virtual Machine to become accessible after booting.
9.5 Run a TCP Dump
Running a TCP dump and checking the results can also assist with troubleshooting. To do this, follow the steps below in the LoadMaster WUI:
1. In the main menu, go to System Configuration > Logging Options > System Log Files.
2. Click Debug Options.
3. In the TCP dump section, enter the relevant IP Address and the Azure HA Port.
4. Click Start.
5. Let the capture run for a few minutes.
6. Click Stop.
7. Click Download.
8. Analyse the results in a packet trace analyser tool such as Wireshark.
Checks from the partner LoadMaster should appear in the results. If nothing is shown there is a problem, for example Azure may be blocking the connection.
9.6 Sync Problems
In most scenarios, the configuration settings are automatically synchronized between partners every two minutes. If a new Virtual Service is created, the settings are immediately synchronized. Because of this, creating a new Virtual Service is a good way of checking if the synchronization is working. To trace this, follow the steps below:
1. Start a TCP dump, as detailed in the Run a TCP Dump section, but use port 6973.
2. Create a Virtual Service.
3. Stop the TCP dump.
4. Download the TCP dump file.
5. Analyse the results.
After creating a Virtual Service, a lot of traffic should have been immediately triggered.
Generally, if a lot of packets are being transferred it means that the synchronization is working. If only a few packets are transferred, it may mean that the connection was unsuccessful. In this case, there may be a problem such as unmatched SSH keys.
9.7 Misconfigured ILB
It is possible that the two LoadMasters are able to communicate but the ILB might be misconfigured. Connect to both units on http://LoadMasterAddress:8444. On the active unit, you should see "Master/Slave is active". On the standby, you should see a 503 service unavailable error. If you see these messages, it means the LoadMasters are working correctly and the problem is elsewhere. Confirm that the health check probe on the ILB is configured correctly.
9.8 Problems Reaching a Virtual Service
If you experience problems reaching a Virtual Service, confirm the network security group and the ILB inbound rules are configured correctly.
References
Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.
Licensing, Feature Description
LoadMaster for Azure, Feature Description
HA for Azure (Classic Interface), Feature Description
Azure Virtual Machines - tutorials and guides:
http://www.windowsazure.com/en-us/documentation/services/virtual-machines/
High Availability (HA), Feature Description
Last Updated Date
This document was last updated on 10 March 2022.
