Physical to Logical Port Assignment
Contents
1 Introduction
There are a variety of hardware LoadMaster models to choose from. For details on each, consult the Kemp website: www.kemptechnologies.com.
The physical network ports and their logical assignment varies between models depending on the underlying hardware platform used.
1.1 Document Purpose
This document outlines the total number of Ethernet and Small Form-factor Pluggable (SFP+) ports on each hardware LoadMaster. Because the physical port labels on each LoadMaster model may vary, this document shows the factory default logical port label assignment.
1.2 Intended Audience
This document is intended to be read by anyone who is interested in finding out the logical port label assignment when installing a hardware LoadMaster.
2 Logical Port Label Assignment
Refer to the sections below for details on the logical port label assignment.
2.1 LoadMaster LM-X1

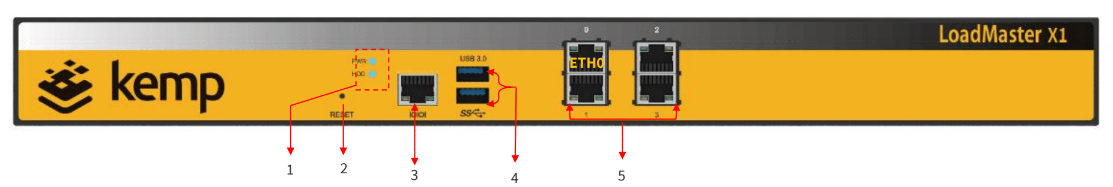

Port Location - Front Panel
| Item No. | Item | Description | Notes | |
| 1. | PWR LED |
Indicates the power status of the system |
|
|
| LED - Blue | Power on | |||
| LED - Off | Power off | |||
| HDD LED |
Indicates the status of the Hard Disk Drive (HDD) |
|
||
| LED - Yellow flashing |
Indicates read/write activity of the HDD |
|||
| LED - Off | Indicates no activity of HDD | |||
| 2. | Reset button | Reset LoadMaster | GPIO software button | |
| 3. | RJ-45 type console port | Used to connect console devices with RJ45 connection | ||
| 4. | USB 3.0 Ports (2) | Allows to connect USB 3.0/2.0/1.1 devices to the system | ||
| 5. | 1 Gb copper ethernet ports (4) | 4 x 1 Gb copper ports used to connect LAN network devices with LED indicators |
Logical Assignment |
|
| Activity LED - Yellow blinking | Indicates data activity | |||
| Activity LED - Off | Indicates no data activity | |||
| Link LED - Green | Indicates data 1 Gb and 10/100 Mb | |||
| Link LED - Off | Indicates no link |
Port Location - Rear Panel
| Item No. | Item | Description |
| 6. |
VGA port |
Used to connect an analog VGA monitor |
| 7. | Power supply | 250W AC power supply |
2.2 LoadMaster LM-X3

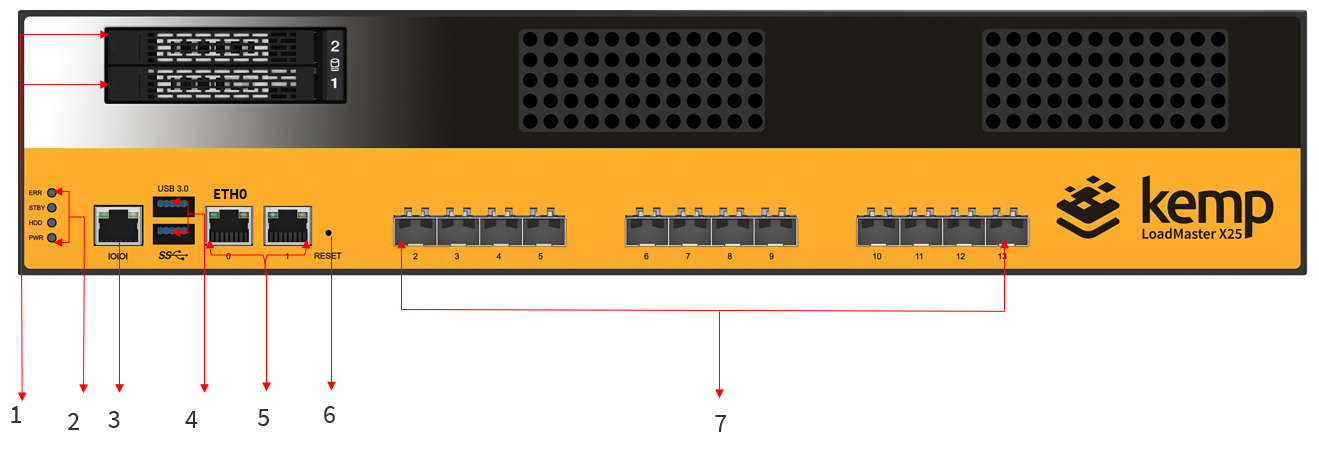

Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. |
PB2 LED PB1 LED |
Not used by LoadMaster OS (LMOS) Indicates the LAN bypass |
|
| BP1 and BP2 LED - On |
Bypass enabled |
||
| BP1 and BP2 LED - Off | Bypass disabled | ||
| PWR LED |
Indicates the power status of the system |
|
|
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| HDD LED |
Indicates the status of the Hard Disk Drive (HDD) |
|
|
| LED - Yellow flashing |
Indicates read/write activity of the HDD |
||
| LED - Off | Indicates no activity of HDD | ||
| 2. | Reset button | Reset LoadMaster | GPIO software button |
| 3. | RJ-45/Micro USB type console port | Used to connect console devices with RJ45/Micro USB type connection | |
| 4. | USB 3.0 Ports (2) | Allows to connect USB 3.0/2.0/1.1 devices to the system | |
| 5. | 1 Gb copper ethernet ports (8) | 8 x 1 Gb copper ports used to connect LAN network devices with LED indicators |
Logical Assignment |
| ACT LED - Yellow blinking | Indicates data activity | ||
| ACT LED - Off | Indicates no data activity | ||
| LINK LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| LINK LED - Off | Indicates no link |
Port Location - Rear Panel
| Item No. | Item | Description |
| 6. | VGA port | Used to connect an analog VGA monitor |
| 7. | Power switch | Press to power-on or power-off the system |
| 8. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system |
| 9. | Power supply | 250 W AC power supply |
2.3 LoadMaster LM-X15
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | RAID (Dual HDD) | Built-in hardware RAID controller, supporting RAID 0 | Disk mirroring - replicating of data to two or more disks. Good choice for applications requiring high performance and high availability |
| 2. | PB2 LED PB1 LED |
*Not used by LMOS Indicates the LAN bypass |
|
| BP1 and BP2 LED - On | Bypass enabled | ||
| BP1 and BP2 LED - Off | Bypass disabled | ||
| PWR LED | Indicates the power status of the system | ||
| LED - Green | Power ON | ||
| LED - Off | Power Off | ||
| HDD LED | Indicates the status of the Hard Disk Drive (HDD) | ||
| LED - Yellow flashing | Indicates read/write activity of the HDD | ||
| LED - Off | Indicates no activity of HDD | ||
| 3. | Reset button | Reset LoadMaster | |
| 4. | RJ-45/Micro USB type console port | Used to connect console devices with RJ45/Micro USB type connection | |
| 5. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system | |
| 6. | 1 Gb copper ethernet ports (16) | 16 x 1 Gb copper ports used to connect LAN network devices with LED indicators |
Logical Assignment |
| ACT LED - Yellow blinking | Indicates data activity | ||
| ACT LED - Off | Indicates no data activity | ||
| LINK LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| LINK LED - Off | Indicates no link | ||
| 7. | 10 Gb SFP+ ports (4) | 4 x 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. |
Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link |

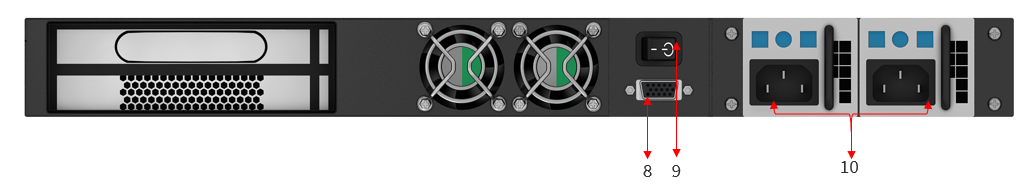

Port Location - Rear Panel
| No | Item | Description |
| 8. | VGA port | Used to connect an analog VGA monitor |
| 9. | Power switch | Press to power-on or power-off the system |
| 10. | Dual power supply | 220 W AC by 1 and common redundant power supply (CPRS) |
2.4 LoadMaster LM-X15-MT
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | RAID (Dual HDD) | Built-in hardware RAID controller, supporting RAID 0 | Disk mirroring - replicating of data to two or more disks. Good choice for applications requiring high performance and high availability |
| 2. | PB2 LED PB1 LED |
*Not used by LMOS
Indicates the status of the LAN bypass |
|
| BP1 and BP2 LED - On | Bypass enabled | ||
| BP1 and BP2 LED - Off | Bypass disabled | ||
| PWR LED | Indicates the power status of the system | ||
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| HDD LED | Indicates the status of the HDD | ||
| LED - Yellow flashing | Indicates read/write activity of the HDD | ||
| LED - Off | Indicates no activity of HDD | ||
| 3. | Reset button | Reset LoadMaster | GPIO software button |
| 4. | RJ-45/Micro USB type console port | Used to connect console devices with RJ45/Micro USB type connection | |
| 5. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system | |
| 6. | 1 Gb copper ethernet ports (16) | 16 x 1 Gb copper ports used to connect LAN network devices with LED indicators |
Logical Assignment Port 0:15 map to ETH0:ETH15 |
| ACT LED - Yellow blinking | Indicates data activity | ||
| ACT LED - Off | Indicates no data activity | ||
| LINK LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| LINK LED - Off | Indicates no link | ||
| 7. | 10 Gb SFP+ ports (4) | 4 x 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables |
Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link |
Port Location - Rear Panel
| Item No. | Item | Description |
| 8. | VGA port | Used to connect an analog VGA monitor |
| 9. | Power switch | Press to power-on or power-off the system |
| 10. | Dual power supply | 220 W AC by 1 and common redundant power supply (CPRS) |
2.5 LoadMaster LM-X25
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | RAID (Dual HDD) | Built-in hardware RAID controller, supporting RAID 0. | Disk mirroring - replicating of data to two or more disks. Good choice for applications requiring high performance and high availability |
| 2. | ERR LED | Error LED - LED red | Indicates if the system is experiencing an error during operation |
| STBY LED | Standby LED - LED orange | Indicates if the system is in sleep mode (system idle for too long) | |
| HDD LED | Indicates the status of the HDD | Indicates read/write activity of the HDD | |
| LED - Yellow flashing | Indicates no activity of HDD | ||
| LED - Off | |||
| PWR LED | Indicates the power status of the system | ||
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| 3. | RJ-45 console port | Used to connect console devices with RJ45 type connection | |
| 4. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system | |
| 5. | 1 Gb copper ethernet ports (2) | 2 x 1 Gb copper ports used to connect network devices with LED indicators |
Logical Assignment |
| Activity LED - Yellow blinking | Indicates data activity | ||
| Activity LED - Off | Indicates no data activity | ||
| Link LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| Link LED - Off | Indicates no link | ||
| 6. | Reset button | Reset LoadMaster | GPIO software button |
| 7. | 10 Gb SFP+ ports (12) | 12 x 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables |
Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link |

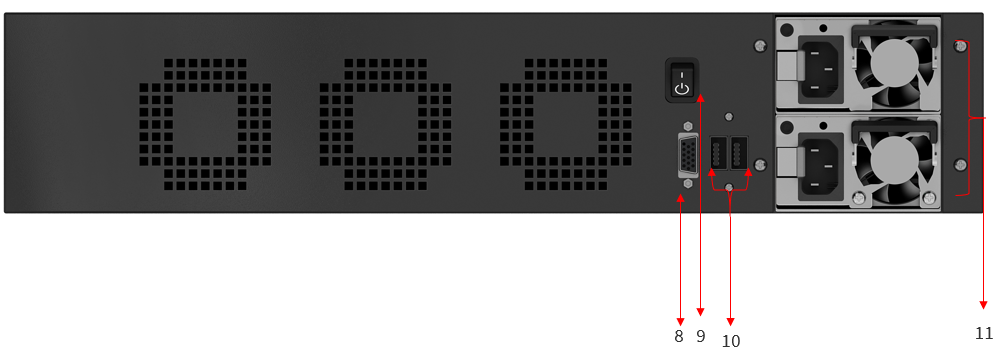

Port Location - Real Panel
| Item No. | Item | Description |
| 8. | VGA port | Used to connect an analog VGA monitor |
| 9. | Power switch | Press to power-on or power-off the system |
| 10. | Dual power supply | 700 W AC x1 and a common redundant power supply (CRPS) |
| 11. | USB 3.0 ports | Allows you to connect USB 3.0/2.0/1.1 devices to the system |
2.6 LoadMaster LM-X25-MT
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | RAID (Dual HDD) | Built-in hardware RAID controller, supporting RAID 0 | Disk mirroring - replicating of data to two or more disks. Good choice for applications requiring high performance and high availability |
| 2. | ERR LED | Error LED - LED red | Indicates if the system is experiencing an error during operation |
| STBY LED | Standby LED - LED orange | Indicates if the system is in sleep mode (system idle for too long) | |
| HDD LED | Indicates the status of the HDD | ||
| LED - Yellow flashing | Indicates read/write activity of the HDD | ||
| LED - Off | Indicates no activity of HDD | ||
| PWR LED | Indicates the power status of the system | ||
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| 3. | RJ-45 console port | Used to connect console devices with RJ45 type connection | |
| 4. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system | |
| 5. | 1 Gb copper ethernet ports (2) | 2 x 1 Gb copper ports used to connect network devices with LED indicators |
Logical Assignment |
| Activity LED - Yellow blinking | Indicates data activity | ||
| Activity LED - Off | Indicates no data activity | ||
| Link LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| Link LED - Off | Indicates no link | ||
| 6. | Reset button | Reset LoadMaster | GPIO software button |
| 7. | 10 Gb SFP+ ports (12) | 12 x 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables |
Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link |
Port Location - Real Panel
| Item No. | Item | Description |
| 8. | VGA port | Used to connect an analog VGA monitor |
| 9. | Power switch | Press to power-on or power-off the system |
| 10. | Dual power supply | 700 W AC x1 and a common redundant power supply (CRPS) |
| 11. | 3.0 USB ports | Allows you to connect USB 3.0/2.0/1.1 devices to the system |
2.7 LoadMaster LM-X40
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | RAID (Dual HDD) | Built-in hardware RAID controller, supporting RAID 0 | Disk mirroring - replicating of data to two or more disks. Good choice for applications requiring high performance and high availability |
| 2. | ERR LED | Error LED - LED red | Indicates if the system is experiencing an error during operation |
| STBY LED | Standby LED - LED orange | Indicates if the system is in sleep mode (system idle for too long) | |
| HDD LED | Indicates the status of the HDD | Indicates read/write activity of the HDD | |
| LED - Yellow flashing | Indicates no activity of HDD | ||
| LED - Off | |||
| PWR LED | Indicates the power status of the system | ||
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| 3. | RJ-45 console port | Used to connect console devices with RJ45 type connection | |
| 4. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system | |
| 5. | 1 Gb copper ethernet ports (2) | 2 x 1 Gb copper ports used to connect network devices with LED indicators |
Logical Assignment |
| Activity LED - Yellow blinking | Indicates data activity | ||
| Activity LED - Off | Indicates no data activity | ||
| Activity LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| LINK LED - Off | Indicates no link | ||
| 6. | Reset button | Reset LoadMaster | GPIO software button |
| 7. | 10 Gb SFP+ ports (12) | 12 x 10 Gb supporting fiber optic and direct-attach copper (DAC) cables |
Logical Assignment |
| Activity LED | Off - No network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link |
Port Location - Real Panel
| Item No. | Item | Description |
| 8. | VGA port | Used to connect an analog VGA monitor |
| 9. | Power switch | Press to power-on or power-off the system |
| 10. | Dual power supply | 700 W AC x1 and a common redundant power supply (CRPS) |
| 11. | 3.0 USB ports | Allows you to connect USB 3.0/2.0/1.1 devices to the system |
2.8 LoadMaster LM-X40-MT
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | RAID (Dual HDD) | Built-in hardware RAID controller, supporting RAID 0 | Disk mirroring - replicating of data to two or more disks. Good choice for applications requiring high performance and high availability |
| 2. | ERR LED | Error LED - LED red | Indicates if the system is experiencing an error during operation |
| STBY LED | Standby LED - LED orange | Indicates if the system in sleep mode (system idle for too long) | |
| HDD LED | Indicates the status of the HDD | Bypass enabled | |
| LED - Yellow flashing LED | Indicates read/write activity of the HDD | ||
| LED - Off | Indicates no activity of HDD | ||
| PWR LED | Indicates the power status of the system | ||
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| 3. | RJ-45 console port | Used to connect console devices with RJ45 type connection | |
| 4. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system | |
| 5. | 1 Gb copper ethernet ports (2) | 2 x 1 Gb copper ports used to connect network devices with LED indicators | Logical Assignment |
| ACT LED - Yellow blinking | Indicates data activity | ||
| ACT LED - Off | Indicates no data activity | ||
| LINK LED - Green | Indicates data 1Gb and 10/100Mb | ||
| LINK LED - Off | Indicates no link | ||
| 6. | Reset button | Reset LoadMaster | GPIO software button |
| 7. | 10 Gb SFP+ ports (12) | 12 x 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables | Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link |
Port Location - Rear Panel
| Item No. | Item | Description |
| 8. | VGA port | Used to connect an analog VGA monitor |
| 9. | Power switch | Press to power-on or power-off the system |
| 10. | Dual power supply | 700 W AC x1 and a common redundant power supply (CRPS) |
| 11. | 3.0 USB ports | Allows you to connect USB 3.0/2.0/1.1 devices to the system |
2.9 LoadMaster LM 8020-FIPS
Port Location - Front Panel
| Item No. | Item | Description |
| 1. | Power on indicator/Power button | The power-on indicator lights green when the system power is on. The power button controls the power supply output to the system |
| 2. | NMI button | Not functional |
| 3. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. |
| 4. | VGA port | Allows you to connect a VGA display to the system |
| 5. | LCD Menu buttons | Allows you to navigate the control panel LCD menu |
| 5a. | LCD Left button | Moves the cursor back in one-step increments |
| 5b. | LCD Select button | Selects the menu item highlighted by the cursor |
| 5c. | LCD Right button | Moves the cursor forward in one-step increments |
| 6. | LCD panel | Displays system ID, status information, and system error messages. |
| LCD backlight Blue - indicates normal system operation | ||
| LCD backlight Amber - indicates system error and displays the error code | ||
| LCD backlight Off - indicates system in standby mode. Can be turned on by pressing any of the LCD Menu buttons. | ||
| 7. | SD card slot for vFlash | Not functional |
| 8. | USB connectors (2) | Allows you to connect USB devices to the system |
| 9. | System service tag | A slide out label indicating the system service tag, MAC address, and NIC. |
Port Location - Back Panel
2.10 LoadMaster LM-8020 and LM-8020M
Port Location - Front Panel
| Item No. | Item | Description |
| 1. | Power on indicator/power button | The power-on indicator lights green when the system power is on. The power button controls the power supply output to the system |
| 2. | NMI button | Not functional |
| 3. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. |
| 4. | VGA port | Allows you to connect a VGA display to the system |
| 5. | LCD Menu buttons | Allows you to navigate the control panel LCD menu |
| 5a. | LCD Left button | Moves the cursor back in one-step increments |
| 5b. | LCD Select button | Selects the menu item highlighted by the cursor |
| 5c. | LCD Right button | Moves the cursor forward in one-step increments |
| 6. | LCD panel | Displays system ID, status information, and system error messages. |
| LCD backlight Blue - indicates normal system operation | ||
| LCD backlight Amber - indicates system error and displays the error code | ||
| LCD backlight Off - indicates system in standby mode. Can be turned on by pressing any of the LCD Menu buttons. | ||
| 7. | SD card slot for vFlash | Not functional |
| 8. | USB connectors (2) | Allows you to connect USB devices to the system |
| 9. | System service tag | A slide out label indicating the system service tag, MAC address, and NIC. |
Port Location - Rear Panel
| Item No. | Item | Description | Notes |
| 10. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. | |
| 11. | System identification connector | Not functional | |
| 12. | iDRAC8 port | Dedicated management port | |
| 13. | 2x 10 Gb SFP+ ports | Two 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. | Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link | |||
| 14. | Serial/console port | Allows you to connect the system to a serial device | |
| 15. | VGA port | Allows you to connect a VGA display to the system | |
| 16. | USB connectors (2) | Allows to connect USB devices to the system | |
| 17. | 4x 10 Gb SFP+ ports | Four 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. | Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Blinking - network activity | Continuously illuminated - link | ||
| 18. | 2x 10 Gb SFP+ ports | Two 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. | Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link | |||
| 19. | Dual power supply | 750 W AC power supply |
2.11 LoadMaster LM-8000 and 8010-MT

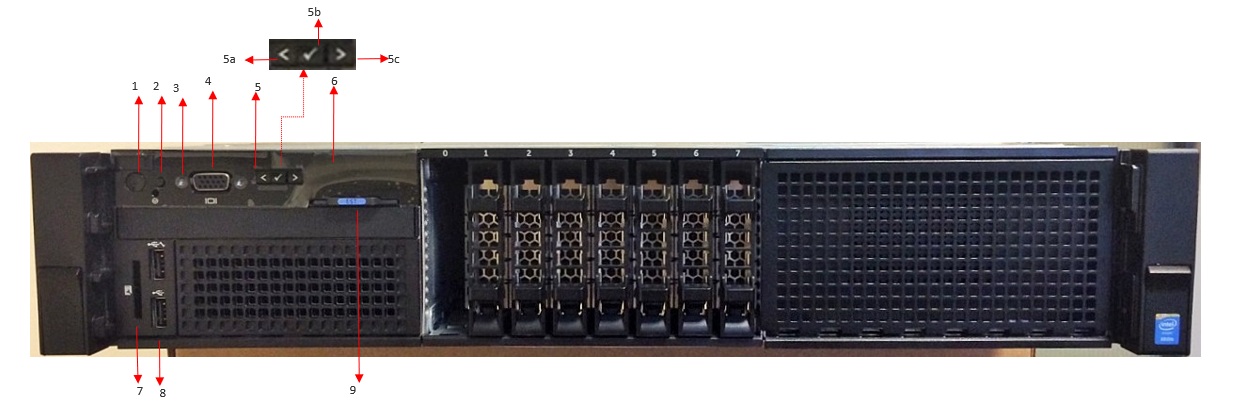

Port Location - Front Panel
| Item No. | Item | Description |
| 1. | Power on indicator/power button | The power-on indicator lights green when the system power is on. The power button controls the power supply output to the system |
| 2. | NMI button | Not functional |
| 3. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. |
| 4. | VGA port | Allows you to connect a VGA display to the system |
| 5. | LCD Menu buttons | Allows you to navigate the control panel LCD menu |
| 5a. | LCD Left button | Moves the cursor back in one-step increments |
| 5b. | LCD Select button | Selects the menu item highlighted by the cursor |
| 5c. | LCD Right button | Moves the cursor forward in one-step increments |
| 6. | LCD panel | Displays system ID, status information, and system error messages. |
| LCD backlight Blue - indicates normal system operation | ||
| LCD backlight Amber - indicates system error and displays the error code | ||
| LCD backlight off - indicates system in standby mode. Can be turned on by pressing any of the LCD Menu button. | ||
| 7. | SD card slot for vFlash | Not functional |
| 8. | USB connectors (2) | Allows you to connect USB devices to the system |
| 9. | System service tag | A slide out label indicating the system service tag, MAC address, and NIC. |
Port Location - Rear panel
| Item No. | Item | Description | Notes |
| 10. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. | |
| 11. | System identification connector | Not functional | |
| 12. | iDRAC8 port | Dedicated management port | |
| 13. | Serial/console port | Allows you to connect the system to a serial device | |
| 14. | VGA port | Allows you to connect a VGA display to the system | |
| 15. | USB connectors (2) | Allows you to connect USB devices to the system | |
| 16. | 2x 10 Gb SFP+ ports | Two 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. | Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link | |||
| 17. | 4x 10 Gb SFP+ ports | Four 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. | Logical Assignment |
| Activity LED | Off - no network activity | ||
| Blinking - network activity | |||
| Link LED | Off - no link (cable disconnected) | ||
| Continuously illuminated - link | |||
| 18. | Dual power supply | 750 W AC power supply |
2.12 LoadMaster LM-5600 and LM-5610

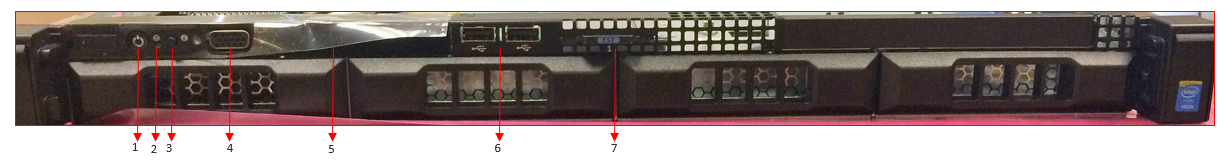

Port Location - Front Panel
| Item No. | Item | Description |
| 1. | Power on indicator/power button | The power-on indicator lights green when the system power is on. The power button controls the power supply output to the system |
| 2. | NMI button | Not functional |
| 3. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. |
| 4. | VGA port | Allows you to connect a VGA display to the system |
| 5. | Diagnostic indicator | The diagnostic indicator lights up to display error status |
| 6. | USB 3.0 ports (2) | Allows you to connect USB devices to the system |
| 7. | System service tag | A slide out label indicating the system service tag, MAC address, and NIC |
Port Location - Rear Panel
| Item No. | Item | Description |
| 8. | Serial/console port | Allows you to connect the system to a serial device |
| 9. | VGA port | Allows you to connect a VGA display to the system |
| 10. | 2x 1 Gb ethernet ports | Two integrated 10/100/1000 Mbps NIC connectors Logical Assignment |
| 11. | USB connectors (2) | Allows you to connect USB devices to the system |
| 12. | System status indicator | Blue - indicates normal system operation |
| Blinks amber - indicates system has an error and needs attention | ||
| 13. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. |
| 14. | 2x 1 Gb ethernet ports | Two integrated 10/100/1000 Mbps NIC connectors Logical Assignment |
| Activity LED | Off - indicates NIC not connected to the network | |
| Blinking green - indicates network data being sent or received | ||
| Link LED | Off - indicates NIC not connected to the network | |
| Green - indicates NIC connected to a valid network at its maximum port speed | ||
| Amber - indicates NIC connected to a valid network at less than its maximum port speed | ||
| 15. | 2x 10 Gb SFP+ ports | Two 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. Logical Assignment |
| Activity LED | Off - No network activity | |
| Blinking - network activity | ||
| Link LED | Off - no link (cable disconnected) | |
| Continuously illuminated - link | ||
| 16. | Dual power supply | 550 W AC power supply x2 |
2.13 LoadMaster LM-4000
Port Location - Front Panel
| Item No. | Item | Description |
| 1. | Power on indicator/power button | The power-on indicator lights green when the system power is on. The power button controls the power supply output to the system |
| 2. | NMI button | Not functional |
| 3. | VGA port | Allows you to connect a VGA display to the system |
| 4. | Health indicator | Solid blue - indicates system is on and in good health |
| Blinks amber - indicates system is on and an error exits or system is in standby mode | ||
| 5. | Hard-drive Indicator | Blinks green - indicates hard drive activity |
| 6. | Electrical indicator | Blinks amber - indicates electrical error such as failed power supply or voltage out of range, and so on |
| 7. | Temperature Indicator | Blinks amber - indicates thermal error such as fan failure, temperature out of range, and so on |
| 8. | System status indicator | Blue - indicates normal system operation |
| Blinks amber - indicates system has error and needs attention | ||
| 9. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. |
| 10. | USB 3.0 ports (2) | Allows you to connect USB 3.0/2.0/1.1 devices to the system |
| 11. | System service tag | A slide out label indicating the system service tag, MAC address, and NIC. |
| 12. | DVD optical drive (will not be included in any future orders) | Optional SATA DVD +/- RW drive |
Port Location - Rear Panel
| Item No. | Item | Description |
| 13. | Serial/Console port | Allows you to connect the system to a serial device |
| 14. | 2x 10 Gb SFP+ ports | Two 10 Gbps supporting fiber optic and direct-attach copper (DAC) cables. Logical Assignment |
| Activity LED | Off - No network activity | |
| Blinking - Network activity | ||
| Link LED | Off - No link (cable disconnected) | |
| Continuously illuminated - link | ||
| 15. | VGA port | Allows you to connect a VGA display to the system |
| 16. | eSATA + USB Connectors (2) | eSATA - allows you to connect to additional storage devices |
| USB - allows you to connect USB devices to the system | ||
| 17. | 2x 1 Gb Ethernet ports | Two integrated 10/100/1000 Mbps NIC connectors Logical Assignment |
| Link indicator | Off - indicates NIC not connected to the network | |
| Green - indicates NIC connected to a valid network at its maximum port speed | ||
| Amber - indicates NIC connected to a valid network at less than its maximum port speed | ||
| Activity indicator | Off - indicates NIC not connected to the network | |
| Blinking green - indicates network data being sent or received | ||
| 18. | System status indicator | Blue - indicates normal system operation |
| Blinks amber - indicates system has error and needs attention | ||
| 19. | System identification button | When pressed on either the front or rear panel, flashes to locate the system in the rack. Press the button again to stop flashing. |
| 20. | Power supply | 250 W AC power supply |
| 21. | Retention clip to secure power cable | Secures the power cable |
2.14 LoadMaster LM-3400
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | Reset button | Reset LoadMaster | GPIO software button |
| 2. | RJ-45 console port | Used to connect console devices with RJ45/Micro USB type connection | |
| 3. | USB 2.0 ports (2) | Allows you to connect USB 2.0/1.1 devices to the system | |
| 4. | 1 Gb copper ethernet ports (8) | 8 x 1 Gb copper ports used to connect LAN network devices with LED indicators | Logical Assignment |
| Activity LED - Yellow blinking | Indicates data activity | ||
| Activity LED - Off | Indicates no data activity | ||
| Link LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| Link LED - Off | Indicates no link | ||
| 5. | Power LED | Indicates the power status of the system | |
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| SSD LED | Indicates the status of the Solid State Disk (SSD) | ||
| LED - Yellow flashing | Indicates read/write activity of the SSD | ||
| LED - Off | Indicates no activity of SSD |
Port Location - Rear Panel
| Item No. | Item | Description |
| 6. | VGA | Used to connect an analog VGA monitor |
| 7. | USB 2.0 ports | Allows you to connect USB 2.0/1.1 devices to the system |
| 8. | Power supply | 200 W AC power supply |
| 9. | Power switch | Press to power-on or power-off the system |
2.15 LoadMaster LM-3000
Port Location - Front Panel
| Item No. | Item | Description | Notes |
| 1. | Reset button | Reset LoadMaster | GPIO software button |
| 2. | RJ-45/ console port | Used to connect console devices with RJ45/Micro USB type connection | |
| 3. | USB 2.0 ports (2) | Allows you to connect USB 2.0/1.1 devices to the system | |
| 4. | 1Gb copper ethernet ports (4) | 4 x 1 Gb copper ports used to connect LAN network devices with LED indicators | Logical Assignment |
| Activity LED - Yellow blinking | Indicates data activity | ||
| Activity LED - Off | Indicates no data activity | ||
| Link LED - Green | Indicates data 1 Gb and 10/100 Mb | ||
| Link LED - Off | Indicates no link | ||
| 5. | Power LED | Indicates the power status of the system | |
| LED - Green | Power on | ||
| LED - Off | Power off | ||
| SSD LED | Indicates the status of the Solid State Disk (SSD) | ||
| LED - Yellow flashing | Indicates read/write activity of the SSD | ||
| LED - Off | Indicates no activity of SSD |
Port Location - Rear Panel
| Item No. | Item | Description |
| 6. | VGA | Used to connect an analog VGA monitor |
| 7. | USB 2.0 ports | Allows you to connect USB 2.0/1.1 devices to the system |
| 8. | Power supply | 200 W AC power supply |
| 9. | Power switch | Press to power-on or power-off the system |
Last Updated Date
This document was last updated on 10 March 2022.
Was this article helpful?
0 out of 0 found this helpful
