1 Introduction
The Kemp LoadMaster load balancing solution is specifically optimized for the UCS B-series blades, enabling customers to deploy full-feature, high-performance load balancers. This can reduce network design complexity as well as increase performance through the direct access to the virtual networking fabric. Easily deployed on UCS Blades as a bare metal solution, Kemp's LoadMaster for UCS offers unique value. The Kemp solution is designed to handle load balancing for application-to-application connections or at the edge for external/internet based connections to web services.
Depending on the license, the LoadMaster will support 6, 16 or 32 cores. If hyper-threading is present and enabled the number of supported cores is doubled. This document describes the steps required to install the Kemp LoadMaster software on a Cisco UCS B-Series Blade Server.
PXE and USB booting options are also supported by the LoadMaster installation ISO file.
1.1 Pre-requisites
The following pre-requisites are required:
A Cisco UCS B-Series Blade Server.
An ISO image with the LoadMaster software.
For a standalone LoadMaster one IP-address on an untagged LAN is required. Three IP-addresses are required for a HA pair.
The local disk on the Cisco UCS B-Series Blade Server should be empty as it is re-partitioned during the installation of the LoadMaster software.
The boot order on the B-Series Blade Server should be configured as follows:
1. Local Disk
2. CD_ROM
The boot order can be checked and configured within the Boot Order Details section on the General tab of the Cisco Unified Computing Systems (UCS) Manager.
2 Create Policies
A number of policies can be created in order to optimize LoadMaster performance. The sections below give instructions on how to create these policies in the Cisco Unified Computing System Manager.
2.1 Create a QoS Policy
1. In the menu on the left, go to Policies > root > QoS Policies.
2. Click the plus button on the right to create a new policy.
3. Enter a Name.
4. Select Platinum as the Priority.
5. Enter 65535 in the Burst(Bytes) text box.
6. Enter 40000000 in the Rate(Kbps) text box.
7. Ensure that Host Control is set to none.
8. Click OK.
9. Click OK again.
2.2 Create an Adapter Policy
1. Select the Servers tab at the top.
2. Expand Policies.
3. Expand root.
4. Select Adapter Policies.
5. Click the plus button on the right.
6. In the Resources section, set the field values as follows:
a) Transmit Queues: 1
b) Ring Size: 256
c) Receive Queues: 1
d) Ring Size: 512
e) Completion Queues: 2
f) Interrupts: 4
7. In the Options section, select Enabled for the following options:
a) Transmit Checksum Offload
b) Receive Checksum Offload
c) TCP Segmentation Offload
d) TCP Large Receive Offload
8. Select Disabled for Receive Side Scaling (RSS).
9. Enter 5 in the Failback Timeout (Seconds) text box.
10. Select MSI X as the Interrupt Mode.
11. Select Min as the Interrupt Coalescing Type.
12. Enter 125 as the Interrupt Timer (us).
13. Click OK.
2.3 Create a LAN Connectivity Policy
If you are planning on having a setup containing 4 arms or more, creating a LAN Connectivity Policy will help to reduce complexity. Follow the steps below to create this policy:
1. Select the LAN tab.
2. Expand Policies.
3. Expand root.
4. Select LAN Connectivity Policies.
5. Click the plus button on the right to create a new policy.
6. Enter a recognizable Name, for example LM_4vNIC.
7. Enter a Description.
8. Click Add to specify a vNIC.
9. Enter a Name for the vNIC, for example eth 0.
10. Select the relevant option in the MAC Address Assignment drop-down list.
11. Select the relevant clients to be on Fabric A.
To maximize input and output it is best to divide the number of client VLANs and server VLANs between Fabric A and Fabric B. For example, if there are 2 clients VLANs - one should be on Fabric A and the other should be on Fabric B. Similarly, if there are 2 server VLANs - one should be on A and the other on B.
12. Select a Native VLAN.
13. Set the MTU to 9000.
The MTU must have the same value as it does in the Priority of the selected QoS Policy.
14. Expand the Operational Parameters section.
15. Select the relevant Adapter Policy.
16. Select the relevant QoS Policy.
17. Click OK.
18. Click OK again.
19. Add the remaining vNICs needed.
2.4 Create a BIOS Policy
1. To create a BIOS policy:
2. Select the Servers tab at the top.
3. Expand Policies.
4. Expand root.
5. Select BIOS Policies.
6. Click the plus button to create a new policy.
7. Enter a Name.

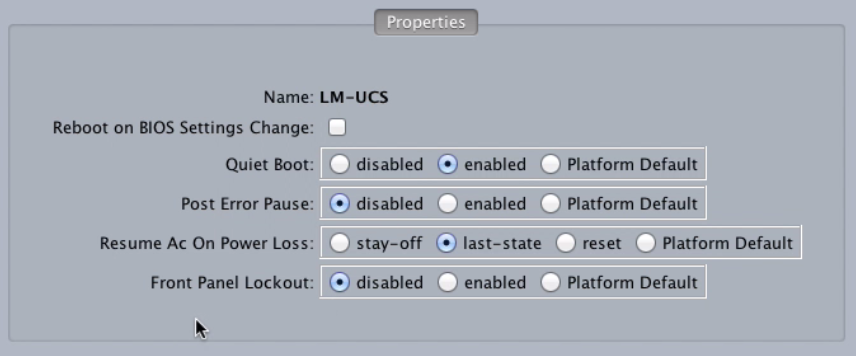

8. Set the options as follows:
- Reboot on BIOS Settings Change: Disabled
- Quiet Boot: enabled
- Post Error Pause: disabled
- Resume Ac On Power Loss: last-state
- Front Panel Lockout: disabled
9. In the Advanced > Processor tab, set the options as follows:
- Turbo Boost: enabled
- Enhanced Intel Speedstep: enabled
- Hyper Threading: disabled
- Core Multi Processing: all
- Execute Disabled Bit: Platform Default
- Virtualization Technology (VT): Platform Default
- Direct Cache Access: enabled
- Processor C State: disabled
- Processor C1E: disabled
- Processor C3 Report: disabled
- Processor C6 Report: disabled
- Processor C7 Report: disabled
- CPU Performance: hpc
- Max Variable MTRR Setting: Platform Default
10. In the Advanced > Intel Directed IO tab, set all of the options to Platform Default.
11. In the Advanced > RAS Memory tab, set the options as follows:
- Memory RAS Config: maximum-performance
- NUMA: enabled
- LV DDR Mode: performance-mode
12. Click OK.
3 Installing LoadMaster on the Cisco UCS Blade
The following steps must be completed in order to install the LoadMaster software on the Cisco B-Series Blade Server. These steps must be completed on the jump host, where the LoadMaster installation ISO image is located.

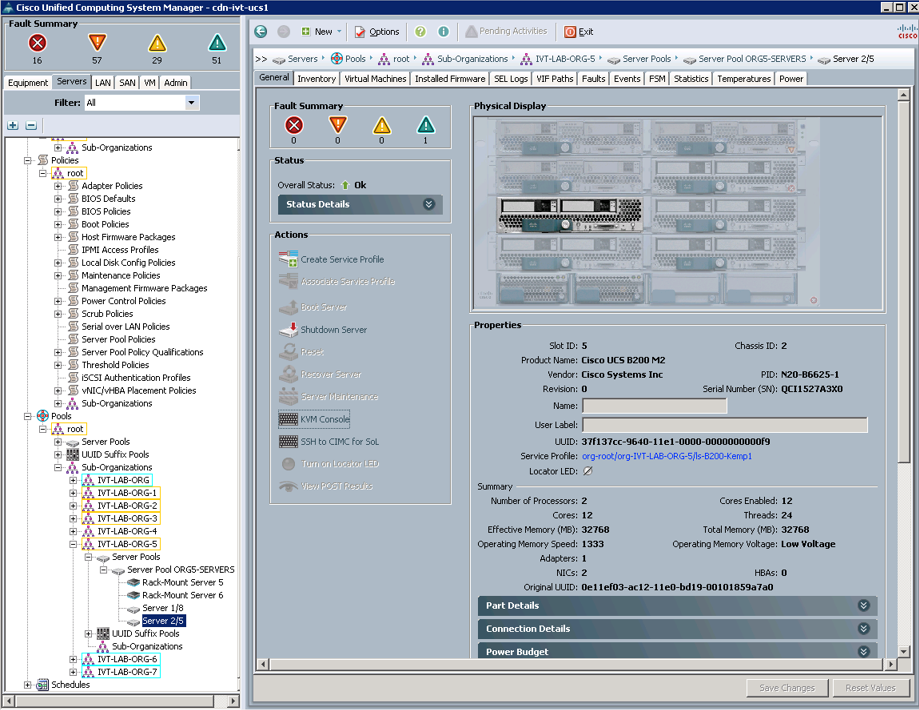

3.1 Open the KVM console for the B-series server
1. Select the Servers tab in the navigation pane.
2. Within the expandable tree view select the relevant server.
3. Select the General tab in the main pane.
4. Click the KVM console option within the Actions section.
5. This will open a KVM console window from which the installation can be completed.
3.2 Create a virtual CD-ROM
In the KVM console window complete the following steps:
1. Select the Virtual Media tab.
2. Click the Add Image button to open a file-selector window.
3. Select the LoadMaster installation image
4. Click the Open button.
5. Click the Mapped button.
3.3 Boot the Server
The server is now ready to be booted to complete the installation procedure.
If the local disk is empty, that is contains no valid boot partition, simply click the Boot Server option on the KVM console. The server is booted from the previously mapped virtual CD.
If the local disk does contain a valid bootable partition you can explicitly select the virtual CD from the servers boot menu by completing the following steps:
Press F6 when the boot process reaches the point illustrated in the screenshot above.
The Boot Menu Screen, as illustrated by the screenshot above, appears.
Select the Cisco Virtual CD/DVD option and press Enter.
The server should boot from the virtual CD.
3.4 Install the LoadMaster
Once the server boots from the virtual CD, as described in the Boot the Server section, the LoadMaster installation process automatically begins.
For further information on the different boot options that are available, refer to the Bare Metal Boot Options, Technical Note.
In the vast majority of cases, the serial number should be automatically pulled from the LoadMaster. If it is not, please enter it when prompted. The location of the serial number varies by make and model, but usually there is a pull tab on the front of the device which lists the serial number.
1. Select select disk/partition and press OK.
2. Select the target disk for installation and press OK.
3. Select delete existing partition(s) and press OK.
4. Select start installation and press OK.
When prompted, press OK to continue.
The installation then completes as shown in the screenshot below.
3.5 Boot the Installed LoadMaster
The server is now ready to be rebooted with the LoadMaster software installed on the local disk. Within the KVM console, select the Ctrl-Alt-Del option from the Macros drop-down menu.
The server should now begin to boot from the local disk.
The LoadMaster should obtain an IP address using DHCP, please note this value.
If the LoadMaster does not obtain an IP address using DHCP then the LoadMaster must be manually configured using the KVM console once the license key has been obtained.
Please refer to the Configuring the LoadMaster using the Console section for further information regarding manually configuring the LoadMaster.
3.6 License and Configure the LoadMaster
The LoadMaster must now be configured to operate within the network configuration.
1. In an internet browser, enter the IP address that was previously noted.
Ensure to enter https:// before the IP address.
2. A warning may appear regarding website security certificates. Please click the continue/ignore option.
3. The LoadMaster End User License Agreement screen appears.
Please read the license agreement and, if you are willing to accept the conditions therein, click on the Agree button to proceed.
4. If using the Online licensing method, fill out the fields and click License Now.
If you are starting with a trial license, there is no need to enter an Order ID. If you are starting with a permanent license, enter the Kemp Order ID# if this was provided to you.
If using the Offline Licensing method, select Offline Licensing, obtain the license text, paste it into the License field and click Apply License.
For detailed instructions on how to register for a Kemp ID and license the LoadMaster, refer to the Licensing, Feature Description on the Kemp Documentation Page.
5. If you entered an Order ID, a screen appears that provides a list of available licenses for that order ID, in addition to any licenses registered for the Kemp ID based on the LoadMaster platform type. Select the license type you want to apply to this LoadMaster.
If the license type you want is not displayed, please contact your Kemp representative.
6. Click Continue.
7. The login screen appears, enter the bal user name and the password.
8. In the screen informing you that the password has changed, press the Continue button.
9. If your machine has shipped with a temporary license you should get a warning informing you that a temporary license has been installed on your machine and for how long the license is valid.
10. Click OK .
11. You should now connect to the Home screen of the LoadMaster.
12. Go to System Configuration > Network Setup in the main menu.
13. Click the eth0 menu option within the Interfaces section.
14. In the Network Interface 0 screen, enter the IP address of the eth0 interface, the network facing interface of the LoadMaster, in the Interface Address input field.
15. Click the Set Address button.
16. Click the eth1 menu option within the Interfaces section.
17. In the Network Interface 1 screen, enter the IP address of the eth1 interface, the farm-side interface of the LoadMaster, in the Interface Address input field.
18. Click on the Set Address button.
This interface is optional, depending on the network configuration.
19. Click on the Local DNS Configuration > Hostname Configuration menu option.
20. In the Hostname configuration screen, enter the hostname into the Current Hostname input field.
21. Click the Set Hostname button.
22. Click the Local DNS Configuration > DNS Configuration menu option.
23. In the DNS configuration screen, enter the IP address(es) of the DNS Server(s) which is used to resolve names locally on the LoadMaster into the DNS NameServer input field.
24. Click the Add button.
25. Enter the domain name that is to be prepended to requests to the DNS nameserver into the DNS NameServer input field.
26. Click the Add button.
27. Click the System Configuration > Network Setup > Default Gateway menu option.
28. In the DNS configuration screen, enter the IP address of the default gateway into the IPv4 Default Gateway Address input field.
If you have an IPv6 Default Gateway, please enter the value in the IPv6 Default Gateway Address input field.
29. Click the Set IPv4 Default Gateway button.
The LoadMaster is now fully installed and ready to be used. For further information on how to configure and implement the Virtual LoadMaster, please refer to the LoadMaster documentation which can be downloaded from the http://kemptechnologies.com/documentation page.
4 Configuring the LoadMaster using the Console
If the LoadMaster does not automatically obtain an IP address using DHCP, or if the user prefers to configure the LoadMaster using the console, then the following configuration steps must be completed before starting the LoadMaster.
1. Login into the LoadMaster using the console using the settings:
- lb100 login: bal
- Password: 1fourall
2. If required, change the LoadMaster password (for the bal user) when prompted to within the console.
3. If required, click OK within the dialog box informing of the password change
4. Click OK within Quick Setup Help dialog box.
5. Enter the IP address of the eth0 interface, the network facing interface of the LoadMaster, in the input field within the Network Side Interface Address dialog box.
This value must be configured from within the console.
6. Click OK.
7. Enter the IP address of the eth1 interface in the input field within the Farm Side Interface Address dialog box. The eth1 interface is only configured if you have a two-armed configuration.
This interface can be configured at a later date using the LoadMaster WUI if preferred.
8. Click OK.
9. Enter the hostname (you can accept the default value of 'Kemp') into the input field of the LoadMaster Hostname dialog box.
10. Click OK.
11. Enter the IP address(es) of the DNS Server(s) which will be used to resolve names locally on the LoadMaster into the input field of the Name Server IP Addresses dialog box.
This interface can be configured at a later date using the LoadMaster WUI if preferred.
12. Click OK.
13. Enter the domain name that is to be prepended to requests to the DNS nameserver in the input field of the Domain List dialog box.
This interface can be configured at a later date using the LoadMaster WUI if preferred.
14. Click OK.
15. Enter the IP address of the default gateway in the input field of the Default Gateway dialog box.
This value must be configured from within the KVM console.
16. Click OK.
17. Click Yes within the Reboot screen when requested.
18. In your internet browser enter the IP address of the eth0 inter you entered in Step 6.
Ensure you place 'https://' before the IP address.
19. You may get a warning regarding website security certificates. Please click on the continue/ignore option.
20. The LoadMaster End User License Agreement screen appears.
Please read the license agreement and, if you are willing to accept the conditions therein, click on the Agree button to proceed.
21. If your machine has shipped with a temporary license you should get a warning informing you that a temporary license has been installed on your machine and for how long the license is valid.
22. Click OK.
23. You should now connect to the Home screen of the LoadMaster.
The LoadMaster is now fully installed and ready to be used. For further information on how to configure and implement the Virtual LoadMaster, please refer to the LoadMaster documentation which can be downloaded from the http://kemptechnologies.com/documentation page.
