1 Introduction

The Apache HTTP Server is the world's most used web server software. Apache development began in 1995 and played a key role in the initial growth of the World Wide Web and quickly became the dominant HTTP server. It has remained most popular since 1996 and in 2009 it became the first web server software to serve more than 100 million websites.

The Kemp LoadMaster is used to load balance the Apache HTTP workload. The LoadMaster offers advanced Layer 4 and Layer 7 server load balancing, SSL Acceleration and a multitude of other advanced Application Delivery Controller (ADC) features. The LoadMaster intelligently and efficiently distributes user traffic among the application servers so that users get the best experience possible.

1.1 Document Purpose

This document provides the recommended LoadMaster settings used when load balancing the Apache HTTP workload. The Kemp Support Team is available to provide solutions for scenarios not explicitly defined. The Kemp support site can be found at: https://support.kemptechnologies.com

1.2 Intended Audience

This document is intended to be read by anyone who is interested in configuring the LoadMaster to optimize the Apache HTTP server.

2 Apache HTTP Template

Kemp has developed a template containing our recommended settings for Apache HTTP. You can install this template on the LoadMaster and use it when creating Virtual Services. Using a template automatically populates the settings in the Virtual Services, which is quicker and easier than manually configuring each Virtual Service. If needed, you can make changes to any of the Virtual Service settings after using the template.

Download released templates from the following page: LoadMaster Templates.

For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description.

For steps on how to manually add and configure each of the Virtual Services, refer to the Configure the LoadMaster section of this document.

3 Architecture

4 Configure the LoadMaster

The deployed Apache HTTP environment determines which of the following setups is used.

4.1 Enable Subnet Originating Requests Globally

It is best practice to enable the Subnet Originating Requests option globally.

In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.

In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.

When Subnet Originating Requests is enabled, the Real Server sees traffic originating from 10.20.20.21 (LoadMaster eth1 address) and responds correctly in most scenarios.

With Subnet Originating Requests disabled, the Real Server sees traffic originating from 10.0.0.15 (LoadMaster Virtual Service address on eth0) and responds to eth0 which could cause asymmetric routing.

When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to enable Subnet Originating Requests on a per-Virtual Service basis.

To enable Subnet Originating Requests globally, follow the steps below:

1. In the main menu of the LoadMaster User Interface (UI), go to System Configuration > Miscellaneous Options > Network Options.

2. Select the Subnet Originating Requests check box.

4.2 Enable Check Persist Globally

It is recommended that you change the Always Check Persist option to Yes - Accept Changes. Use the following steps:

1. Go to System Configuration > Miscellaneous Options > L7 Configuration.

2. Click the Always Check Persist drop-down arrow and select Yes - Accept Changes.

4.3 Create the Apache HTTP Virtual Services

The following sections describe the recommended settings for the Apache HTTP Virtual Services.

4.3.1 Create an Apache HTTP Virtual Service

The following are the steps involved and the recommended settings to configure the Apache HTTP Virtual Service:

1. In the main menu of the LoadMaster Web User Interface (WUI), go to Virtual Services > Add New.

2. Type a valid Virtual Address.

3. Type 80 as the Port.

4. Enter a recognizable Service Name, such as Apache HTTP Virtual Service.

5. Click Add this Virtual Service.

6. Configure the settings as recommended in the following table:

Section	Option	Value
Standard Options	Persistence Mode	Active Cookie
	Timeout	1 Hour
	Cookie name	JSESSIONID
	Scheduling Method	least connection
	Idle Connection Timeout	900

7. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Enter the address of the relevant Real Server.

d) Complete the other fields as required.

e) Click Add this Real Server then click OK to the pop-up message.

f) Repeat the steps above to add more Real Servers as needed, based on your environment.

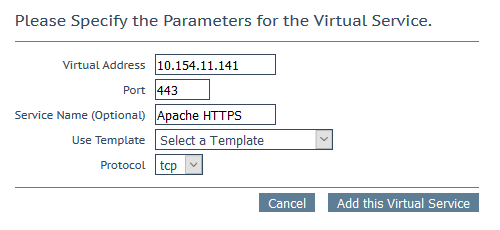

4.3.2 Create an Apache HTTPS Virtual Service

The following are the steps involved and the recommended settings to configure the Apache HTTPS Virtual Service:

1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.

2. Type a valid Virtual Address.

3. Type 443 as the Port.

4. Enter a recognizable Service Name, such as Apache HTTPS Virtual Service.

5. Click Add this Virtual Service.

6. Configure the settings as recommended in the following table:

Section	Option	Value	Comment
Standard Options	Persistence Mode	Source IP Address
	Timeout	1 Hour
	Scheduling Method	least connection
	Idle Connection Timeout	900
Advanced Properties	Add a Port 80 Redirector VS	https://%h%s	Click Add HTTP Redirector. This automatically creates a redirect on port 80.

7. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Enter the address of the relevant Real Server.

d) Complete the other fields as required.

e) Click Add this Real Server then click OK to the pop-up message.

f) Repeat the steps above to add more Real Servers as needed, based on your environment.

Create an Apache HTTPS Redirect Virtual Service

Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Real Server Check Method and Persistence Mode to None.

4.3.3 Create an Apache HTTPS Offloaded Virtual Service

The following are the steps involved and the recommended settings to configure the Apache HTTPS Offloaded Virtual Service:

1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.

2. Type a valid Virtual Address.

3. Type 443 as the Port.

4. Enter a recognizable Service Name, such as Apache HTTPS Offloaded Virtual Service.

5. Click Add this Virtual Service.

6. Configure the settings as recommended in the following table:

Section	Option	Value	Comments
Standard Options	Persistence Mode	Active Cookie
	Timeout	1 Hour
	Cookie name	JSESSSIONID
	Scheduling Method	least connection
	Idle Connection Timeout	900
SSL Properties	SSL Acceleration	Enabled
	Cipher Set	BestPractices
Advanced Properties	Add a Port 80 Redirector VS	https://%h%s	Click Add HTTP Redirector. This automatically creates a redirect on port 80.

7. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Enter the address of the relevant Real Server.

d) Complete the other fields as required.

e) Click Add this Real Server then click OK to the pop-up message.

f) Repeat the steps above to add more Real Servers as needed, based on your environment.

Create an Apache HTTPS Offloaded Redirect Virtual Service

Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Persistence Mode to None.

4.3.4 Create an Apache HTTPS Re-encrypt Virtual Service

The following are the steps involved and the recommended settings to configure the Apache HTTPS Re-encrypt Virtual Service:

1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.

2. Type a valid Virtual Address.

3. Type 443 as the Port.

4. Enter a recognizable Service Name, such as Apache HTTPS Re-encrypt Virtual Service.

5. Click Add this Virtual Service.

6. Configure the settings as recommended in the following table:

Section	Option	Value	Comments
Standard Options	Persistence Mode	Active Cookie
	Timeout	1 Hour
	Cookie name	JSESSSIONID
	Scheduling Method	least connection
	Idle Connection Timeout	900
SSL Properties	SSL Acceleration	Enabled
	Cipher Set	Best Practices
Advanced Properties	Add a Port 80 Redirector VS	https://%h%s	Click Add HTTP Redirector. This automatically creates a redirect on port 80.

7. Add the Real Servers:

a) Expand the Real Servers section.

b) Click Add New.

c) Enter the address of the relevant Real Server.

d) Complete the other fields as required.

e) Click Add this Real Server then click OK to the pop-up message.

f) Repeat the steps above to add more Real Servers as needed, based on your environment.

Create an Apache HTTPS Re-encrypt Redirect Virtual Service

Clicking the Add HTTP Redirector button automatically creates a port 80 redirect Virtual Service. This is optional, but the purpose of this Virtual Service is to redirect any clients who have connected using HTTP to the HTTPS Virtual Service. Kemp also recommends changing the Real Server Check Method and Persistence Mode to None.

References

Unless otherwise specified, the following documents can be found at http://kemptechnologies.com/documentation.

Virtual Services and Templates, Feature Description

Last Updated Date

This document was last updated on 22 March 2022.
