MS Exchange 2013

1 Introduction

 The LoadMaster combines versatility with ease-of-use to speed deployment of the complete portfolio of advanced messaging applications and protocols used by Microsoft Exchange 2013 (Exchange 2013), including Outlook on the Web, MAPI/HTTP, Outlook Anywhere (OA), Exchange ActiveSync (EAS), Simple Mail Transfer Protocol (SMTP), Post Office Protocol version 3 (POP3), Internet Message Access Protocol version 4 (IMAP4) and Office Online Server (OOS). With built-in SSL acceleration and/or overlay, the LoadMaster offloads a key source of CPU drain to improve the capacity of the Exchange 2013 infrastructure. Layer 7 health checking at the LoadMaster ensures that if one of the client access components becomes inaccessible, the load balancer will take that component offline for that server, while automatically re-routing and reconnecting users to other functioning servers.

The entire LoadMaster product family, including the Virtual LoadMaster (VLM) supports Exchange 2013, and includes a comprehensive first year warranty and technical support agreement.

1.1 About This Manual

This manual addresses how to deploy and configure a LoadMaster appliance with Exchange 2013 using application templates.

Progress Kemp’s LoadMaster family of products is available in various models to support networks of different throughput requirements. Information in this manual applies to all LoadMaster models.

1.2 Prerequisites

It is assumed that the reader is a network administrator or familiar with networking and general computer terminology. It is further assumed that the Exchange 2013 environment is set up and the LoadMaster is installed.

LoadMaster documentation is available on the Documentation page.

At a minimum, you should have:

  • Installed the Microsoft Servers, Active Directories, and followed other Microsoft requirements
  • Installed the LoadMaster on the same network as the servers
  • Established access to the LoadMaster Web User Interface (WUI)

2 Exchange 2013 Overview

Microsoft Exchange Server is a mail server, calendaring software, and contact manager. It runs on Windows Server and is part of the Microsoft Servers line of products. The improvements made in Exchange 2013 have made it easier to load balance Exchange-related traffic.

Exchange 2013 includes the following solutions for switchover and failover redundancy:

  • High availability: Exchange 2013 uses Database Availability Groups (DAGs) to keep multiple copies of your mailboxes on different servers synchronized. That way, if a mailbox database fails on one server, users can connect to a synchronized copy of the database on another server.
  • Site resilience: You can deploy two active directory sites in separate geographic locations, keep the mailbox data synchronized between the two, and have one of the sites take on the entire load if the other fails.
  • Online mailbox moves: During an online mailbox move, email accounts are still accessible. Users are only locked out for a brief period at the end of the process when the final synchronization occurs. Online mailbox moves can be performed across forests or in the same forest.
  • Shadow redundancy: Shadow redundancy protects the availability and recoverability of messages while they are in transit. With shadow redundancy, the deletion of a message from the transport databases is delayed until the transport server verifies that all the next hops for that message are completed. If any of the next hops fail before reporting successful delivery, the message is resubmitted for delivery to the hop that did not complete.

2.1 Understanding Server Load Balancing

Understanding Server Load Balancing.png

Server load balancing is a way to manage which servers receive traffic. Server load balancing provides failover redundancy to ensure users continue to receive service in case of failure. It also enables your deployment to handle more traffic than one server can process while offering a single host name for clients.

Server load balancing serves two primary purposes. It reduces the impact of server failures within an exchange organization. In addition, server load balancing ensures that the load on the CAS and transport services are optimally distributed.

As OWA is rendered on the same server that is hosting the user’s mailbox database; if a client hits a different CAS, there is no performance degradation because the session rendering for that user is already up and running.

Forms-based authentication is improved. The authentication cookie is provided to the user after logon and it is encrypted using the CAS’s SSL certificate. This allows a logged in user to resume their session on a different CAS without having to re-authenticate (if servers share the same SSL certificate).

2.2 Optimizing the LoadMaster for Exchange 2013

The LoadMaster has features and capabilities in addition to those described in this manual, however, the features and capabilities listed below in particular can be used to optimize the configuration of the LoadMaster to work best with Exchange 2013 server load balancing requirements.

2.2.1 SSL Acceleration (SSL Offloading)

The LoadMaster offers SSL acceleration (also referred to as “SSL offloading”) for Virtual Services. With SSL acceleration, the SSL session is terminated at the LoadMaster. Some of the benefits to using SSL acceleration are that the LoadMaster migrates the SSL workload from the Real Servers (which can be hardware accelerated by LoadMaster), can perform Layer 7 processing (such as persistence or content switching), SSL security hardening, and a central point of management of SSL certificates.

With SSL Acceleration, the SSL session is terminated at the LoadMaster and sent to the Real Servers un-encrypted. In some security situations, it may be necessary to encrypt the connection between the LoadMaster and Real Servers. This can be achieved with SSL reencryption. Review the SSL Feature Description on the Documentation Page for further details on configuring an SSL reencryption deployment.

With SSL reencryption, the SSL session is first terminated at the LoadMaster. Persistence and other Layer 7 functionality can then be performed. After that, the traffic is re-encrypted in a new SSL session between the LoadMaster and the Real Server.

Without terminating the SSL session at the LoadMaster, the headers and content cannot be read, so persistence cannot be done. The only consistently reliable persistence method available when the SSL session is not terminated at the LoadMaster is Source IP.

Hardware SSL and Software SSL are the two types of SSL termination capabilities available in your LoadMaster. Functionally, hardware and software SSL are the same. The difference is in what part of the LoadMaster handles the actual cryptographic functions associated with SSL operations.

With software SSL, the LoadMaster's general processor handles encryption/decryption tasks. These tasks are shared with other tasks that the LoadMaster performs, such as server load balancing, health checking, and other administrative tasks. Because SSL operations are CPU-intensive, software SSL is sufficient for low levels of SSL traffic but insufficient for higher levels of SSL traffic. Higher connection rates of SSL on a software SSL LoadMaster may degrade overall performance of the LoadMaster.

With hardware SSL, the LoadMaster has a separate specialized processor, which handles all SSL functions. No matter the level of SSL connections, the LoadMaster’s general processor is not burdened. This specialized hardware is purpose-built for SSL and can handle extremely high Transactions Per Second (TPS) of SSL traffic.

An SSL certificate is required for all SSL transactions, and as such is required for all SSL-enabled Virtual Services. With the LoadMaster, there are two types of SSL certificates: self-signed certificates generated by the LoadMaster or the administrator and certificates that are signed by a trusted CA (Certificate Authority) such as Digicert, Verisign or Thawte. In addition, with LoadMaster you are managing only one certificate instead of multiple certificates on each Real Server.

When an SSL-enabled Virtual Service is configured on the LoadMaster, a self-signed certificate is installed automatically. Both self-signed and CA signed certificates provide encryption for data in motion. A CA-signed certificate also provides authentication - a level of assurance that the site is what it reports to be, and not an impostor.

The primary operational difference between a self-signed certificate and a CA certificate is that with a self-signed, a browser will generally give some type of warning that the certificate came from an untrusted issuer. Generally, self-signed certificates should not be used for public-facing production websites. As such, the Exchange 2013 configuration instructions indicate that you would first need to export an appropriately signed certificate from Exchange 2013 so that you may import it into the LoadMaster.

2.2.2  Idle Connection Timeout

If there is no traffic for the period of time specified the connection is timed out and disconnected. The global default is 660 seconds (11 minutes).  This value can be adjusted per service type by modifying the Idle Connection Timeout field in the Standard Options section of the Virtual Service modify screen.

For each Virtual Service you can set idle connection timeout values for the connections. To make optimal use of your LoadMaster, you should not set these timeout values too low because this could result in clients needing to re-establish a connection, which typically results in the end user being informed to re-authenticate. It is recommended you test which timeout values works best in your specific scenario before the solution goes into production.

Setting the Idle Connection Timeout to 0 ensures that the default L7 connection timeout is used. You can modify the default Connection Timeout value by going to System Configuration > Miscellaneous Options > Network Options.

2.2.3 Drop Connections on Real Server Failure

By default, existing connections are not closed if a Real Server fails. This can lead to issues with Outlook clients if an Exchange CAS server fails. A solution to this is to enable the Drop Connections on RS Failure option, which can be found on the System Configuration > Miscellaneous > L7 Configuration screen in the WUI.

When this option is enabled, LoadMaster tracks all the incoming connections and which Real Servers they are connected to. When a Real Server fails, all connections to the Real Server are immediately dropped, forcing the connections to reconnect to a different Real Server.

Enabling this option has the added benefit of allowing relatively higher Idle Connection Timeout values to be set as the danger of the client retaining a connection to a failed server is removed.

2.2.4 Drop at Drain Time End

By default, existing connections are not closed when a Real Server is disabled. This can lead to issues with Outlook clients if an Exchange CAS server is administratively disabled. A solution to this is to enable the Drop at Drain Time End option, which is found on the System Configuration > Miscellaneous > L7 Configuration screen in the WUI.

When this option is enabled, LoadMaster severs all existing connections to a disabled server after the L7 Connection Drain Time is reached. Clients are then forced to re-establish a connection to one of the remaining Real Servers. You can configure the L7 Connection Drain Time by going to the following screen in the WUI: System Configuration Miscellaneous Options > L7 Configuration.

2.2.5 Port Configuration

There are many different types of possible data paths. It is recommended that your port configuration stay within the realm of default protocol Request For Comment (RFC). However, your LoadMaster may be configured to use whichever port happens to be most appropriate for your particular network. For more information regarding port definitions, refer to Microsoft documentation at https://docs.microsoft.com/en-us/exchange/network-ports-for-clients-and-mail-flow-in-exchange-2013-exchange-2013-help.

2.2.6 Connection Scaling

LoadMaster is a scalable load balancer, allowing for more than 64,000 client connections to a single Virtual Service at one time. If this is required, you should execute the Connection Scaling for Large Scale Deployments procedure located in the Appendix A: Connection Scaling For Large Scale Deployments.

2.2.7  Header Rewriting

Your LoadMaster offers HTTP header insertions, deletions, and modifications. Our header rewriting feature can be useful with respect to the URL users must input or remember. For more information, refer to the Content Rules, Feature Description on the Documentation Page.

This is only possible with unencrypted or SSL-offloaded traffic.

2.3 Enable Subnet Originating Requests Globally

It is best practice to enable the Subnet Originating Requests option globally.

In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet) Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests should not affect the routing in a one-armed setup.

In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with firmware version 7.1-16 and above.

Enable Subnet Originating Requests Globally v.2.png

When Subnet Originating Requests is enabled, the Real Server sees traffic originating from 10.20.20.21 (LoadMaster eth1 address) and responds correctly in most scenarios.

With Subnet Originating Requests disabled, the Real Server sees traffic originating from 10.0.0.15 (LoadMaster Virtual Service address on eth0) and responds to eth0 which could cause asymmetric routing.

When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to enable Subnet Originating Requests on a per-Virtual Service basis.

To enable Subnet Originating Requests globally, follow the steps below:

1. In the main menu of the LoadMaster User Interface (UI), go to System Configuration > Miscellaneous Options > Network Options.

2. Select the Subnet Originating Requests check box.

2.4 100-Continue Handling

To avoid issues with Exchange Web Services, especially in hybrid configuration, configure 100-continue handling to comply with RFC-7231 instead of the standard setting of RFC-2616.

To resolve this issue, apply the following setting on the LoadMaster.

100-Continue handling = RFC-7231 Complaint

1. To select RFC-7231 Compliant globally, follow the steps below:

a) In the main menu of the LoadMaster WUI, go to System Configuration > Miscellaneous Options > L7 Configuration.


b) Select RFC-7231 Complaint under 100-Continue Handling.

2.5 Additional L7 Header

When using the built-in Mail client on Mac, you may experience connectivity issues. This happens due to how Mail client on Mac handles Persistent-Auth headers from Exchange server. This behavior is not present on Outlook for Mac clients or any Windows Office clients.

To resolve this issue, apply the following settings on the LoadMaster.

Additional L7 Header = None

To select None for Additional L7 Header globally, follow the steps below:

1. In the main menu of the LoadMaster WUI, go to System Configuration > Miscellaneous Options > L7 Configuration.


2. Select None under Additional L7 Header.

3 Virtual Service Templates

Kemp have developed templates containing our recommended settings for Exchange 2013. These templates can be installed on the LoadMaster and can be used when creating each of the Virtual Services. Using a template automatically populates the settings in the Virtual Services. This is quicker and easier than manually configuring each Virtual Service. If needed, you can make changes to any of the Virtual Service settings after using the templates.

Released templates can be downloaded from the Documentation page.

For more information and steps on how to import and use templates, refer to the Virtual Services and Templates, Feature Description.

This guide outlines the step for setting up Virtual Services using application templates.

The Exchange 2013 templates currently available are grouped in three downloadable files as follows:

  • Exchange2013Core
    This file contains templates for non-SSL offloaded HTTPS, SSL offloaded HTTPS, and SMTP Virtual Services.
    This is the primary set of services required to balance Exchange 2013.
  • Exchange2013ESP
    This set contains individual templates for a HTTPS service with SSL offloading and an SMTP service, both with ESP enabled. These services are only necessary if you want to use ESP functionality.
  • Exchange2013Additional
    This set contains templates for IMAP, POP, and SMTP services, including variants for STARTTLS and SSL secured services.





4 Configuring Virtual Services for Exchange 2013

Follow the instructions below to set up an Exchange Virtual Services using application templates.

To configure the Virtual Services using the Application Programming Interface (API), refer to the RESTful API on the Documentation page.

The Exchange 2013 Virtual Service Recommended Settings (Optional) outlines the recommended settings and values. You can use the API parameters and values when using the LoadMaster API and automation tools.

When using the Web Application Firewall (WAF) in a Microsoft Exchange environment, ensure to enable WAF at the SubVS level to avoid issues with ActiveSync because standard WAF is unable to interpret the protocols used by ActiveSync.

4.1 HTTPS Offloaded Virtual Service or Reencrypted without ESP Virtual Service

The steps are the same when using Exchange HTTPS Offload and Exchange HTTPS Reencrypted application templates. To add the Virtual Services for Exchange HTTPS Offloaded or Exchange HTTPS Reencrypted, using the template, follow the steps below:

1. Click Virtual Services.

2. Click Add New.

3. Enter a Virtual Address.

4. Select the Exchange 2013 HTTPS Offloaded or the Exchange 2013 HTTPS ReEncrypted template from the Use Template drop-down list depending on your preference.

5. Click Add This Virtual Service.

4.1.1 Add SSL/TLS Certificate

This guide assumes an SSL/TLS certificate is imported into the LoadMaster. For more information and steps for SSL/TLS configuration, reference the SSL Accelerated Services Feature Guide on the Documentation page.

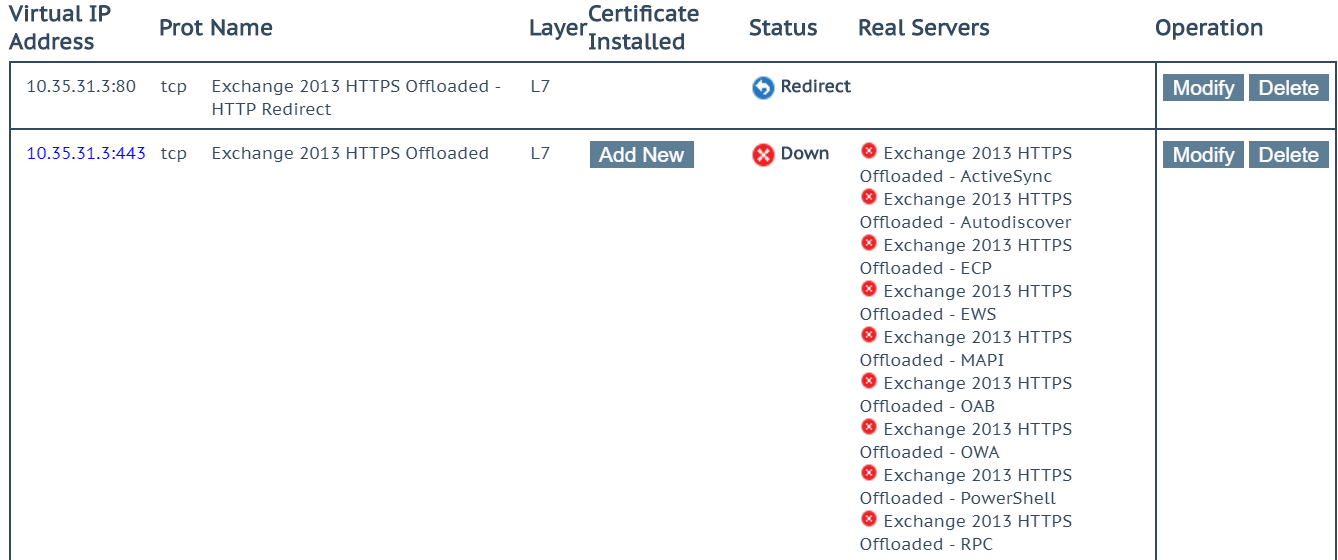

1. Click View/Modify Services in the left-hand navigation.


2. Click Modify for the Exchange 2013 HTTPS Offloaded Virtual Service on port 443 (or Exchange 2013 HTTPS Reencrypted if that was selected during the creation)

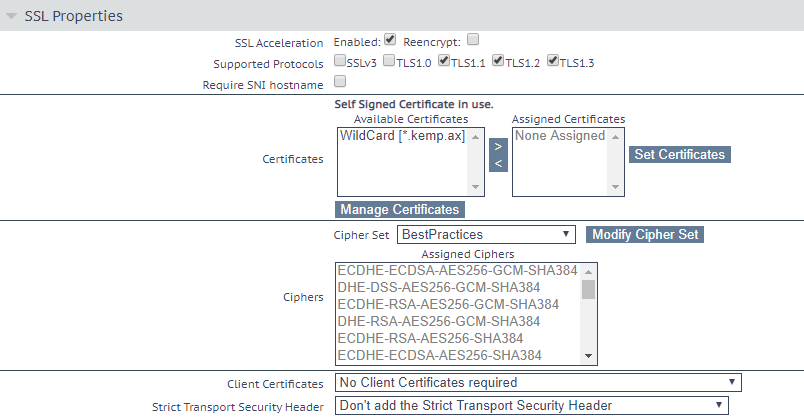

3. Expand SSL Properties (Acceleration Enabled).


4. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.

5. Click Set Certificate.

The Reencrypt check box is selected when using the Exchange 2013 HTTPS Reencrypted template.

4.1.2 Add the Real Servers

1. Click View/Modify Services in the left-hand navigation.


2. Click Modify for the Exchange 2013 HTTPS Offloaded Virtual Service on port 443 (or the Exchange 2013 HTTPS Reencrypted if that was selected during the creation).

3. Expand the SubVSs section.

4. Click Modify for Exchange 2013 HTTPS Offloaded – ActiveSync (or the Exchange 2013 HTTPS Reencrypted – ActiveSync if that was selected during the creation).

5. Expand the Real Servers section.

6. Click Add New.

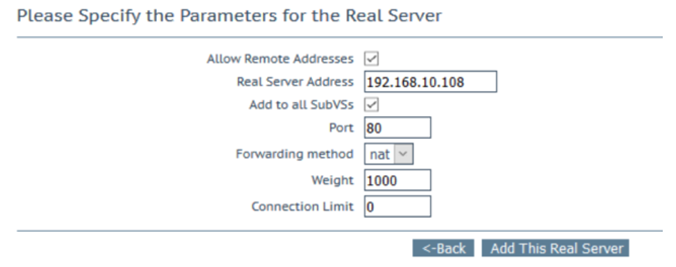

7. For the Real Server Address, enter the IP Address for one of the Exchange Servers.

8. Select the Add to all SubVSs check box.

9. Click Add This Real Server.

10. Add additional Real Servers using the Add to all SubVSs check box.

The Authentication Proxy SubVS should not have a Real Server unless Kerberos Constrained Delegation (KCD) is in use.

4.2 HTTPS Offloaded Virtual Service or Reencrypted with ESP Virtual Service

The steps are the same when using Exchange HTTPS Offloaded and Exchange HTTPS Reencrypted with ESP application template. To add the Virtual Services for Exchange HTTPS Offloaded or Exchange HTTPS Reencrypted with ESP using the template, follow the steps below:

1. Click Virtual Services.

2. Click Add New.

3. Enter a Virtual Address.

4. Select the Exchange 2013 HTTPS Offloaded with ESP or the Exchange 2013 HTTPS ReEncrypted with ESP template from the Use Template drop-down list depending on your preference.

5. Click Add This Virtual Service.

4.2.1 Add SSL TLS Certificate

This guide assumes an SSL/TLS certificate is imported into the LoadMaster. For more information and steps for SSL/TLS configuration, reference the SSL Accelerated Services Feature Guide on the Documentation page.

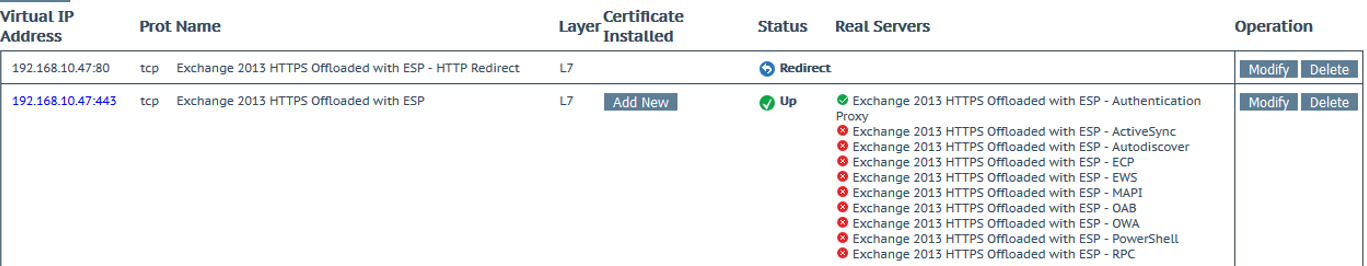

1. Click View/Modify Services in the left-hand navigation.


2. Click Modify for the Exchange 2013 HTTPS Offloaded with ESP Virtual Service on port 443 (or Exchange 2013 HTTPS Reencrypted with ESP if that was selected during the creation)

3. Expand SSL Properties (Acceleration Enabled).


4. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.

5. Click Set Certificate.

The Reencrypt check box is selected when using the Exchange 2013 HTTPS Reencrypted with ESP template.

4.2.2 Add the Real Servers

1. Click View/Modify Services in the left-hand navigation.


2. Click Modify for the Exchange 2013 HTTPS Offloaded with ESP Virtual Service on port 443 (or the Exchange 2013 HTTPS Reencrypted with ESP if that was selected during the creation).

3. Expand the SubVSs section.

4. Click Modify for Exchange 2013 HTTPS Offloaded with ESP – Authentication Proxy (or the Exchange 2013 HTTPS Reencrypted with ESP – Authentication ctiveSync if that was selected during the creation).

5. Expand the Real Servers section.

6. Click Add New.

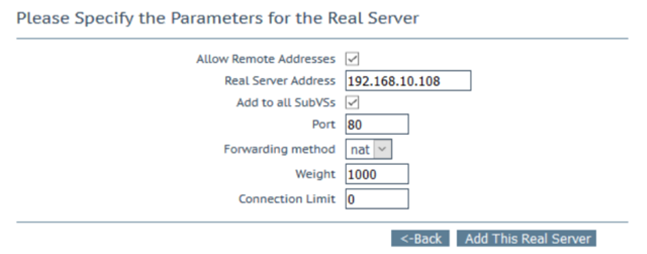

7. For the Real Server Address, enter the IP Address for one of the Exchange Servers.

8. Select the Add to all SubVSs check box.

9. Click Add This Real Server.

10. Add additional Real Servers using the Add to all SubVSs check box.

4.2.3 Configure ESP

This guide assumes an SSO Domain is configured on the LoadMaster. For more information and steps for setting up an SSO Domain, refer to the Edge Security Pack (ESP) Feature Guide on the Documentation page.

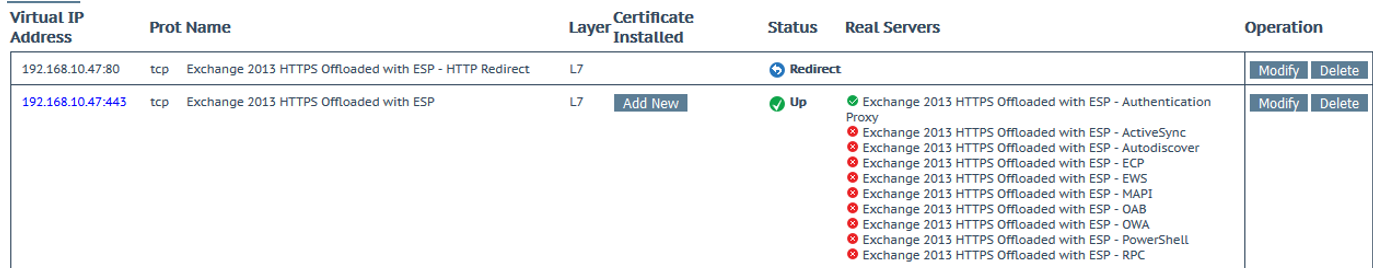

1. Click View/Modify Services in the left-hand navigation.


2. Click Modify for the Exchange 2013 HTTPS Offloaded with ESP Virtual Service on port 443 (or the Exchange 2013 HTTPS Reencrypted with ESP if that was selected during the creation).

3. Expand the SubVSs section.

4. For each SubVS the following fields must be configured. Click the set button next to each field entered.

SubVS Name Pre-Authorization Excluded Directories Allowed Virtual Hosts Logoff String User Password Form
Authentication Proxy n/a Required n/a n/a
ActiveSync n/a Required n/a n/a
Autodiscover n/a Required n/a n/a
ECP n/a Required n/a n/a
EWS n/a Required n/a n/a
MAPI n/a Required n/a n/a
OAB n/a Required n/a n/a
OWA /owa/<guid@smtpdomain>*1 Required /owa/logoff.owa https://<Exchange URL> /owa/auth/expiredpassword.aspx?url=/owa/auth.owa
PowerShell n/a Required n/a n/a
RPC n/a Required n/a n/a



1GUID is unique to each Exchange deployment. To find the correct GUID, run the following command on the Exchange Server:
Get-Mailbox -Arbitration | where {$_.PersistedCapabilities -like “OrganizationCapabilityClientExtensions”} | fl exchangeGUID, primarysmtpaddress



The Logoff String must be set to /owa/logoff.owa in the OWA SubVS. In a customized environment, if the OWA logoff string has been changed, the modified logoff string must be entered in the Logoff String text box.



The SSO Greeting Message field accepts HTML code, so the users can insert their own image if desired. The grave accent character ( ` ) is not supported. If this character is entered in the SSO Greeting Message, the character will not display in the output, for example, a`b`c becomes abc.

Configure Client Certificate Authentication with ESP

For more information on how to configure Edge Security Pack (ESP) using client certificates, refer to the following article: How to Configure Client Certificate Authentication with ESP.

4.3 IMAP or IMAPS Virtual Service

The steps are the same when using Exchange IMAP and Exchange IMAPS application templates. When using IMAPS, this is a TLS pass through Virtual Service because using reencryption is not supported. To add the Virtual Services for Exchange IMAP and Exchange IMAPS using the template, follow the steps below:

1. Click Virtual Services.

2. Click Add New.

3. Enter a Virtual Address.

4. Select the Exchange 2013 IMAP or the Exchange 2013 IMAPS template from the Use Template drop-down list depending on your preference.

5. Click Add This Virtual Service.

6. Expand the Real Servers section.

7. Click Add New.

8. For Real Server Address, enter the IP Address for one of the Exchange Servers.

9. Click Add this Real Server.

10. Add any additional Real Servers as required.

4.4 IMAPS Offloaded or IMAP with STARTTLS Virtual Service

The steps are the same when using Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS application templates. To add the Virtual Services for Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS using the template, follow the steps below:

1. Click Virtual Services.

2. Click Add New.

3. Enter a Virtual Address.

4. Select the Exchange 2013 IMAP Offloaded or the Exchange 2013 IMAPS template from the Use Template drop-down list depending on your preference.

5. Click Add This Virtual Service.

6. Expand SSL Properties (Acceleration Enabled).


7. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.

8. Click Set Certificate.

9. Expand the Real Servers section.

10. Click Add New.

11. For Real Server Address, enter the IP Address for one of the Exchange Servers.

Ensure port 143 is entered in the Port field.

12. Click Add this Real Server.

13. Add any additional Real Servers as required.

4.5 POP or POPS Virtual Service

The steps are the same when using Exchange POP and Exchange POPS application templates. To add the Virtual Services for Exchange POP and Exchange POPS using the template, follow the steps below:

1. Click Virtual Services.

2. Click Add New.

3. Enter a Virtual Address.

4. Select the Exchange 2013 POP or the Exchange 2013 POPS template from the Use Template drop-down list depending on your preference.

5. Click Add This Virtual Service.

6. Expand the Real Servers section.

7. Click Add New.

8. For Real Server Address, enter the IP Address for one of the Exchange Servers.

9. Click Add this Real Server.

10. Add any additional Real Servers as required.

4.6 POPS Offloaded or POP with STARTTLS Virtual Service

The steps are the same when using Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS application templates. To add the Virtual Services for Exchange IMAPS Offloaded and Exchange IMAP with STARTTLS using the template, follow the steps below:

1. Click Virtual Services.

2. Click Add New.

3. Enter a Virtual Address.

4. Select the Exchange 2013 POPS Offloaded or the Exchange 2013 POP with StartTLS template from the Use Template drop-down list depending on your preference.

5. Click Add This Virtual Service.

6. Expand SSL Properties (Acceleration Enabled).


7. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.

8. Click Set Certificate.

9. Expand the Real Servers section.

10. Click Add New.

11. For Real Server Address, enter the IP Address for one of the Exchange Servers.

Ensure port 110 is entered in the Port Field.

12. Click Add this Real Server.

13. Add any additional Real Servers as required.



4.7 SMTP or SMTPS Virtual Service

The steps are the same when using Exchange SMTP and Exchange SMTPS application templates. To add the Virtual Services for Exchange SMTP and Exchange SMTPS using the template, follow the steps below:

1. Click Virtual Services.

2. Click Add New.

3. Enter a Virtual Address.

4. Select the Exchange 2013 SMTP or the Exchange 2013 SMTPS template from the Use Template drop-down list depending on your preference.

5. Click Add This Virtual Service.

6. Expand the Real Servers section.

7. Click Add New.

8. For Real Server Address, enter the IP Address for one of the Exchange Servers.

9. Click Add this Real Server.

10. Add any additional Real Servers as required.

4.8 SMTPS Offloaded or SMTP with STARTTLS Virtual Service

The steps are the same when using Exchange SMTPS Offloaded and Exchange SMTP with STARTTLS application templates. To add the Virtual Services for Exchange SMTPS Offloaded and Exchange SMTP with STARTTLS using the template, follow the steps below:

1. Click the Add New button.

2. Enter a Virtual Address.

3. Select the Exchange 2013 SMTP Offloaded or the Exchange 2013 SMTPwith STARTTLS template from the Use Template drop-down list depending on your preference.

4. Click Add This Virtual Service.

5. Expand SSL Properties (Acceleration Enabled).


6. Select the certificate to use in the Available Certificates and click the “arrow” > to move it to Assigned Certificates.

7. Click Set Certificate.

8. Expand the Real Servers section.

9. Click Add New.

10. For Real Server Address, enter the IP Address for one of the Exchange Servers.

Ensure port 25 is entered in the Port Field.

11. Click Add this Real Server.

12. Add any additional Real Servers as required.

SMTPS can be configured as offloaded as outlined above but cannot be set to Reencrypt.

4.9 SMTP with ESP Virtual Service

To add the Virtual Services for Exchange 2013 SMTP with ESP using the template, follow the steps below:

1. Click the Add New button.

2. Enter a Virtual Address.

3. Select the Exchange 2013 SMTP with ESP template from the Use Template drop-down list depending on your preference.

4. Click Add This Virtual Service.

5. Expand ESP Options.


6. Enter the Permitted SMTP Domain for the Organization and click Set Permitted Domains.

7. Expand the Real Servers section.

8. Click Add New.

9. For Real Server Address, enter the IP Address for one of the Office Online Servers.

10. Click Add this Real Server.

11. Add any additional Real Servers as necessary.

5 Exchange 2013 Virtual Service Recommended Settings (Optional)

These tables outline the recommended settings using the application template. You can use these settings with scripts and automation tools.

5.1 Exchange 2013 HTTP Virtual Service Recommended Settings (Optional)

API Parameter API Value WUI Field Name WUI Field Value Use with Template
HTTP Redirect
port 80 Port 80 All
prot tcp Protocol tcp All
nickname Exchange%20Redirect Service Name (Optional) Exchange Redirect All
ForceL7 1 Force L4 Disabled All
Errorcode 302 Error Code 302 Found All
ErrorUrl https:%5C%2F%5C%2F%25h%25s Redirection URL https:\/\/%h%s All
CheckType none Real Server Check Method None
Content Rules
Authentication Proxy
name Authentication_Proxy Rule Name Authentication_Proxy ESP Enabled
matchtype Regex Match Type Regular Expression ESP Enabled
pattern %2F%5E%5C%2Flm_auth_proxy%2A%24%2F Match String /^\/lm_auth_proxy*$/ ESP Enabled
Nocase 1 Ignore Case Enabled ESP Enabled
ActiveSync
Name ActiveSync Rule Name ActiveSync All
matchtype Regex Match Type Regular Expression All
pattern %2F%5E%5C%2Fmicrosoft-server-activesync.%2A%2F Match String /^\/microsoft-server-activesync.*/ All
Nocase 1 Ignore Case Enabled All
Autodiscover
name Autodiscover Rule Name Autodiscover All
matchtype Regex Match Type Regular Expression All
pattern %2F%5E%5C%2Fautodiscover.%2A%2F Match String /^\/autodiscover.*/ All
Nocase 1 Ignore Case Enabled All
ECP
name ECP Rule Name ECP All
matchtype Regex Match Type Regular Expression All
Pattern %2F%5E%5C%2Fecp.%2A%2F Match String /^\/ecp.*/ All
Nocase 1 Ignore Case Enabled All
EWS
name EWS Rule Name EWS All
matchtype Regex Match Type Regular Expression All
Pattern %2F%5E%5C%2Fews.%2A%2F Match String /^\/ews.*/ All
Nocase 1 Ignore Case Enabled All
MAPI
name MAPI Rule Name MAPI All
matchtype Regex Match Type Regular Expression All
Pattern %2F%5E%5C%2Fmapi.%2A%2F Match String /^\/mapi.*/ All
Nocase 1 Ignore Case Enabled All
OAB
name OAB Rule Name OAB All
matchtype Regex Match Type Regular Expression All
Pattern %2F%5E%5C%2Foab.%2A%2F Match String /^\/oab.*/ All
Nocase 1 Ignore Case Enabled All
OWA
name OWA Rule Name OWA All
matchtype Regex Match Type Regular Expression All
Patterns %2F%5E%5C%2Fowa.%2A%2F Match String /^\/owa.*/ All
Nocase 1 Ignore Case Enabled All
PowerShell
name powershell Rule Name powershell All
matchtype Regex Match Type Regular Expression All
Pattern %2F%5E%5C%2Fpowershell.%2A%2F Match String /^\/powershell.*/ All
Nocase 1 Ignore Case Enabled All
RPC
name RPC Rule Name RPC All
matchtype Regex Match Type Regular Expression All
Pattern %2F%5E%5C%2Frpc.%2A%2F Match String /^\/rpc.*/ All
Nocase 1 Ignore Case Enabled All
Main Virtual Service
port 443 Port 443 All
prot tcp Protocol tcp All
VStype http Service Type HTTP-HTTP/2-HTTPS All
nickname Exchange%20HTTPS%20 Offloaded Service Name (Optional) Exchange HTTPS Offloaded Create Unique Name
ForceL7 1 Force L4 Disabled All
Transparent 0 Transparency Disabled All
SubnetOriginating 1 Subnet Originating Requests Enabled All
SSLAcceleration 1 SSL Acceleration Enabled All
SSLReencrypt 0 or 1 Reencrypt Disabled or Enabled 0 for Offload 1 for Reencrypt
TLSType 1 Supported Protocols TLS1.0, TLS1.1, TLS1.2, and TLS1.3 (Enabled) All
CipherSet BestPractices Cipher Set BestPractices All
Tls13CipherSet TLS_AES_256_GCM_SHA384, TLS_CHACHA20_POLY1305_SHA256, TLS_AES_128_GCM_SHA256, TLS_AES_128_CCM_8_SHA256, TLS_AES_128_CCM_SHA256 TLS1.3 Ciphersets TLS_AES_256_GCM_SHA384, TLS_CHACHA20_POLY1305_SHA256, TLS_AES_128_GCM_SHA256, TLS_AES_128_CCM_8_SHA256, and TLS_AES_128_CCM_SHA256 All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
Sub Virtual Service
Authentication Proxy
port 443 Port 443 ESP Enabled
prot tcp Protocol tcp ESP Enabled
Nickname Authentication%20Proxy Service Name (Optional) Authentication Proxy ESP Enabled
Errorcode 503 Error Code 503 Service Unavailable ESP Enabled
ErrorUrl Endpoint%20not%20available Redirection URL Endpoint not available ESP Enabled
CheckType None Real Server Check Method None ESP Enabled
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 2 Client Authentication Mode Form Based ESP Enabled
OutputAuthMode 2 Server Authentication Mode Form Based ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2F%2A Allowed Virtual Directories /* ESP Enabled
SingleSignOnMessage Please%20enter%20your%20Exchange%20credentials SSO Greeting Message Please enter your Exchange credentials ESP Enabled
ActiveSync
port 443 Port 443 All
prot tcp Protocol tcp All
Nickname ActiveSync Service Name (Optional) ActiveSync All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Fmicrosoft-server-activesync%2Fhealthcheck.htm URL /microsoft-server-activesync/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 1 Client Authentication Mode Basic Authentication ESP Enabled
OutputAuthMode 1 Server Authentication Mode Basic Authentication ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Fmicrosoft-server-activesync%2A Allowed Virtual Directories /microsoft-server-activesync* ESP Enabled
Autodiscover
Port 443 Port 443 All
prot tcp Protocol tcp All
Nickname Autodiscover Service Name (Optional) Autodiscover All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Fautodiscover%2Fhealthcheck.htm URL /autodiscover/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 0 Client Authentication Mode Delegate to Server ESP Enabled
OutputAuthMode 0 Server Authentication Mode None ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Fautodiscover%2A Allowed Virtual Directories /autodiscover* ESP Enabled
ECP
port 443 Port 443 All
prot tcp Protocol tcp All
Nickname ECP Service Name (Optional) ECP All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Fecp%2Fhealthcheck.htm URL /ecp/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 2 Client Authentication Mode Form Based ESP Enabled
OutputAuthMode 2 Server Authentication Mode Form Based ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Fecp%2A Allowed Virtual Directories /ecp* ESP Enabled
SingleSignOnMessage Please%20enter%20your%20Exchange%20credentials SSO Greeting Message Please enter your Exchange credentials ESP Enabled
EWS
port 443 Port 443 All
prot tcp Protocol tcp All
Nickname EWS Service Name (Optional) EWS All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Fews%2Fhealthcheck.htm URL /ews/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 0 Client Authentication Mode Delegate to Server ESP Enabled
OutputAuthMode 0 Server Authentication Mode None ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Fews%2A Allowed Virtual Directories /ews* ESP Enabled
MAPI
port 443 Port 443 All
prot tcp Protocol tcp All
Nickname MAPI Service Name (Optional) MAPI All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Fmapi%2Fhealthcheck.htm URL /mapi/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 0 Client Authentication Mode Delegate to Server ESP Enabled
OutputAuthMode 0 Server Authentication Mode None ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Fmapi%2A Allowed Virtual Directories /mapi* ESP Enabled
OAB
port 443 Port 443 All
prot tcp Protocol tcp All
Nickname OAB Service Name (Optional) OAB All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Foab%2Fhealthcheck.htm URL /oab/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 0 Client Authentication Mode Delegate to Server ESP Enabled
OutputAuthMode 0 Server Authentication Mode None ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Foab%2A Allowed Virtual Directories /oab* ESP Enabled
OWA
port 443 Port 443 All
prot tcp Protocol tcp All
Nickname OWA Service Name (Optional) OWA All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Fowa%2Fhealthcheck.htm URL /owa/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 2 Client Authentication Mode Form Based ESP Enabled
OutputAuthMode 2 Server Authentication Mode Form Based ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Fowa%2A Allowed Virtual Directories /owa* ESP Enabled
ExcludedDirectories %2Fowa%2Fguid%40smtpdomain%2A Pre-Authorization Excluded Directories /owa/guid@smtpdomain* ESP Enabled
SingleSignOnMessage Please%20enter%20your%20Exchange%20credentials SSO Greeting Message Please enter your Exchange credentials ESP Enabled
Logoff %2Fowa%2Flogoff.owa   /owa/logoff.owa ESP Enabled
PowerShell
port 443 port 443 All
prot tcp Protocol tcp All
Nickname PowerShell Service Name (Optional) PowerShell All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Fpowershell%2Fhealthcheck.htm URL /powershell/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 0 Client Authentication Mode Delegate to Server ESP Enabled
OutputAuthMode 0 Server Authentication Mode None ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Fpowershell%2A Allowed Virtual Directories /powershell* ESP Enabled
RPC
port 443 Port 443 All
prot tcp Protocol tcp All
Nickname RPC Service Name (Optional) RPC All
SubnetOriginating 1 Subnet Originating Requests Enabled All
Persist None Persistence Options None All
Schedule lc Scheduling Method least connection All
Idletime 1800 Idle Connection Timeout 1800 All
CheckPort 443 Checked Port 443 All
CheckType https Real Server Check Method HTTPS Protocol All
CheckUrl %2Frpc%2Fhealthcheck.htm URL /rpc/healthcheck.htm All
CheckUse1.1 0 Use HTTP/1.1 Disabled All
CheckUseGet 1 HTTP Method GET All
EspEnabled 1 Enable ESP Enabled ESP Enabled
ESPLogs 7 ESP Logging User Access, Security, and Connection (Enabled) ESP Enabled
InputAuthMode 0 Client Authentication Mode Delegate to Server ESP Enabled
OutputAuthMode 0 Server Authentication Mode None ESP Enabled
AllowedHosts Mail.example.com%20autodiscover.example.com Allowed Virtual Hosts Mail.example.com autodiscover.example.com ESP Enabled
AllowedDirectories %2Frpc%2A Allowed Virtual Directories /rpc* ESP Enabled

5.2 Exchange 2013 IMAP Virtual Recommended Settings (Optional)

API Parameter

API Value

WUI Field Name

WUI Field Value

IMAP

port

143

Port

143

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20IMAP

Service Name (Optional)

Exchange IMAP

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

Imap4

Server Initiating Protocols

IMAP4

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

CheckType

Imap4

Real Server Check Method

Mailbox (IMAP) Protocol

CheckPort

110

Checked Port

110

IMAPS

port

993

Port

993

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20IMAPS

Service Name (Optional)

Exchange IMAPS

forceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

Imap4

Server Initiating Protocols

IMAP4

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

CheckType

tcp

Real Server Check Method

TCP Connection Only

CheckPort

993

Checked Port

993

IMAPS Offloaded

port

993

Port

993

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20IMAPS%20Offload

Service Name (Optional)

Exchange IMAPS Offload

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

Imap4

Server Initiating Protocols

IMAP4

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

SSLAcceleration

1

SSL Acceleration

Enabled

SSLReencrypt

0

Reencrypt

Disabled

TLSType

1

Supported Protocols

TLS1.0, TLS1.1, TLS1.2, and TLS1.3 (Enabled)

CipherSet

BestPractices

CipherSet

BestPractices

CheckType

Imap4

Real Server Check Method

Mailbox (IMAP) Protocol

CheckPort

143

Checked Port

143

IMAP with STARTTLS

port

143

Port

143

prot

tcp

Protocol

tcp

VStype

StartTLS

Service Type

STARTTLS protocols

nickname

Exchange%20IMAP%20STARTTLS

Service Name (Optional)

Exchange IMAP STARTTLS

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

StartTLSMode

Imap

Server Initiating Protocols

IMAP4

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

SSLAcceleration

1

SSL Acceleration

Enabled

TLSType

1

Supported Protocols

TLS1.0, TLS1.1, TLS1.2, and TLS1.3 (Enabled)

CipherSet

BestPractices

CipherSet

BestPractices

CheckType

Imap

Real Server Check Method

Mailbox (IMAP) Protocol

CheckPort

143

Checked Port

143

5.3 Exchange 2013 POP Virtual Service Recommended Settings (Optional)

API Parameter

API Value

WUI Field Name

WUI Field Value

POP

port

110

Port

110

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20POP

Service Name (Optional)

Exchange POP

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

Pop3

Server Initiating Protocols

POP3

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

CheckType

Pop3

Real Server Check Method

Mailbox (POP3) Protocol

CheckPort

110

Checked Port

110

POPS

port

995

Port

995

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20POPS

Service Name (Optional)

Exchange POPS

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

Pop3

Server Initiating Protocols

POP3

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

CheckType

tcp

Real Server Check Method

TCP Connection Only

CheckPort

993

Checked Port

993

POPS Offloaded

port

995

Port

995

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20POPS%20Offload

Service Name (Optional)

Exchange POPS Offload

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

Pop3

Server Initiating Protocols

POP3

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

SSLAcceleration

1

SSL Acceleration

Enabled

SSLReencrypt

0

Reencrypt

Disabled

TLSType

1

Supported Protocols

TLS1.0, TLS1.1, TLS1.2, and TLS1.3 (Enabled)

CipherSet

BestPractices

CipherSet

BestPractices

CheckType

Pop3

Real Server Check Method

Mailbox (POP3) Protocol

CheckPort

110

Checked Port

110

POP with STARTTLS

port

110

Port

110

prot

tcp

Protocol

tcp

VStype

StartTLS

Service Type

STARTTLS protocols

nickname

Exchange%20IMAP%20STARTTLS

Service Name (Optional)

Exchange IMAP STARTTLS

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

StartTLSMode

Pop3

Server Initiating Protocols

POP3

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

None

Persistence Options

None

Schedule

rr

Scheduling Method

round robin

Idletime

3600

Idle Connection Timeout

3600

SSLAcceleration

1

SSL Acceleration

Enabled

TLSType

1

Supported Protocols

TLS1.0, TLS1.1, TLS1.2, and TLS1.3 (Enabled)

CipherSet

BestPractices

CipherSet

BestPractices

CheckType

pop

Real Server Check Method

Mailbox (POP3) Protocol

CheckPort

110

Checked Port

110

5.4 Exchange 2013 SMTP Virtual Service Recommended Settings (Optional)

API Parameter

API Value

WUI Field Name

WUI Field Value

SMTP

port

25

Port

25

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20STMP

Service Name (Optional)

Exchange STMP

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

smtp

Server Initiating Protocols

SMTP

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

src

Persistence Options

Source IP Address

PersistTimeout

3600

Timeout

3600

Schedule

rr

Scheduling Method

round robin

Idletime

120

Idle Connection Timeout

120

CheckType

smtp

Real Server Check Method

Mailbox (SMTP) Protocol

CheckPort

25

Checked Port

25

SMTPS

port

587

Port

587

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20SMTPS

Service Name (Optional)

Exchange STMPS

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

smtp

Server Initiating Protocols

SMTP

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

src

Persistence Options

Source IP Address

PersistTimeout

3600

Timeout

3600

Schedule

rr

Scheduling Method

round robin

Idletime

120

Idle Connection Timeout

120

CheckType

tcp

Real Server Check Method

tcp

CheckPort

587

Checked Port

587

SMTPS Offloaded

port

587

Port

587

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20SMTPS%20Offload

Service Name (Optional)

Exchange STMPS Offload

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

smtp

Server Initiating Protocols

SMTP

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

src

Persistence Options

Source IP Address

PersistTimeout

3600

Timeout

3600

Schedule

rr

Scheduling Method

round robin

Idletime

120

Idle Connection Timeout

120

SSLAcceleration

1

SSL Acceleration

Enabled

SSLReencrypt

0

Reencrypt

Disabled

TLSType

1

Supported Protocols

TLS1.0, TLS1.1, TLS1.2, and TLS1.3 (Enabled)

CipherSet

BestPractices

CipherSet

BestPractices

CheckType

smtp

Real Server Check Method

Mail (SMTP) Protocol

CheckPort

25

Checked Port

25

SMTP with STARTTLS

port

25

Port

25

prot

tcp

Protocol

tcp

VStype

StartTLS

Service Type

STARTTLS protocols

nickname

Exchange%20SMTP%20STARTTLS

Service Name (Optional)

Exchange STMP STARTTLS

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

StartTLSMode

smtp

Server Initiating Protocols

SMTP

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

src

Persistence Options

Source IP Address

PersistTimeout

3600

Timeout

3600

Schedule

rr

Scheduling Method

round robin

Idletime

120

Idle Connection Timeout

120

SSLAcceleration

1

SSL Acceleration

Enabled

TLSType

1

Supported Protocols

TLS1.0, TLS1.1, TLS1.2, and TLS1.3 (Enabled)

CipherSet

BestPractices

CipherSet

BestPractices

CheckType

smtp

Real Server Check Method

Mail (SMTP) Protocol

CheckPort

25

Checked Port

25

SMTP with ESP

port

25

Port

25

prot

tcp

Protocol

tcp

VStype

gen

Service Type

Generic

nickname

Exchange%20STMP%20ESP

Service Name (Optional)

Exchange STMP ESP

ForceL7

1

Force L4

Disabled

Transparent

0

Transparency

Disabled

ServerInit

smtp

Server Initiating Protocols

SMTP

SubnetOriginating

1

Subnet Originating Requests

Enabled

Persist

src

Persistence Options

Source IP Address

PersistTimeout

3600

Timeout

3600

Schedule

rr

Scheduling Method

round robin

IdleTime

120

Idle Connection Timeout

120

EnableESP

1

ESP Enable

Enabled

ESPLog

4

ESP Logging

Connection (Enabled)

Smtpallow

“Example.com”

SMTP Allowed Domains

Example.com

CheckType

smtp

Real Server Check Method

Mail (SMTP) Protocol

CheckPort

25

Checked Port

25

References

Unless otherwise specified, the documents below can be found at http://kemptechnologies.com/documentation

Web User Interface (WUI), Configuration Guide

Virtual Services and Templates, Feature Description

ESP, Feature Description

Microsoft Exchange 2010, Deployment Guide

Microsoft Exchange 2016, Deployment Guide

Exchange Team Blog post on Load Balancing in Exchange 2013

http://blogs.technet.com/b/exchange/archive/2014/03/05/load-balancing-in-exchange-2013.aspx

KCD, Feature Description

View or configure Outlook Web App virtual directories

https://technet.microsoft.com/en-us/library/dd298140(v=exchg.150).aspx



Last Updated Date

This document was last updated on 03 August 2023.


Was this article helpful?
0 out of 0 found this helpful

Comments
